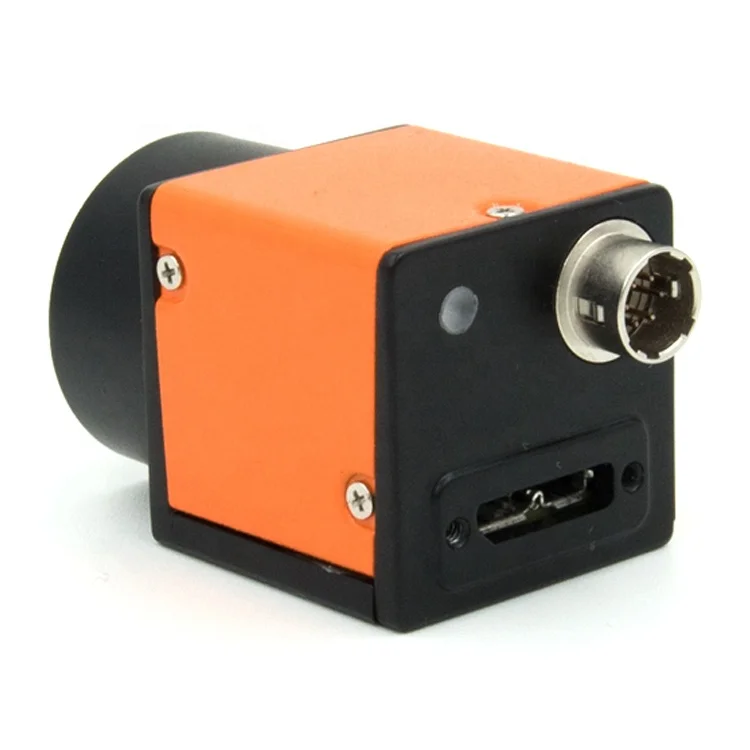

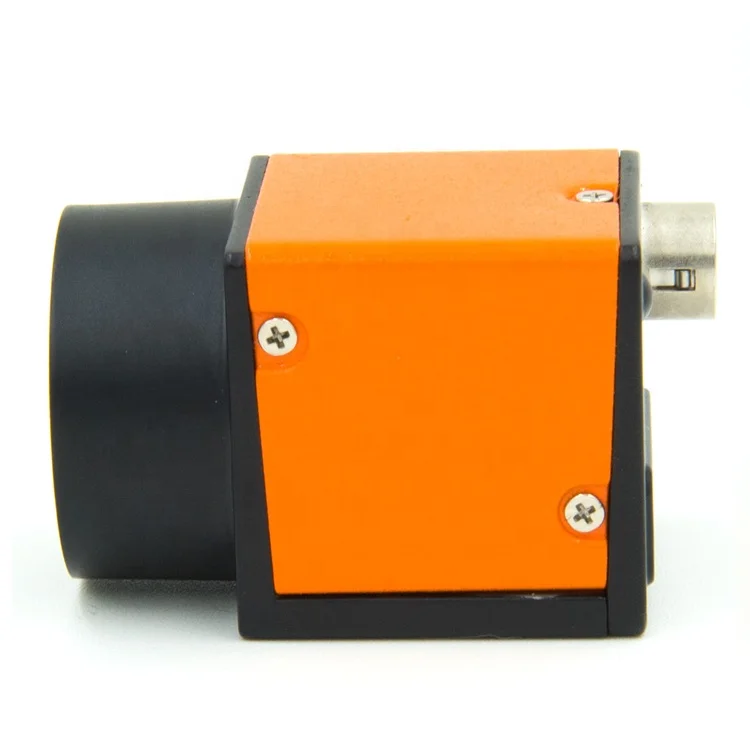

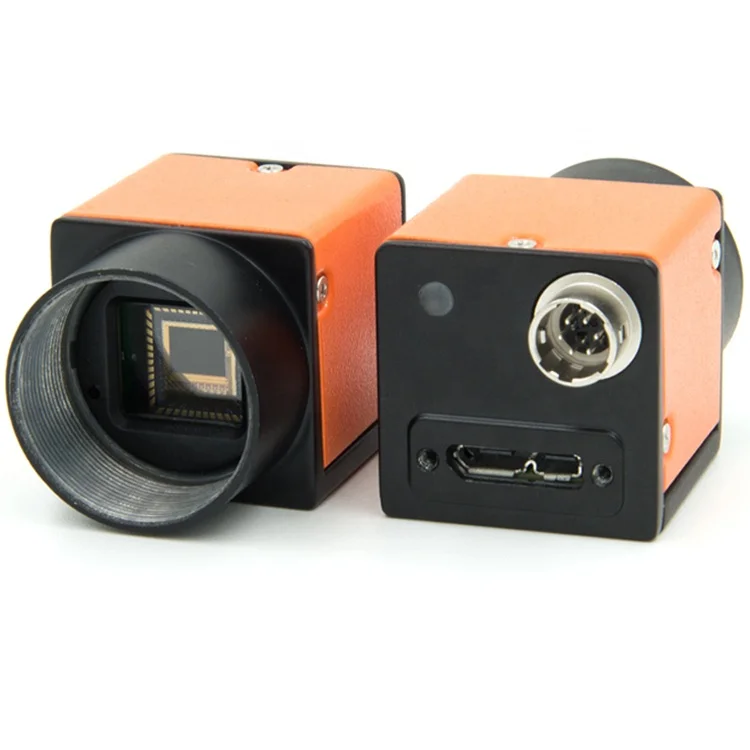

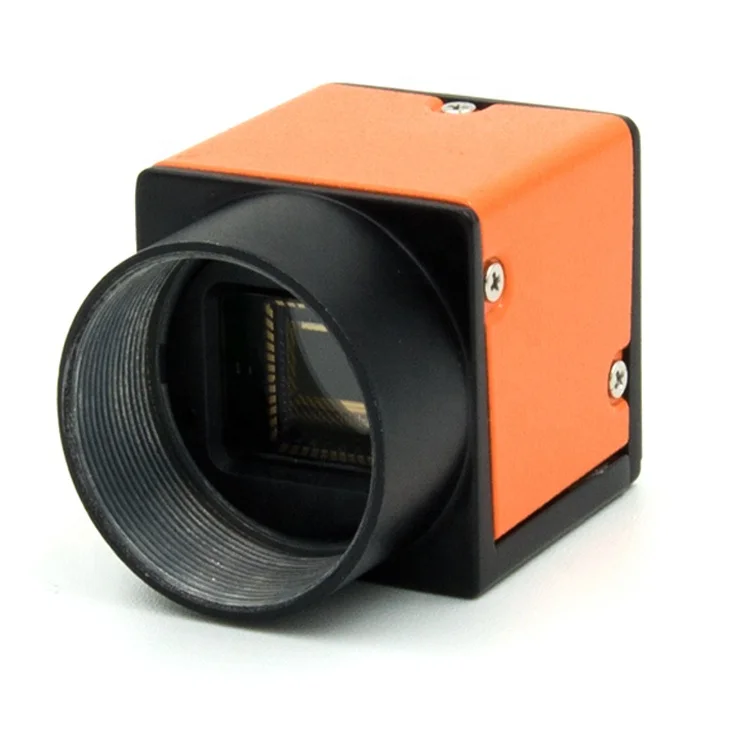

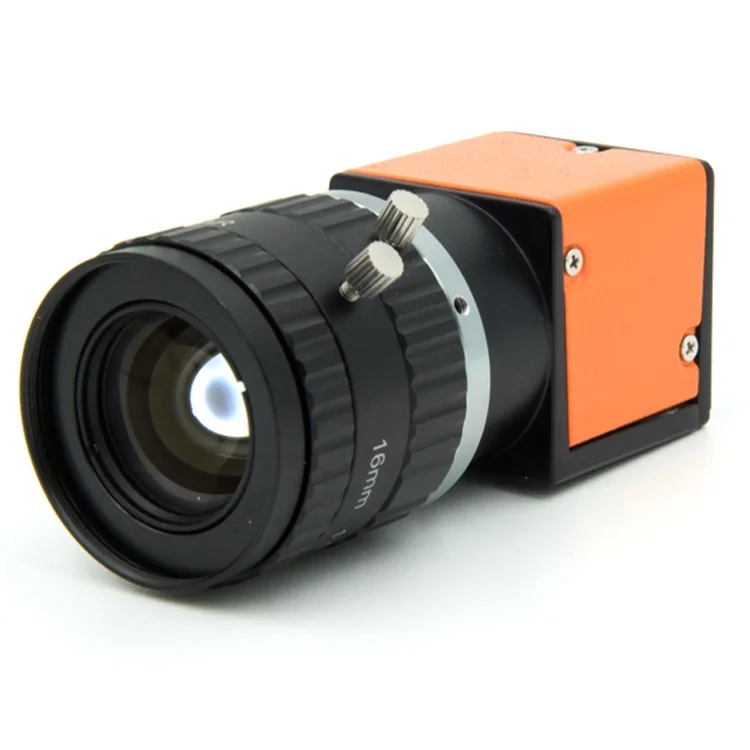

Mars1300-210UC Бесплатный SDK 1,3 МП промышленных применений высокоскоростной замедленной съемки USB3 стерео камера
- Категория товара: Surveillance Products >>>
- Поставщик (Оптовый магазин): Hangzhou,Contrastech,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Brief Introduction

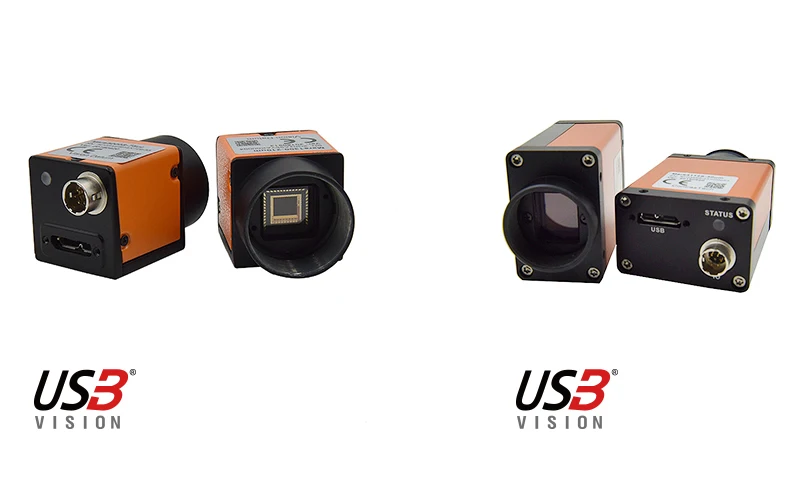

Contrastech Mars Series USB3.0 Area Scan Camera
Mars series USB3.0 camera with USB3.0 high-speed data transmission
bus, which to achieve high frame rate while guaranteeing image quality
and stability.
Mars USB3.0 industrial camera support plug and play, and it conforms
GenICam™ and USB3 Vision® protocol, can smoothly connected to
HALCON, Vision Pro, Labview and other third-party software without
the secondary development. Meanwhile, the professional SDK that
developed for NVIDIA TX1 and TX2 platforms makes embedded
applications more convenient.
Product Main Features:
1. Frame Rate up to 815fps.
It is ideal for high speed applications.
It is ideal for high speed applications.
2. High Quality Sensors.
With the Lastest Python sensors from
With the Lastest Python sensors from
On-Semiconductor and SONY Pregius
CMOS sensors provide high quality images.
3. Burst Transmission.
With USB3.0 high-speed data transmission data transmission bus.
4. 128MB RAM.
Internal memory up to 128MB guarantees
Internal memory up to 128MB guarantees
no image loss.
5. Excellent Compatibility
conforms GenICam™ and USB3 Vision®
protocol, smoothly connected to HALCON,
Vision Pro, Labview, etc, 3rd-party software.
Product Specifications
Model Name | Mars1300-210um/uc |
Resolution (H*V pixels) | 1280x1024 |
Pixel Size(μm2) | 4.8x4.8 |
Frame Rate | 210fps |
Exposure Time | 1µs~1s |
Output Color | Color/Mono |
Image Foramt | Mono: Mono8/10/10packed Color: Mono8, BayerRG8/10/ 10packed RGB8packed YUV422packed |
Operating Temperature | -30~80°C (Storage) -30~50°C (Working) |

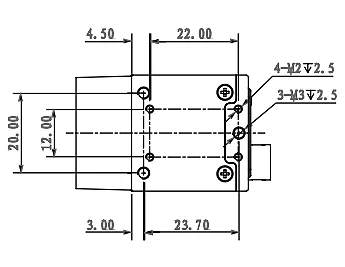

Camera Dimension Drawing:
29.0 mm × 29.0 mm × 29.0 mm

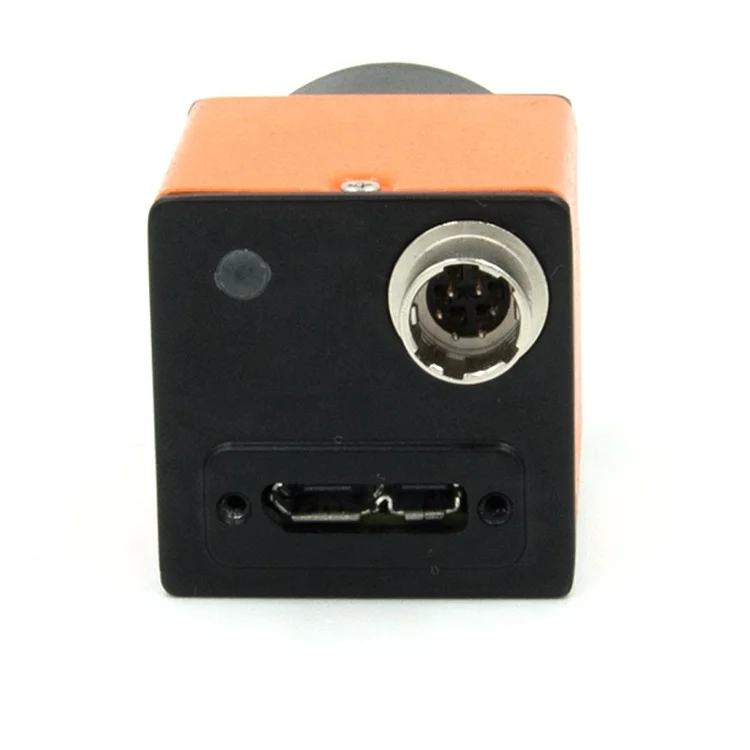

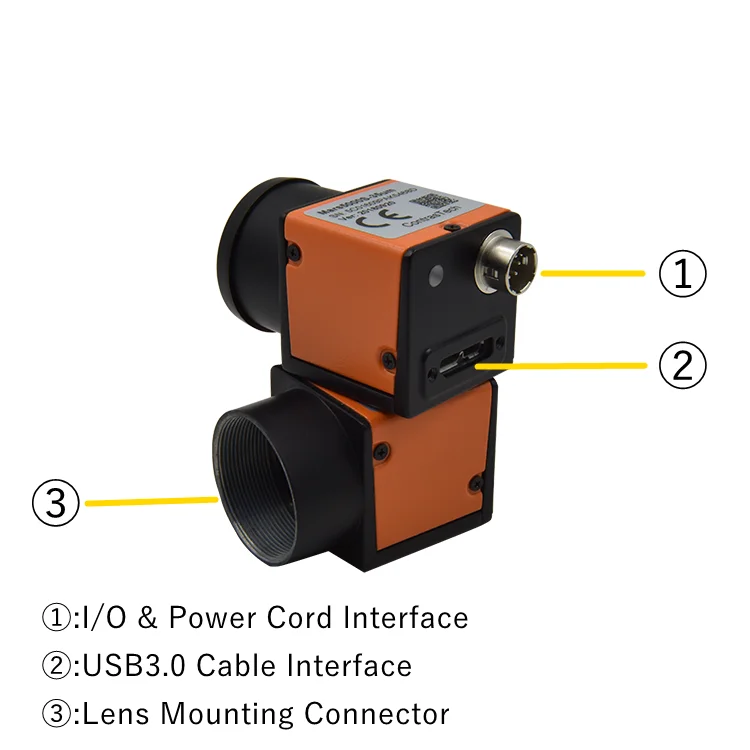

Camera Interface Instruction
Applications & Cases
Major Applications:
Our cameras are widely
used in the following fields:
VR/AR;
Defect Inspection;
Vision Localization;
Barcode Reading;
Logistic Industry;
Dimension Measurement;
SMT(Surface Mounted Technology).
Cases Exhibition
Case1: Penhead Defect Detection
Case2: Cap Spray-code Detection
More Model List
Mars Series USB3.0 Area Scan Cameras | ||||||||
1. Please click the specific model name for more details. 2. um: USB3.0 Mono, uc: USB3.0 Color, NIR: Near Infrared. 1/4": 1/4 inch. | ||||||||
Model Name | Resolution (H*V pixels) | Frame Rate (fps) | Sensor Size (inch) | Pixel Size (μm2) | ||||
640x480 | 815fps | 1/4" | 4.8 | |||||
800x600 | 545fps | 1/3.6" | 4.8 | |||||
1280x1024 | 210fps | 1/2" | 4.8 | |||||
1920x1200 | 150fps | 2/3" | 4.8 | |||||
1920x1080 | 120fps | 1/2.8" | 2.9 | |||||
1920x1200 | 130fps | 1/1.2" | 5.86 | |||||
2048x1536 | 90fps | 1/1.8" | 3.45 | |||||
4000x3000 | 24fps | 1/1.7" | 1.85 | |||||
2048x2048 | 90fps | 1" | 5.5 | |||||
4096x3000 | 23fps | 1.1" | 3.45 | |||||
4096x3000 | 30fps | 1.1" | 3.45 | |||||
2448x2048 | 35fps | 2/3" | 3.45 | |||||
2448x2048 | 75fps | 2/3" | 3.45 | |||||
2592x2048 | 60fps | 1" | 4.8 | |||||
3072x2048 | 60fps | 1/1.8" | 2.4 | |||||
