Product Description
| Size | 600*600*530mm/Customized |
| Material | Cold Rolled Steel |
| Finish | Powder coating |
| Pretreatment | Phosphorization |
| ODM/OEM | Acceptable |
12RU Outdoor Wall Mount Cabinet. (600 x 600 x 530mm). IP65 rated. Lockable front door. No fans or filters. Wall mount included. Made from rolled steel. Grey
Features:
- Designed to protect sensitive network equipment from harsh environments where equipment may be exposed to dust or water
- IP65 rated standard
- Front door has 130 degrees of movement, swinging from left to right
- Sealed bottom cable entry gland
- Static Loading: 60kg
- Adjustable 19” rack mount rails
- Water and dust proof polyurethane door joint strip
- Optional Plinths available to floor mount cabinets
- Wall mount accessories included
- Fully welded design, supplied complete, no assembly required
- Made from cold rolled steel
- Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated
- Subject to use within the static loading specifications, operation within normal environmental conditions and adequate and appropriate mounting installation

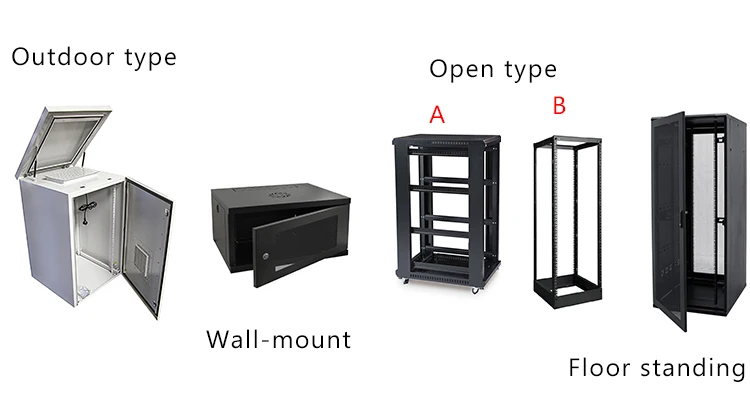

We also have other outdoor network cabinets:
These are all of our network cabinet&Server rack:
RC specification
| Width(mm) | Depth(mm) | Capacity(U) | Height(mm) |
| 550 | 450 | 4U | 280 |
| 6U | 370 | ||
| 9U | 500 | ||
| 12U | 635 | ||
| 15U | 770 | ||
| 18U | 910 | ||
| 22U | 1100 | ||
| 27U | 1300 | ||
| 550 | 600 | 6U | 370 |
| 9U | 500 | ||
| 12U | 635 | ||
| 15U | 770 | ||
| 18U | 910 | ||
| 22U | 1100 | ||
| 27U | 1300 | ||
| 600 | 450 | 6U | 370 |
| 9U | 500 | ||
| 12U | 635 | ||
| 15U | 770 | ||
| 18U | 910 | ||
| 22U | 1100 | ||
| 27U | 1300 | ||
| 600 | 600 | 6U | 370 |
| 9U | 500 | ||
| 12U | 635 | ||
| 15U | 770 | ||
| 18U | 910 | ||
| 22U | 1100 | ||
| 27U | 1300 |
Large server rack:
Company Information
Main processes
Packaging & Shipping
Certifications
FAQ
Q1:.Are you manufacturer or trader.
A1: We are factory and located in Chengdu industry area.Please check the video at home page.
Q2: What do you manufacture.
A2:We are sheet metal fabrication factory.metal parts are our main product.like sheet metal parts,metal electrical cabinet,metalenclosure,storage rack,kiosk,workbench any kind of product made of metal
Q3: What kind of payment do you accept.
A3: You can pay 50%TT deposit in advance, and balance before container loading .And LC//West Union/PayPal,etc. if you have other payment terms, please contact us freely.
Q4: What is your MOQ.
A4: It depends on product, those are different from different products.
Q5: Do you accepte OEM/OBM.
A5: Yes.Please don't hesitate to tell us your idears and send your drawings or pictures to our email
Q6: Which port do you export.
A6:Shanghai,Shenzhen,Ningbo,Chongqing. any port you prefer
Q7: Can you provide sample.
A7: Yes, we can provide sample to let you check the quality to establish stable business relationship
