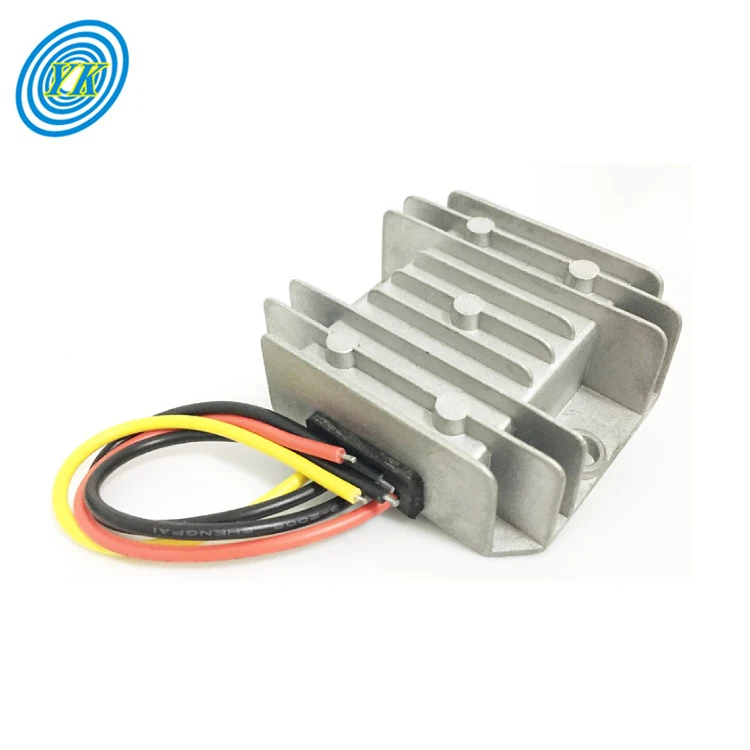

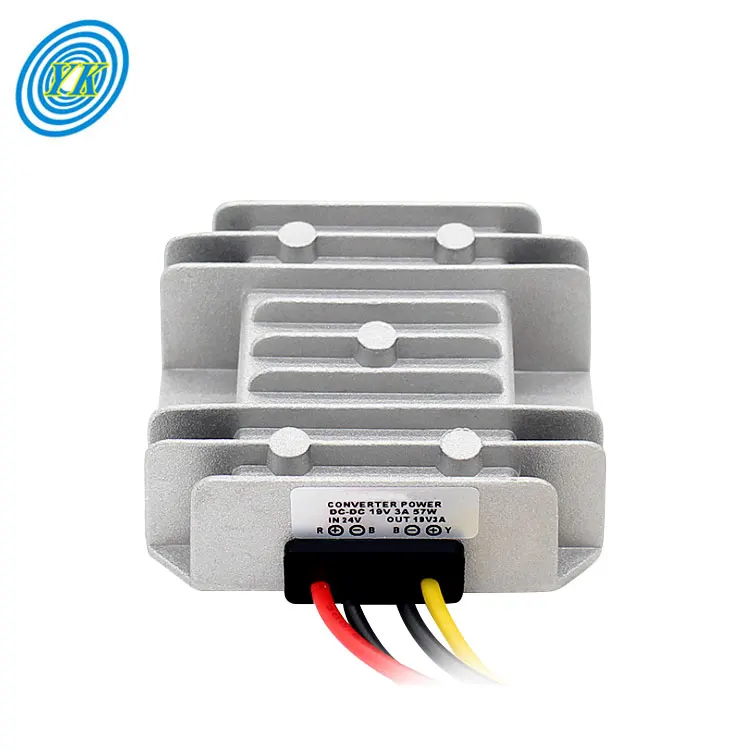

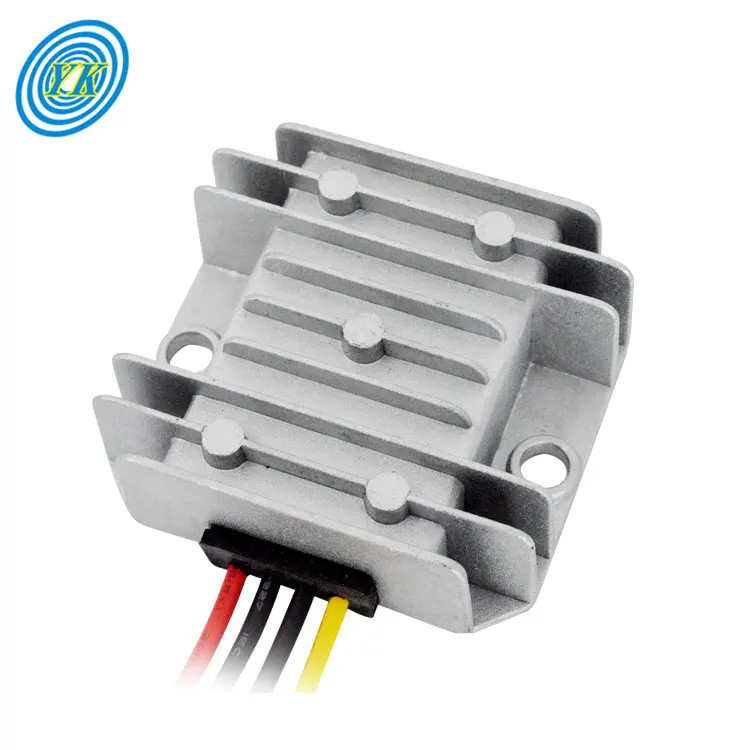

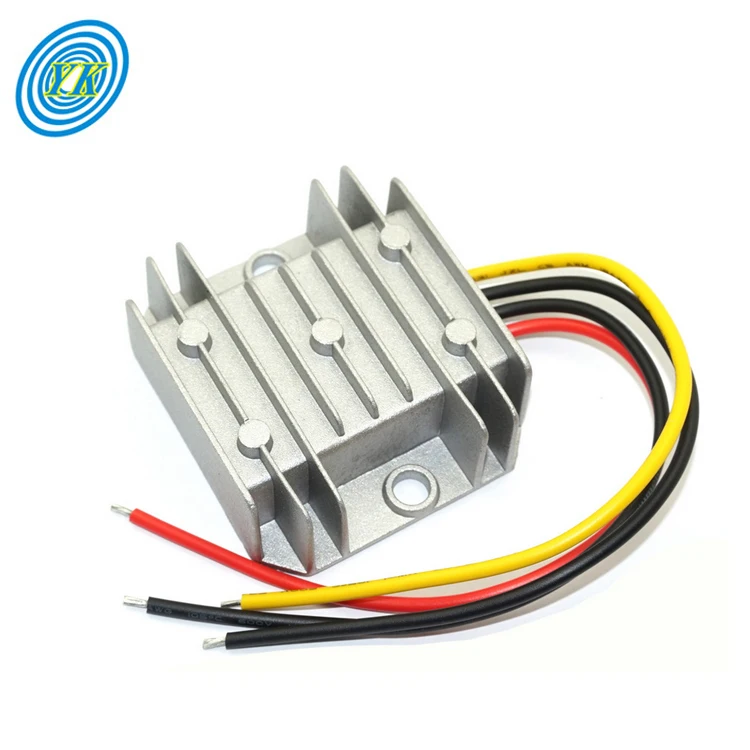

Преобразователь регулятора напряжения постоянного тока от 24 В до 12 В для вентилятора

Model

 YK-DD24S1210

Input

Input voltage

24Vdc

Rate voltage

15--35Vdc

Output

Rate voltage

12vdc

Output current

10A

 Power

120W

Output peak power

Efficiency

93% (half load) ; 92% (full load)

Voltage regulation

< 1%

Load regulation

< 2%

Ripple (Full load test)

< 50mV

No-load  current

< 20mA

IP67

Protection

 Lower voltage protection

Intrusion protection

Short-circuit protection and automatic recovery

Full waterproof potting

Cooling way

Free air convection

Certifications

CE, RoHS

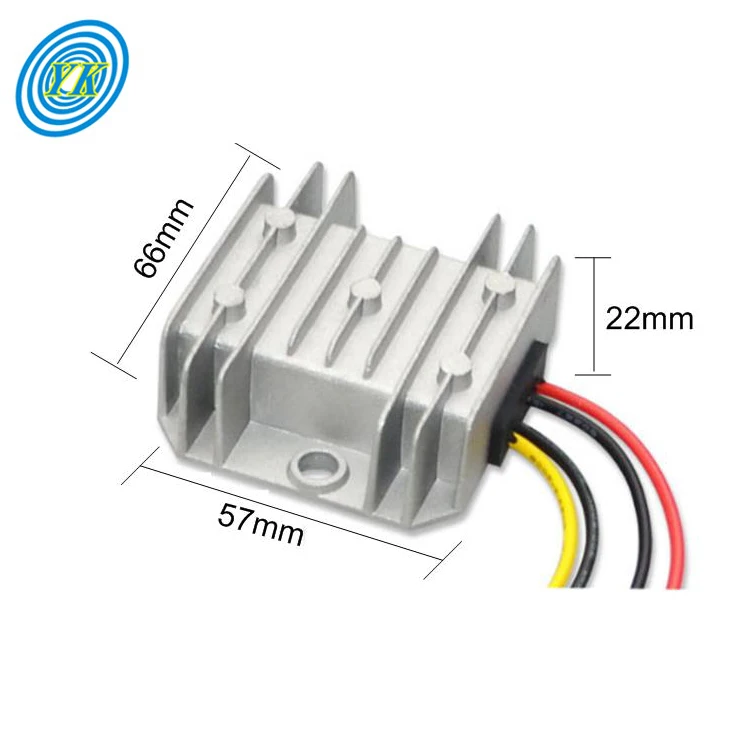

Dimension

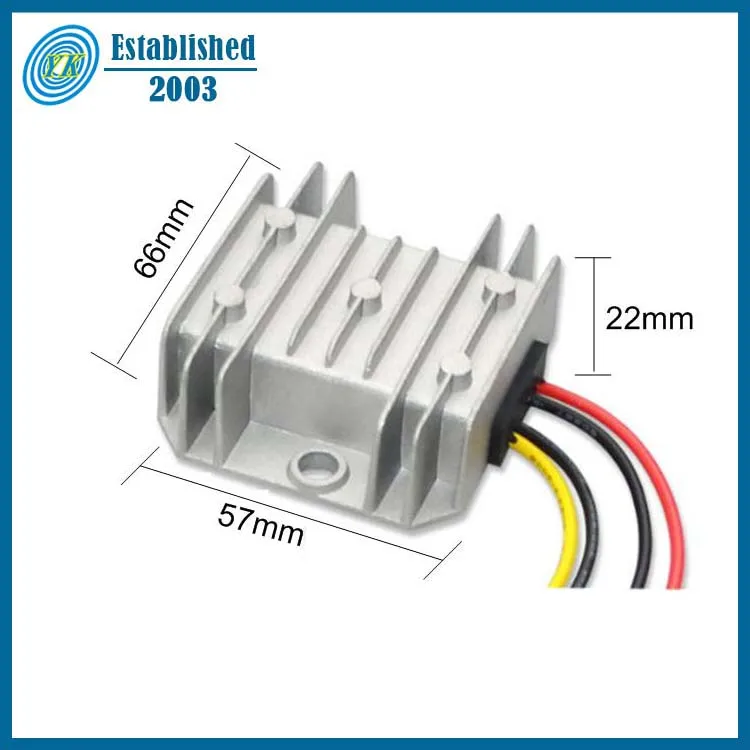

Machine size:66*60*22mm   NW:125g

Type

Model

Voltage convert

Input to output

Output Current

(Be option)

Boost

DC-DC

Converter

YKDD5S12** Series

5vdc to 12vdc

1~10A

YKDD12S13.8** Series

12vdc to 13.8vdc

1 ~20A

YKDD12S15** Series

12vdc to 15vdc

1~15A

YKDD12S19** Series

12vdc to 19vdc

1~20A

YKDD12S24** Series

12vdc to 24vdc

1~40A

YKDD12S27/28 Series

12vdc to 27vdc/28vdc

1~40A

YKDD12S32/36** Series

12vdc to 32vdc/36vdc

1~30A

YKDD12S48** Series

12vdc to 48vdc

1~20A

Sep down

DC-DC

   Converter

YKDD1224S3.3-9** Series

12vdc/24vdc to 3.3-9vdc

1~60A

YKDD24S12** Series

24vdc to 12vdc

1 ~30A

YKDD3648S5** Series

36vdc/48vdc to 5vdc

1~25A

YKDD3648S12** Series

36vdc/48vdc to 12vdc

1~60A

YKDD3648S24** Series

36vdc/48vdc to24vdc

1~30A

YKDD48S36** Series

48vdc to 36vdc

1~10A

YKDD60S5** Series

60vdc to 5vdc

1 ~20A

YKDD60S12** Series

60vdc to 12vdc

1 ~15A

YKDD60S24** Series

60vdc to 24vdc

1 ~10A

YKDD60S36 Series

60vdc to 36vdc

1 -8A

Automatic Step down andBoost

DC-DC

Converter

YKDD12S12 Series

12vdc to 12vdc

1-10A

YKDD24S24 Series

24vdc to 24vdc

1-8A

Note:

A.Output current be option only but not constant adjustable B.Other Specification can customize base on user request. Please contact with YUCOO Sale team

C.Non-Isolated design

D.Constant voltage design

E.Waterproof

F.High efficiency
