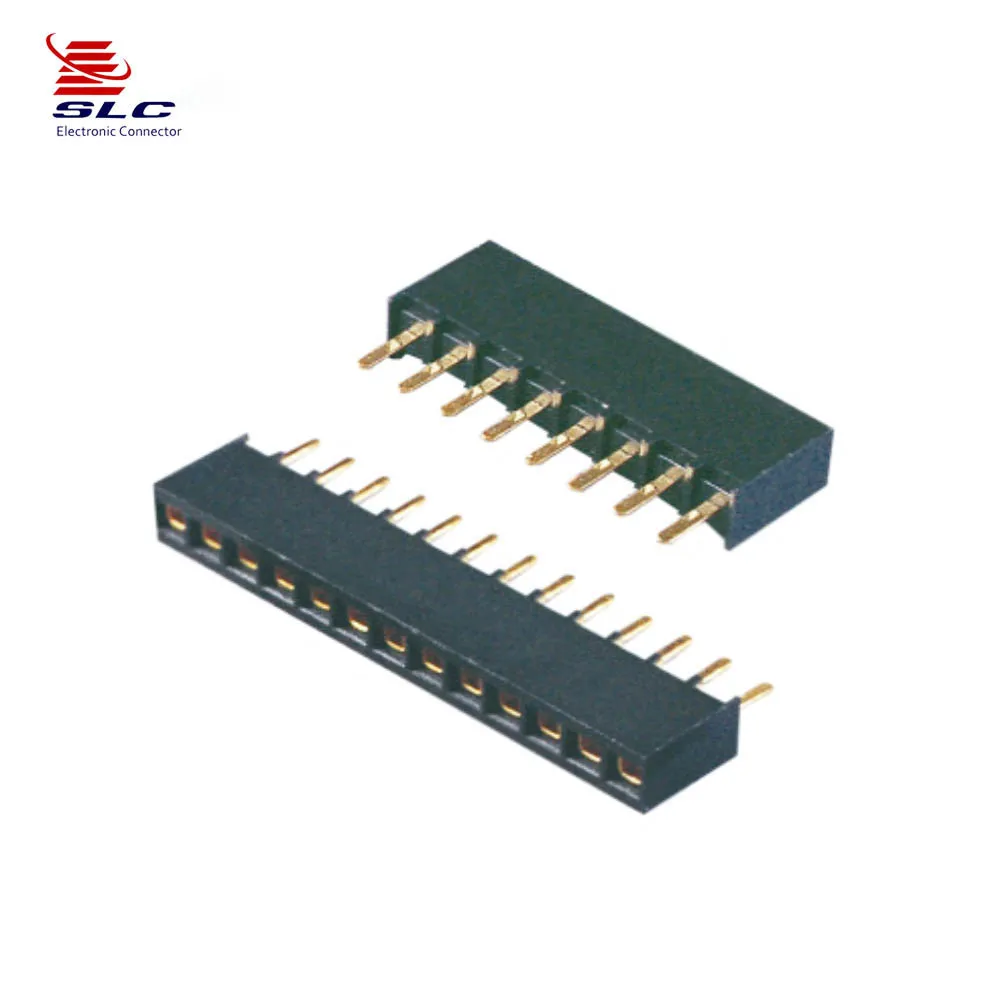

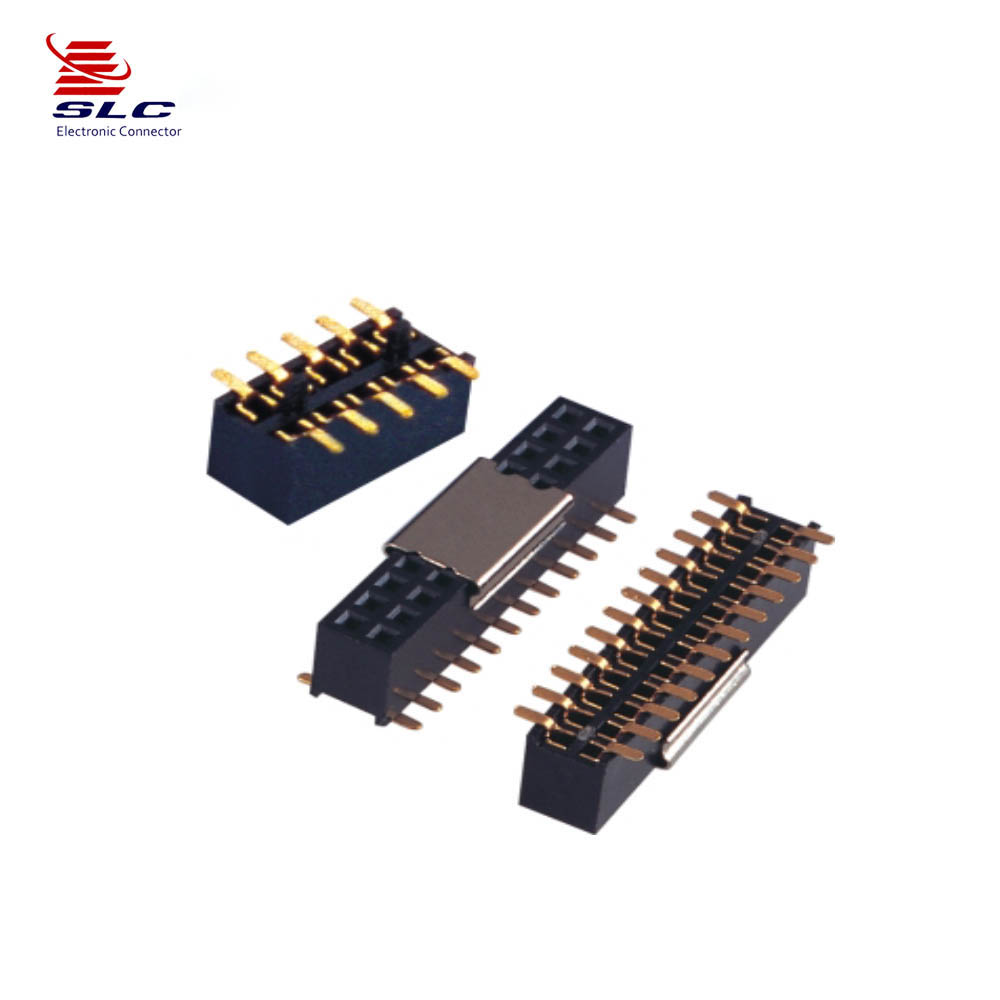

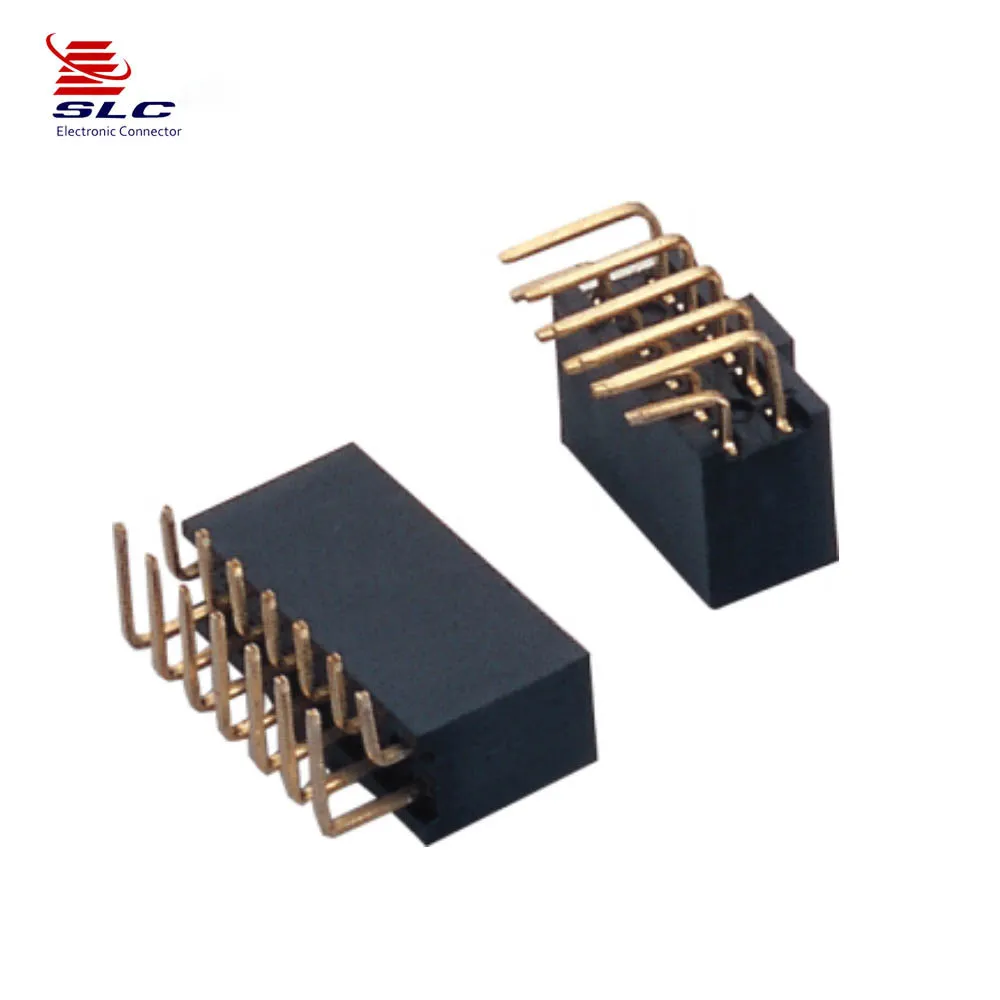

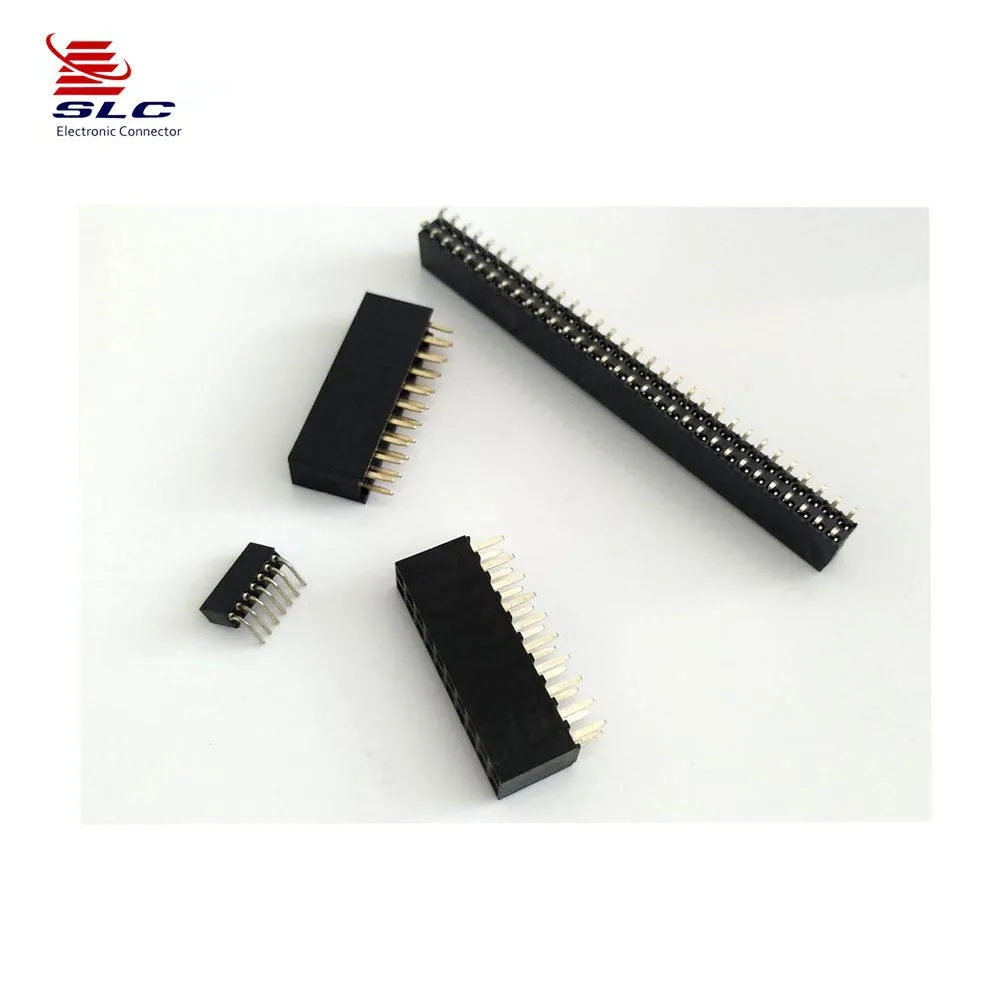

Гнездовой разъем 1,27 мм, соединитель SMT
- Категория товара: >>>
- Поставщик (Оптовый магазин): Dongguan,Sanling,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
| Series No. | FH1234-2XXXSXXMUX01 | |||
| Description | 1.27mm 2pin~50pin Female header connector,Dual row, Black,SMT with Locating peg or CAP, H=3.4mm | |||
| Standard Dimension | PA | PB | W | Length |
| Custom Dimension | ||||
| Pin ways | 2*2P TO 2*50P | |||
| Alternative Plating | G/F | Tin | Sel. Gold/Tin | |
| GO | SN | S0 | ||
| Packing way | PE Bag /Tube/ Tray/ Plastic box/ Tape&Reel Packing. | |||
| MOQ | 500PCS | |||
| Delivery time | 1-2weeks after confirm order | |||
| Engineering Specifications | Rated Current:1.00AMP | |||
| Contact Resistance: 20MΩ Max | ||||
| Withstand Voltage:500V AC/DC | ||||
| Insulation Resistance:1000MΩ Min | ||||
| Operation Temperature: -40°c to +105°c | ||||
| Contact Material : Phosphor Bronze | ||||
| Contact Plating: Au or Sn Over Ni | ||||
| Insulator Material :Polyester (UL94V-0) | ||||
| Standard: PA6T | ||||
| Max.Processing Temp:230°c for 30-60 Seconds / (260°c for10 Seconds) | ||||

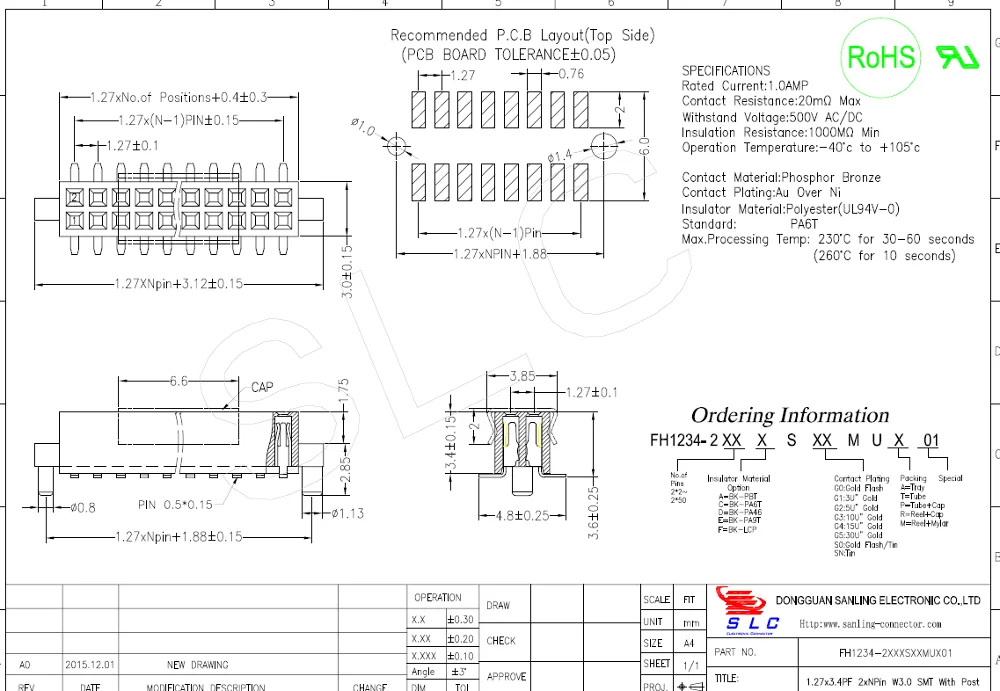

Drawings details

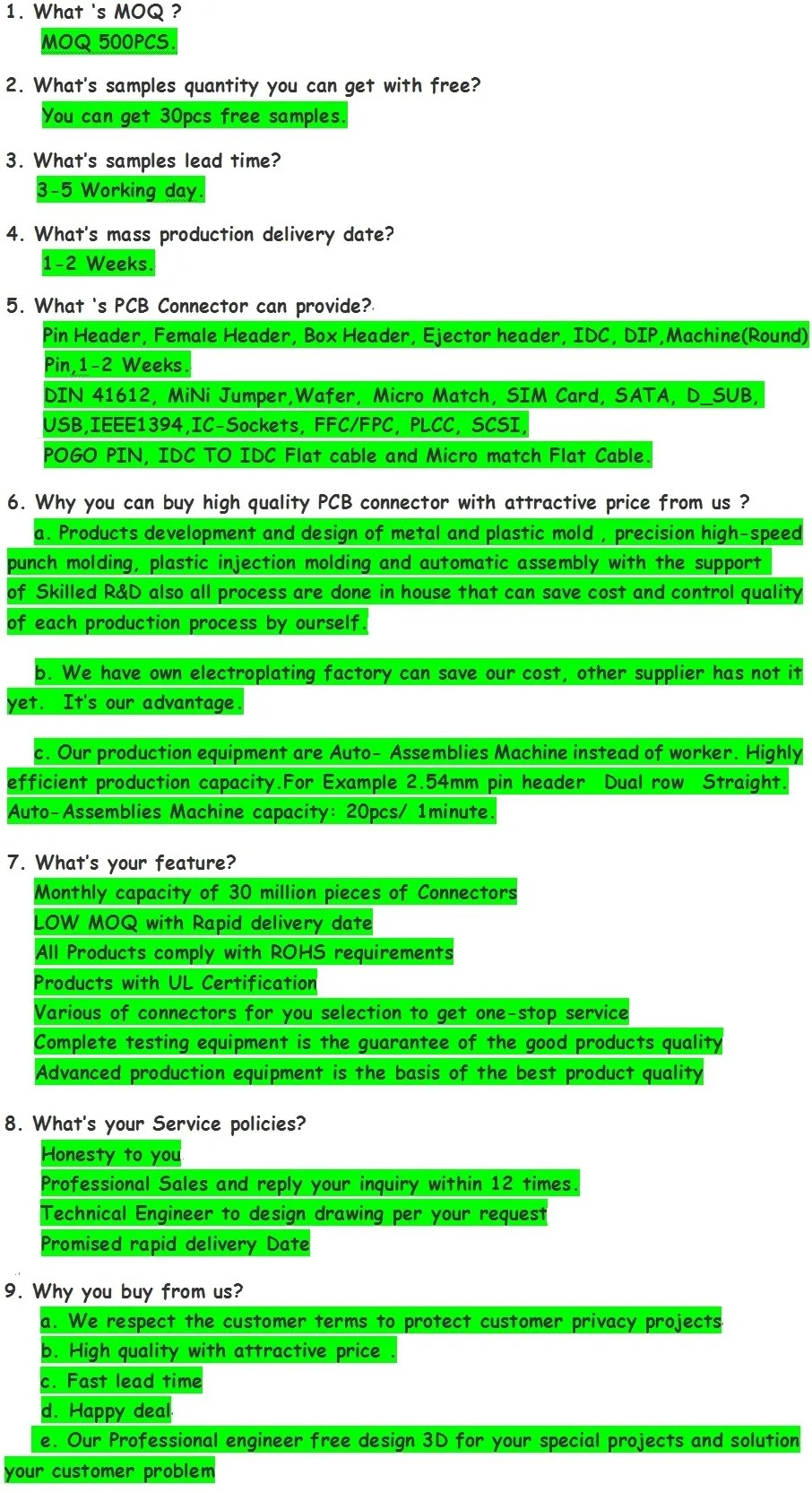

FAQ
