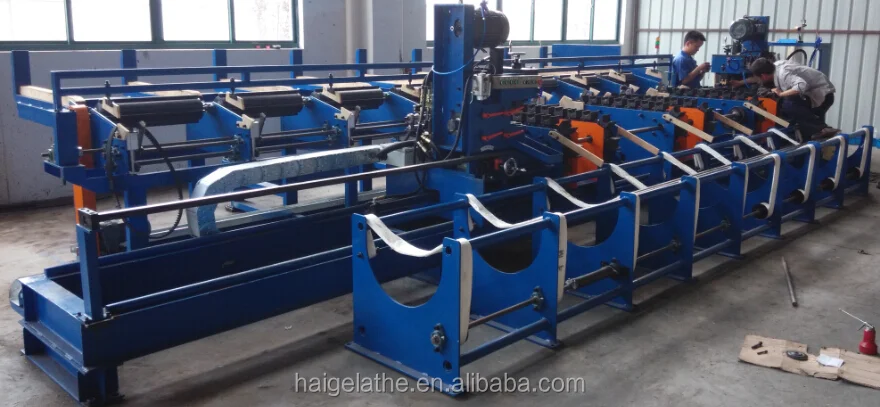

Low Price China Automatic Double Head End Bar Chamfering Machine

Video address:

1. https://www.youtube.com/watch?v=o0Lrtgzl9sU&t=83s

2. https://www.youtube.com/watch?v=c50K7JeaFLM

3. https://www.youtube.com/watch?v=EM8RKUy5i_Y

Ⅰ.Main technical parameters

Function: double-head chamfering

Model: CM 1550-3070

Chamfering speed:  2-10 bars / min

(Big bar speed slows , small bar speed faster , large chamfering depth needs slow speed , small chamfering depth speed can be faster) .

Total capacity:  12KW

Diameter range: round bar φ15mm–φ50mm

 length: 3M -7M

Material : steel , iron , etc...

Chamfering type : double -head chamfering without ends facing ( the length tolerance each bundle bars should be ≤50cm)

 Voltage : 380V 50 HZ

approx size : 10×3.9×1.7(M)

front racks loading :2000 kg

rear racking loading :2000 kg

material :  round bar , hexagon bar,etc

Chamfering range: 60°( chamfering depth R3-R5) ( If needs 45° tool heads , each set ( 12 nos tool heads shall pay extra 1527$ )

Approx  total weight : 4.5T .

Bar original straightness : 1mm/m

Ⅱ. Supply Scope

 Automatic lifting type loading racks  1 group

Double heads chamfering machine 1 group

 Automatic lifting type unloading racks  1 group

 Electrical cabinet   1 set

 Chamfering ends tools & tools box      1set

Buyer people training at buyer site during machine installation and commissioning

Ⅲ. Others

One side single tool head chamfering device, two tool heads design on both sides; Including vertical regulator, electrical control parts and drive motor.

Adjust center height of chamfering machine manually

Two positioning devices

The whole hydraulic and pneumatic parts use foreign and China brands

Electrical PLC adopts Siemens

Tools  1 set
