Бесщеточный Реверсивный Регулятор Двигателя постоянного тока Sabvoton SVMC96080 для велосипеда, 96 в, с функцией Bluetooth-адаптера

Sabvoton controller only design sine wave type controller so far, it’s brushless DC controller, 120 degree phase angle. Generally, we matched it well with QS Motor, if you want to match with new brand motor, some parameters should be tested by yourself.

Key Features

1). Cheap Cost

2). Can match with almost brushless DC motor

3). Programmable

4). Sine wave without noise

1). sine wave controller, programmable, with regen function

2). DC Current Limit: 80A

3). Max. Phase Current: 200A

4). Protect Phase Current: 250A

5). Battery Voltage: 24V-96V rated, Max. 120V

6). Thermic Probe: KTY83-122

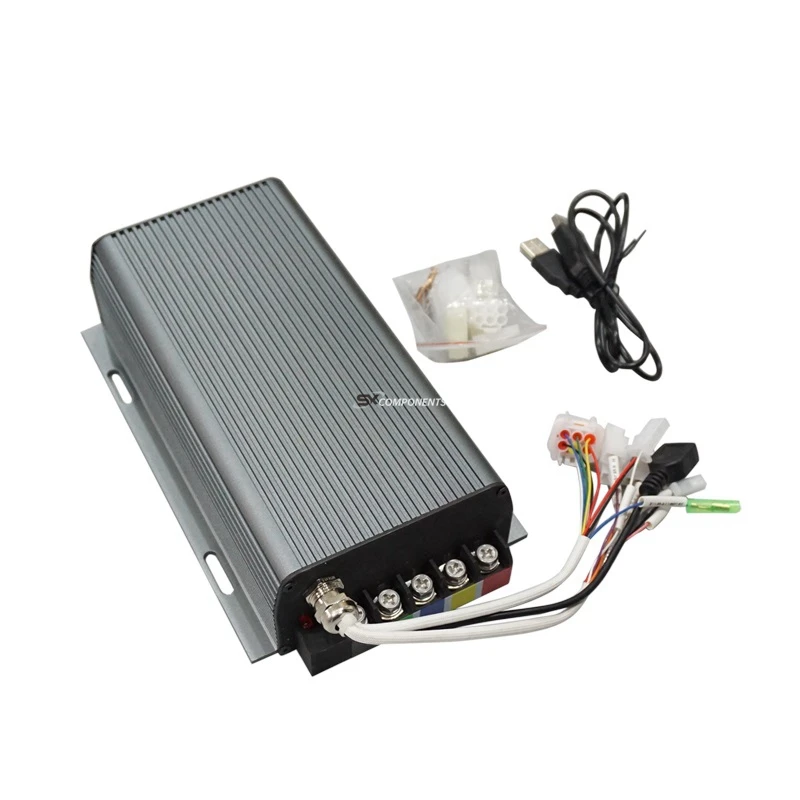

7). Including one controller + USB convertor cable + matched plug

8). controller size: 247mm*146mm*62mm

9). Net weight: 2kg

10). Default not including * adapter.

11). Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed Button, Hall speedometer, Reverse, curise.

12). Special functions: Waterproof, Anti-theft

Notes:

1).We have updated the 0-5v e-brake function.

Old: it should be press the brake switch then can achieve 0-5v e-brake funtion.

Update: you can achieve 0-5v e-brake function without press the brake switch.

2). For no lock type controller, there is warranty service, but we could offer our suggestions for you.

3). CA function not support anymore. You could customize the controller according to our drawing.

4). Pls. make sure all the connection is correct before power on.

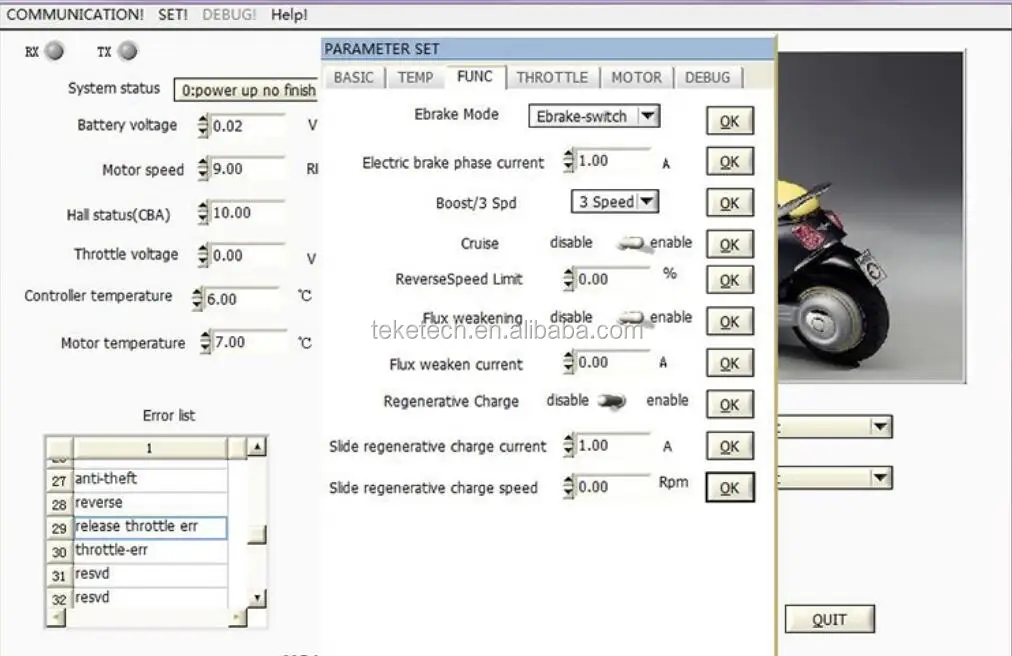

2. Sabvoton Controller Software Interface

Here are the clear and easy adjustment software interface. * adapter are optional, if you want to add it, pls. refer to this link:

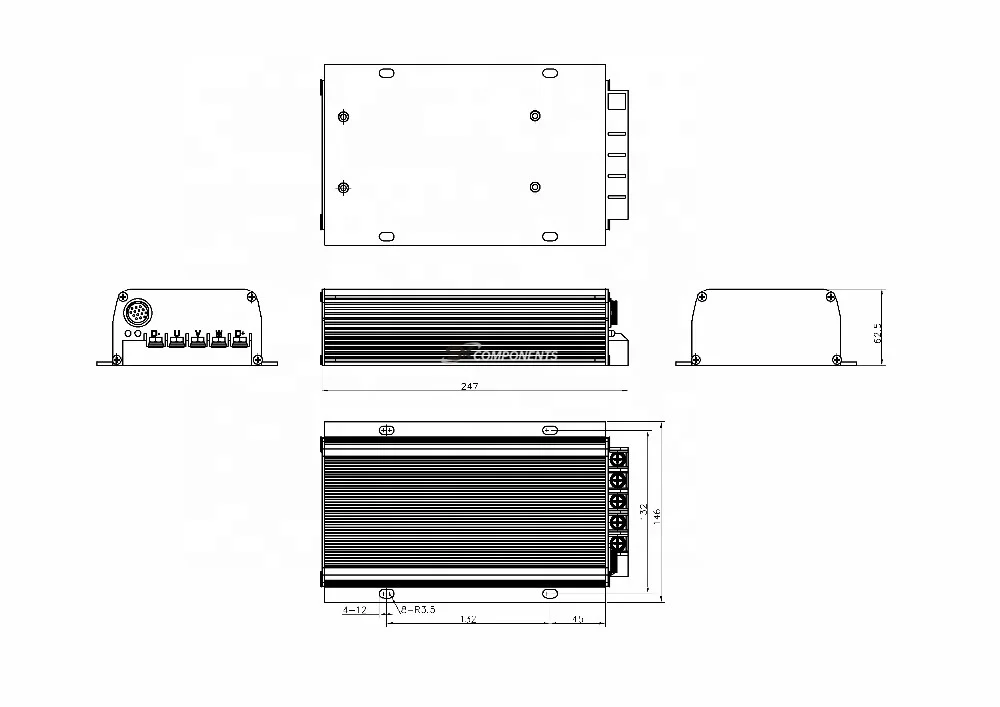

3. Sabvoton SVMC controller drawing

Here is drawing of Sabvoton SVMC controller, 247mm*146mm*62.5mm
