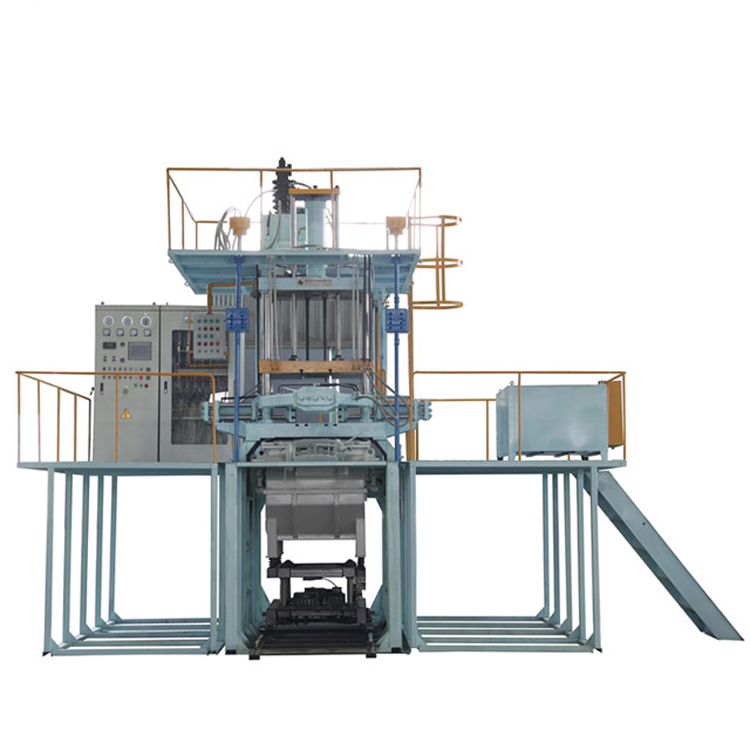

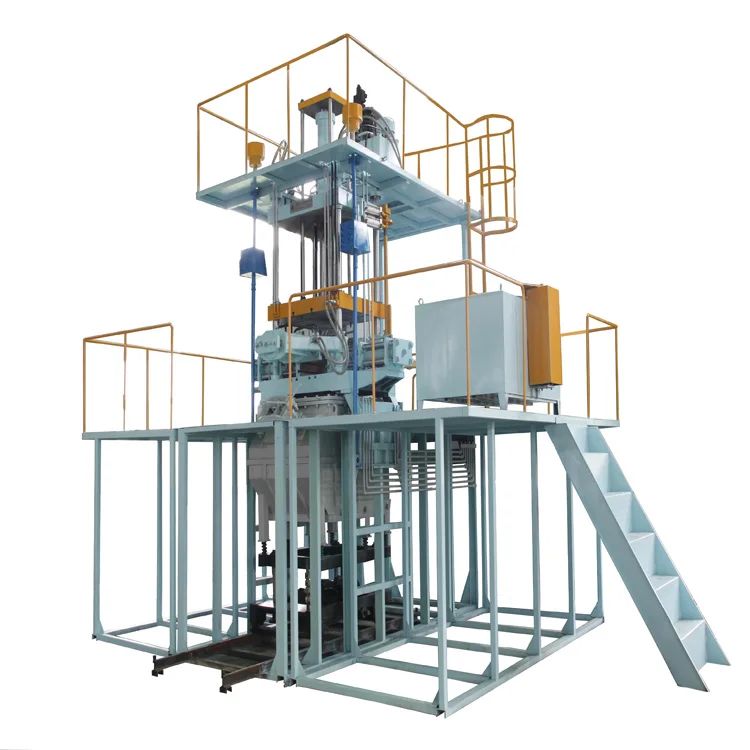

Литье под давлением для литья алюминия

Name: Литье под давлением для литья алюминия
Brand: Nanjing,Boqiao,Machinery,Co.,Ltd.
Availability: InStock

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

Product Description

750

Uses:

Suitable for the production of small and medium-sized aluminum alloy castings

Product features introduction:

² Non-stick aluminum furnace structure, reduce oxidation loss

² Full digital servo hydraulic system, or variable frequency hydraulic system, saving more than 50%

² Mold 90° installation (reverse mounting)

² High pressure accuracy

² high productivity

² Fully automatic cycle

² Full hydraulic drive

² Anti-top release

² High rigidity, high strength and high reliability

² Energy saving and environmental protection

Technology Parameter

Holding furnace capacity	500 or 600 kg
Holding furnace power	120KW(insulation power 36KW)
Max opening mold height	1350mm
Min opening mold height	550mm
Moving plate stroke(middle plate)	800 mm
Effective mold size	1400*1350 mm
Top cylinder diameter	240mm
Side cylinder diameter	180mm
Left and right cylinder mix spacing	900mm
Left and right cylinder max spacing	1600mm
Hydraulic motor power	35KW(Servo hydraulic system)
Machine opening mold dimension	405014004660mm
