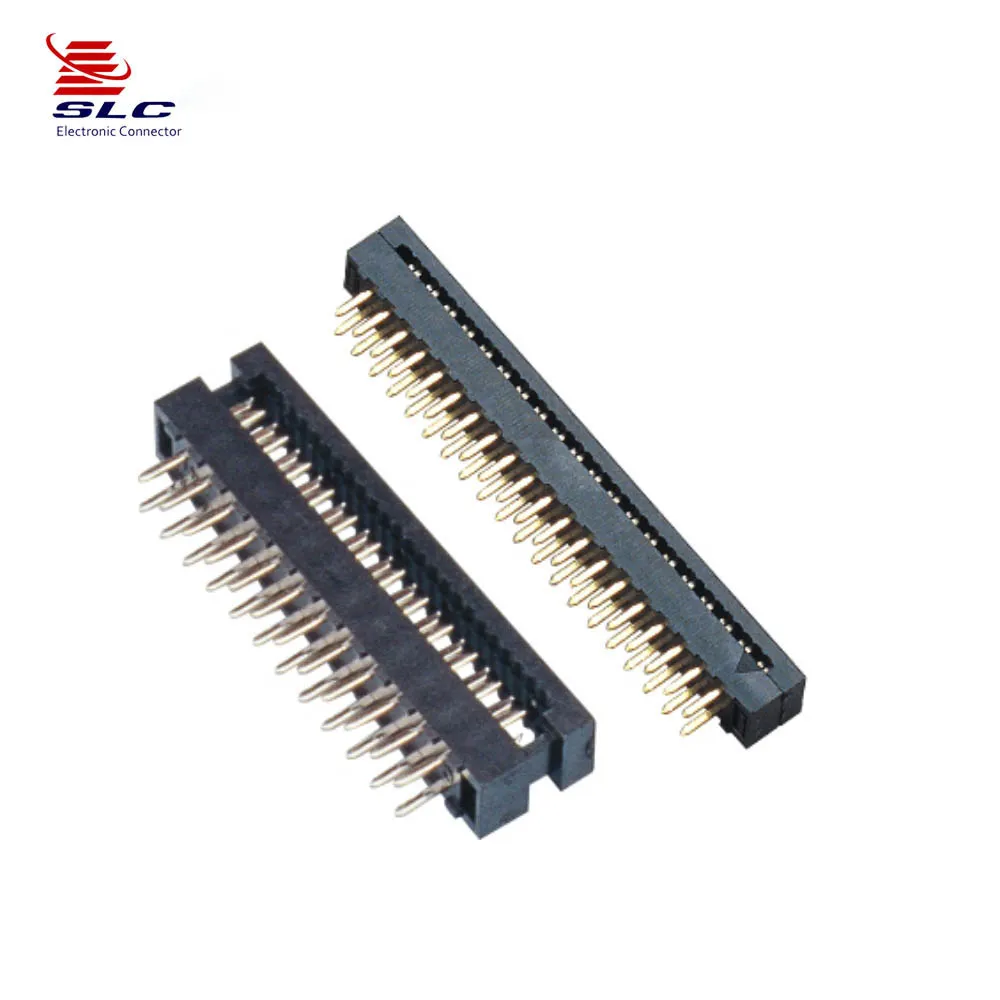

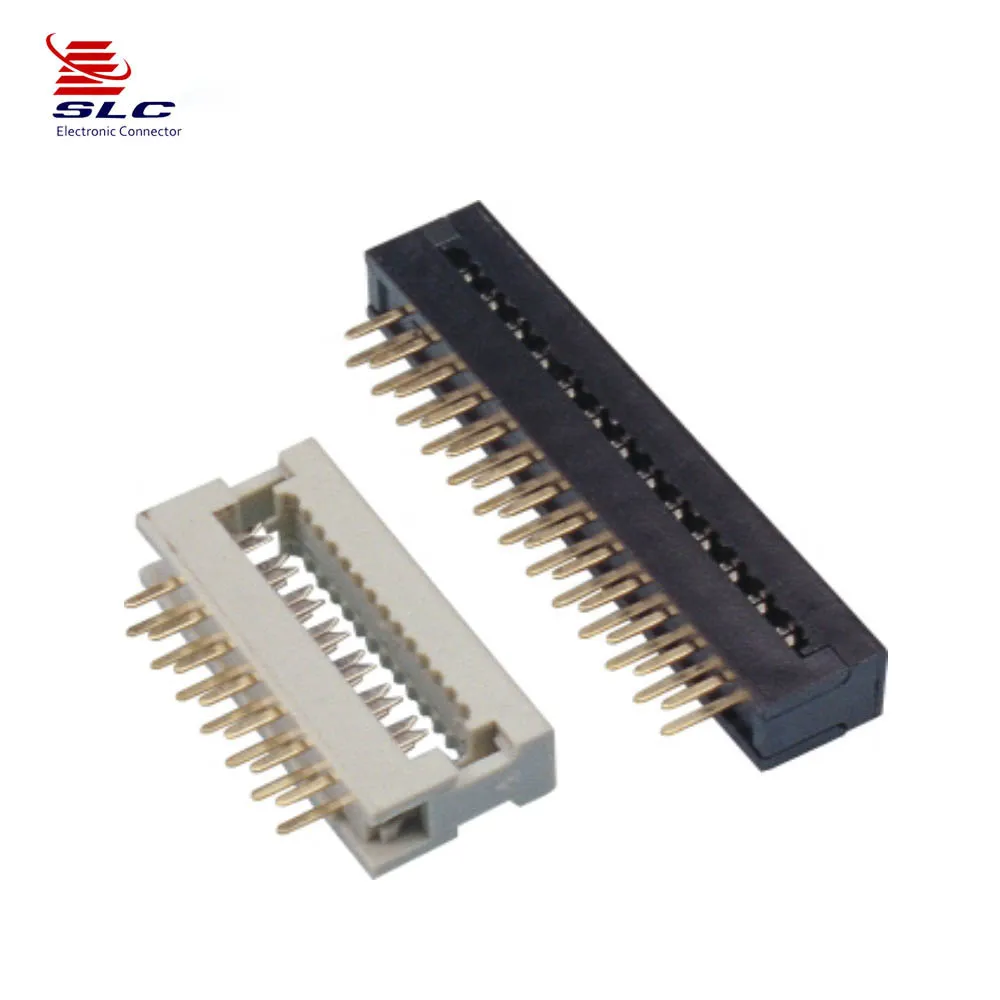

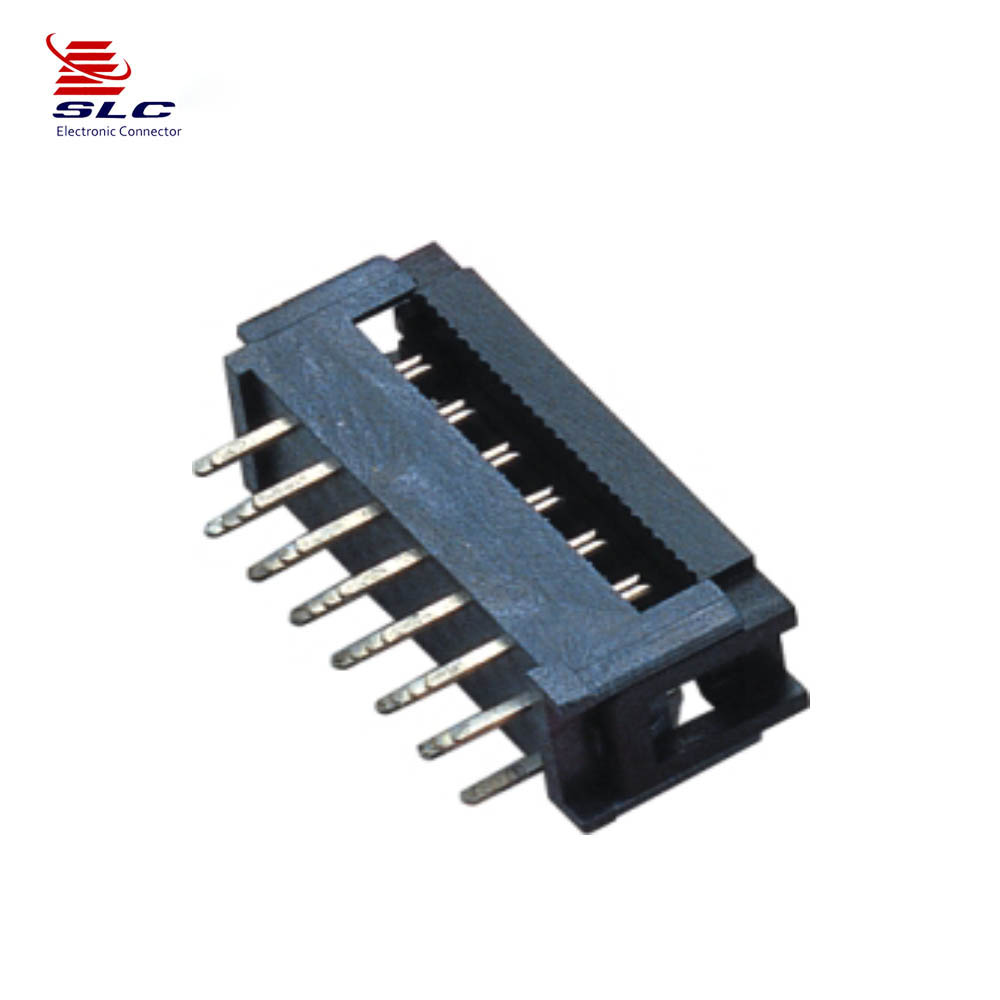

6-контактный разъем DIP 1,27*2,54 мм
- Категория товара: >>>
- Поставщик (Оптовый магазин): Dongguan,Sanling,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
| Series No. | DIP13-XXABXXB01 | |||

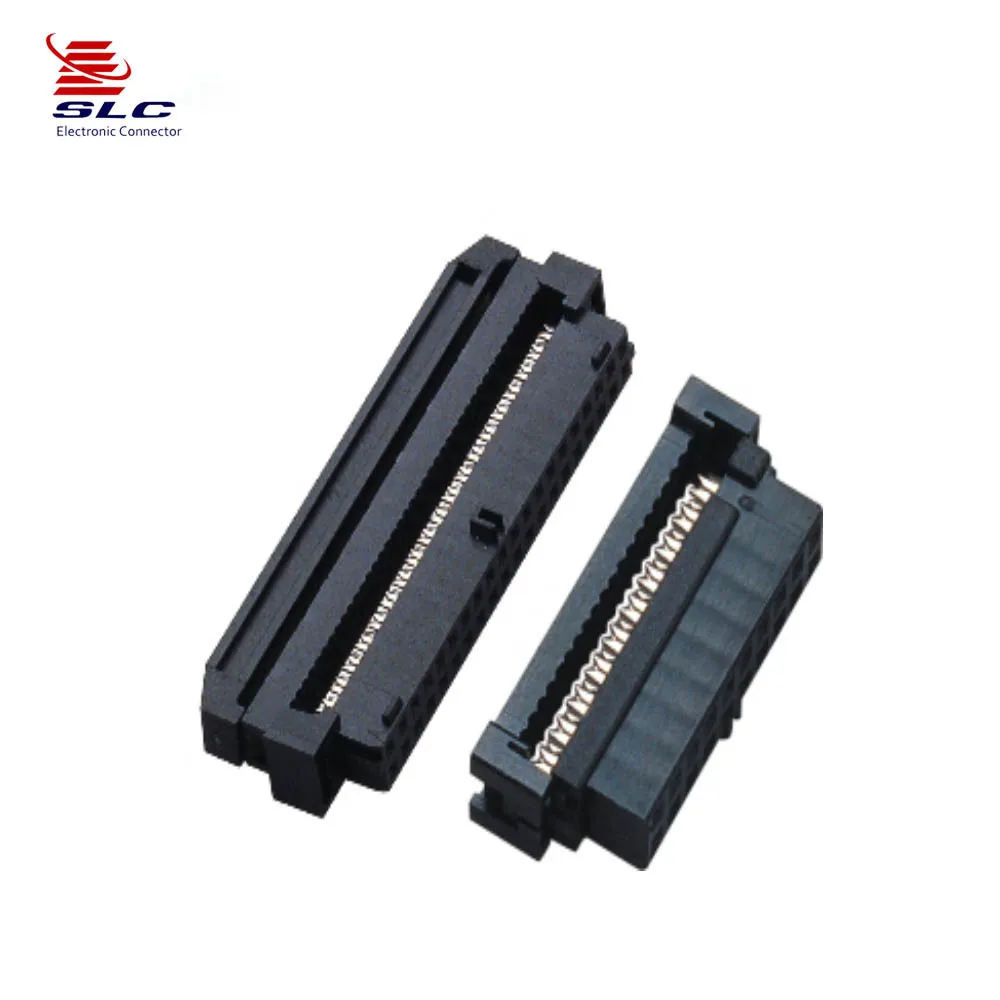

| Description | 1.27*2.54mm 10pin~80pin IDC Socket and DIP Plug Connector | |||
| Standard Dimension | PA | PB | W | Length |
| Custom Dimension | ||||
| Pin ways | 10P TO 80P | |||
| Alternative Plating | G/F | Tin | Sel. Gold/Tin | |
| GO | SN | S0 | ||
| Packing way | PE Bag /Tube/ Tray/ Plastic box/ Tape&Reel Packing. | |||
| MOQ | 500PCS | |||
| Delivery time | 1-2weeks after confirm order | |||
| Engineering Specifications | Rated Current:1.0AMP | |||
| Contact Resistance: 30MΩ Max | ||||
| Withstand Voltage:500V AC/DC | ||||
| Insulation Resistance:1000MΩ Min | ||||
| Operation Temperature: -40°c to +105°c | ||||
| Contact Material : Brass | ||||
| Contact Plating: Au or Sn Over Ni | ||||
| Insulator Material :Polyester (UL94V-0) | ||||
| Standard: PBT | ||||
| Max.Processing Temp:180°c for 30-60 Seconds / (200°c for10 Seconds) | ||||

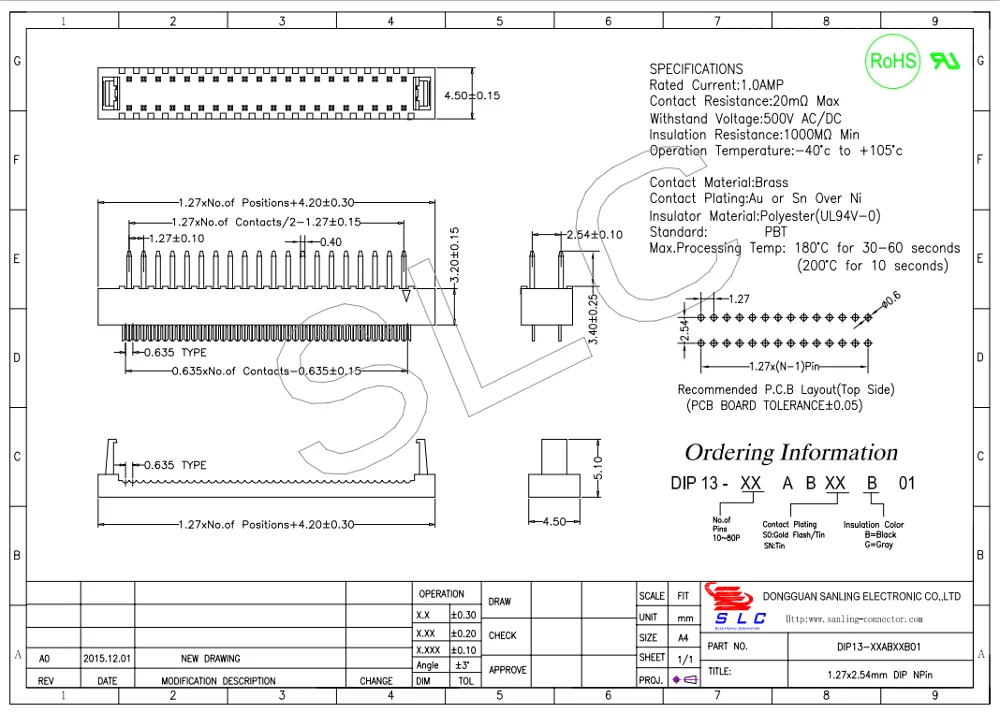

Drawings details
