45 Вт DMX512 RGB волоконно-оптический Звездный потолочный светильник двигатель для украшения помещений
- Категория товара: Волоконные оптические фары >>>
- Поставщик (Оптовый магазин): Huizhou,Karrey,Plastic,Metal,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
45W DMX RGB Fiber Optic Light Engine | ||
Input Voltage | DC24V, AC86-265V | |
Power | 45W | |
Material | Aluminum | |
light color | RGB Mixing Colors | |
Fiber Connector Diameter | 30mm, can hold up to 1200pcs 0.75mm fiber optic. | |
Key Features | DMX, 3 control modes | |
Size of light engine | L227mm\t×W195mm×H80mm | |
Lifetime | 50000 Hours | |
Warranty | 2 years | |
Main Features:
*** 45W high power super bright LED light engine.
*** Speed and brightness adjustable.
*** Multiple effect modes. Includes static color modes and dynamic modes (jump color mode and fade color mode).
*** DMX512 function, can be used online.
*** Three control mode. There are DMX MODE, RF REMOTE MODE and AUTOMATIC MODE.
*** Aluminum shell for better protection.
Welcom OEM,ODM,OBM .
Product Description
DMX512 Function
The item have DMX512 function, can be used in serval online.
There are DMX mode, RF mode and Automatic mode.

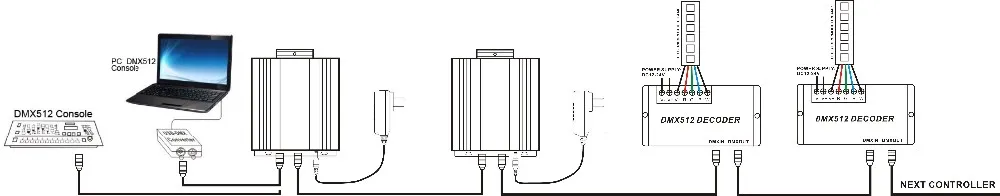

1. DMX MODE
In this mode, you can control the fiber optic light engine with DMX512 console or PC DMX512 console.
Note: FUN=OFF (the tenth code switch up) means to accept DMX512 signal mode.
The first DMX address setting:
The decoder set the address bit by coding switch, of which 1-9 is for setting the start address of the Binary numeric code switch of DMX512, the first one is the lowest position, the ninth one is the highest.
Bit of address code can be set to 512.
DMX512 start address code is the sum of switches 1-9, at the same time turn downside of the code switch (ON set to "1"), then the value of the bit can be gotten; coding switch up (set to "0"), the value of the bit is 0.
The first DMX address setting:
The decoder set the address bit by coding switch, of which 1-9 is for setting the start address of the Binary numeric code switch of DMX512, the first one is the lowest position, the ninth one is the highest.
Bit of address code can be set to 512.
DMX512 start address code is the sum of switches 1-9, at the same time turn downside of the code switch (ON set to "1"), then the value of the bit can be gotten; coding switch up (set to "0"), the value of the bit is 0.

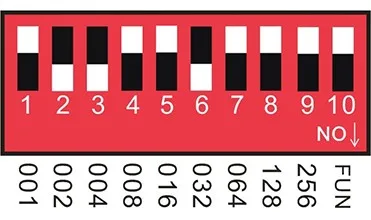

Example 1:
As the following Schematic 1, DMX512 start address is set to 38, encoding the No. 6,3,2 position on switch dial to "1", others set to "0", then the sum of the switch 1-9 code value is 32 + 4 + 2, that is the DMX512 start address 38.

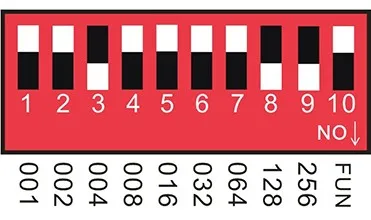

Example 2:
As the schematic 2, DMX512 start address is set to 388,
encoding the no. 2,3,6,8 switch dial to "1", others set to "0", then the sum of the switch 1-8 code value is 4 + 128 + 256 = 388, that is the DMX512 start address 388.

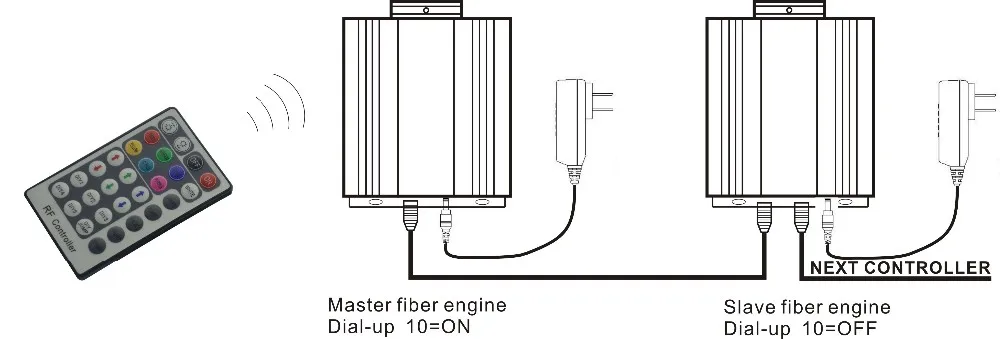

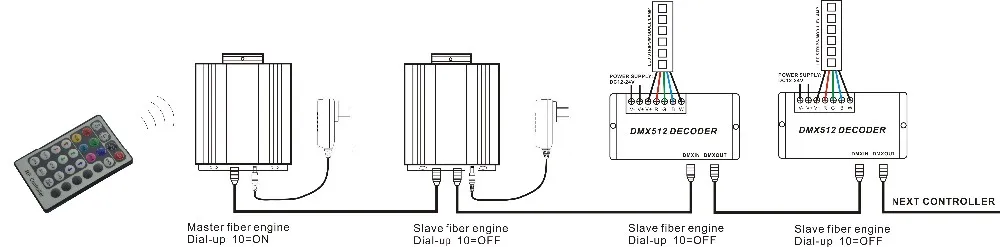

2. RF MODE

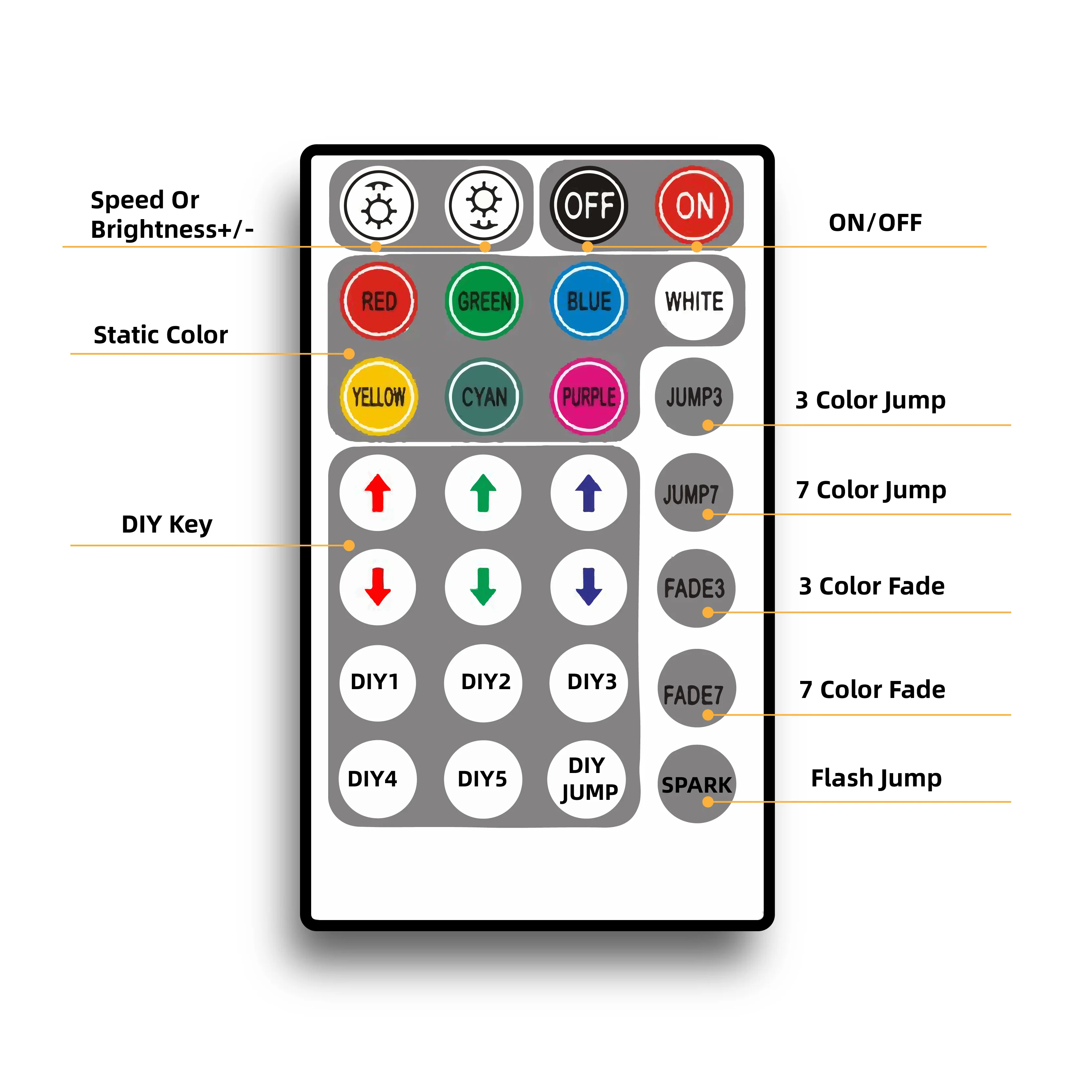

In this mode, you can control the fiber optic light engines with RF remote controller.
Note: It will be RF mode when the No.10 switch is turned down.

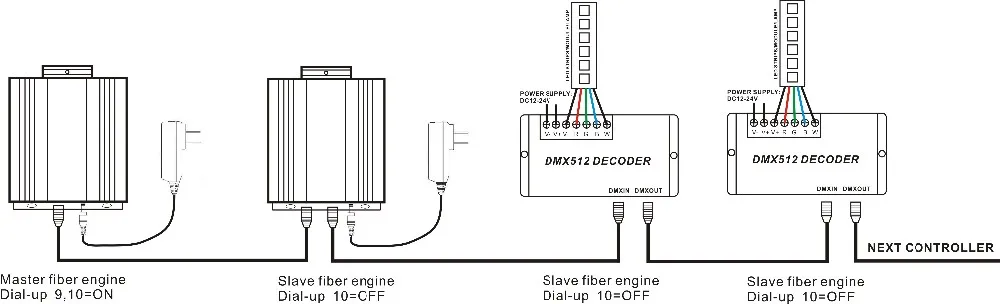

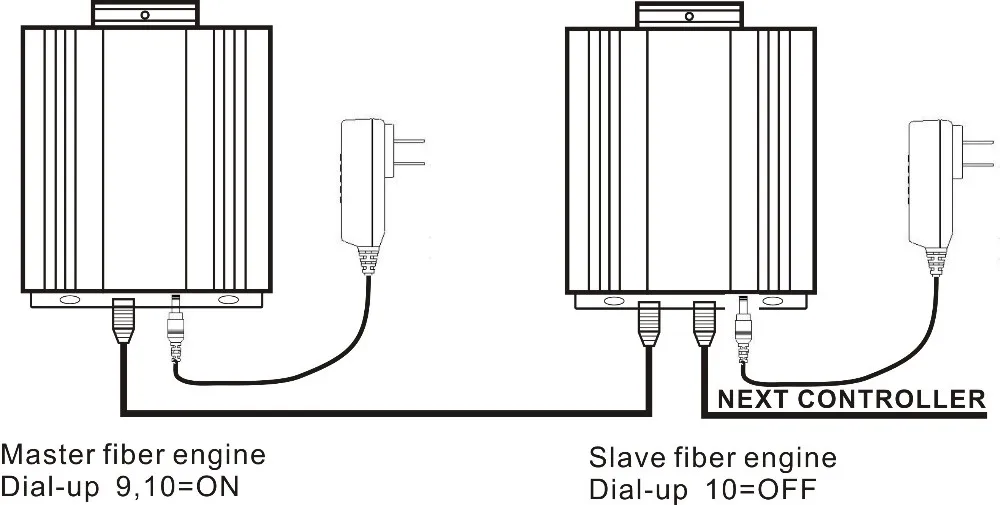

3. AUTOMATIC MODE
In this mode, the fiber optic light engine will run automatically.
Note: It will be RF mode when the No.10 switch is turned down.
No. | Dial code | Effect | No. | Dial code | Effect |
1 | No.1 | Seven-color cycle gradual | 2 | No.2 | RGB fade in and out |
3 | No.1&2 | Seven-color jump | 4 | No.3 | RGB jump |
5 | No.1&3 | RGB flash jump | 6 | No.2&3 | Static red |
7 | No.1&2&3 | Static green | 8 | No.4 | Static blue |
9 | No.1&4 | Static yellow | 10 | No.2&4 | Static purple |
11 | No.1&2&3 | Static cyan | 12 | No.3&4 | Static white |
Speed Choices (DIP switch No.5 to No. 7): 8 kinds
No. | Dial code | Speed | No. | Dial code | Speed |
1 | No.5 | 0.5 second | 2 | No.6 | 1 second |
3 | No5&6 | 1.5 second | 4 | No.7 | 2 second |
FAQ
Q1. Can I have a sample order for the 45W DMX512 fiber optic light?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 6 working days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for the 45W DMX512 fiber optic light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-8 days to arrive.
Q5. How to proceed an order for the 45W DMX512 fiber optic light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the 45W DMX512 fiber optic light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
