GJXH GJXCH 1,2,4,6,8,12 сердечников FTTH плоский внутренний/наружный волоконно-оптический кабель

US $4.50-$5.60

Категория товара: "

GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable

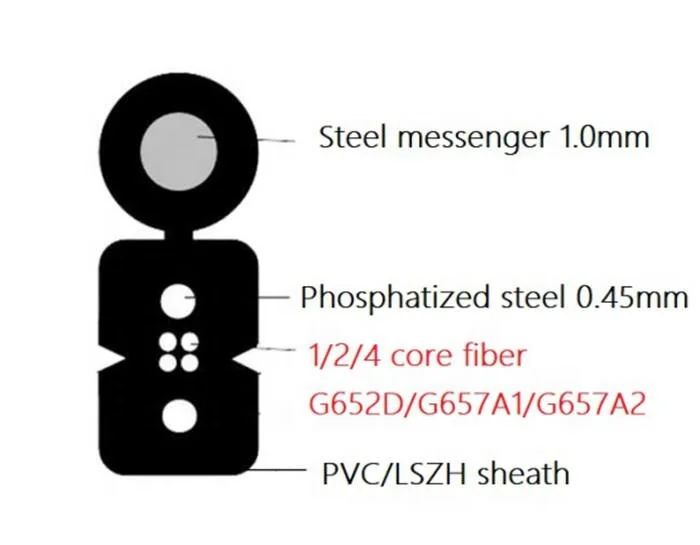

Product Overviews

Key Data

Indoor model	GJXH
Outdoor model	GJXCH
Jacket	PVC or LSZH
Cores available	1,2,4,6,8,12 cores
Dropping steel mesenger OD	1x1.0mm
Protecting inner wires(or FRP) OD	2x0.45mm
Jacket colors	Black,white etc.,
Fiber Type	G652D/G657A1/G657A2
Modes	Singlemode, Multi-mode
Length	1km/2km each roll

Fiber Parameters

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	1310nm	μm	9.0±0.4
1	Mode Field Diameter	1550nm	μm	10.1±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation (max.)	1310nm	dB/km	≤0.35
9	Attenuation (max.)	1550nm	dB/km	≤0.21
10	Macro-Bending Loss	1turn×10mm radius @1550nm	dB	≤0.75
10	Macro-Bending Loss	1turn×10mm radius@1625nm	dB	≤1.5

Cable Parameters

drop cable-2.jpg

drop cable-1.jpg

drop cable-3.jpg

drop cable-4.jpg

drop cable-5.jpg

Our Services

1.Professional manufacturer, 100% tested.

2.Customers solutions in days, not weeks.

3.Warmly services with careful attentions.

4.Can provide your specific inquiry within 24 hours.

5.Save much costs, bring more benefit for customer to expand business.

6.We have been 12 years experience in this field. We are the prefessional supplier that you can trust.

GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable
