(DCM750) транкодер IPTV RTMP HTTP UDP HLS RTSP
- Категория товара: Radio & TV Broadcasting Equipment >>>
- Поставщик (Оптовый магазин): Hangzhou,DIBSYS,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
ip to ip transcoder protocol convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS
Product Overview

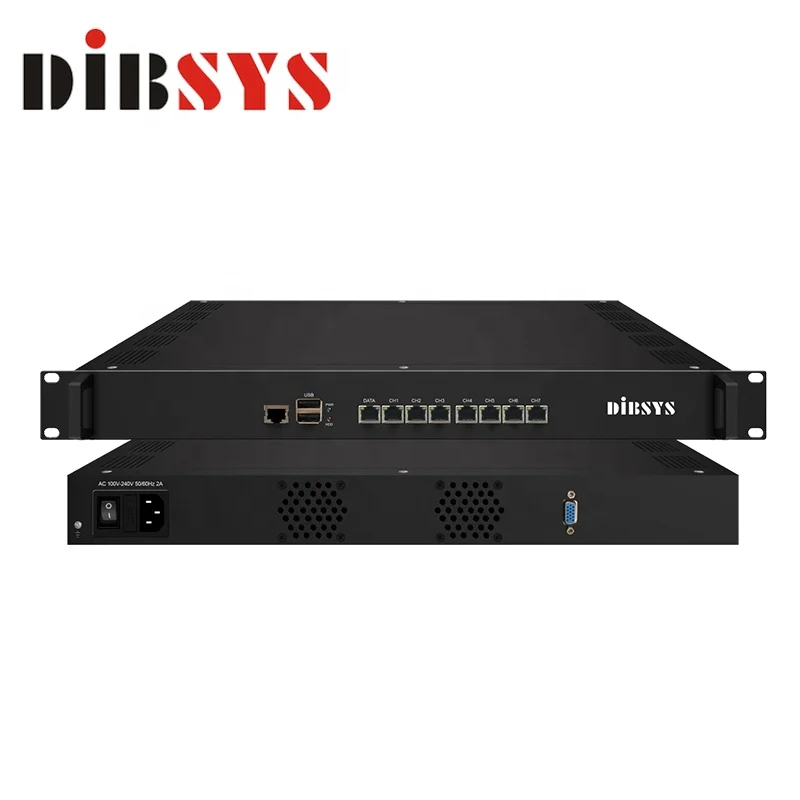

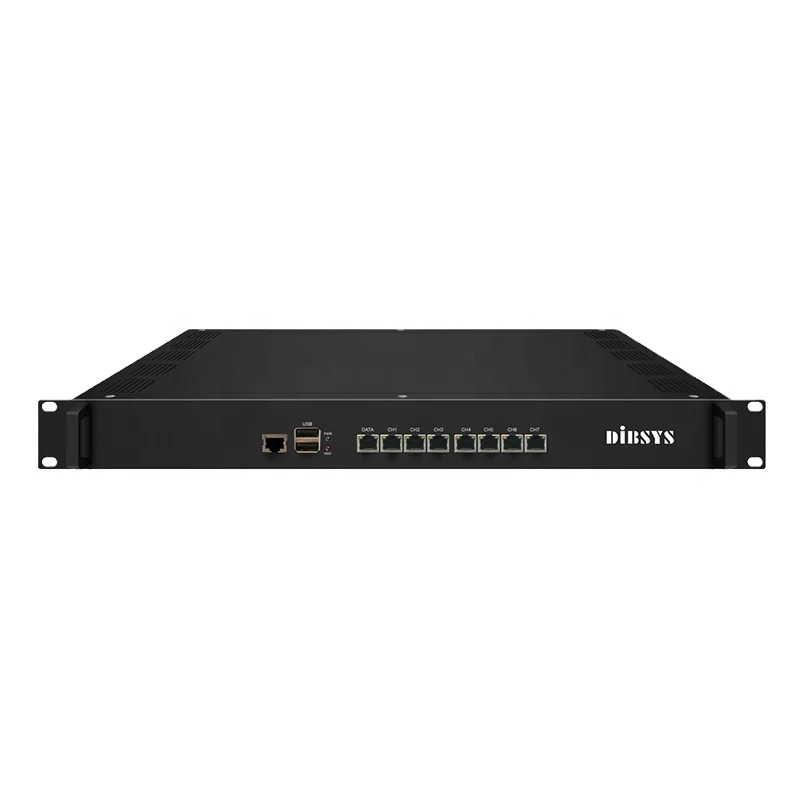

DCM750 is a powerful, yet low power consumption, rack-mount IPTV Gateway Controller& Control Interface for 24/7 operation. Its modular design enables integrators and operators to select from various protocol to customise operation and on-going service.
It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS and RTMP protocol. The platform can achieve the integration by receiving a variety of commercial streaming media services, and can provide streaming media services directly.
Designed for the centralised control of Android STB’s the control protocol conversion function acts, used for the protocol conversion scenarios and streaming media distribution scenarios, to the commonly deployed STB’s in the hotel, hospitality, corporate, education and entertainment sectors.
Key Features
- low power consumption, rack-mount design
- 8 Data ports:
- First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP
- Data CH1~CH7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
- IP out over HTTP, HLS and RTMP (Unicast)
- TS files uploading through Web management
- IP anti- jitter function
- adding scrolling caption, welcome words, boot image and boot video
- Support downloading Dibsys IPTV APK directly from this device
- Up to 80 HD/SD programs (Bitrate: 2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast)
- Support program playing with APK downloaded android STB and TV, maximum 150 terminals
Control via web-based NMS management through DATA port

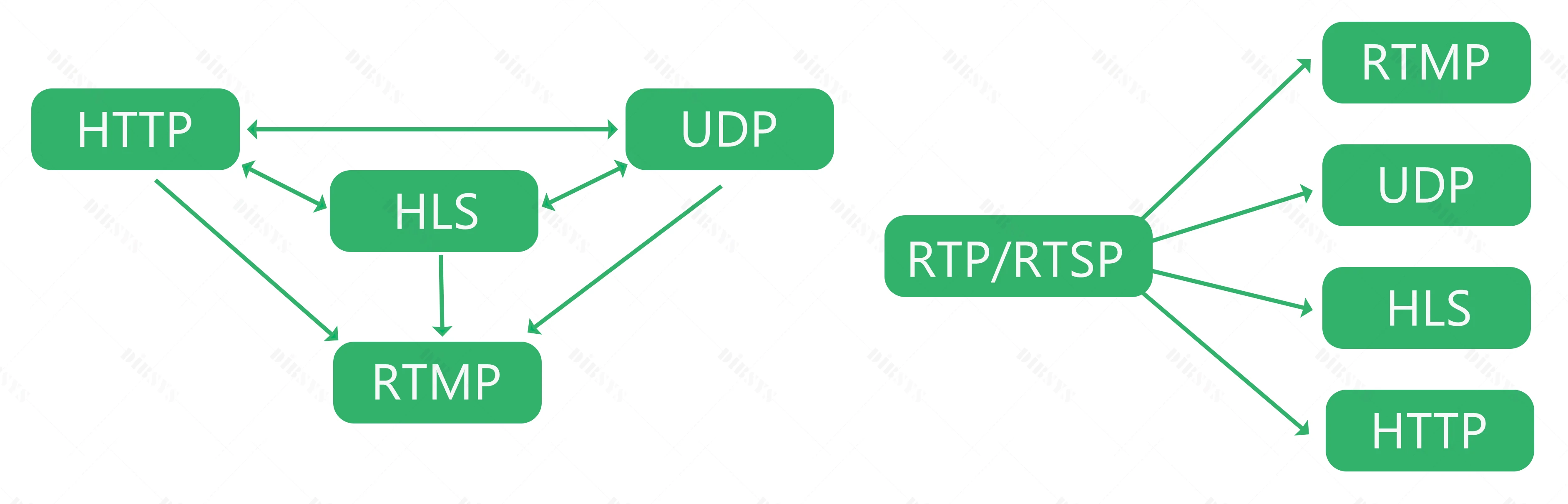

Protocol conversion
Technical Specifications
Technical Specifications
Input | ||||
CH1 ~ CH7(1000M) | over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS TS files uploading through Web management | |||
IP Output | ||||
Data port (1000M) | over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding) | |||
SYSTEM | ||||
Memory | 4G | |||
Solid-State Disk(SSD) | 16G | |||
Channel switching time | HTTP (1-3s), HLS (0.4-0.7s) | |||
Function | scrolling caption welcome words boot image boot video (only in IP out application and the STB/Android TV installed DIBSYS IPTV APK) | |||
maximum 150 terminals | Play programs with APK downloaded android STB and TV | |||
Management | web-based NMS | |||
maximum 80 HD/SD programs | Bitrate 2Mbps each programs HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization | |||
Environment | ||||
Power Supply | AC 100V±10% 50/60Hz or AC 220V±10%, 50/60Hz | |||
Dimension | 482mm×324mm×44mm | |||
Operating temperature | -10 ~ 50℃ | |||
Storage temperature | -10 ~ 75℃ | |||
Humidity | 10 ~ 90% non-condensed | |||
Weight | 6KG | |||

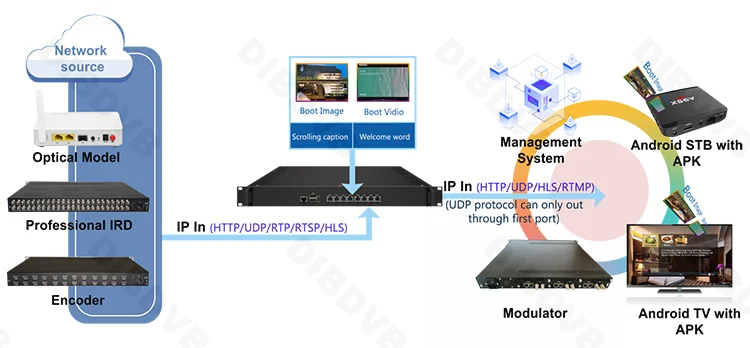

Application
IPTV Gateway Controller& Control
Contribution and Distribution
Protocol conversion scenarios
Our Co and Cert
Packing & Delivery
FAQ
Payment terms: 100% in advance, T/T, Western Union,Paypal,Alibaba Trade Assurance all supported
Lead time: Around 3~7 days after payment received. Confirm with sales engineer with product model number.
Delivery Method: Door to door by international express,UPS/DHL/FEDEX/TNT/EMS,etc.
After sale service: DIBSYS has professional technical service team and customer service team,feel free to contact us for any questions involved.
Warranty: DIBSYS offers 5 years warranty service,welcome to send your advice and feedbacks on the products to help us improve the service.
OME service: Available according to product quantity,kindly contact sales engineer with product model number for details.
Order Online For Samples,Fast Shipping Service. Leve Us Your Feedbacks After The Package Is Received.
