3 в 1, машина для розлива и укупорки ПЭТ-бутылок

BOTTLE WASHING MACHINE OPERATING STEP

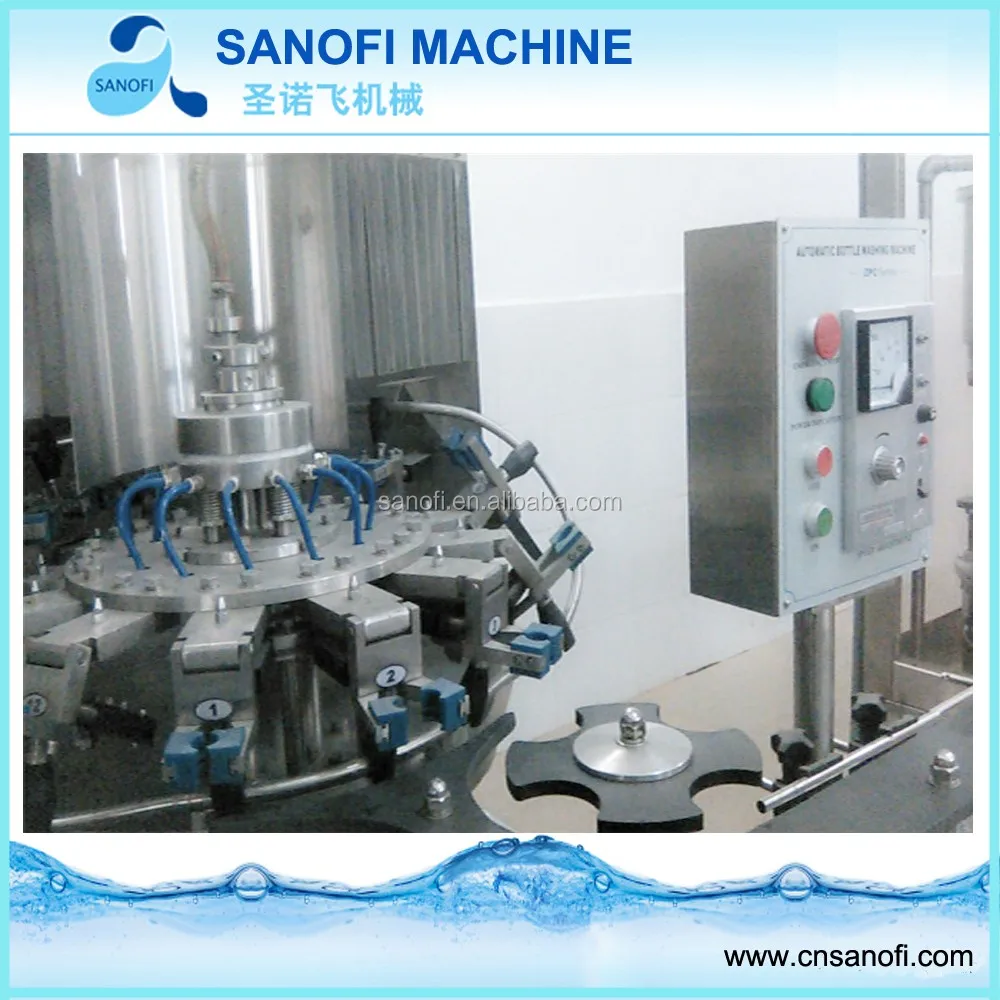

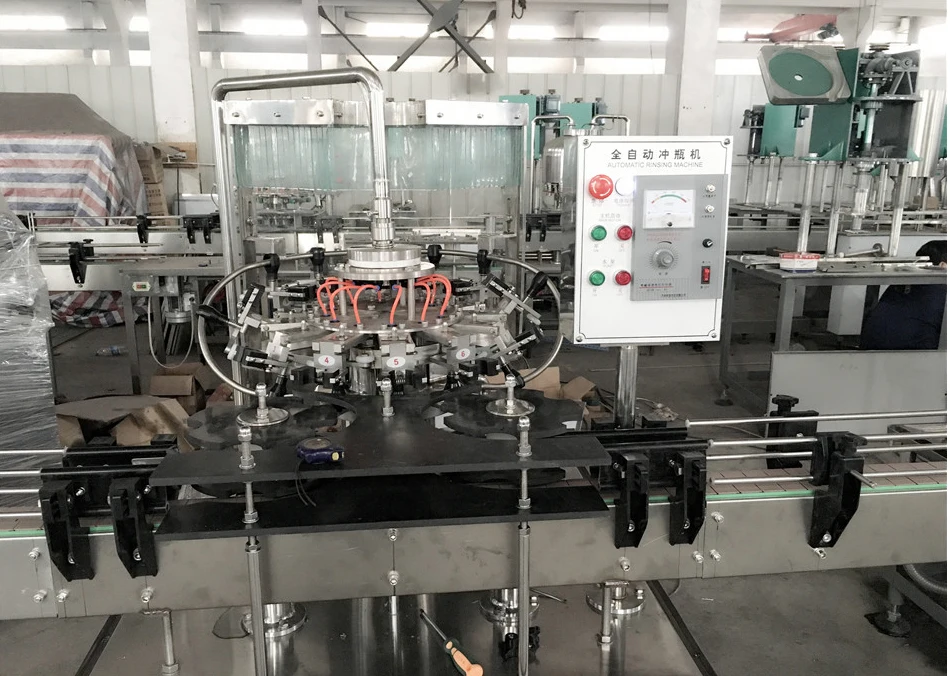

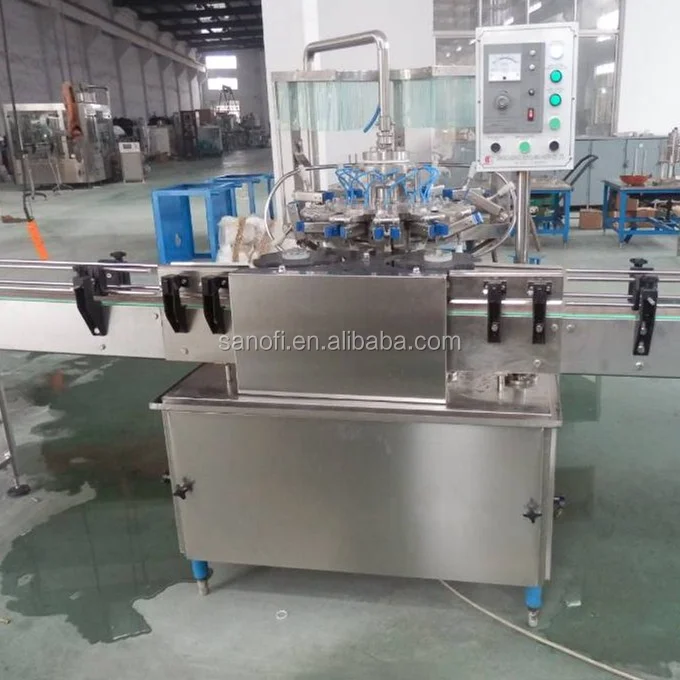

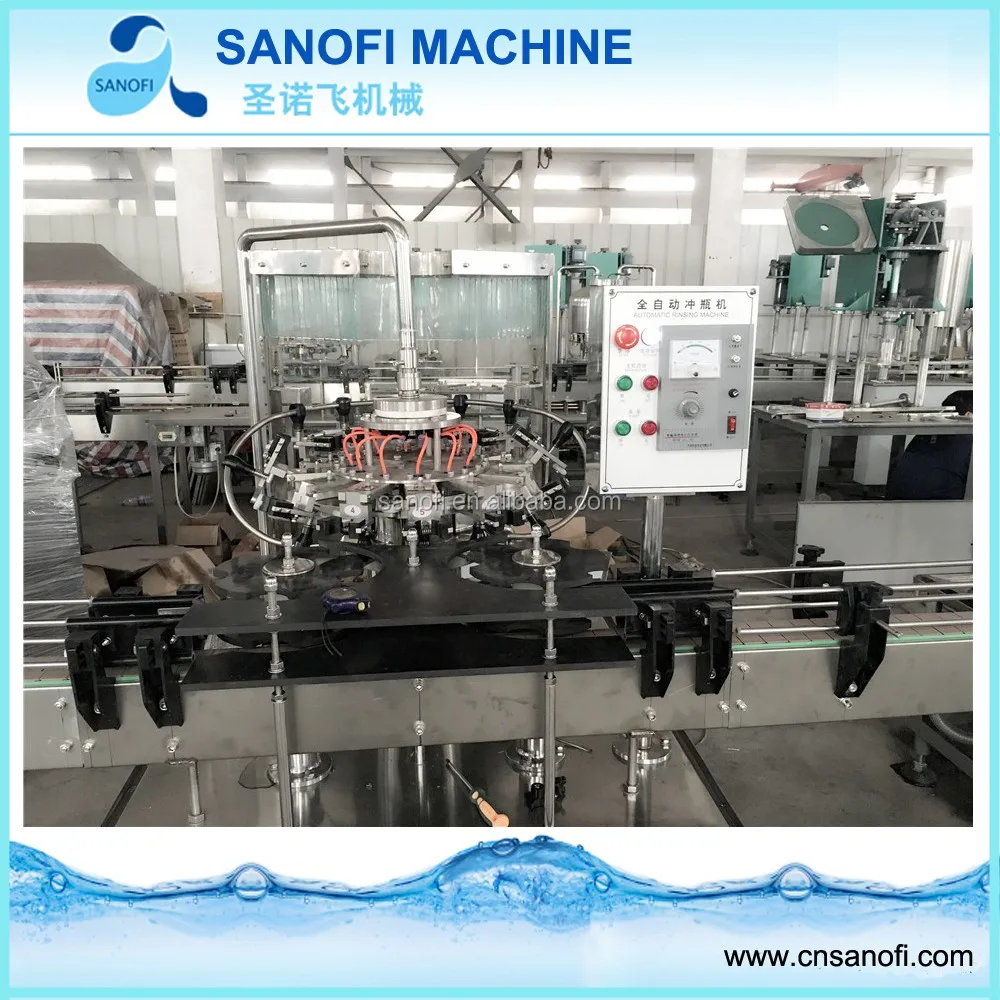

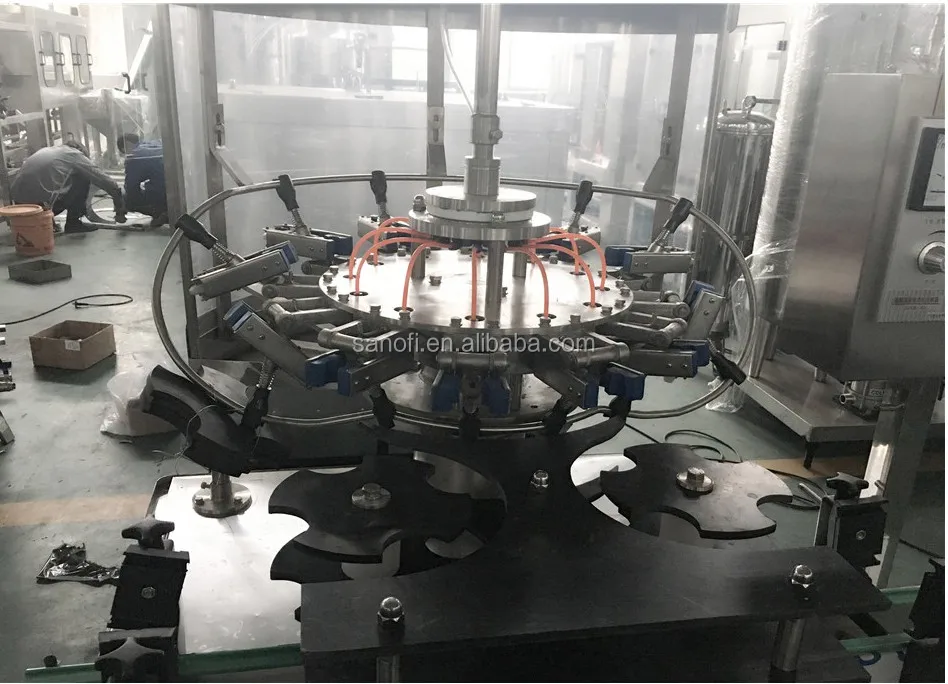

The characteristic of washing machine

1.This type machine can rinse different size plastic bottle;

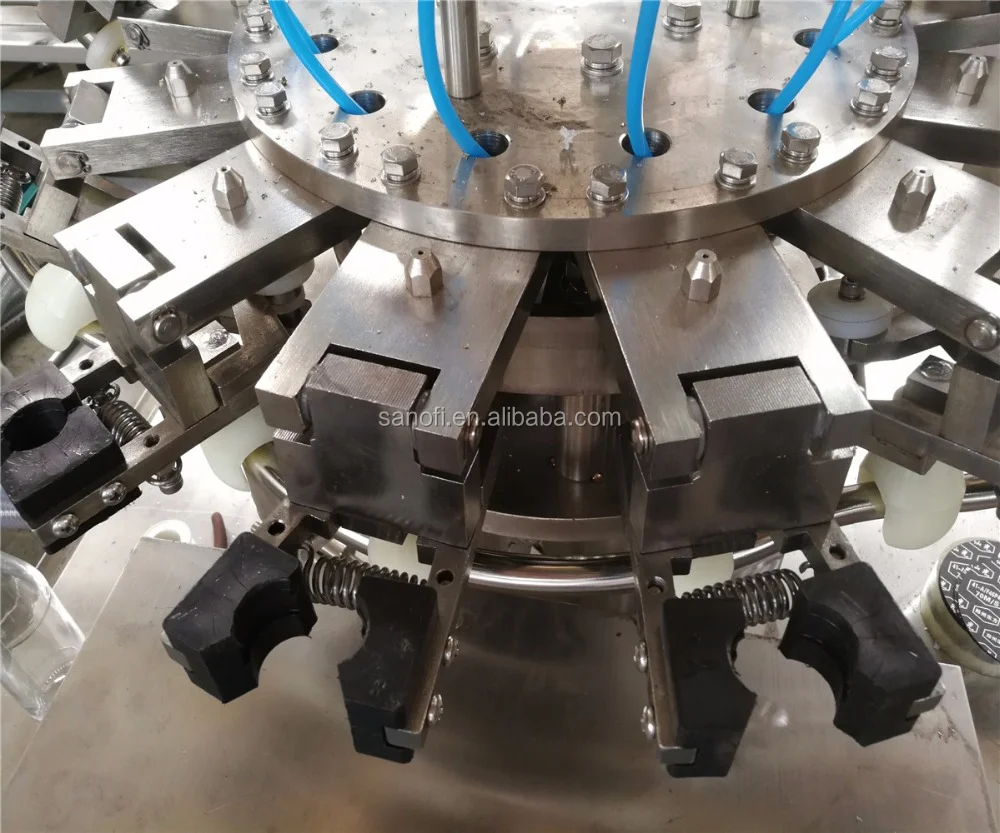

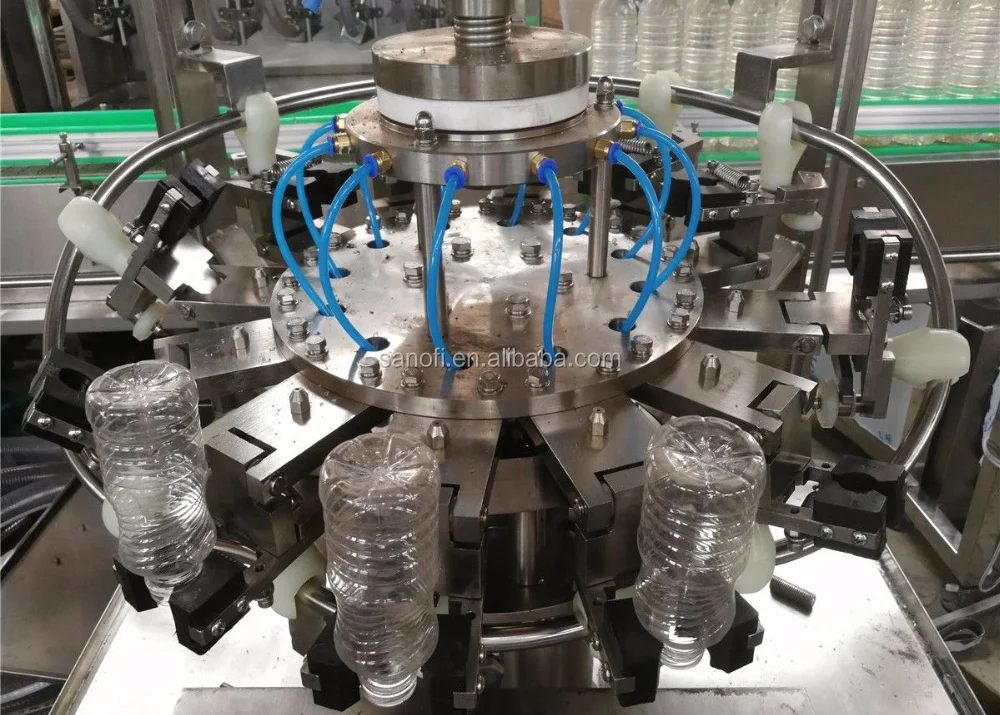

2.Spring cramps is used in the rinsing process, the bottle can be turn over 180ºalong the conveying rail. There have inside rinsing and outside rinsing process in the machine, it makes high efficiency in rinsing time;
3. The machine adopts continuously spraying and rinsing method;
4.The design of this machine reduce the required number of changeable parts, make it more convenient and quickly to change another type of bottle.
Pure Drink Pet Bottle Water 3 In 1 Monoblock Washing Filling Capping machine
Main technical data
1. Bottle material: plastic;
2. Bottle size: diameter 50~90mm, height 160~290mm;
3. Working head: 12pcs
4. Capacity: ≤4000bottle/hour

5. Breakage: ≤3%
6. Rinsing pressure: 0.2~0.3MPa
7. Motor power: 0.75kw, 3×380v, 50HZ
8. Machine size: 1100mm*1100mm*1800mm
9. Net weight: about 350kg
Pure Drink Pet Bottle Water 3 In 1 Monoblock Washing Filling Capping machine
Main part
1. Rinsing part
2. Input and output oriented template
3.Conveyer part

Pure Drink Pet Bottle Water 3 In 1 Monoblock Washing Filling Capping machine
1. For transport
1.1It can't be inversed in transport process, pay attention to convey carefully.
2. For installation
2.1It is better to open the packing box in filling workshop, please check the spare parts and other parts after opening;
2.2 The machine will put on the horizontal and hardy ground, and make sure that the machine is be leveled;
2.3 Connect the input water pipe and drain water pipe;

Pure Drink Pet Bottle Water 3 In 1 Monoblock Washing Filling Capping machine

Adjust step
1. Unscrew bolt 2 which is showed inside drawing 1, then adjust chuck plate to right place, let the slot which is in chuck plate can set in right place. Then wind bolt 2.
2. Adjust the height of rinsing head module
(1) Rise: please remove the lock-plate, rotate the orbicular nut by deasil. After rinsing head module to right place then stop rotating, and close the lock-plate.
(2) Descend: please remove the lock-plate, rotate the orbicular nut by anticlockwise. After rinsing head module to right place then stop rotating, and close the lock-plate.

Automatic Filling Machine

99.8% Response Rate

Automatic Capping Machine

99.8% Response Rate

Automatic Small Bottle Line

99.8% Response Rate

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
