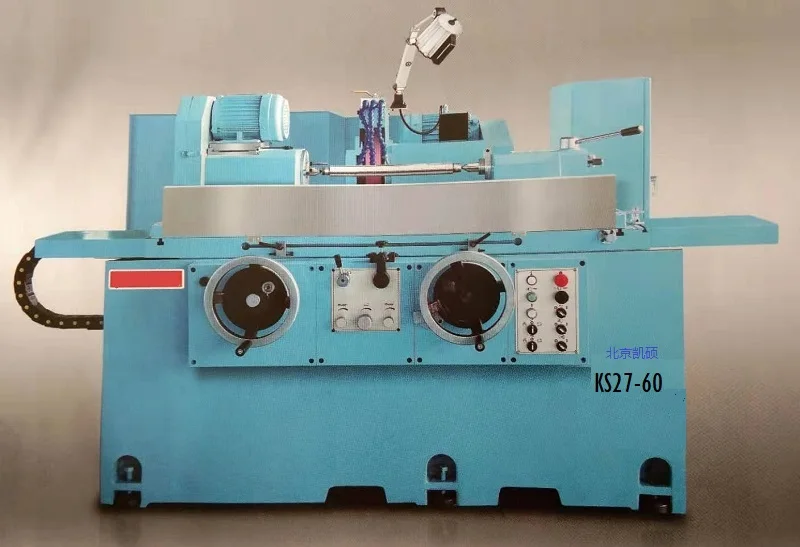

Traditional Internal-External Grinding Machine
KS27-60 & KS32-100
( Semiautomatic with Optional Internal Grinding Unit)
Picture:
Introductions:

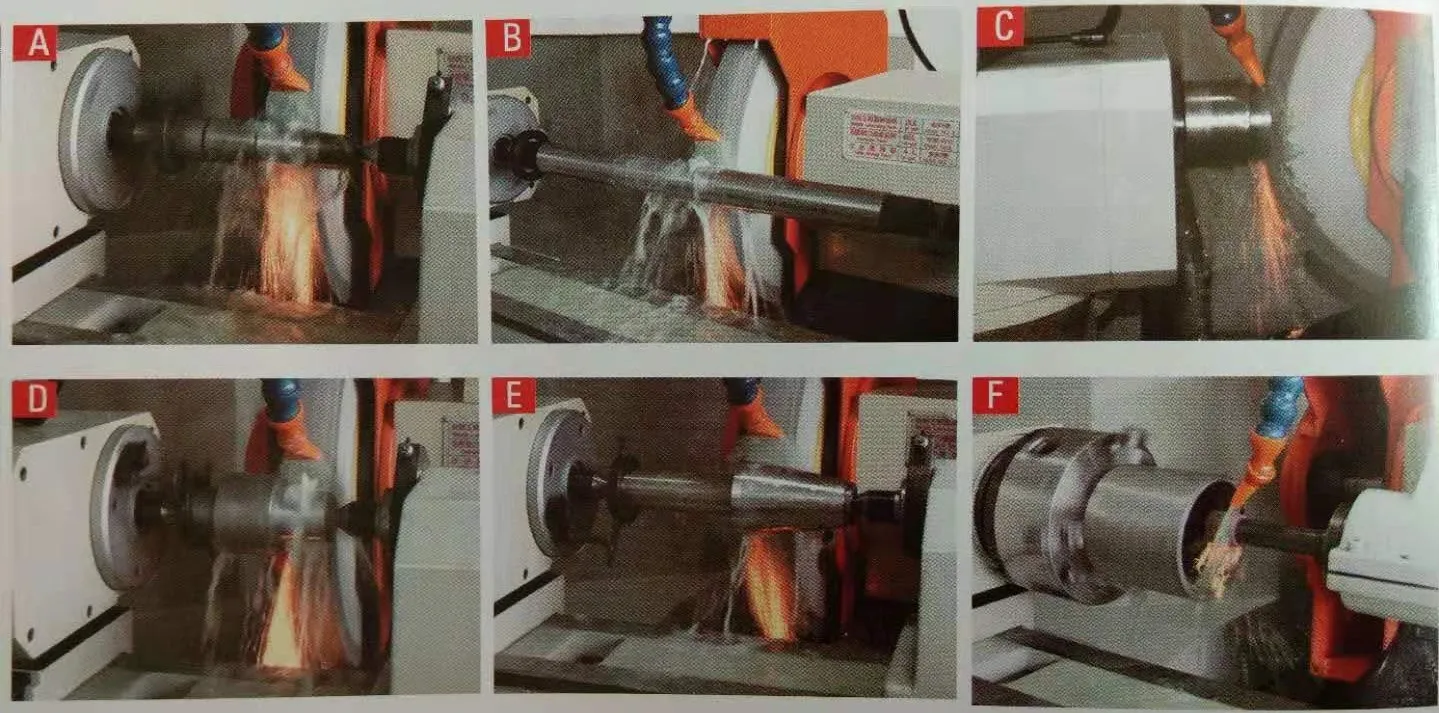

A. Straight grinding
In small production, good grinding quality is obtained by automatic feed with spark-free timer. In mass production, the automatic external diameter measuring device (special accessories) can provide the best output and grinding effect.
B. Cross feed grinding
Automatic intermittent feed and hydraulic driven worktable make most efficient cross-grinding of workpiece.
C. End face grinding
Remove the rotating cover of working spindle head and replace it with a three-jaw or four-jaw chuck. Change position of the positioning tip to rotate the chuck and fix it at 90° for end grinding.
D. Shoulder grinding
When outer diameter of workpiece and its shoulder are to be finished once, the workpiece is supported by two centers and the grinding wheel is modified to right side of grinding wheel head, and rotated at an angle to grind.
E. Slope grinding
Workpiece can be supported by a chuck or two centers. Worktable and grinding wheel head can be rotated and adjusted easily.
F. Inner diameter grinding
Ground by Inner diameter grinding attachment (special accessory). Inner diameter grinding spindle is pulled down and fixed in grinding position, it can be ground.
Specially designed grinding wheel spindle
The line speed 35m/s can be adjusted to 60m/s in the case of a frequency converter. It has great efficiency improvement in grinding superhard parts such as tungsten steel and ceramics.
Technical data:
| Item | Unit | KS27-60 | |
| Processing capacity | Worktable max. swivel diameter | mm | 270 |
| Max. grinding length between two centers | mm | 600 | |
| Max. load of workpiece ( two centers) | Kg | 60 | |
| Max. load of workpiece (single working head) | Kg | 20 | |
| Grinding wheel head and feed | Rotation angle | ±15° | |
| Standard grinding wheel size:Dia.*Width*Pore size | mm | 405*32~50*127 | |
| Special grinding wheel size:Dia.*Width*Pore size | mm | 355*32~50*127 | |
| Grinding wheel axis speed | rpm | 1650/1850/2100 | |
| Moving distance | mm | 270 | |
| Rapid feed stroke(hydrolic automatic) | mm | 40 | |
| Spindle stroke (feed per rotation) | mm | 20 | |
| Spindle stroke (feed per differential feed) | mm | 0.005 | |
| Headstock | Spindle rotate method | Active/fixed spindle | |
| Worker side ratation angle | 30° | ||
| Grinding wheel side rotation angle | 90° | ||
| Spindle speed | rpm | 50~300 | |
| Centers taper | MT-4 | ||
| Spindle through hole dia. | mm | 25 | |
| Tailstock | Spindle stroke | mm | 32 |
| Thimble taper | M.T4 | ||
| Worktable | Worker side ratation angle | 6° | |
| Grinding wheel side rotation angle | 9° | ||
| Handwheel feed per rotation | mm | 12.5 | |
| Automatic feed speed | mm/min | 50~4000/min | |
| Internal grinding device | Spindle speed | rpm | 20000(30000) |
| Motor | KW(HP) | 0.75 (1) | |
| Motor | Grinding wheel axis | KW(HP) | 3.75 |
| Working head spindle | KW(HP) | 0.75 | |
| Hydraulic power circulation pump | KW(HP) | 0.75 | |
| Static pressure spindle oil pump (optional) | KW(HP) | 1.5 | |
| Lapping liquid pump | KW(HP) | 0.37 | |
| Capacity of tanks | Static pressure spindle tank(optional) | L | 120 |
| Hydraulic power circulation tank | L | 70 | |
| Lapping liquid tank | L | 200 | |
| Others | Packing dimensions: L*W*H | mm | 2700*1520*1650 |
| Machine net weight | Kg | 2500 | |

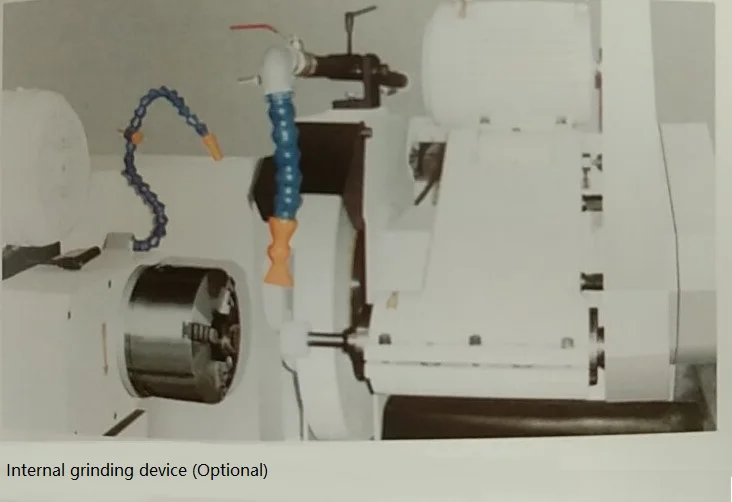

Internal grinding device (Optional)
Spindle speed | Inner dia. ranges | Max. depth |
20000 rpm | Ø25~45 mm | 100 mm |
30000 rpm | Ø12~25 mm | 60 mm |

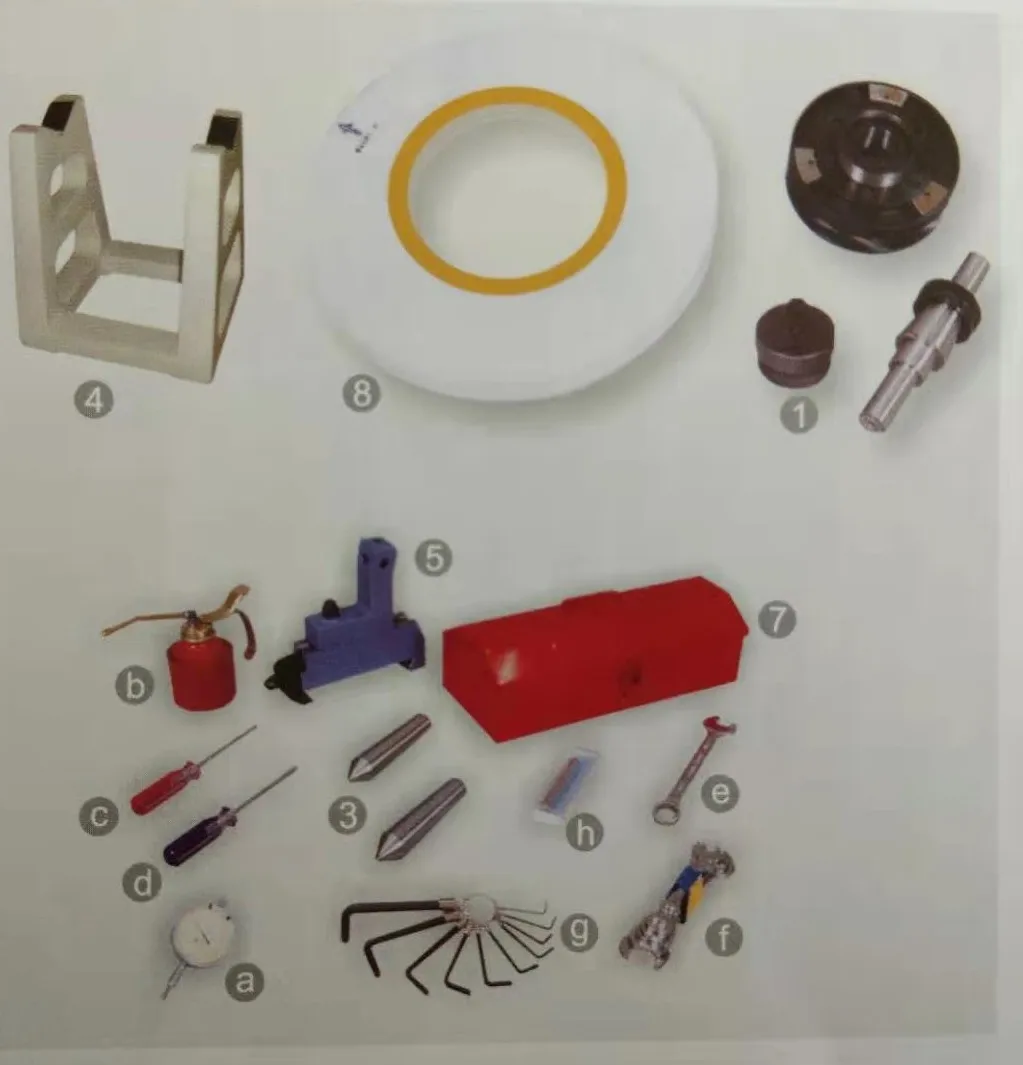

Standard accessories:
--Grinding wheel remover-------------------------------------------------1 pcs
--Grinding wheel balance bar---------------------------------------------1 pcs
--Grinding wheel balancer-------------------------------------------------1 pcs
--Tungsten carbide full round thimble-----------------------------------2 pcs
--Lubricating oil device------------------------------------------------------1 group
--Wheel dressing device----------------------------------------------------1 group
--Bed rotation angle----------------------------------------------------------1 group
--Hand tools and toolbox ---------------------------------------------------1 group
a. Percentile scale-------------------------------------------------------------1 pcs
b. Oil pot--------------------------------------------------------------------------1 pcs
c. Slotted screwdriver---------------------------------------------------------1 pcs
d. Cross screwdriver-----------------------------------------------------------1 pcs
e. Combination wrench #19------------------------------------------------- 1 pcs
f. Open spanner----------------------------------------------------------------6 pcs
g. Hexagonal wrench----------------------------------------------------------10 pcs
h. Diamond dressing knife----------------------------------------------------1 pcs
--Standard grinding wheel and flange------------------------------------1 group
--Standard grinding fluid supply device----------------------------------1 group
--Waterproof board -----------------------------------------------------------1 group
--Operation manual, parts manual, inspection report-----------------1 set

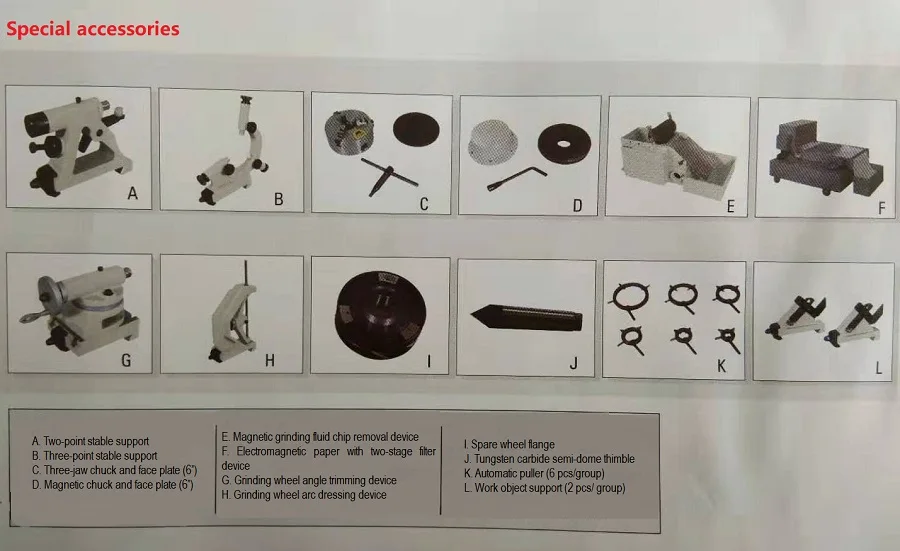

Special accessories:
A. Two-point stable support
B. Three-point stable support
C. Three-jaw chuck and face plate (6”)
D. Magnetic chuck and face plate (6”)
E. Magnetic grinding fluid chip removal device
F. Electromagnetic paper with two-stage filter device
G. Grinding wheel angle trimming device
H. Grinding wheel arc dressing device
I. Spare wheel flange
J. Tungsten carbide semi-dome thimble
K. Automatic puller (6 pcs/group)
L. Work object support (2 pcs/ group)
