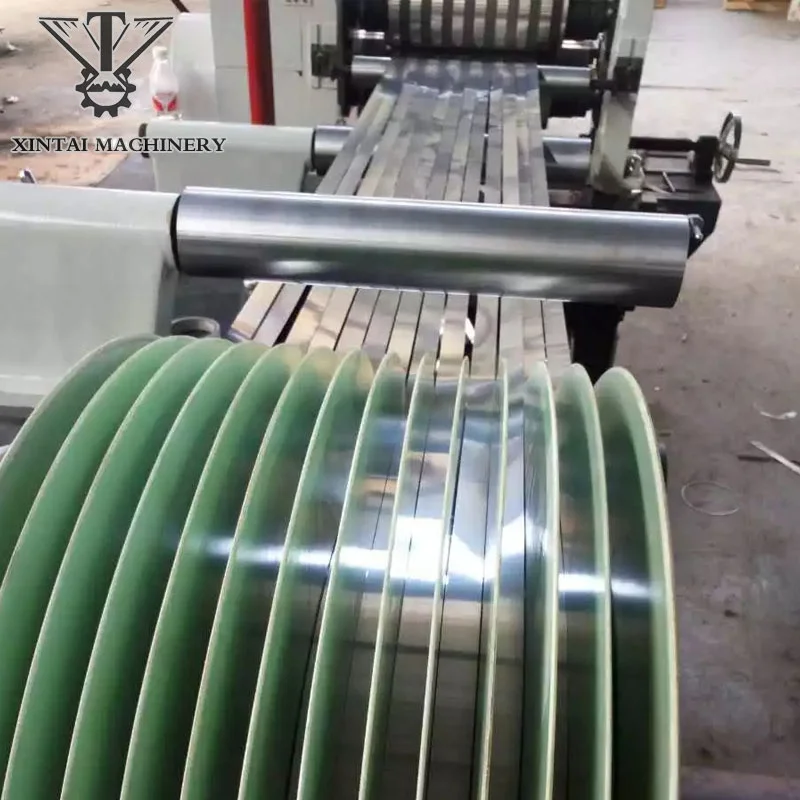

Машина для продольной резки катушки шириной 450 мм нержавеющая сталь маленькая машина катушек из нержавеющей стали листовой

Машина для продольной резки катушки шириной 450 мм нержавеющая сталь маленькая машина катушек из нержавеющей стали листовой

Категория товара: Бобинорезательный станок >>>
Поставщик (Оптовый магазин): Baoji,Xintai,Precision,Equipment,Manufacturing,Co.,Ltd.

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Why Choose Us

Baoji Xin Tai Precision Equipment Manufacturing CO., LTD, built in 1995, mainly working on researching, development and production of electron, metallurgy and special grinding equipment. It Produces all kinds of equipment for slitting material used for electrolysis and capacitor, such as: aluminum foil, copper foil, metal foil, paper slitting, foil slitting, membrane cutting and metal bar material slitting.
we hope to honestly cooperate with all friends in different world and develop together.

Product Description

Product Application

The precision cutting machine is used to cutting stainless steel, copper strip, galvanized strip, aluminum strip, cold rolled metal. The equipment characteristics are operation convenient, high-quality slitting, high-using rate or material, and step-less adjustment of slitting speed.

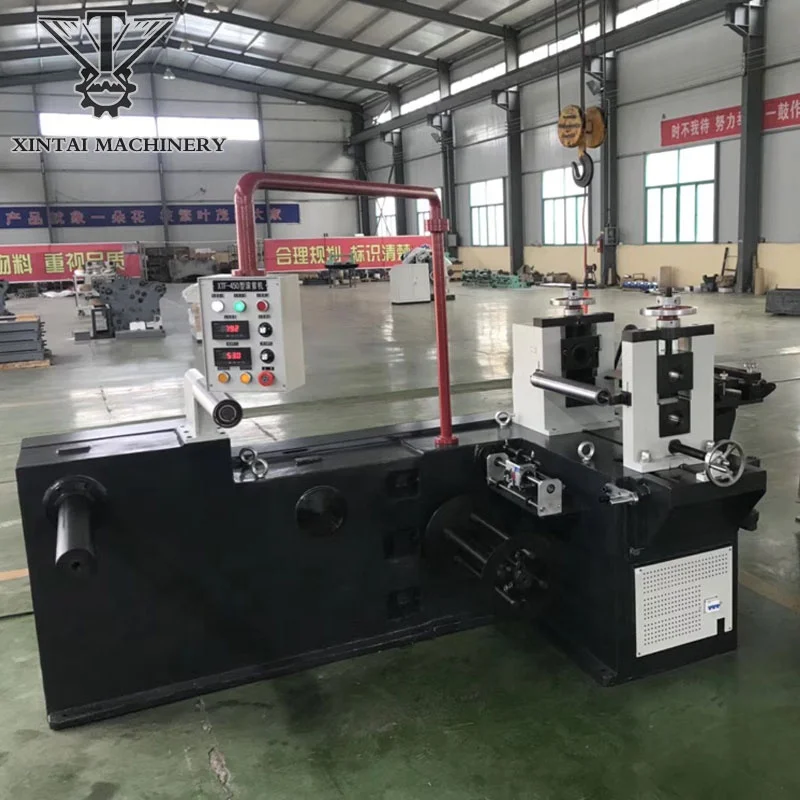

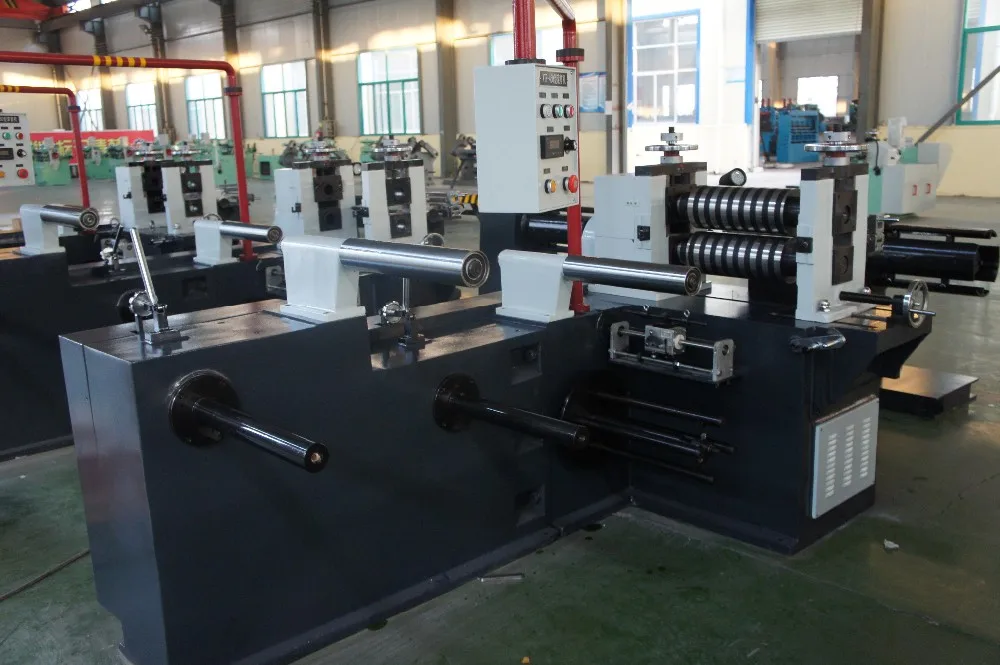

Slitting Machine For XTF-450
type	XTF-450
Thinckness of raw material	0.1mm-1.2mm
the max diameter of raw material coil	≤Φ1000mm
inner diameter of raw material coil	Φ280mm-Φ320mm(Be customized)
the max width of bar material	450mm
the min width of completed material	4mm
the max diameter of completed material	≤Φ1000(Including power)
the max diameter of completed material		≤Φ350(Do not contain power)
the inner diameter of completed material	Φ250mm
the max bar quantity of slitting	20(According to the thickness of the material)
number of rewinding shafts at time	2
the max slitting speed	0-80m/min

Main Features

1. This machine is suitable for longitudinal shearing of rolling metal strips. It has the characteristics of convenient operation, high cutting quality, high material utilization rate and stepless adjustment of cutting speed.
2. Product warranty period is one year, non-human problems, free spare parts are provided during the warranty period, and the supplier is responsible for the lifelong maintenance of equipment.
3. Equipment color: black and white (customizable)
4. Date of production: 25 days
5. Support overseas after-sales service.

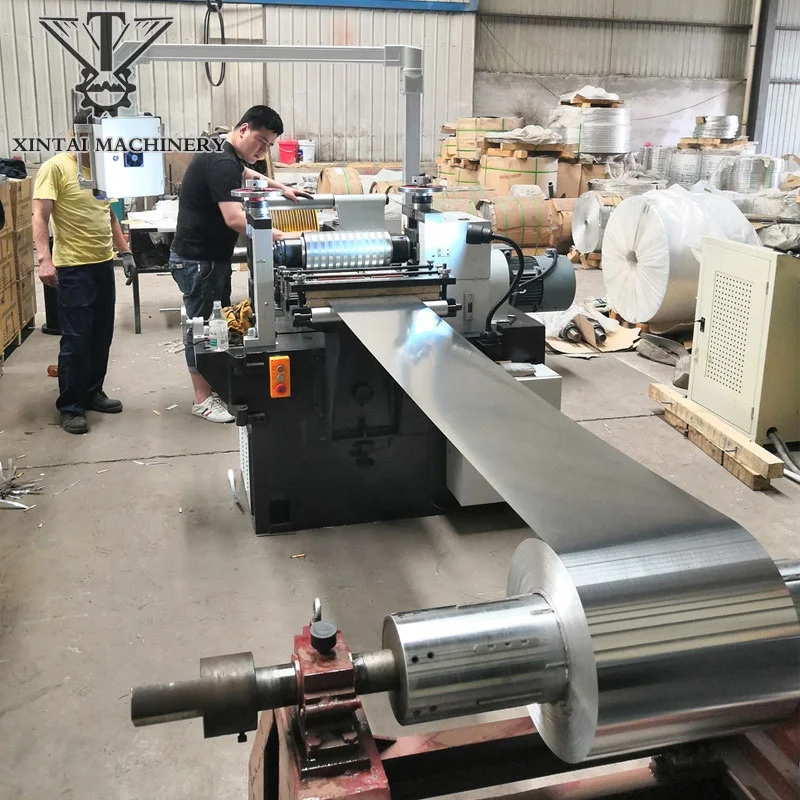

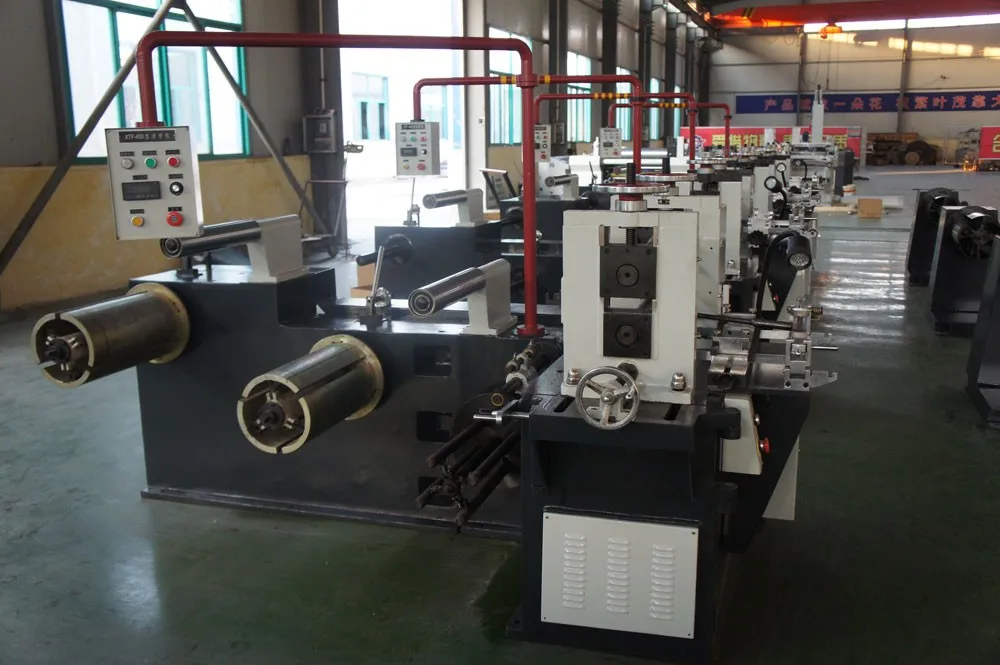

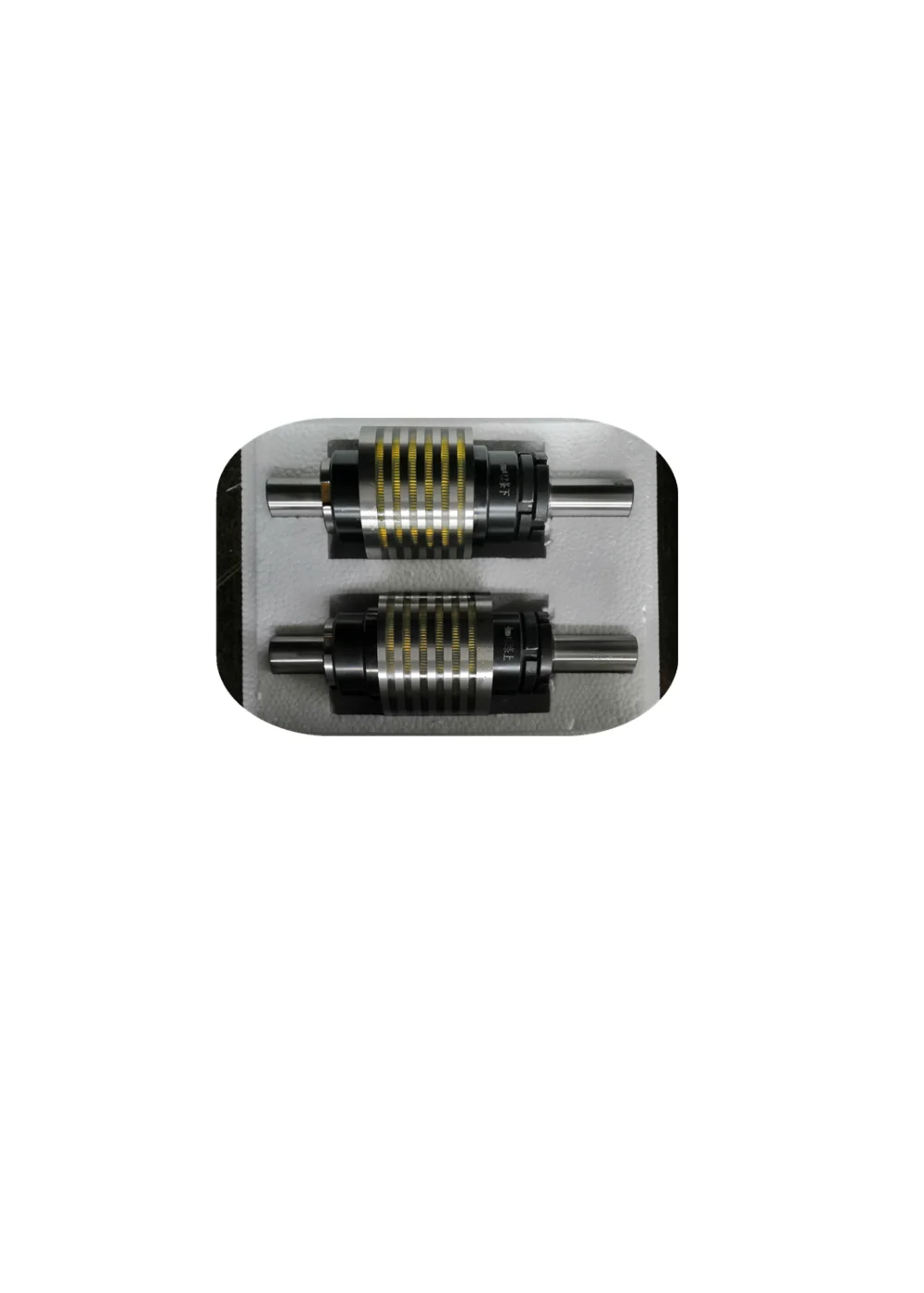

Detailed Images

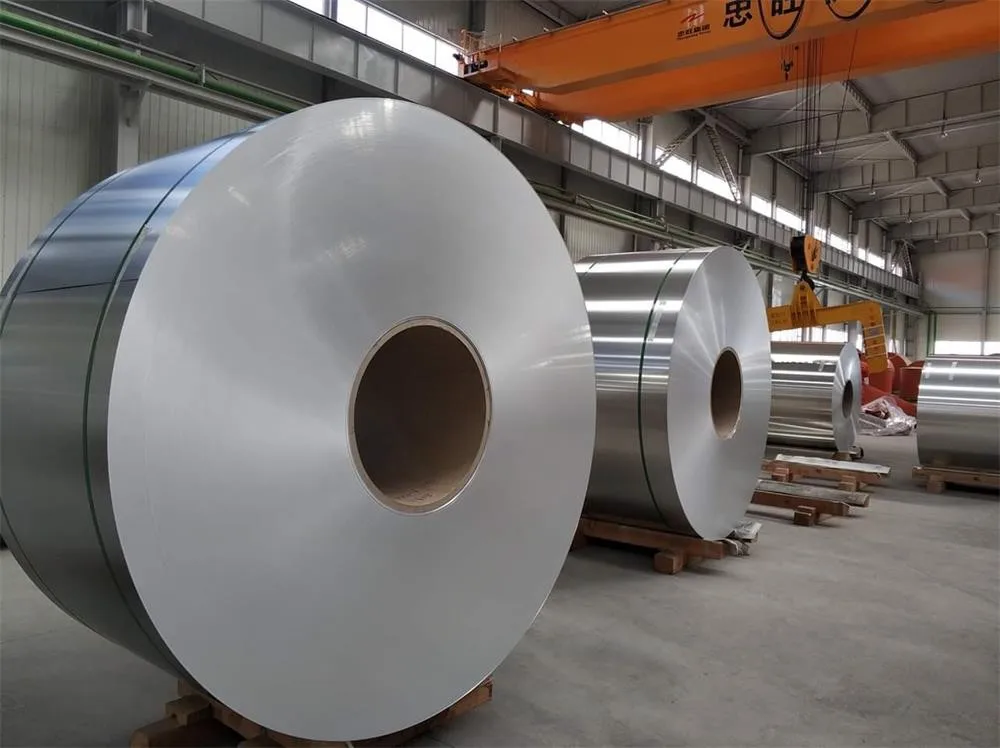

Raw material parameters

1. Raw materials: stainless steel/copper strip/galvanized strip/aluminium strip/cold rolling
2. Slitting strip thickness: 0.1mm~1.2mm
3. Maximum feed width: <500mm
4. Maximum Outer Diameter of Raw Material: <1000mm
5. Raw material inner diameter: 280mm~320mm (customizable)
6. Weight of raw materials: <1000Kg

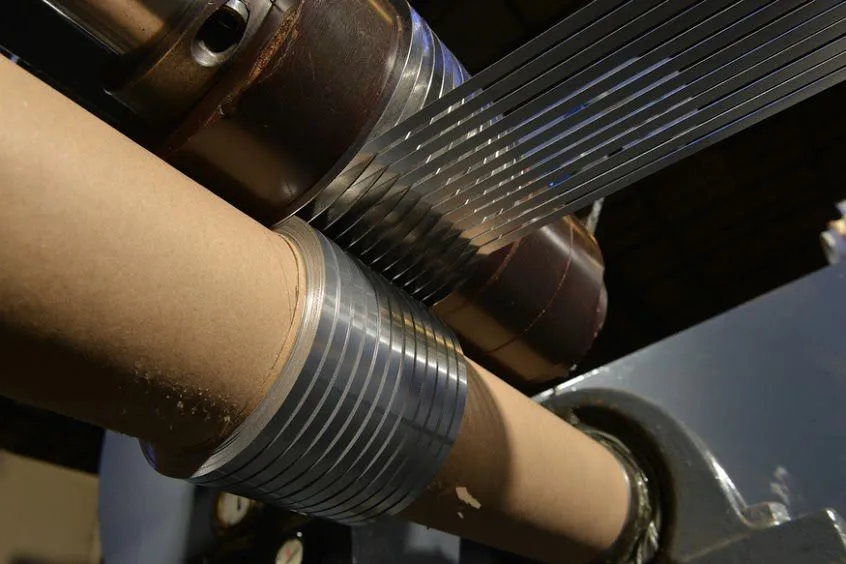

Finished product parameters

1. Material width of finished product: 4mm~500mm
2. Outer diameter of finished coil: <1 000 mm
3. Inner diameter of finished coil: 250mm (customizable)
4. Number of sliced strips: 25 (according to the thickness of the sliced material)
5. Width tolerance of finished product: +0.02mm

Device parameters

1. Direction of equipment operation: right to left
2. Equipment speed: 0-80m/min
3. Equipment capacity: 7.5KW
4. Coverage of equipment L*W*H:5m*2m*1.6m
5. Equipment weight: 3T

Electrical parameters

1. Inverter: Audi (China)
2. Intelligent Voltmeter: French School (China)
3. Intermediate relay: Omron (Japan)
4. Electrical Switching Components: Zhengtai (China)
5. Power supply for equipment: three fires and one place, AC380V, 50HZ
6. Motor: Wuxi Pioneer
7. Reducer: Wuxi Keyide

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* video support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	5m (L) * 2m (W) *1.6m (D)
Weight	3.5T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

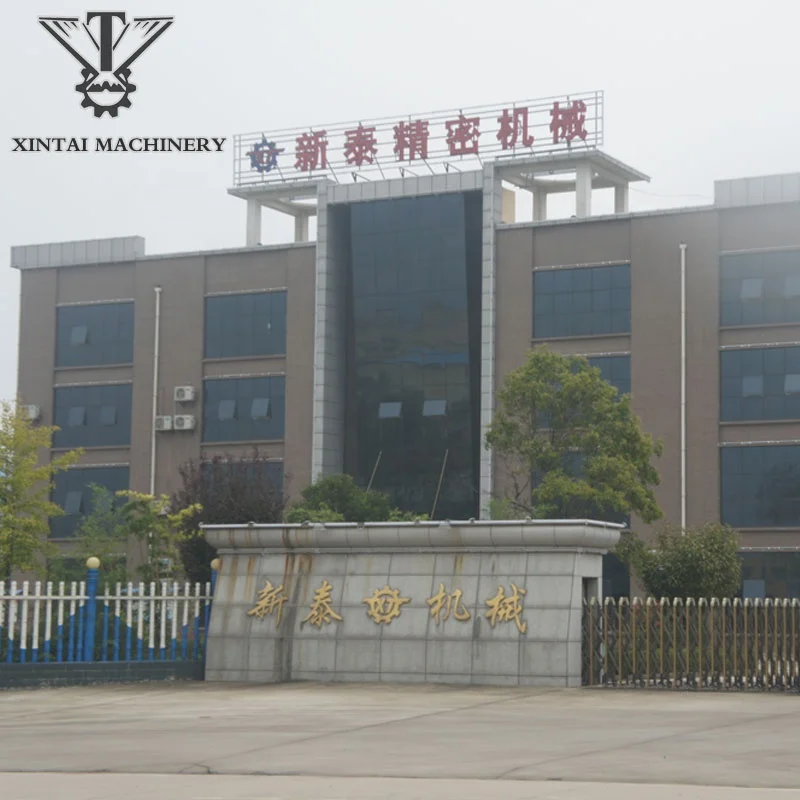

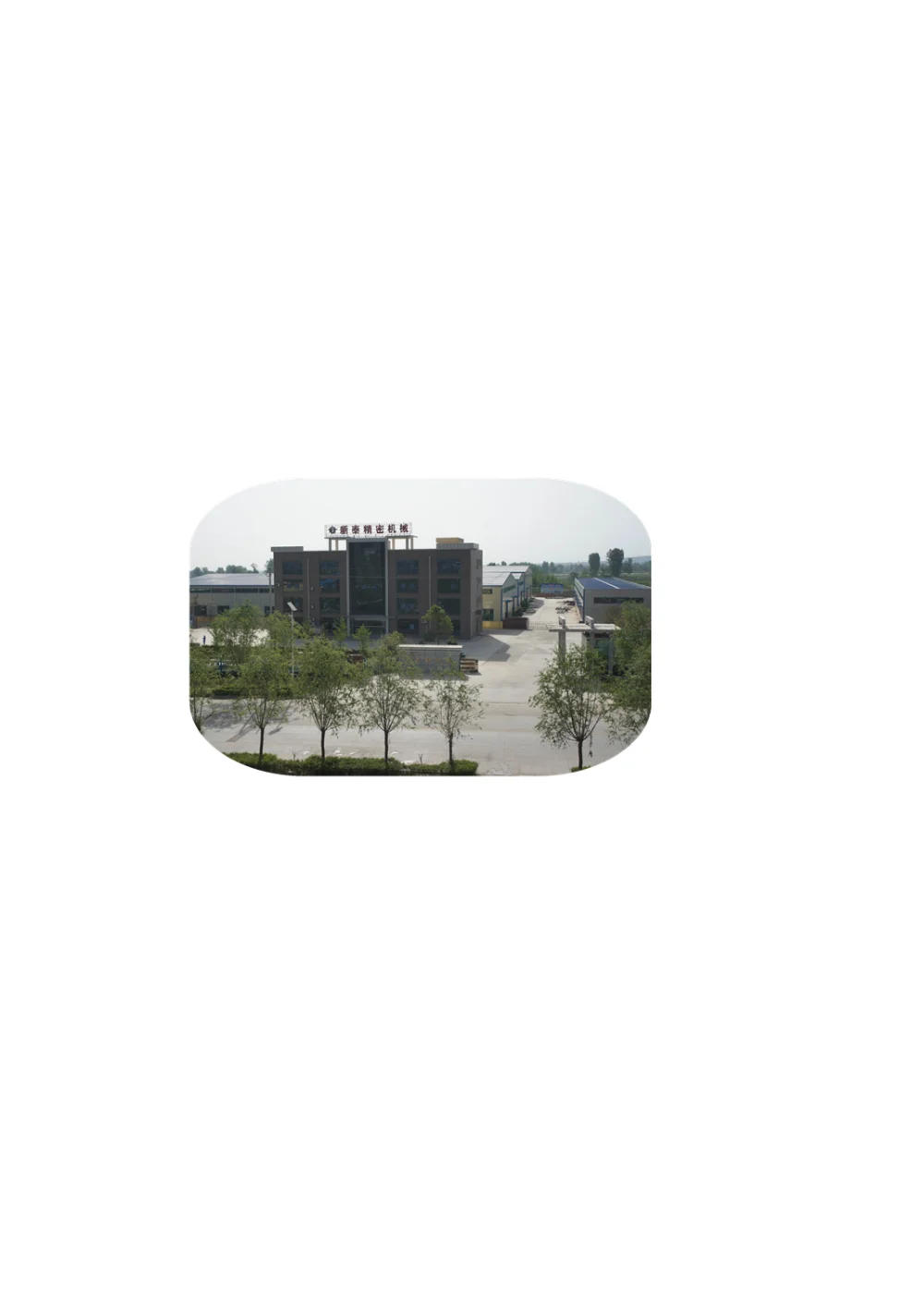

Our Company

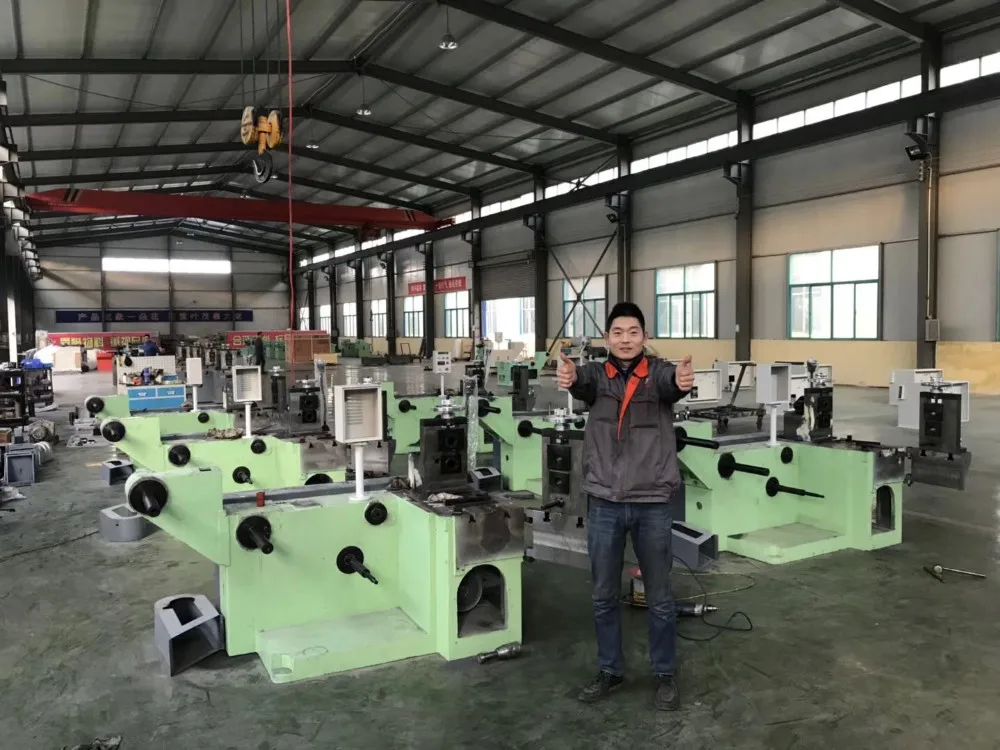

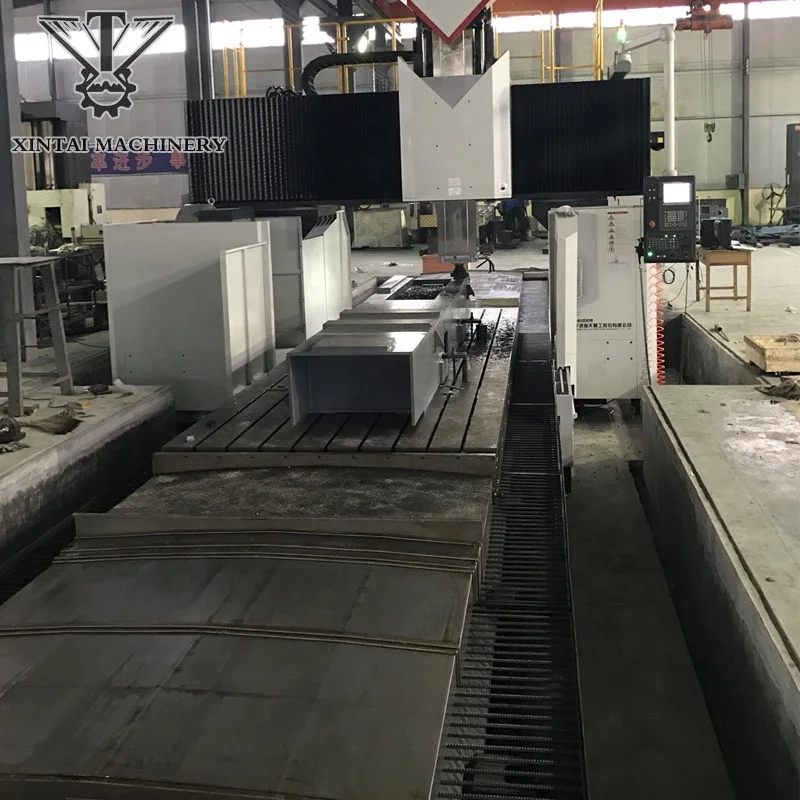

Production workshop

In our company, skilled men are more, all kinds of methods of production process are complete, product quality guarantee system and test system are complete. As per user requirements, we produce special equipment of different types. Abundant technology and advanced management idea constitute serious quality guarantee system and strong researching and devolvement ability.
