Бобинорезательный станок
Ведущий производитель, узкий станок для резки листового металла, станок для резки жести

Ведущий производитель, узкий станок для резки листового металла, станок для резки жести

Категория товара: Бобинорезательный станок >>>
Поставщик (Оптовый магазин): Shanghai,Honcang,Industrial,Limited

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Product Category

Steel pipe making machine.

ERW welded pipe / tube making.

Used for building, scaffolding, furniture, cars, water, gas...etc

Color coated line & Film line

For steel coil color spraying and film coating on steel coil surface,Home appliance board, building material board, food box...etc

Coil cut to length line.

Cutting metal coil to sheet plate .

Thickness from 0.2 to 25mm. Coil width customized

ERW Pipe Making Machine	Slitting Machine	Cut to Length Line
Steel Roll Forming Machine	Coil Film Line	Coil Color Coating Line

Why Choose us?

1.30 years in metal processing equipment development

2.15 years export experience, serves hundreds clients in 40 countries

3.Top engineer team, advanced production process, maximize returns for client.

4.24 hours online service, excellent service system

Slitting Machine

Sheet metal steel strip slitting machine sheet metal steel coil slitter machine steel coil cutting machine

Supplied Machine: metal coil slitting machine line
SINO POWER slitting is applicable to coils of various specifications. aluminum slitting is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling. stainless steel slitting has advantages such as proper layout, easy operation, highly automated and high production efficiency.

1: Specification of metal steel coil slitting machine line

Model	SP0.3-3.0x1600 SP0.8-5.0x1600	SP1-6x2000 SP2-8x2000	SP3-12x2200 SP4-16x2200
Coil material	SS / CS / GI/ PPGI /HR / CR /Aluminum /Copper
Thickness	0.3-3.0mm 0.8-5.0mm	1-6mm 2-8mm	3-12mm 4-16mm
Coil width	800-1600mm	900-2000mm	900-2200mm
Coil weight	≤20T	≤30T	≤35T
Decoil I.D	508mm,610mm,760mm
Recoil I.D	≤2000mm	≤2200mm	≤2200mm
Strip Width	≥20mm	≥30mm	≥40mm
Number of strip	5-35	3-10	3-7
Slitting accuracy	±0.03mm	±0.05mm	±0.05mm
Single side straightness	<0.3mm/min	<0.3mm/min	<0.3mm/min
Line speed	0-120m/min	0-80m/min	0-40m/min
Electrical control system	PLC automatic control	PLC automatic control	PLC automatic control

Above are our standard series, we also accept customized. We have 0.3-3.0, 0.8-5.0, 1-6mm, 2-10mm, 3-12mm, 4-16mm, 5-20mm,etc.

2: Whole review of slitting machine

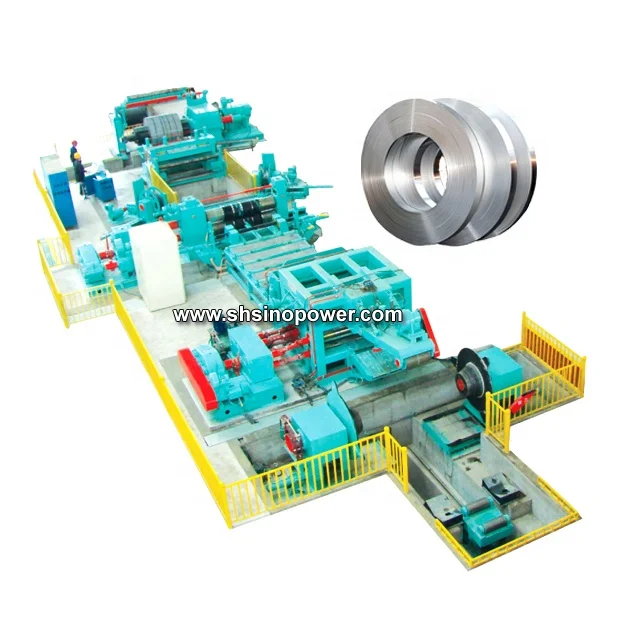

3. Flow Chart & Machine

Hydraulic bracket-Carrying coil car-Hydraulic single arm decoiler-Feeding guide plate fitting-pinching machine,coil head shearing-Front looping table-Side guiding fitting-Disc shear-Curling machine-Back looping table-Tension table-Recoiler-Discharging car-Hydraulic bracket-Hydraulic control-Electric control
