Двухцилиндровый бензиновый двигатель 22HP V для портативных пилой
- Категория товара: Machinery Engines >>>
- Поставщик (Оптовый магазин): Yancheng,Talos,Engine,Equipment,Company,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
22HP V Twin Two Cylinders Petrol Gasoline Engine For Portable Sawmills
The Talosplus® 724cc OHV Horizontal Engine with 16.5kW(22HP)@3600RPM and 48N.m@ 2500RPM. It has enough power to run a wide range of equipment, including sawmills, log splitters, pressure washers, air compressors, go-karts, water pumps and chippers/shredders.
OHV design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides long usage life.It is reliable, easy starting and quiet running. Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
Specification
Model | T750 | Engine Type | OHV, V-twin | ||
Bore x Stroke | 80 x 72mm | Displacement | 724cc | ||
Compression Ratio | 8.5 : 1 | Start Type | Electric Start | ||
Net Torque | 48N.m@2500RPM | Idle Speed | 1500±150r/min | ||
Speed | 3600RPM | Rated Output | 15.5kW@3600RPM | ||
Maximum Output | 16.5kW@3600RPM | Muffler | Yes | ||
Fuel Consumption | 370g/kW.h | Shaft Output | Horizontal | ||
Crankshaft | Key-type | Cooling System | Air cooled | ||
Fuel Type | Gasoline | Fuel Tank | No | ||
Low Oil Alert | Yes | Low Oil Shutdown | Yes | ||
Oil Capacity | 1.4L | Lubrication System | Compressive+splash | ||
Governor System | Centrifugal mass | Throttle Control | Remote (cable) | ||
Carburetor | Float | Choke Control | Manual | ||
Net Weight | 47.5kg | Gross Weight | 52.5kg | ||
Dimension(L x W x H) | 705 × 570 × 600mm | CE/EPA Approval | Yes | ||
Available Option | PTO shaft | Warranty | 1 Year | ||
Shaft Rotation | (From PTO Shaft Side)\tCounterclockwise | ||||
Application | Pressure washer, sawmill, air compressor, water pump, log splitters, go-karts | ||||
Features + Benefits
OHV design for increased efficiency and optimal power transfer.
High compression ratio for better fuel efficiency.
High compression ratio for better fuel efficiency.
Low vibration from precision-engineered components.
Cast iron cylinder sleeve .
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
Cast iron cylinder sleeve .
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
Manual start is available option.

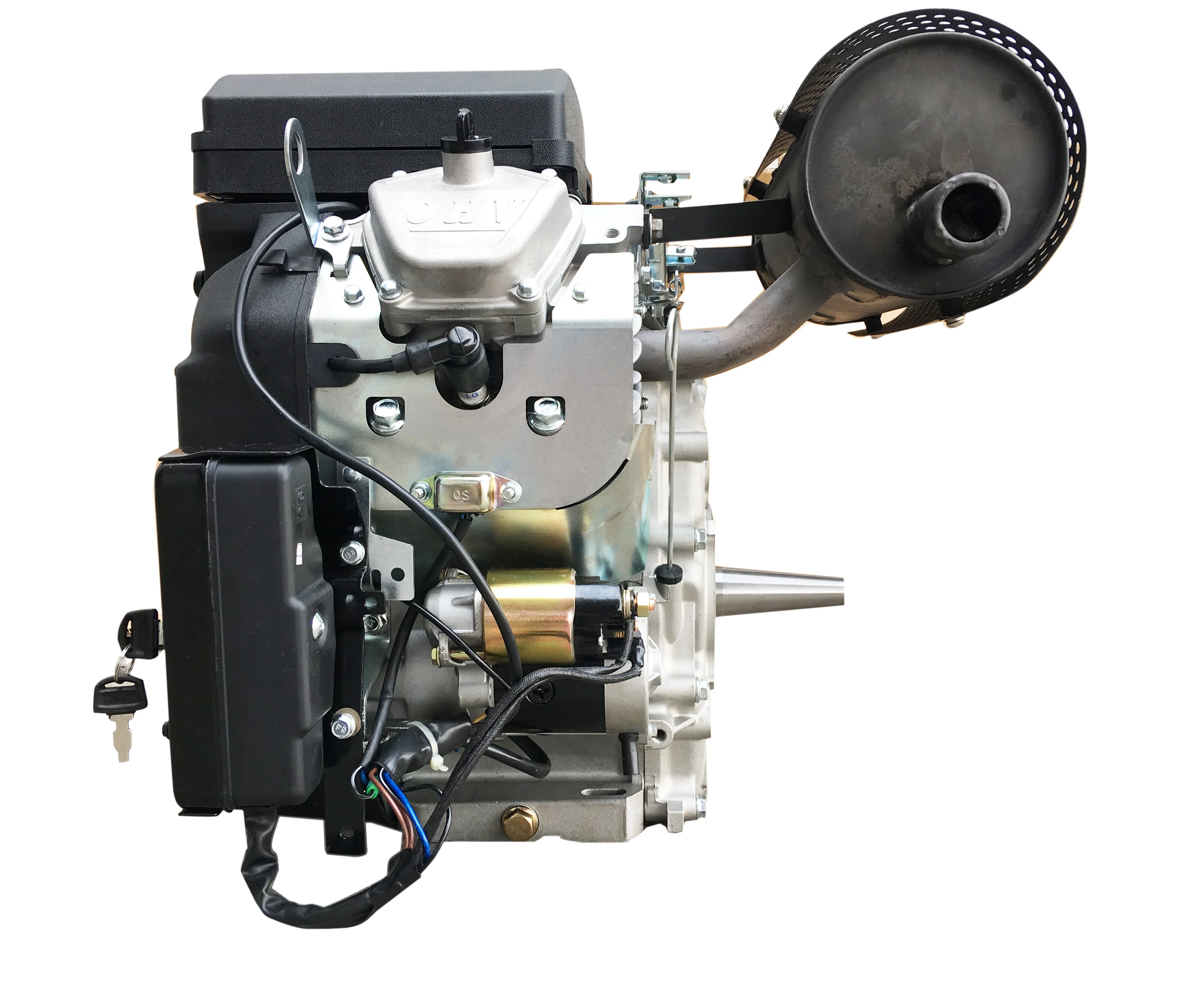

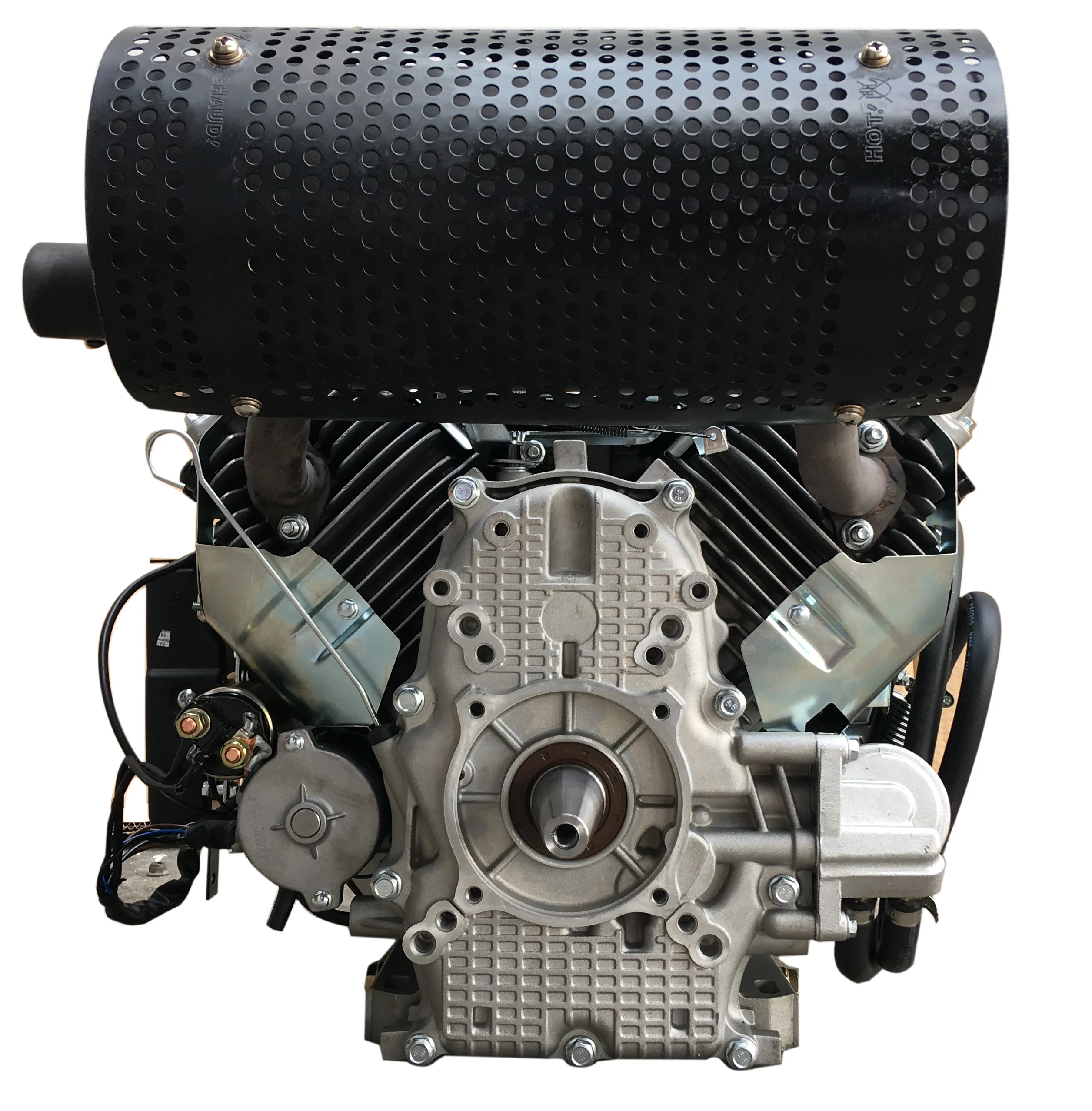

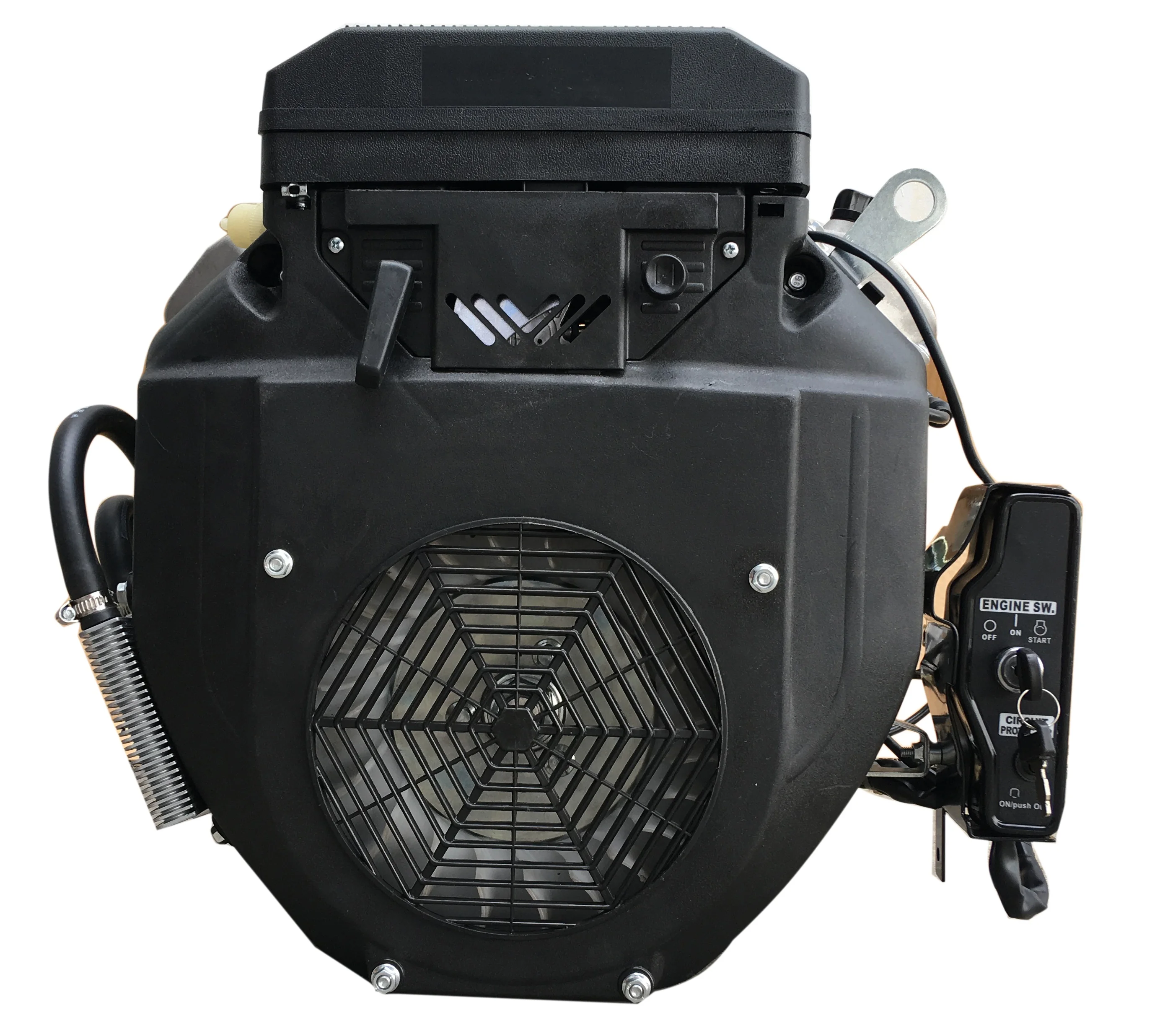

Detailed Images
Packing & Delivery
Packing & Delivery
Durable plywood box.
Package dimension(L x W x H): 705 x 570 x 600mm
Gross weight with package: 52.5kg.
Lead time: regular 30 days after got deposit.
