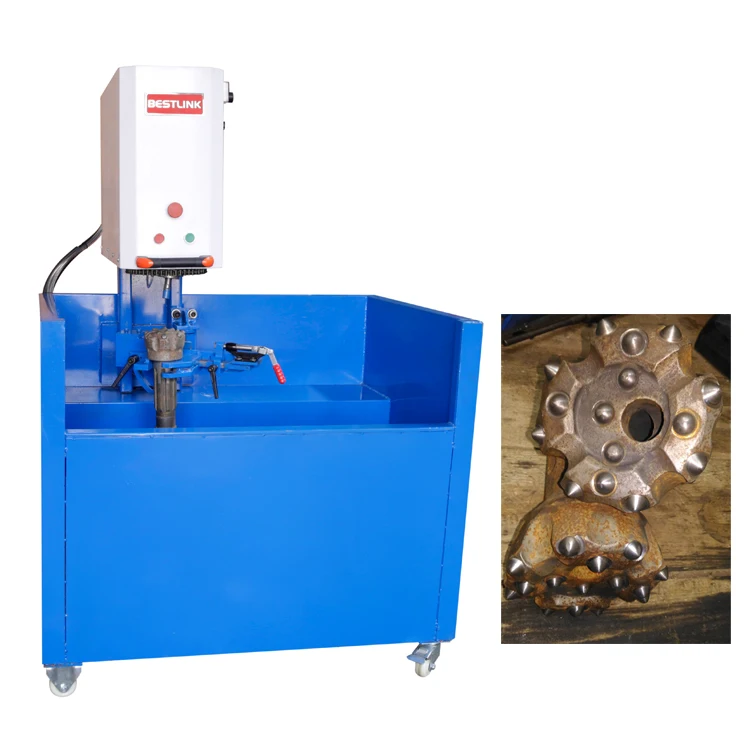

Многофункциональная электрическая точилка для сверл по низкой цене
- Категория товара: Круглошлифовальные станки >>>
- Поставщик (Оптовый магазин): Xiamen,Bestlink,Factory,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
BESTLINK drill bits grinder sharpner

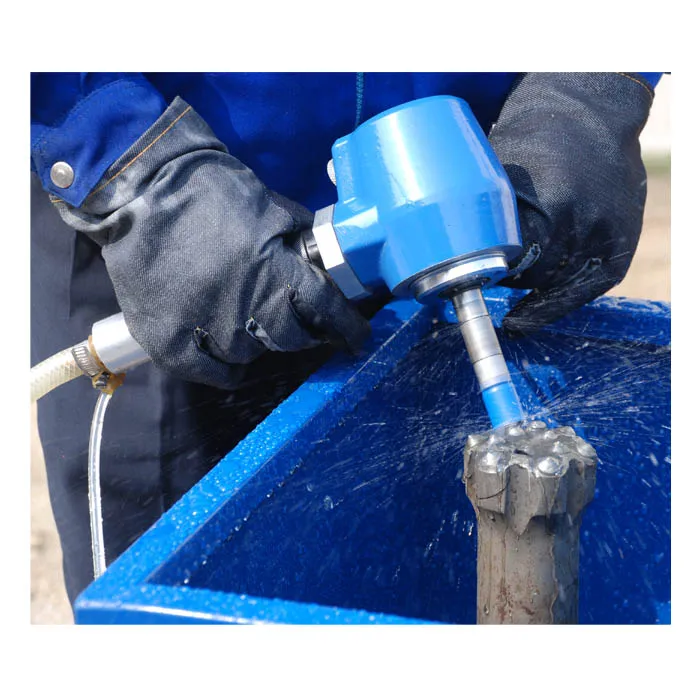

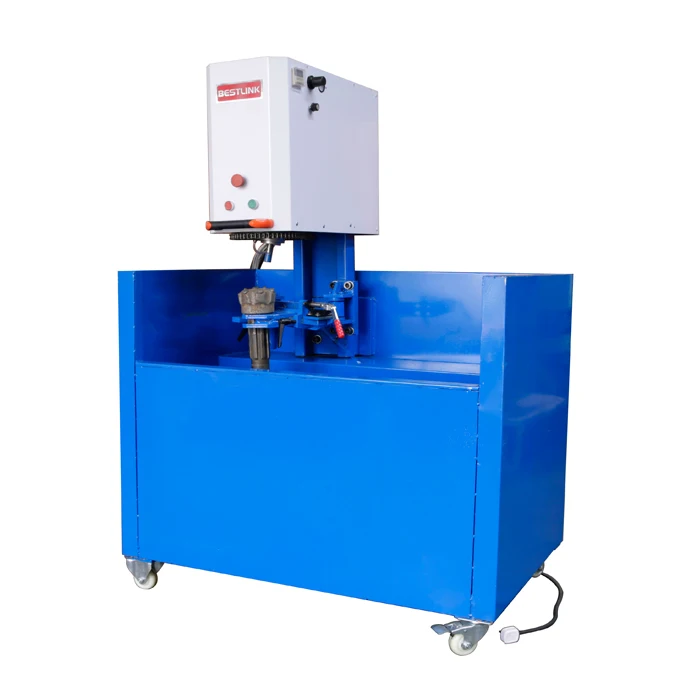

(1)Button bits grinder

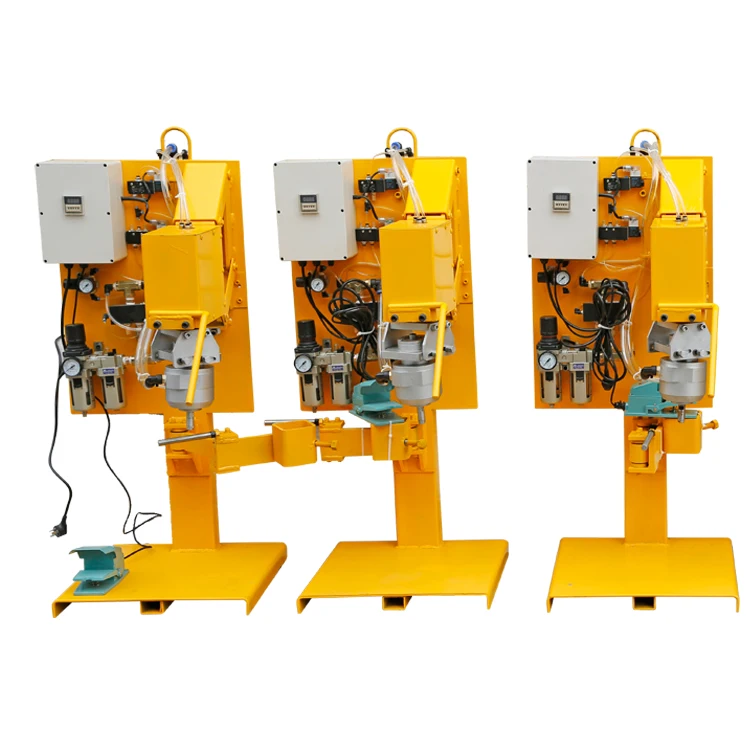

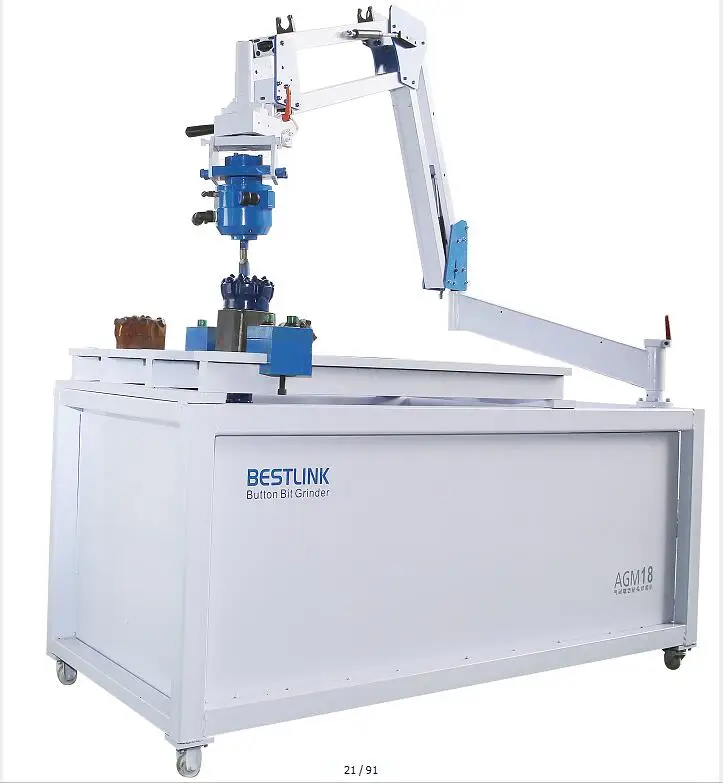

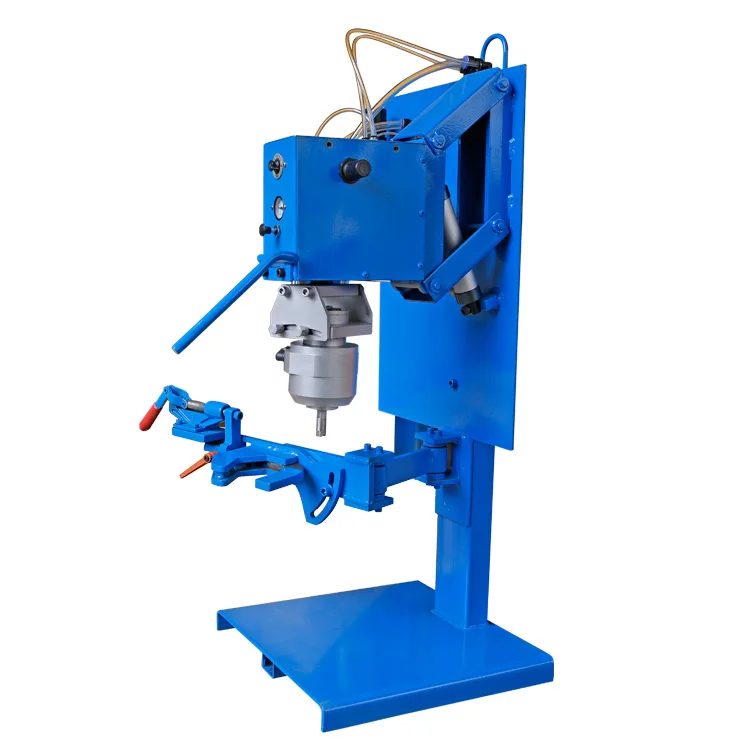

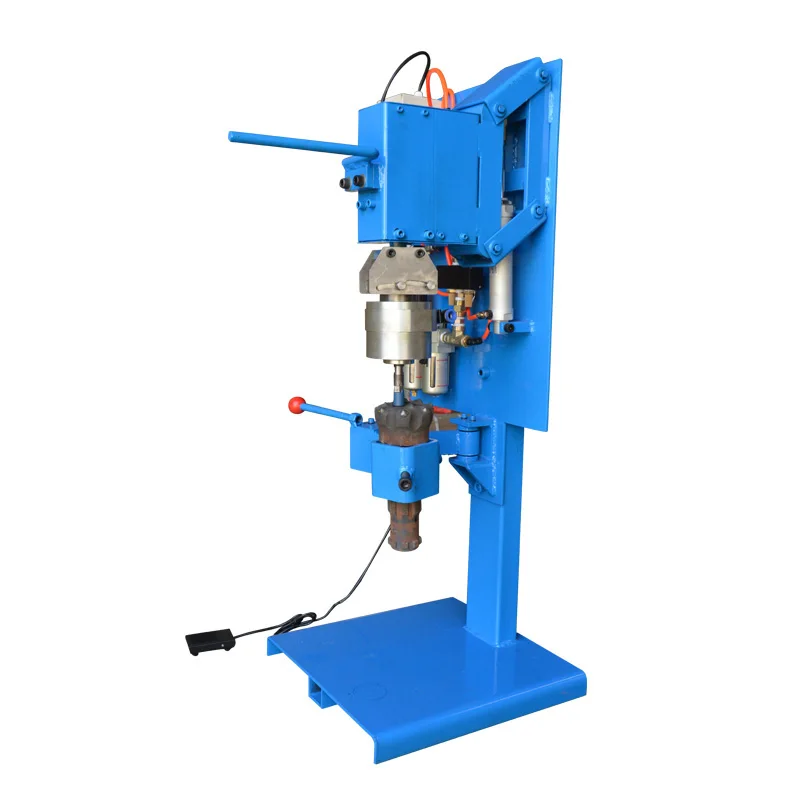

| Standar model(fully pnumatic) | with Robot arm(fully pnumatic)but without table | Electric button bits grinder | |||
| BTON500 | AGM18 | EGM75 | |||
| Rotation speed | 20000 rpm | Rotation Speed | 20,000RPM | Working air pressure | 5-7bar(100 psi) |
| Motor: Pneumatic (air powered) Power output | 1.5KW | Working Air Pressure | 7-8bar | Air consumption | 1.2-1.8m3/min |
| Work pressure | 5-7 bar (100 psi) | Air Consumption | 2.2m3/min | Max.water pressure | 4bar(60 psi) |
| Max. air pressure | 8 bar (115 psi) | Max.Water/Coolant Press | 4bar | Water consumption | 2-4L/min |
| Air consumption | 2.2 m3 / min (80ft3/min) | Air hose diameter | 19mm | Rated power(motor) | 7.5KW |
| Max. water pressure | 4 bar (60 psi) | Water hose diameter | 6mm | Coolant/flushing medium | Water |
| Air hose diameter | 19mm | Weight incl.packing | 350KG | Air hose diameter | 19mm |
| Water hose diameter | 4mm | Sound Level | 92dB(A) | Water hose diameter | 6mm |
| Sound level | 92 dB(A) | Bit Holder Capacity | 1500mm | Weight | 200KG |
| Weight incl. packaging | 55KG | Grinder Dimensions | 1600*700*1500mm | Electric power data | 1 phase220V,50Hz or3 phase,380V,50Hz |

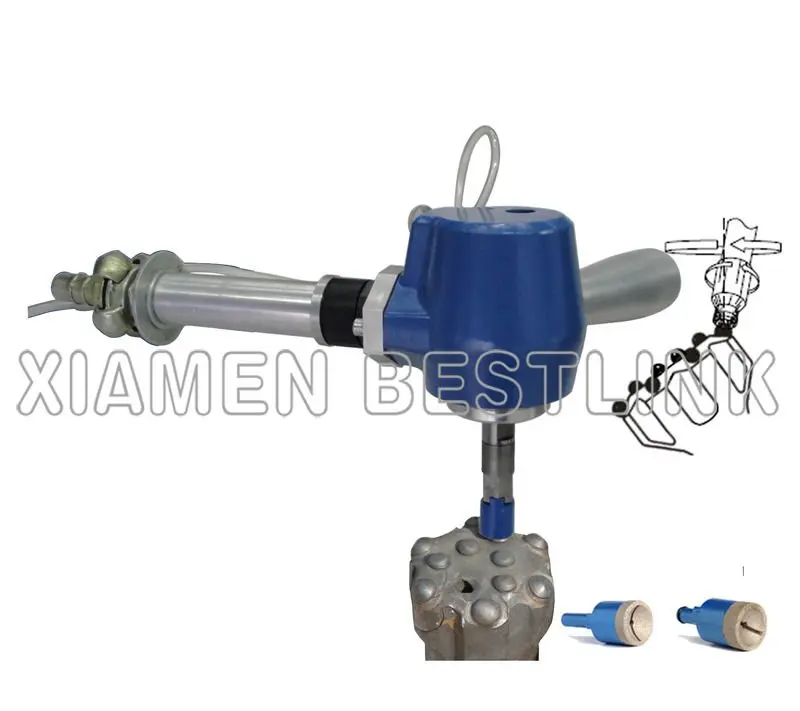

The grinder can work with 4 kinds of grinding cups together to get better grinding effect just by replace the coupling chuck.
(2) Diamond Grinding Cups
BESTLINK supplies you 4 kinds of grinding cup for your various need.
The grinding cups sizes are ranged from 6mm to 25mm; a special size is on clients request.
