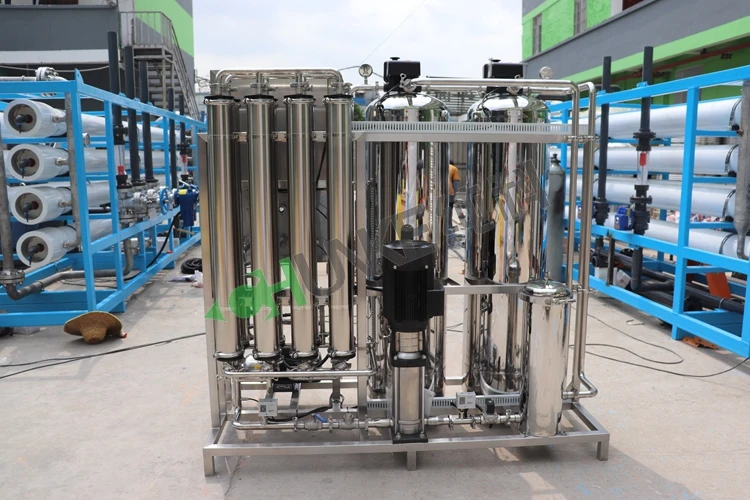

Малый размер ro машина для дома или малого бизнеса чистая waer делая систему с высоким качеством низкая цена китайской фабрики

Малый размер ro машина для дома или малого бизнеса чистая waer делая систему с высоким качеством низкая цена китайской фабрики

Категория товара: Water Treatment Machinery >>>
Поставщик (Оптовый магазин): Guangzhou,Chunke,Environmental,Technology,Co.,Ltd.

Цена:2 300,00 $ - 3 250,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Product Description

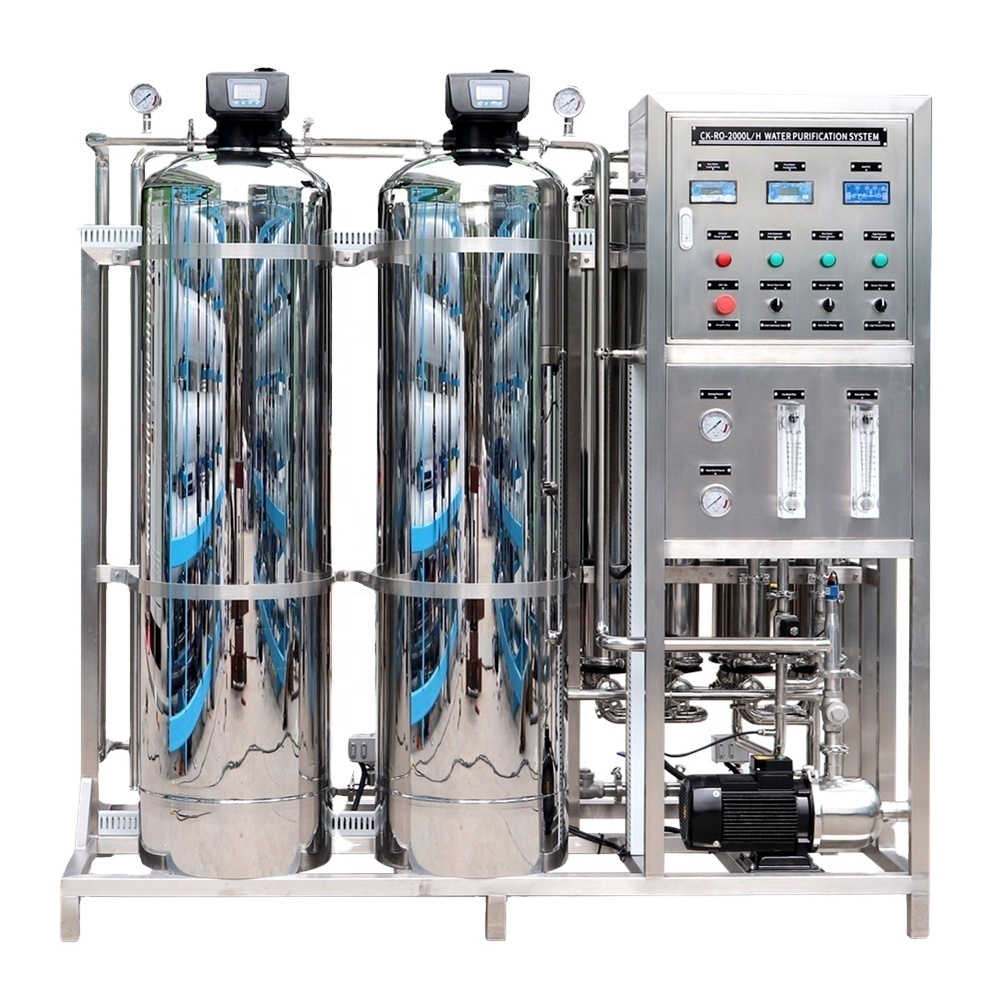

small size ro machine for home or small business pure waer making system with high quality low price by Chinese factory

_14

What is RO water plant ?

RO system is raw water through precision filter, granular activated carbon filters, activated carbon

filters, compression, and then through the pump pressure, the use of reverse osmosis membrane

pore size 1/10000μm make a higher concentration of water into low concentration of water, while

the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed

with a large number of full isolation, to achieve the required physical and chemical indicators for

drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish

water quality. It is key equipment of pure water plant.

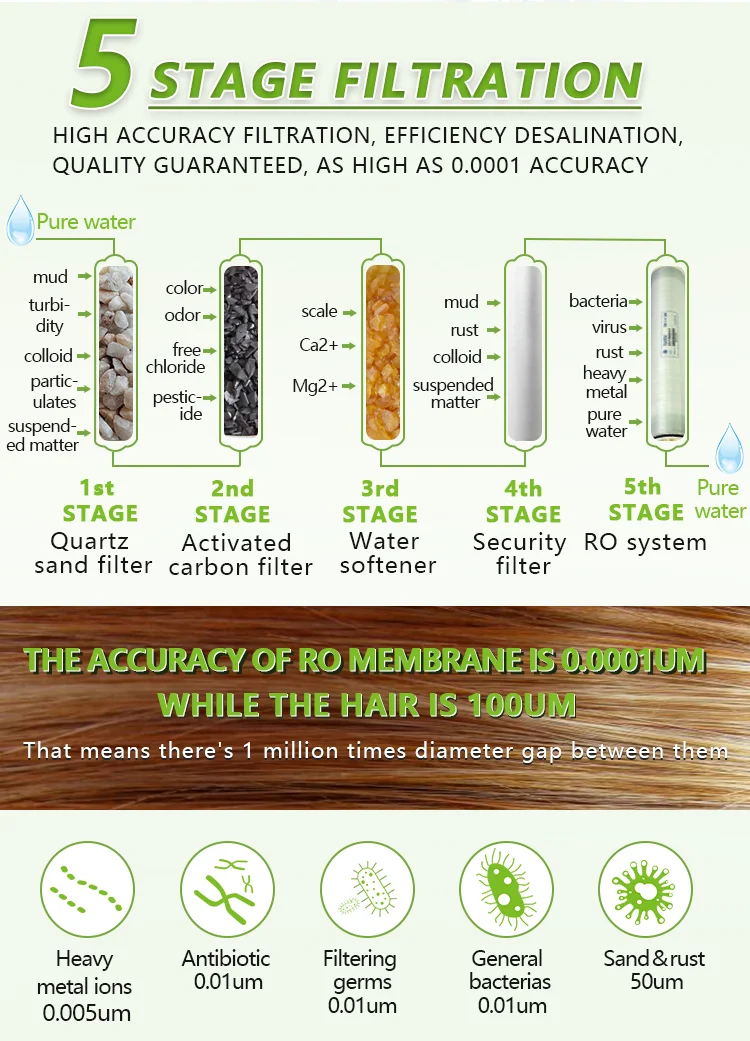

What's the working principle of the RO mambrane for the reverse osmosis system?

4_02

Technical parameter

Model	Productivity (T/H)	Motor power (KW)	Recovery rate (%)	Outlet water conductivity (μS/CM)	Raw water conductivity (μS/CM)
CK-RO-500L	0.5	1.5	50	≤10	≤300
CK-RO-1000L	1	2.2	50	≤10	≤300
CK-RO-2000L	2	3	50-60	≤10	≤300
CK-RO-3000L	3	4.5	55-65	≤10	≤300
CK-RO-4000L	4	6.5	55-65	≤10	≤300
CK-RO-5000L	5	8	60-70	≤10	≤300
CK-RO-10000L	10	15	60-70	≤10	≤300
CK-RO-20000L	20	22	65-75	≤10	≤300
CK-RO-30000L	30	26	70-75	≤10	≤300
CK-RO-50000L	50	55	70-75	≤10	≤300

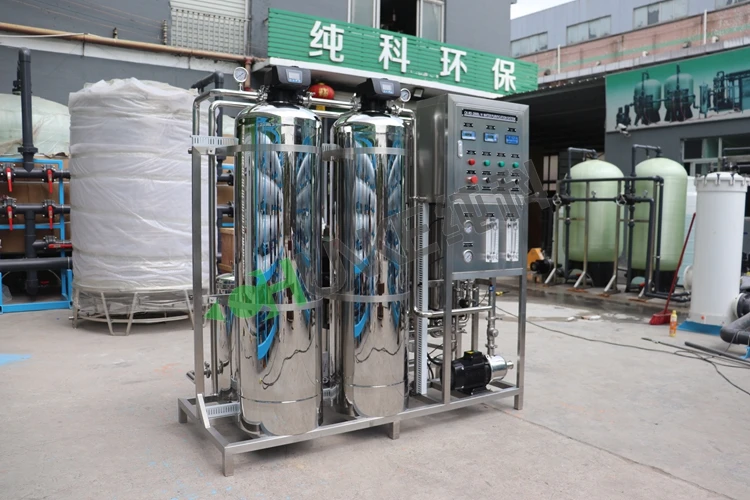

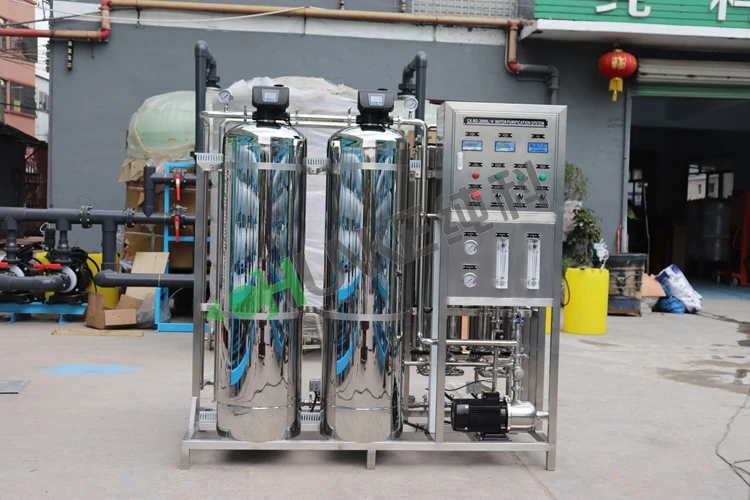

Detail Images

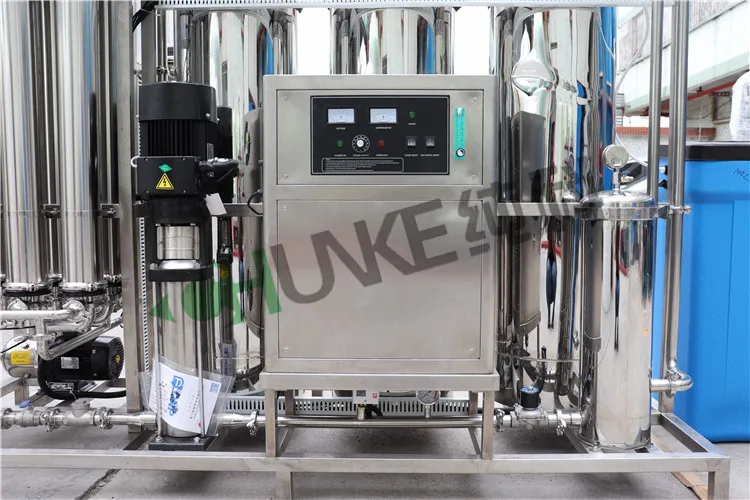

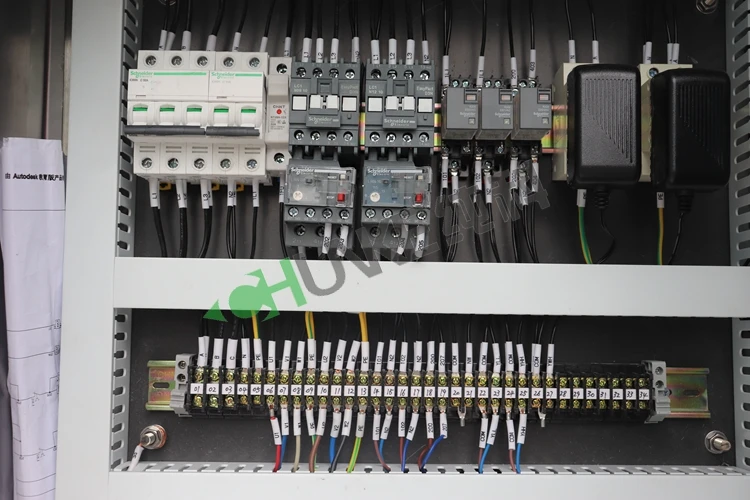

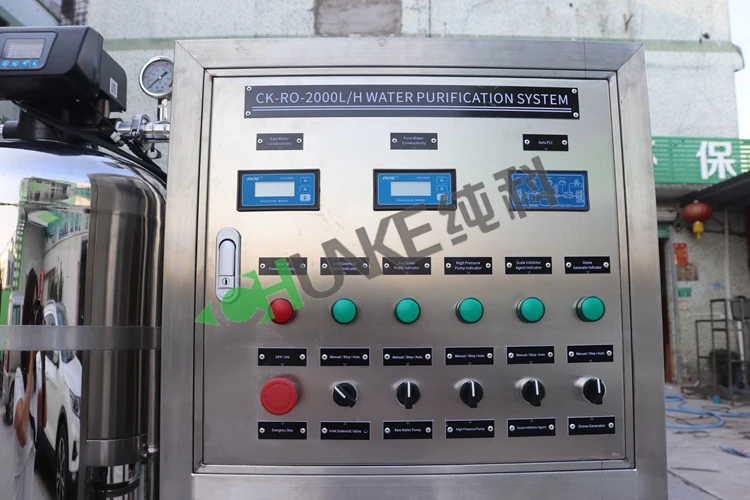

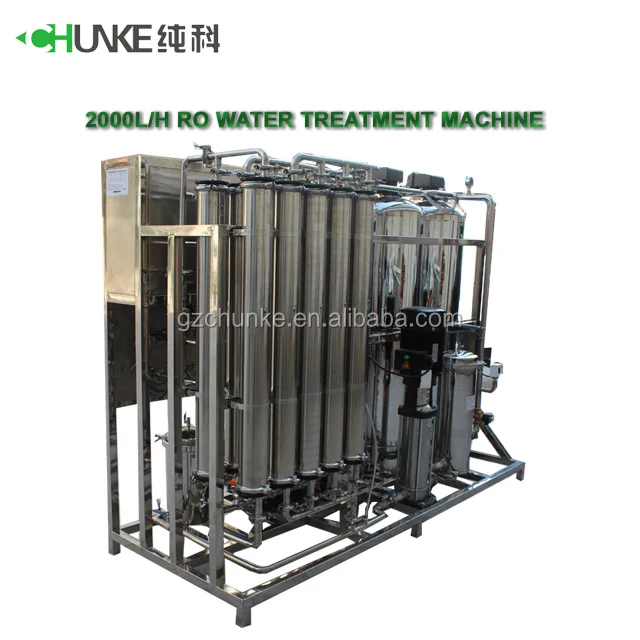

2000l Per hour ro1 2000l Per hour ro2 2000l Per hour ro4 2000l Per hour ro3 2000l Per hour ro6 2T-RO-OZ01

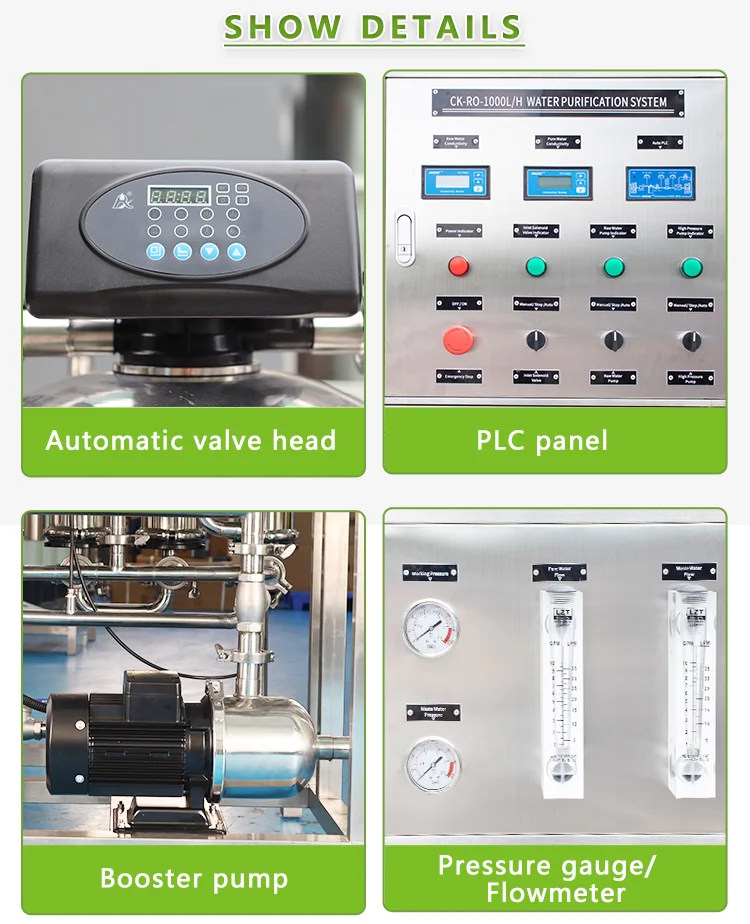

Function of each part of water treatment plant
1.feed water pump pump-- provide the pressure to quartz sand filter/active carbon filter
2.Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3.Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4.Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5.Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6.High pressure pump-- Provide the high pressure to RO membrane
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8.UV sterilizer or ozone generator--- kill bacteria

Feature and advantages:

1.System can produce water continuously and high degree automation.

2.No need chemical to regenerate, easy operation and maintenance.

3.Core components of ro system are imported USA membranes.

4.Automatic switch on when low water level, and switch off when high water level

5.System flushes RO membranes automatically, reducing membranes polluted speed.

6.Water shortage protection for multi-stage pump

7.Product water conductivity meter can monitor water quality online continuously.

8.Low operation cost and long life span

Application:

3_08

1). Electronic industry: Pre-filter for ultra pure water, chemical products and pure water

2). Food and beverage industry: filter for mineral water, wines and fruit juice
3). Medicine industry: filter for drug liquid, gases
4). Chemical industry: filter for organic solvent
5). Petroleum industry: filter for oil-field flooding
