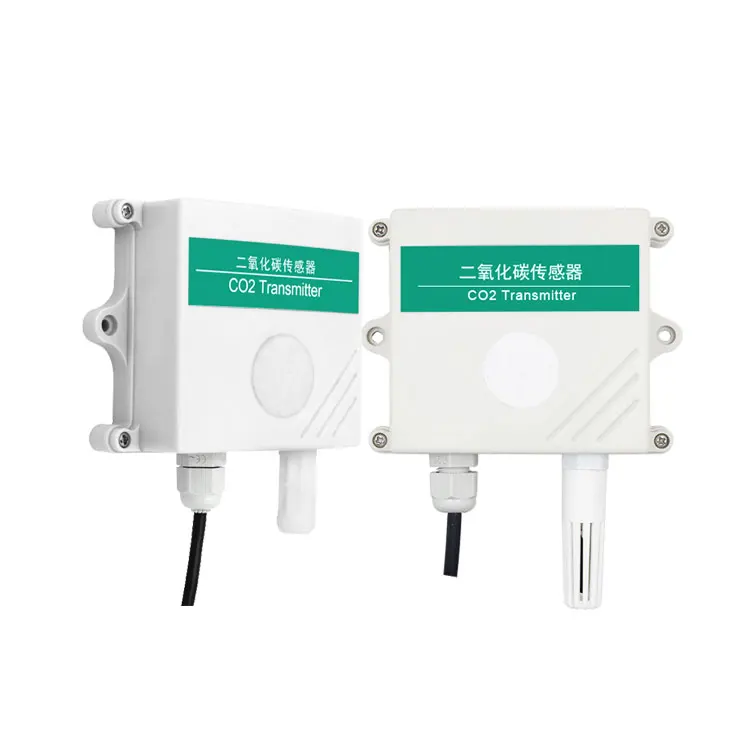

Greenhouse Oem 4-20ma 0-5v 0-10v Analog co2 carbon dioxide sensor
Product Description
Our co2 sensor uses high sensitivity gas detection probe, signal stability, high precision. With a wide measuring range, good linearity, easy to use, easy to install, transmission distance and so on.

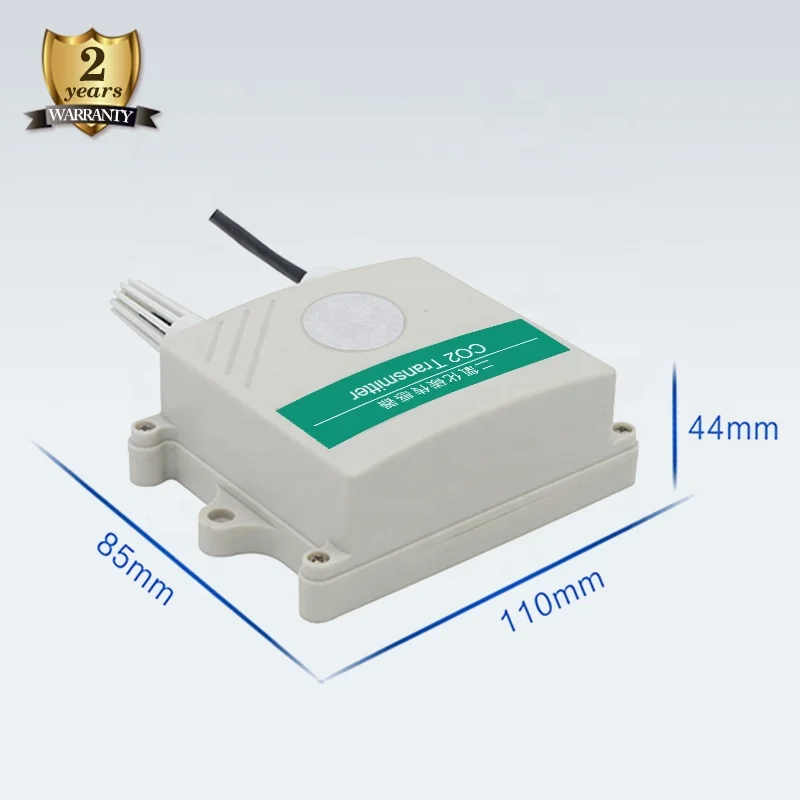

Detailed Images
Products keywords | co2 sensor co2 sensor arduino co2 sensor arduino | ||||
Supply power: | 10~30V DC co2 sensor arduino co2 sensor arduino | ||||
Signal output | 4~20ma/0~5V/0~10V/RS485(Modbus-RTU) | ||||

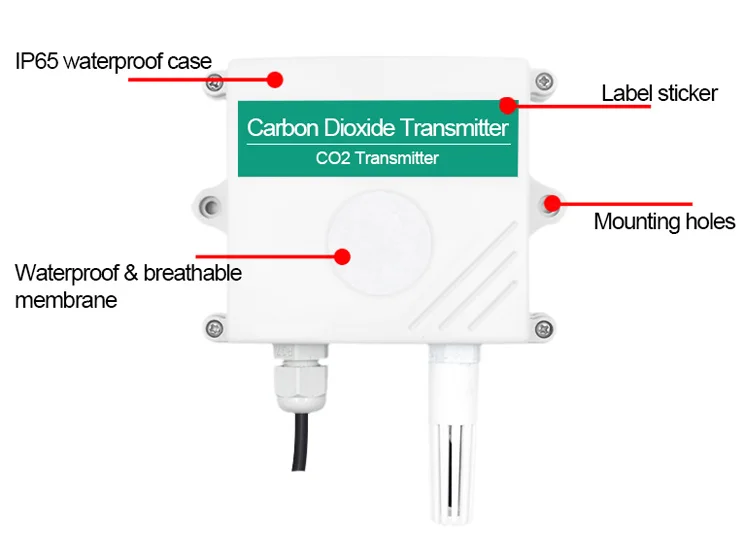

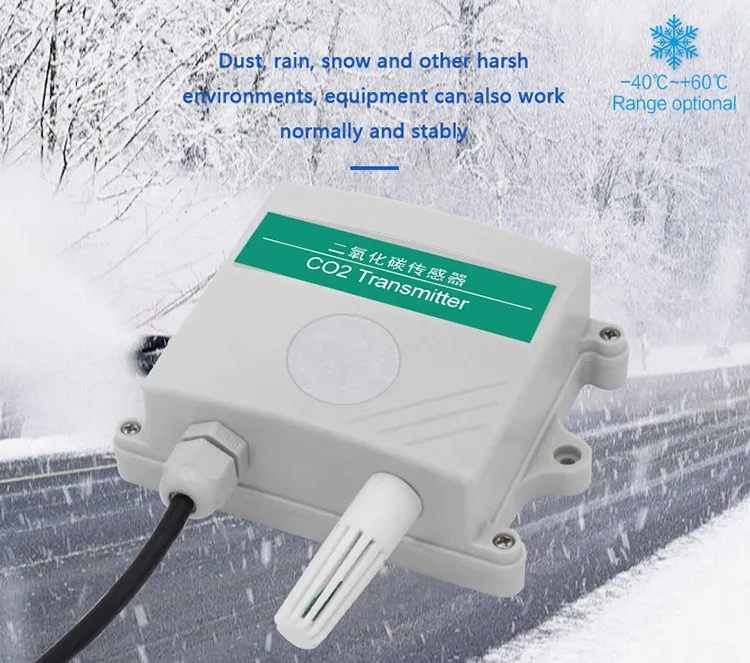

Protection level | IP65, can be used for snow and rain environment | ||||
Working environment | 0 ~ 70 ℃, 0 ~ 95% RH (no condensation) | ||||
Temperature effects | comes with temperature compensation | ||||
CO2 Measurement range | 0 ~ 5000ppm (can be customized) | ||||
CO2 Accuracy | ± (40ppm + 3% F · S) (25 ℃) | ||||
Maximum power consumption | RS485 | 0.4W | |||
4-20ma/0-5v/0-10v | 1.2W | ||||
American brand chip, warranty 2years, communication distance 2000m. RS485 or 4-20ma,0-5v,0-10v for optional
The transmitter adopts the new infrared verification technology to measure the CO2 concentration, and the reaction is quick and sensitive, avoiding the life of the traditional electrochemical sensor and the long-term drift problem. It is widely used in agricultural greenhouses, flower cultivation, edible fungi planting, etc., requiring CO2, temperature and humidity. The occasion of monitoring.Having Analog or 485 communication, standard ModBus-RTU communication protocol, communication address and baud rate can be set, the farthest communication distance is 2000 meters. The equipment is 10-30V wide-voltage power supply, and the enclosure has a high degree of protection, which can adapt to various harsh conditions on site.

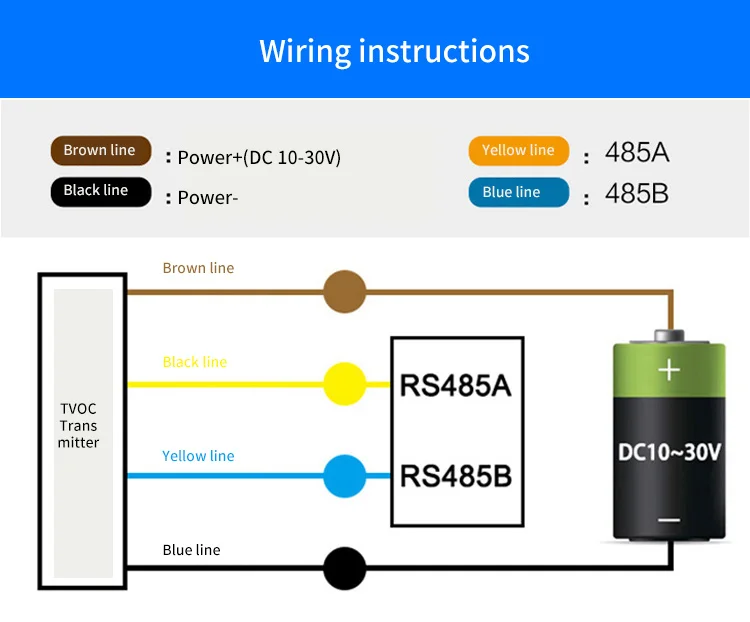

Electrical Wiring
RS485 OUTPUT | ||||
Line color | Description | |||
power | brown | Power supply(10 ~ 30V DC) | ||
black | Power supply negative | |||
Communication | yellow | 485-A | ||
blue | 485-B | |||
Range 10V-30V of wide voltage is available in power input, the A wire and B wire can not be connected contrary when connecting to 485 signal, and the address among several devices on the total wire can not be conflicted. | ||||
4-20ma, 0-5v, 0-10v OUTPUT | ||||
Line color | Description | |||
Power | brown | Power supply | ||
black | Power supply negative | |||
Output | blue | CO2 signal positive | ||
green | CO2 signal negative | |||
NOTE: Two types wire methods 1.Four-wire connection diagram 2.Three-wire connection diagram | ||||
