YIY MPPT Solar Charge

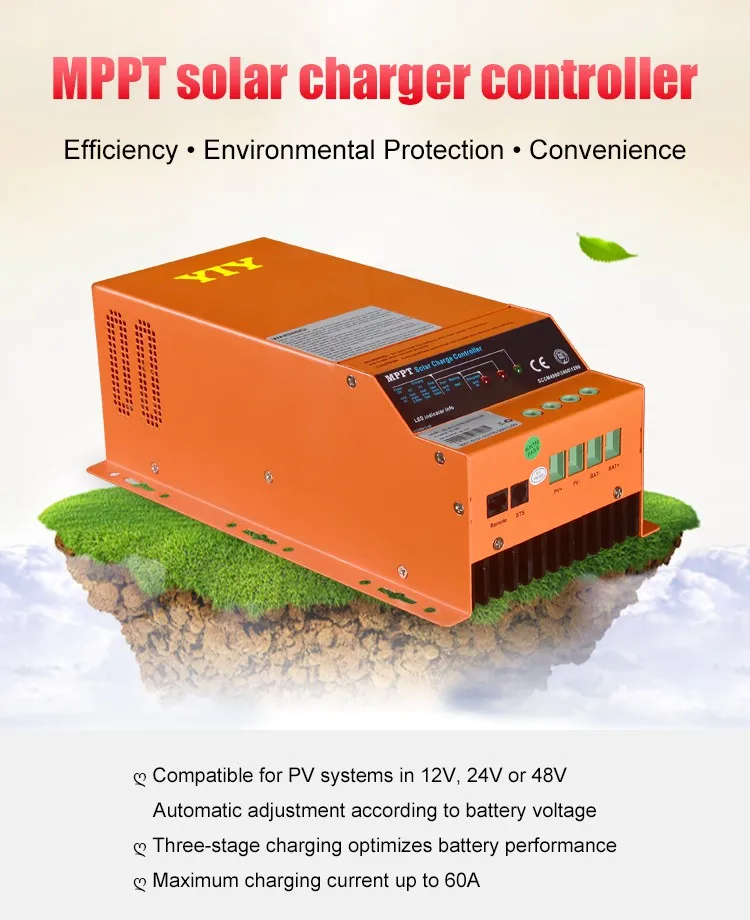

High-performance 24V 60 Amps MPPT Solar Charge Controller
Product Description
Features :
Product Description

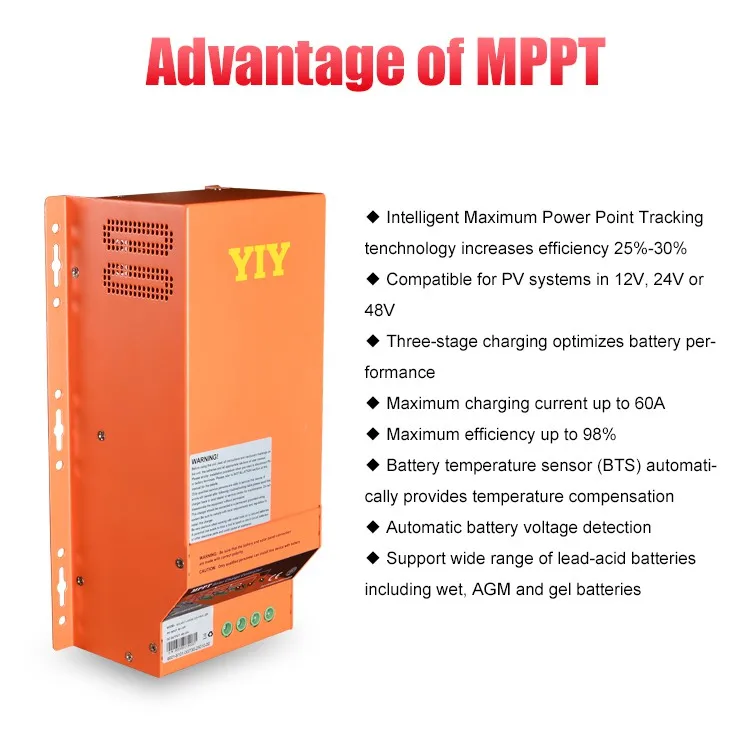

Solar MPPT controller is an advanced, efficient and versatile photovoltaic product.
It uses innovative maximum power point tracking technology to significantly improve the energy efficiency of solar energy systems with a conversion efficiency of 97%.
The controller adopts intelligent battery charging management and has temperature compensation function to effectively manage the battery and extend the battery life.
Product Dominance
| MPPT Solar Charge & Discharge Controller | ||||
| MODEL | MPPT 3KW | Charging Set points | Absorption Stage | Float Stage |
| Nominal System Voltage | 12, 24, or 48 VDC (Auto detection) | Flooded Battery | 14.6 / 29.2 / 58.4Vdc | 13.5/27 /54Vdc |
| Maximum Battefy Current | 60 Amps | AGM/Gel Battery (Default) | 14.1/ 28.2 / 56.4Vdc | 13.5 / 27 / 54Vdc |
| Maximum Solar Input Voltage | 145Vdc | Overcharging voltage | 15Vdc/30Vdc/60Vdc | |
| PV Array MPPT Voltage Range | (Bat. Voltage+5)-115Vdc | Over-charging comeback voltage | 14.5Vdc/29Vdc/58Vdc | |
| Maximum Input Power | 12 Volt-800 Watts 24 Vott--1600 Watts 48 Volt-3200 Watts | Battery defect voltage | 8.5Vdc/17Vdc / 34Vdc | |
| Transient Surge Protection | 4500 Watts / port | Battery defect comeback voltage | 9Vdc / 18Vdc / 36Vdc | |

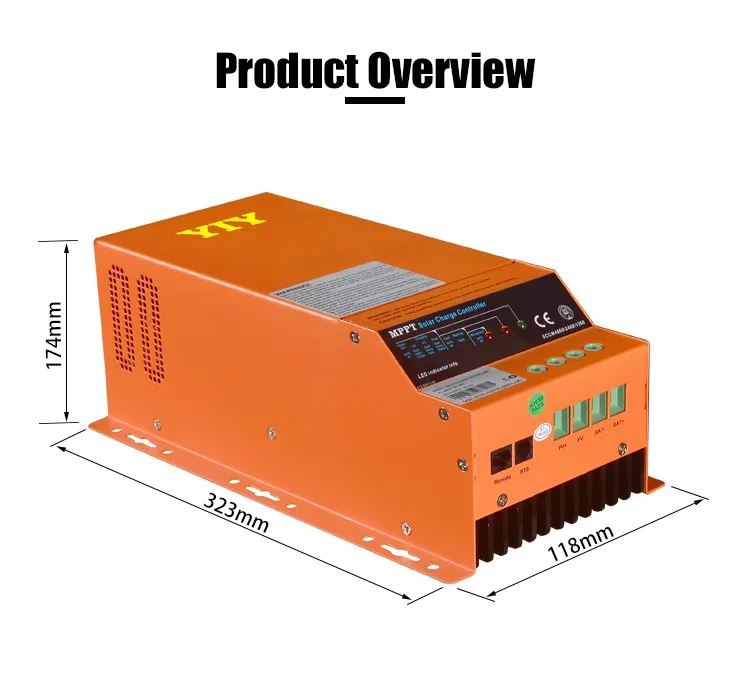

| Temperature compensation coefficient | Volt-5 mV/°C/cell (25 °C ref.) | Mechanical and Environment | Product size (W x H x D mm) | 322x 173x 118mm |
| Temperature compensation | 0 °C to +50 °C | Product weight (Kg) | 4.8kg | |
| Charging stages | Bulk,Absorption,Float | Enclosure | IP31 (indoor & vented) | |
Our Services
OUR SERVICE
| Payment Terms | T/T | EXW | 30%T/T in advance, paid the balance before shipment |
| FOB | |||
| CFR(C&F) | 30%T/T in advance, paid the balance againstcopy of B/L | ||
| CIF | |||
| L/C | Optional L/C amount above 50,000usd, we can accept L/C at sight | ||
| West Union | optional tor amouni less man ouuuusa | ||
| paypal | |||
| Delivery Time | 7~10days after receiving payment for one container | ||
Welcome to Alibaba Insurance Order
You will enjoy:
*100% Guarantee of making shipment.
*100% Safety of your down payment before the shipment.
*100% Guarantee for after sale service for any issues.
*Inspection service from the third party is optional.
Company Information
FAQ
Q1.How is your product quality?
A: QC regularly check the quality.Our products were damaged less than 3% over the past five years. Regarded as a high quality inverter supplier.
Q2.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,
we have a 12 months warranty.We will track product usage until you are satisfied.
Q3.Can you accept OEM, ODM service?
A:Yes, we accept OEM,ODM service.
Q4.What kind of certificate you have ?
A:Our company already achieve ISO, CCC, and for products, we have CE, ETL, UL .
Q5. what's the payment term?
A: We accept TT,30% deposit and 70% before delivery.( >10000$US )
Q6. How's the delivery time ?
A: Usually it will take about 25-35 workdays for production.( >5pcs )
