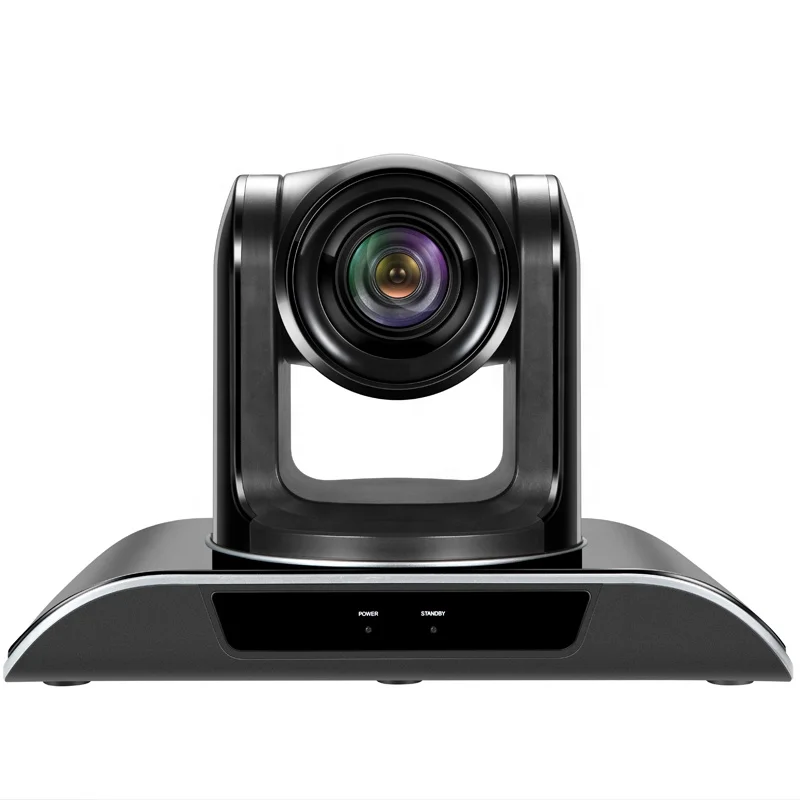

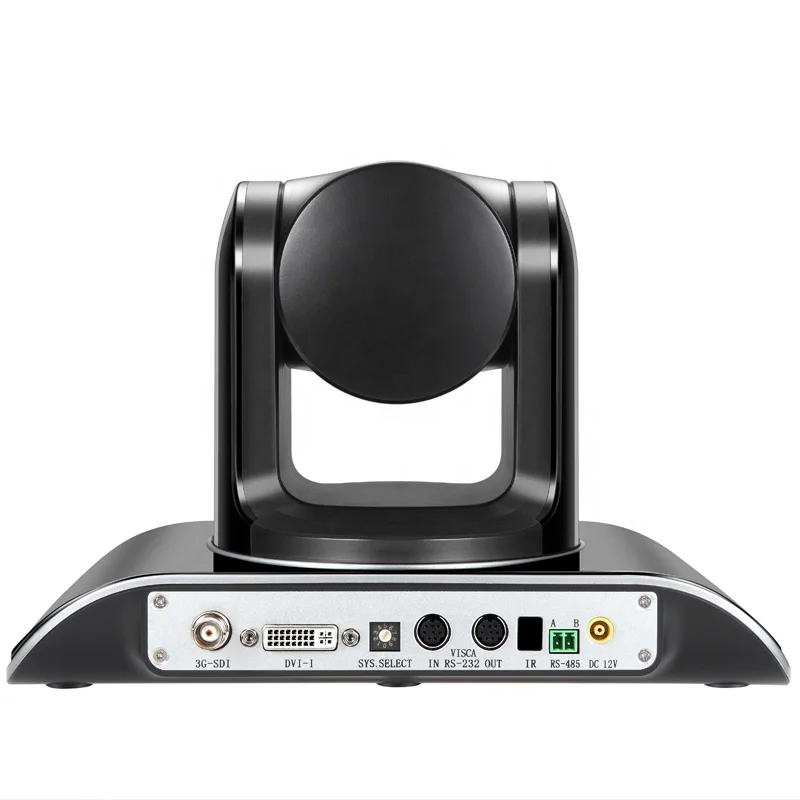

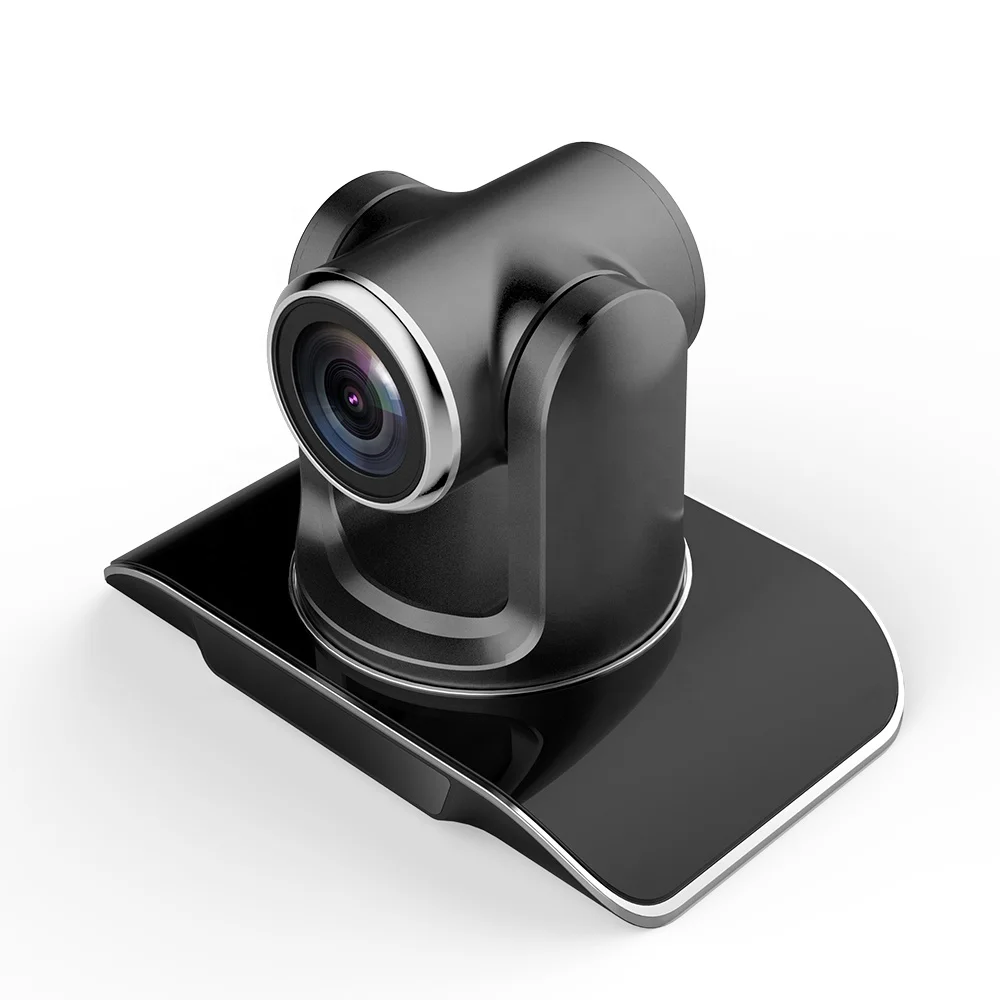

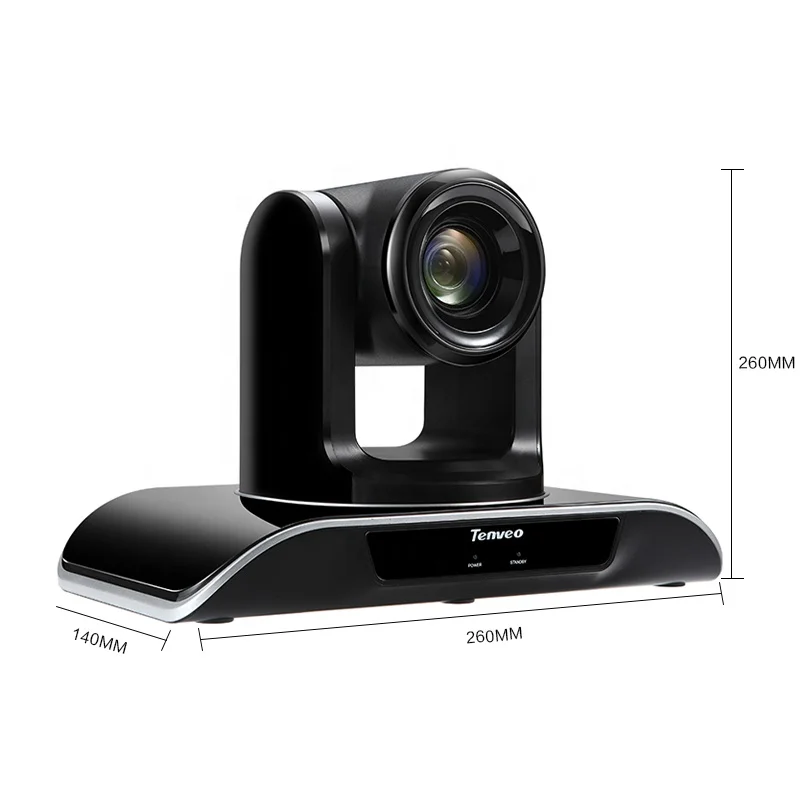

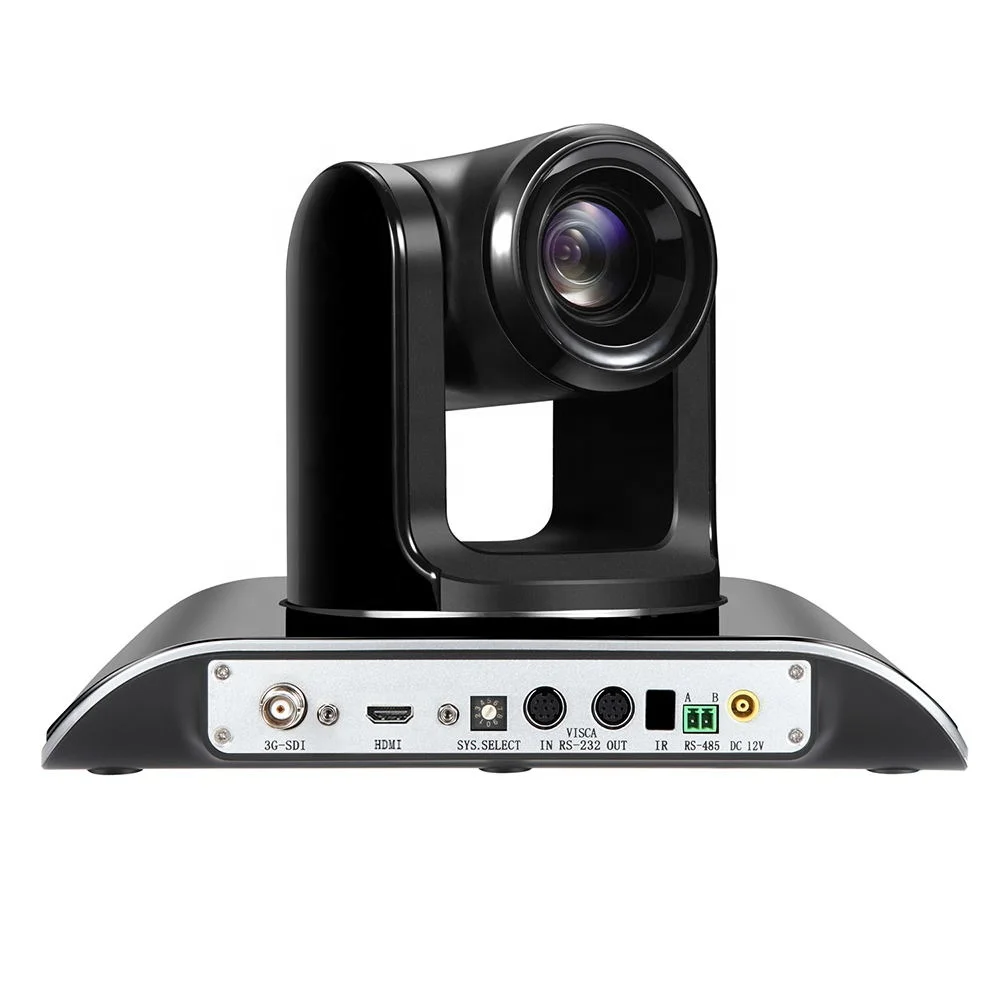

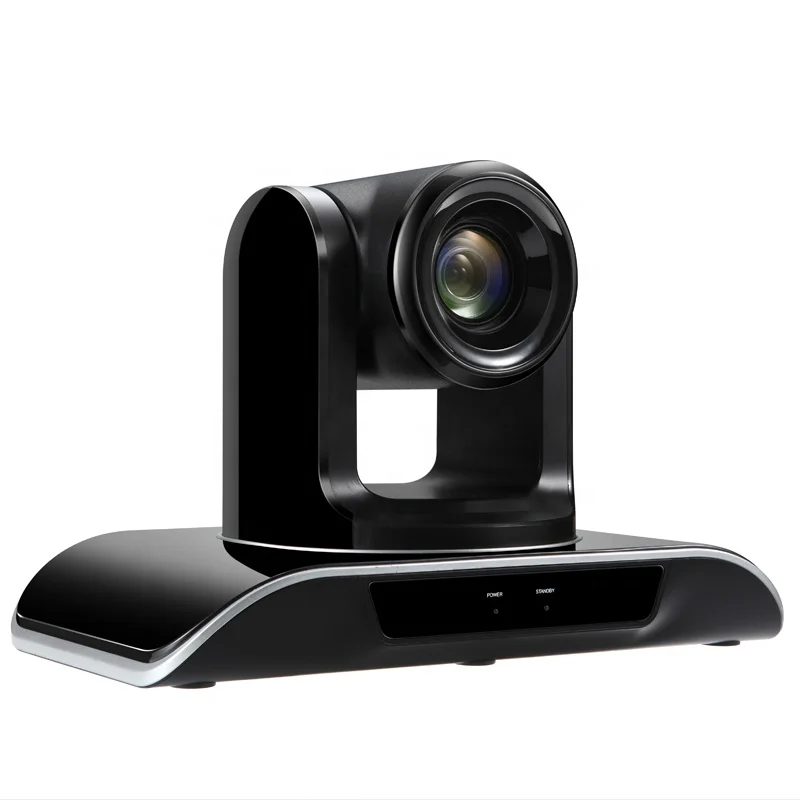

TEVO-VHD30N 3.28MP 30x оптический зум PTZ IP видео-производственное оборудование с DVI 3G-SDI порт

Поделиться:


Цена:699,00 $ - 999,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики


TEVO-VHD30N 3.28MP 30x Optical Zoom PTZ Video Conferencing Equipment with DVI 3G-SDI Port



Product Description

Model No.

TEVO-VHD30N

Image Sensor

1/3 inch HD CMOS

Effective pixel

3.28 mega pixel (16:9)

Horizontal Resolution

1080P 60/50/30/25, 1080I 60/50fps, 720P 60/50

Signal standard

NTSC/PAL

Zoom

30x optical zoom

Focal length

F=4.7mm(wide)-140.0(tele) F=1.6mm(wide)-Close(tele)

Horizontal view angle

Near-end 69.5°~Far-end 2.7°

Minimum illumination

0.25Lx(on)

Gain control

Auto/manual

Focus

Auto/manual

SNR ratio

≥50dB

Shutter speed

1/25 s-1/10000s

Preset position

Remote controller supports 9 presets

PELCO Control Protocol supports 256 presets

Pan/Tilt movement range

Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S)

Control terminal

RS-232, RS-485

Character generator

Built-in OSD Menu

Control Protocol

VISCA, PELCO-D, PELCO-P(RS-232, RS485)

Video output

3G-SDI, DVI( convertable to HDMI)

Noise Reduction

2D/3D

Work Temperature

-10°~50°

Work Humidity

-20°~60°

Baud rate

2400/4800/9600/19200bps

Decoder

Built-in

Address Set

1~256

Installation

Support desktop, Tripod, Wall mount and Ceiling mount



 1.Main features of the 30x Optical Zoom PTZ Conference camera:



30x optical zoom

Sleek and intelligent design

Crystal clear HD1080P image quality

Accurate,smooth and silent PTZ Movement

Preset: 9 via IR remote setting (256 via RS232)

Wide field of view with no video distortion

1/3 inch high quality, 3.28MP (16:9)CMOS sensor

Superior quality with Full Glass Lens Material

3G-SDI, DVI (HDMI optional) Video Output.

Support ceiling mount, wall mount and tripod mount (Reverse mountable)

2D and 3D NR for best video quality in different lighting conditions

Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control

Compatible with most leading video conferencing software and platform





conference camera with 3G-SDI port

conference camera with 3G-SDI port





2.Main details of the 30x Optical Zoom PTZ Conference camera:

conference camera with 3G-SDI port



conference camera with 3G-SDI port

3.Main application of the 30x Optical Zoom PTZ Conference camera:

conference camera with 3G-SDI port

conference camera with 3G-SDI port



conference camera with 3G-SDI port

Why choose us?

1. The MOQ is 1 unit.
2. We accept OEM, ODM orders.

3.We ship the sample order out as soon as we receive the payment.
4. 3 years warranty time. Low Repair Rate is our best reward during the past days.
5. After Sale System which makes to solve the problem quickly once met problems.
6. 14 years professional video conference supplier with superior quality & competitive prices.
7. Our QS department checks the video conference camera and speakerphone one by one strictly before sending out.


Certifications


Company Information


Packaging & Shipping

1.We have samples in stock,same day shipping. For big orders we ship within 3-7 business days.



2.We can ship to you by DHL/FEDEX/UPS/TNT/EMS or other shipping way as your instruction with fastest delivery ,cheapest price in the safe way.


FAQ

Q:What kind of camera should I use?
A:Most laptops and monitors come with built-in cameras—these work great for Tenveo software.For meeting room spaces, we have video conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and boardrooms,and large auditorium spaces.You can check our service guide for more information on different meeting room systems.

Q:Is it easy to operation?
A:Yes, it is easy to install, plug and play.

Q:Can I bring more than one person into a call at the same time?
A:Yes. We currently offer group calling for up to 500 different participants,which could be 500 people dialing in from their laptops ,pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video conferencing systems.

Q:What is the resolution of your cameras?
A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.

Q:What is the Video Connector?
A:There are USB 2.0, USB3.0,HDMI,HD-SDI,DVI,YPBPR and CVBS Video output.

Q:How many time zoom?
A:Support fixed focus, 3X 10X, 20X, 30X optical zoom.

Q:How to control this Camera?
A:There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.

Q:Which kind of software compatible with this Camera?
A:It’s compatible with PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh,WebEx, easy meeting, Vidtel and working with Microsoft Lync Software,and ZOOM.US, SKYPE, VIDYO Etc.
