Цифровые мини-машины для обследования влагалища

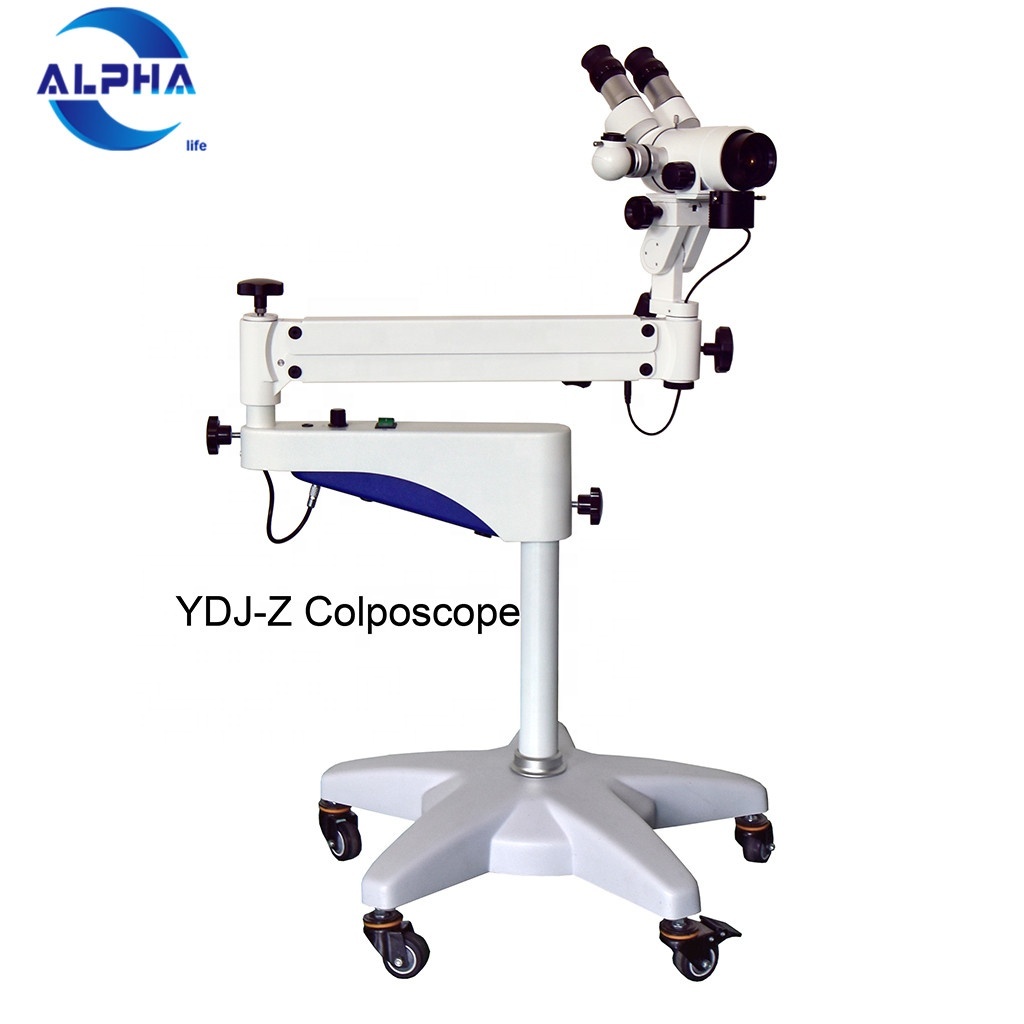

YDJ-Z Colposcope is precise optical instrument designed especially for the gynecologic examination and diagnosis. Due to the magnification of the instrument, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly seen with the instrument. Therefore, the correctness of a diagnosis is enhanced significantly. YDJ-Z zoom colposcope is featured for sharp image, wide field of view, uniform illumination, adjustable brightness and easy operation. It is the essential instruments for gynecologic examination.

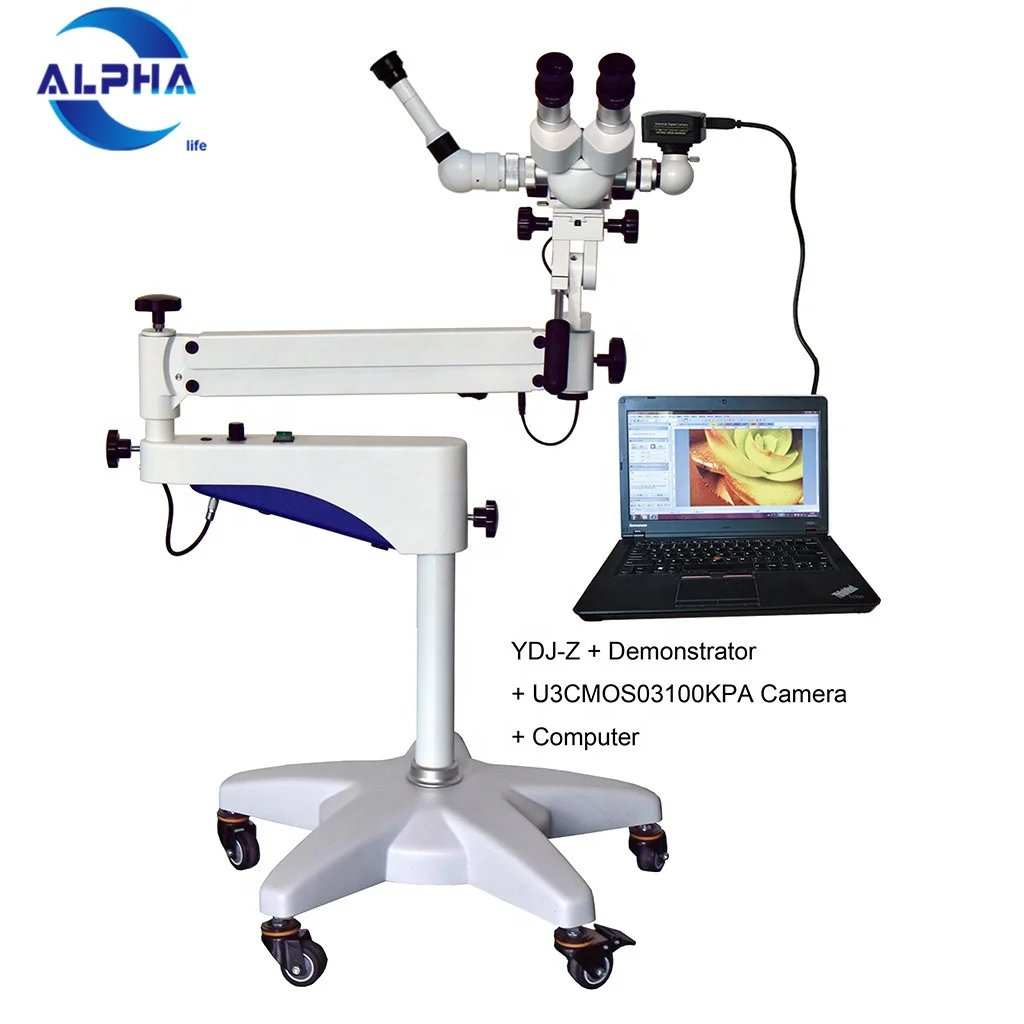

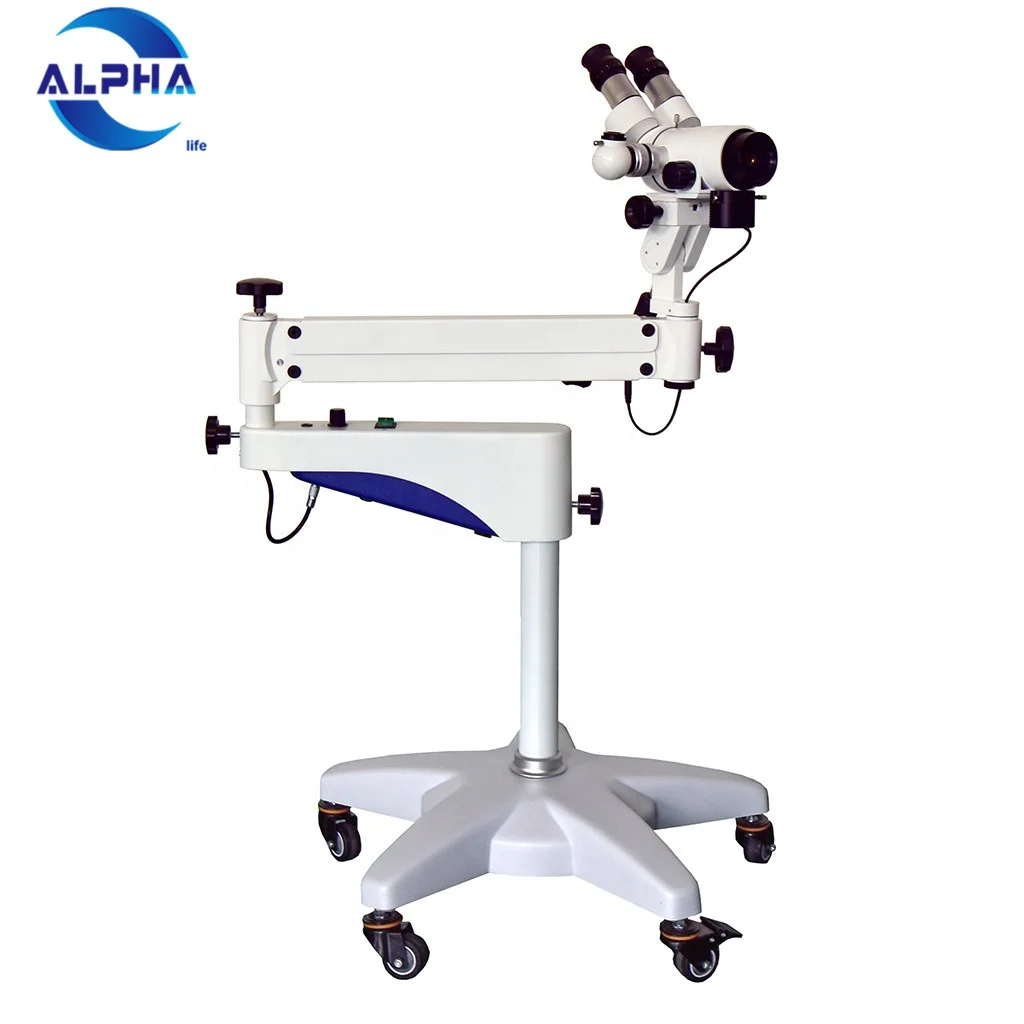

YDJ-Z Colposcope:

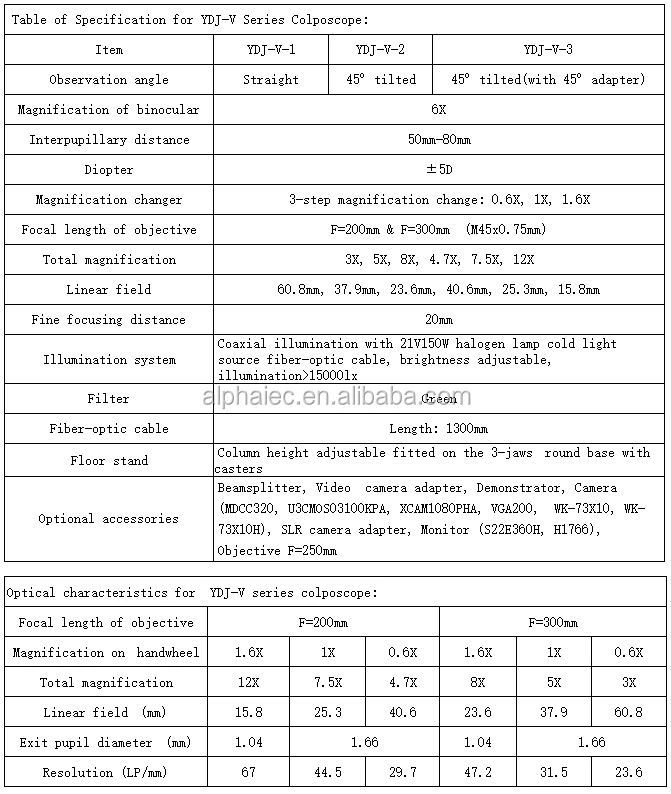

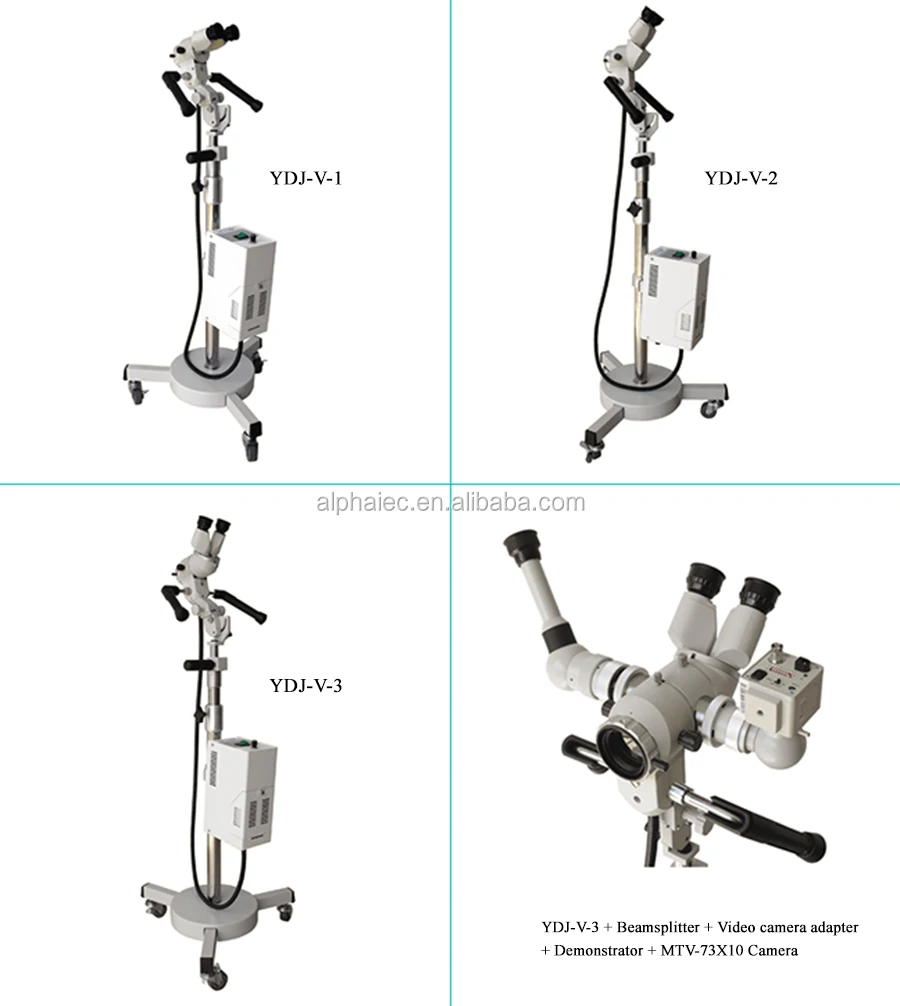

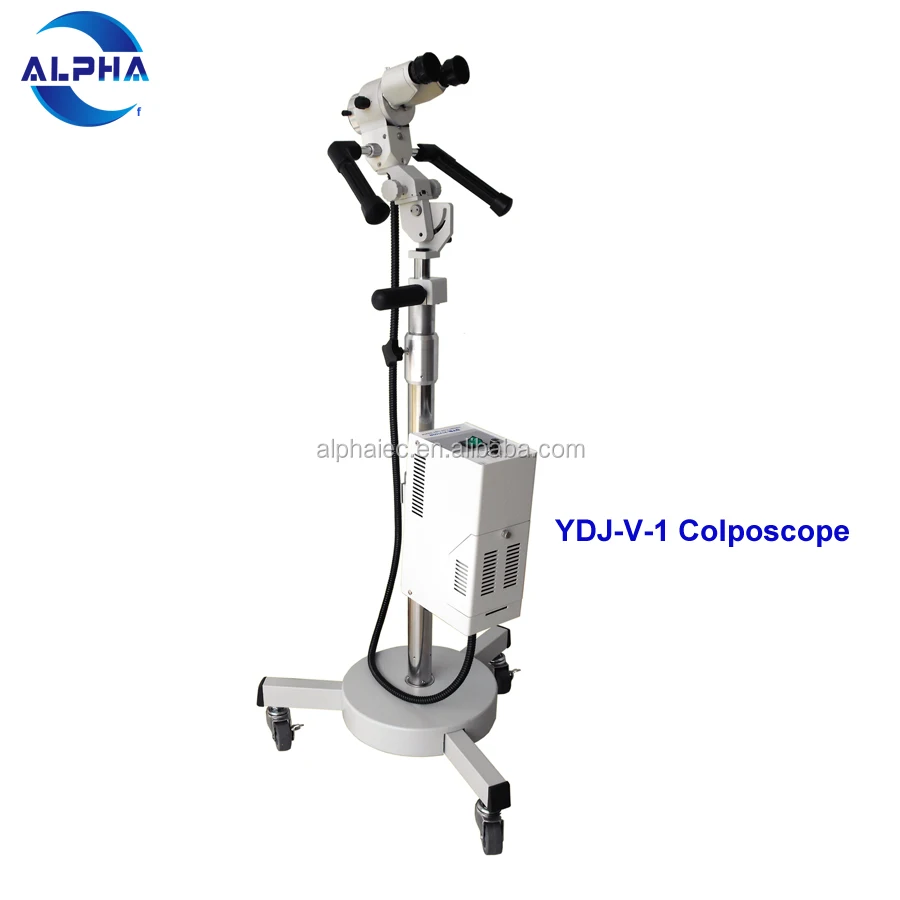

YDJ-V-1 Colposcope:

Observation angle: Straight

Magnification of binocular: 6X

Interpupillary distance: 50mm-80mm

Diopter: ±5D

Focal length of objective: F=200mm and F=300mm two objectives

Magnification changer: 3-step: 0.6X, 1X, 1.6X

Total magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X

Linear field: 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm

Fine focusing distance: 20mm

Illumination: Coaxial illumination with 21V150W halogen lamp cold light source fiber-optic cable, brightness adjustable, illumination>15000lx

Filter: Green filter

Floor stand: Column height adjustable fitted on the 3-jaws round base with casters

Power supply: AC100V-AC240V

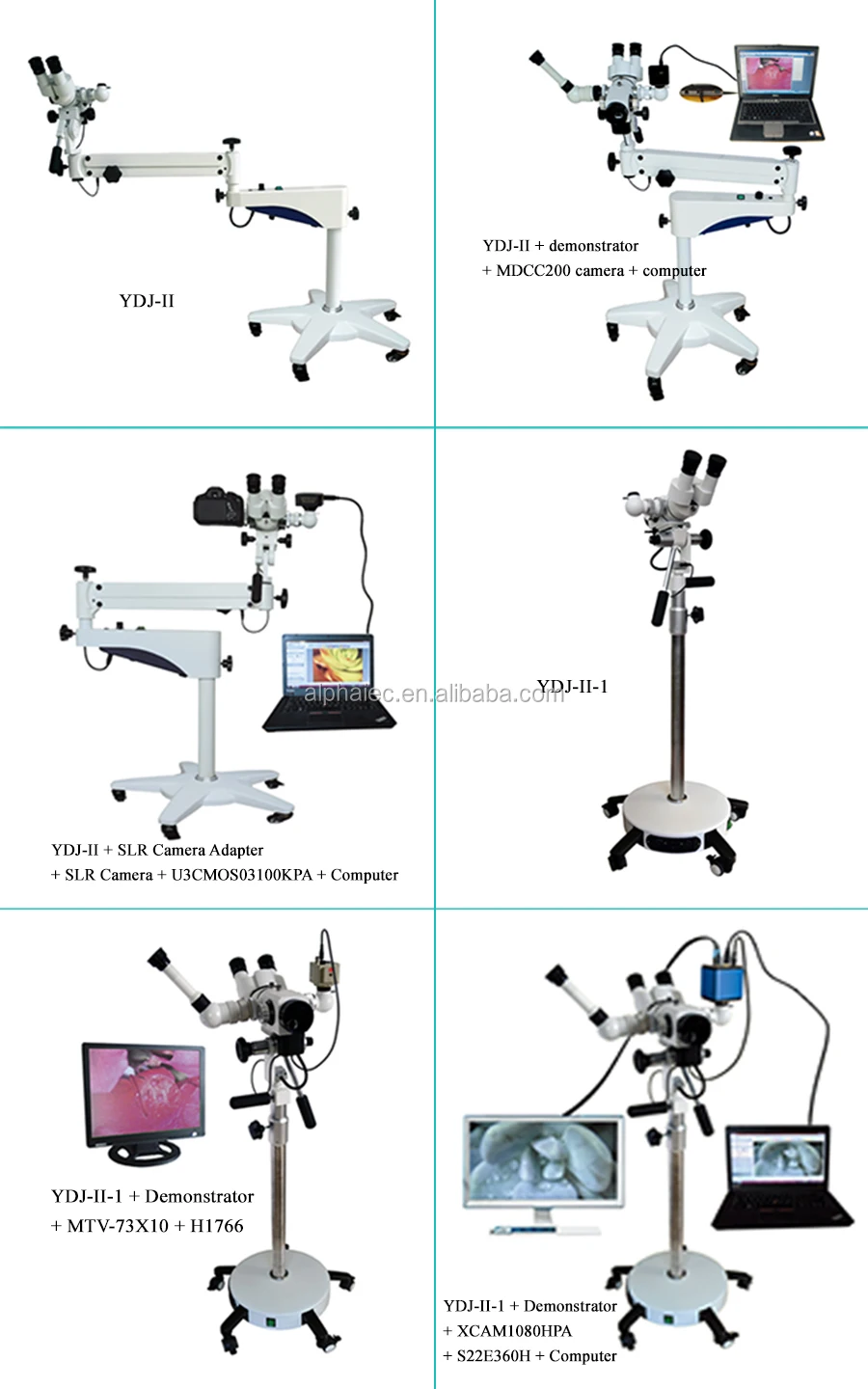

Optional accessories: Beamsplitter, Video camera adapter, Demonstrator, Camera (MDCC320, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, H1766), Objective F=250mm

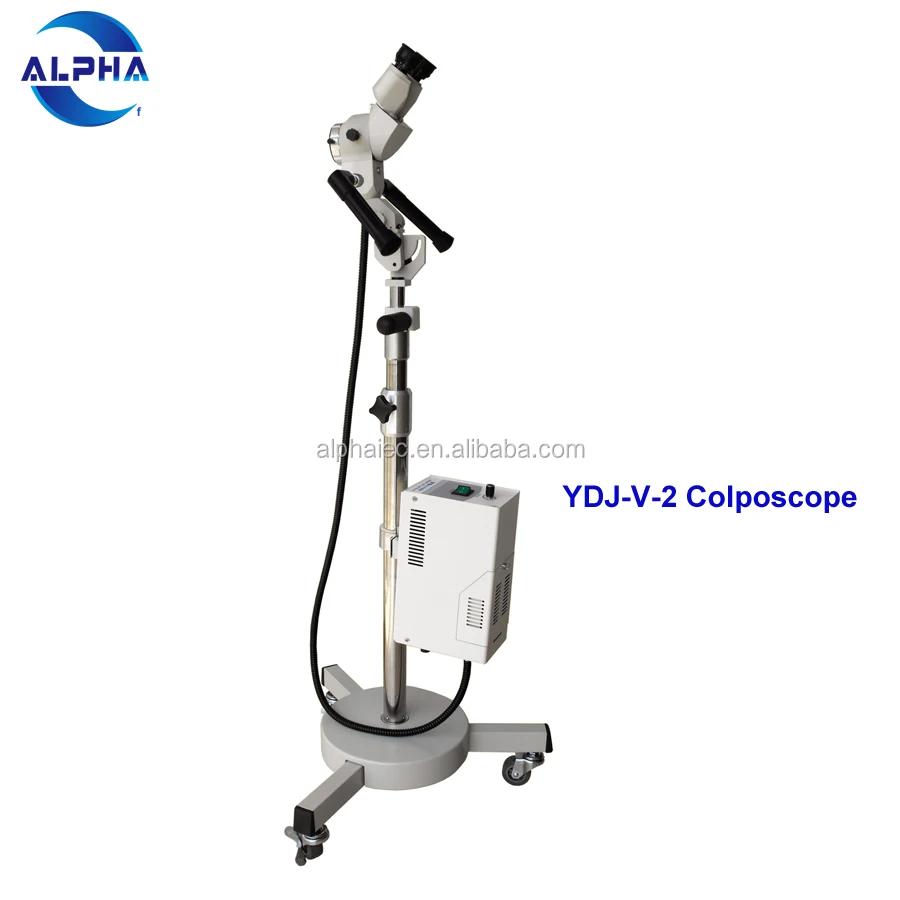

YDJ-V-2 Colposcope:

Observation angle: 45°tilted

Magnification of binocular: 6X

Interpupillary distance: 50mm-80mm

Diopter: ±5D

Focal length of objective: F=200mm and F=300mm two objectives

Magnification changer: 3-step: 0.6X, 1X, 1.6X

Total magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X

Linear field: 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm

Fine focusing distance: 20mm

Illumination: Coaxial illumination with 21V150W halogen lamp cold light source fiber-optic cable, brightness adjustable, illumination>15000lx

Filter: Green filter

Floor stand: Column height adjustable fitted on the 3-jaws round base with casters

Power supply: AC100V-AC240V

Optional accessories: Beamsplitter, Video camera adapter, Demonstrator, Camera (MDCC320, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, H1766), Objective F=250mm

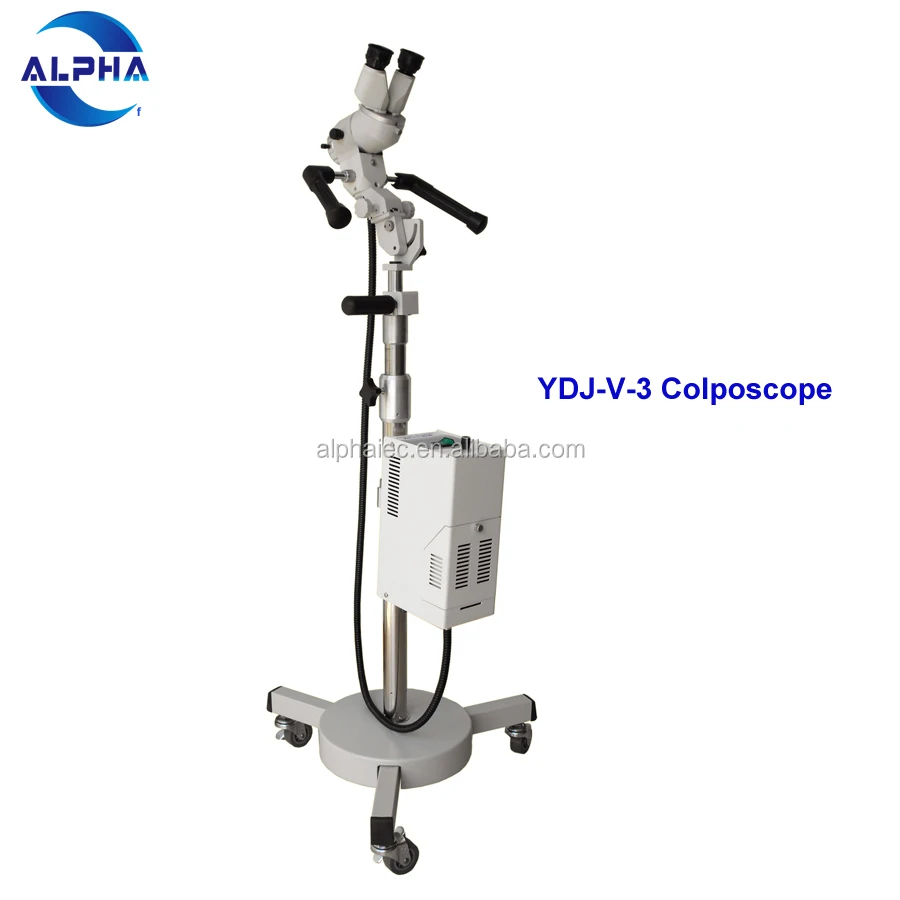

YDJ-V-3 Colposcope:

Observation angle: 45°tilted (with 45°adapter)

Magnification of binocular: 6X

Interpupillary distance: 50mm-80mm

Diopter: ±5D

Focal length of objective: F=200mm and F=300mm two objectives

Magnification changer: 3-step: 0.6X, 1X, 1.6X

Total magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X

Linear field: 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm

Fine focusing distance: 20mm

Illumination: Coaxial illumination with 21V150W halogen lamp cold light source fiber-optic cable, brightness adjustable, illumination>15000lx

Filter: Green filter

Floor stand: Column height adjustable fitted on the 3-jaws round base with casters

Power supply:

AC100V-AC240V

Optional accessories: Beamsplitter, Video camera adapter, Demonstrator, Camera (MDCC320, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, H1766), Objective F=250mm
