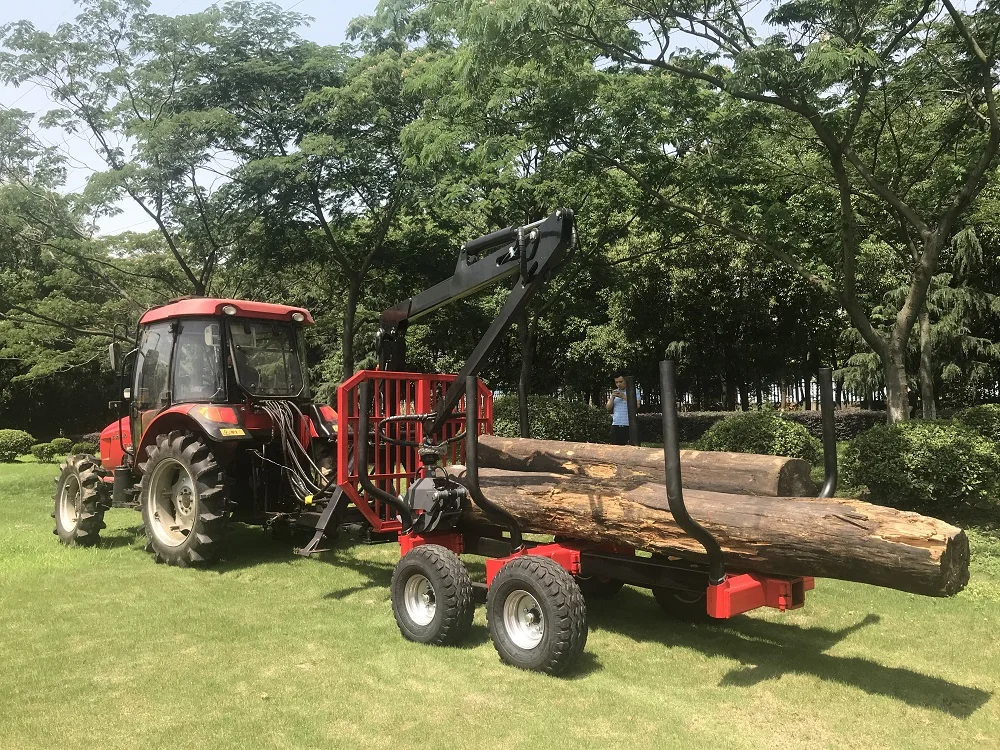

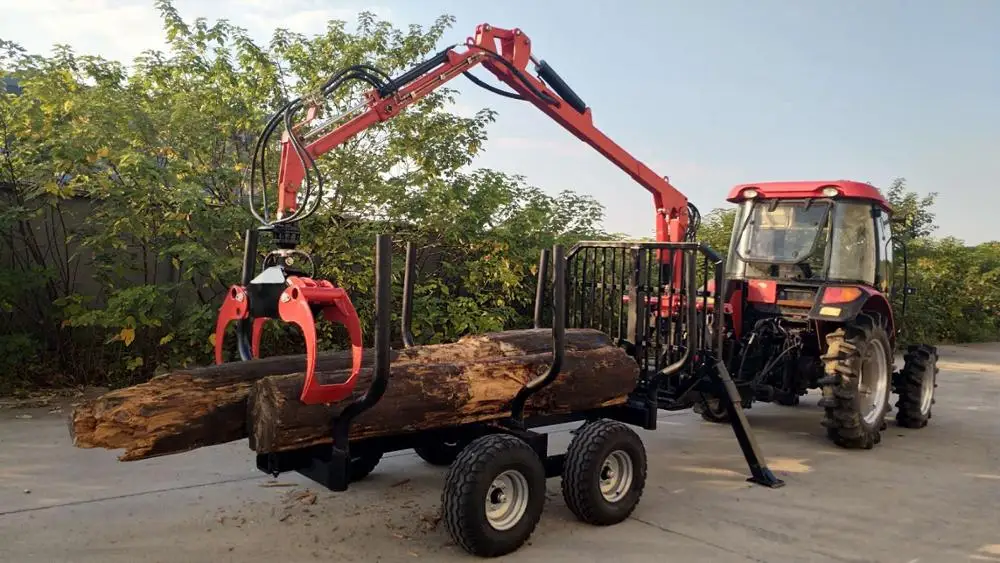

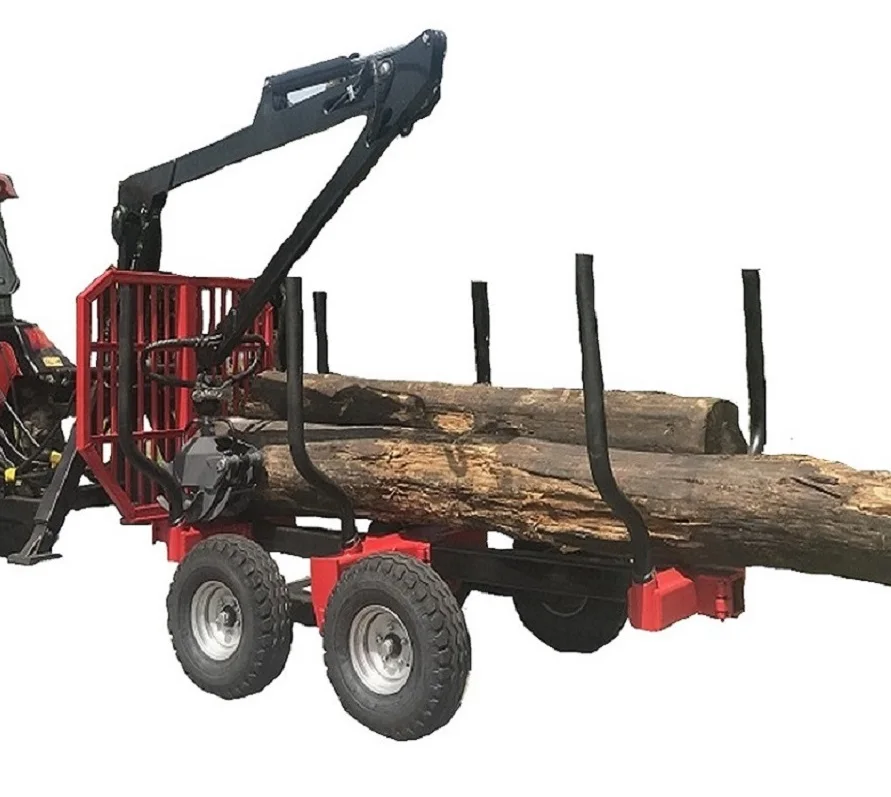

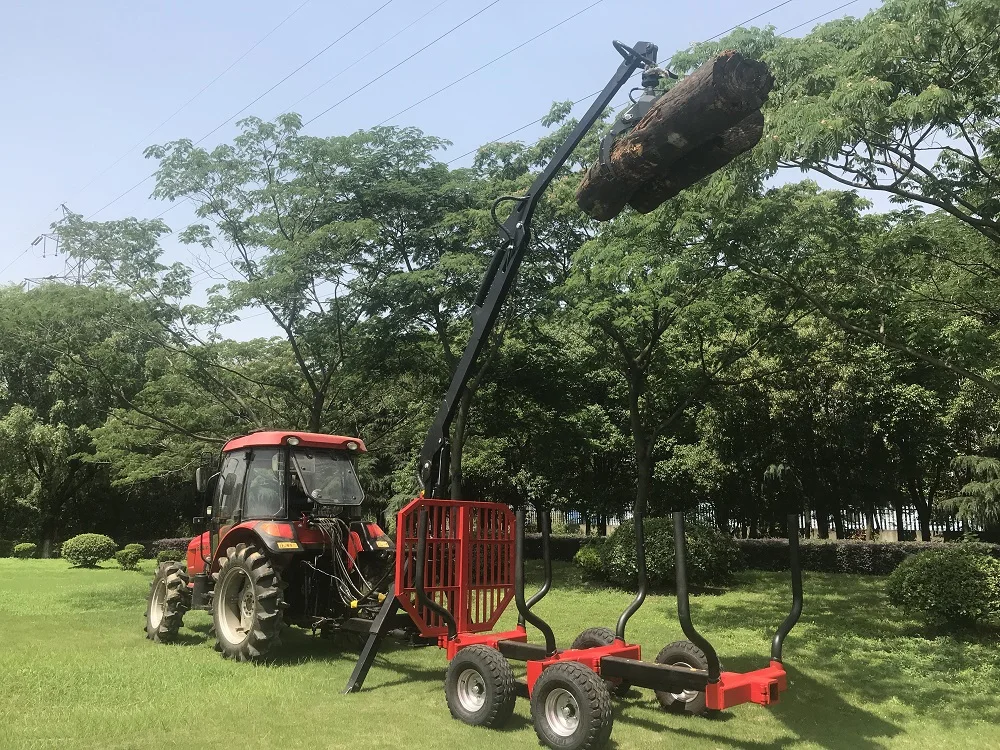

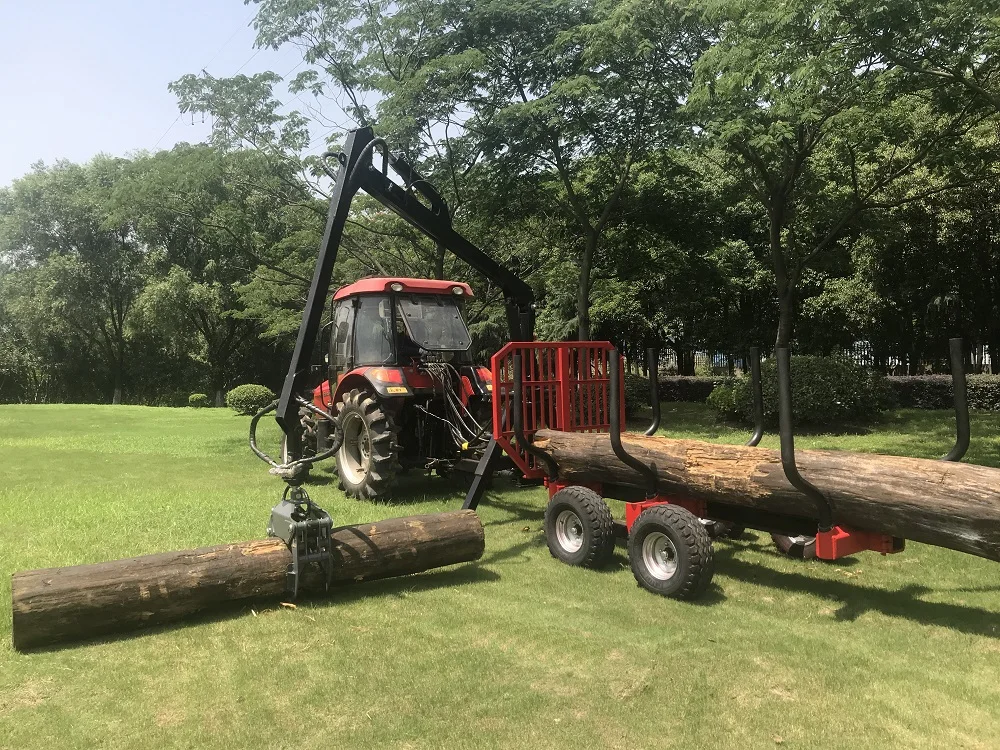

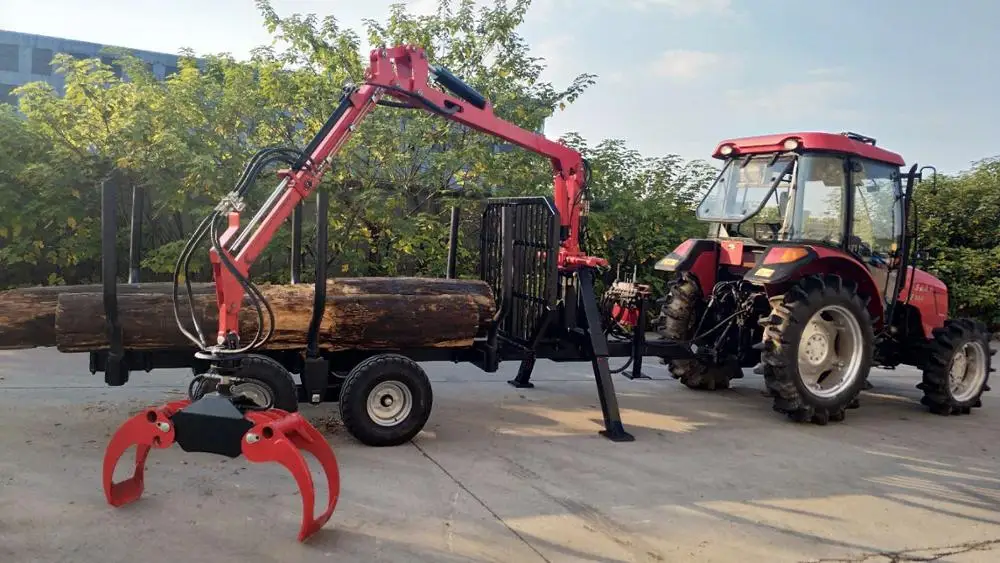

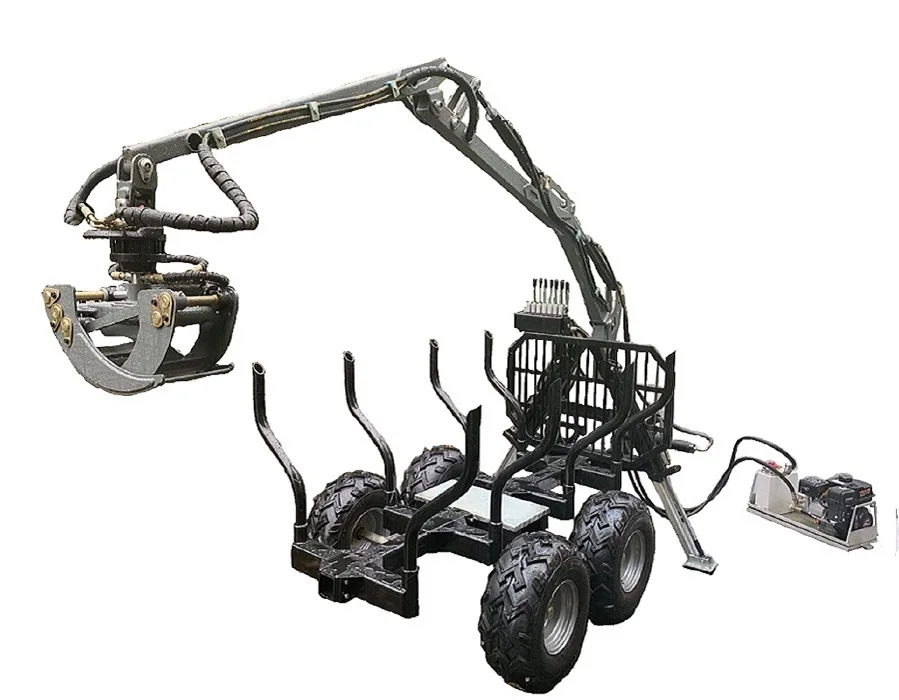

Лесной погрузчик с краном для

Name: Лесной погрузчик с краном для
Brand: Yantai,Rima,Machinery,Co.,Ltd.
Price: 6 600,00 $ USD
Availability: InStock

Цена:6 600,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

Product Description

\t Model	\t RT06
\t Max Outreach	\t 4.7m
\t Lifting Moment, gross KNm	\t 28 KNm
\t Lifting capacity at 4 m (excl. grapple and rotator)	\t 400 KG
\t Lifting capacity at full reach (excl. grapple and rotator)	\t 300 KG
\t Valve Block	\t 5/7
\t Slewing torque	\t 7 KNm
\t Rotator	\t 3 Ton

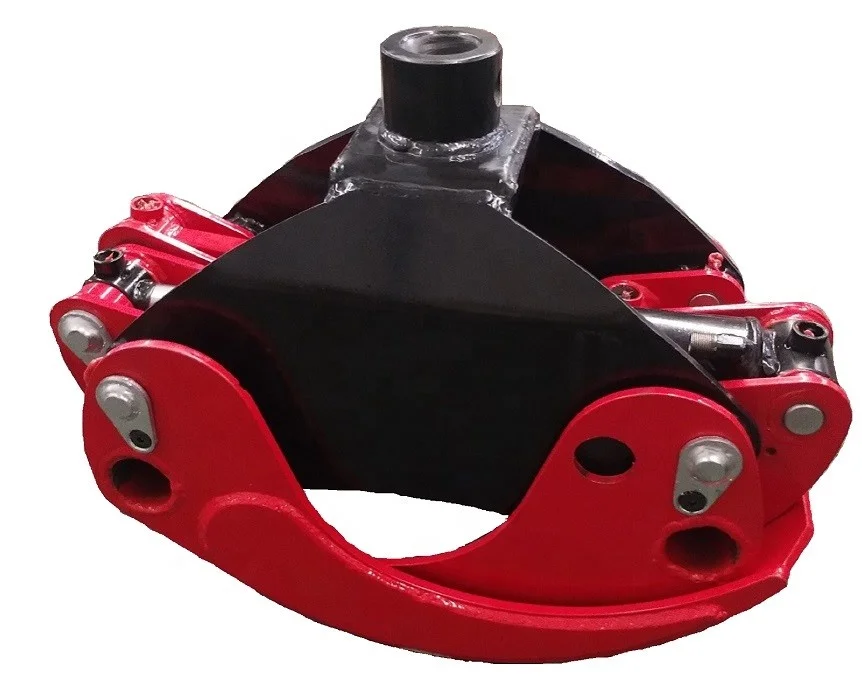

\t Grapple	\t 0.18 m2
\t Slewing angle	\t 360°
\t Slewing cylinders	\t 4 PCS
\t Working pressure	\t 175 BAR
\t Crane's weight (without outriggers and valve block)	\t 350 KG
\t 3-Point Linkage	\t Cat-1&2
\t A type outriggers weight	\t 170 KG
\t B type outriggers weight	\t 210 KG
\t Load capacity up to 40 km/h	\t 6000kg
\t Length of loading area	\t 3288mm
\t Total length	\t 5332mm
\t Total width with standard wheels	\t 1980mm
\t Standard wheels	\t 10.0/80-12
\t High of the bloster "S"	\t 1.2m
\t Number of the bloster "S"	\t 3 sets
\t Height of the front gate	\t 1300mm
