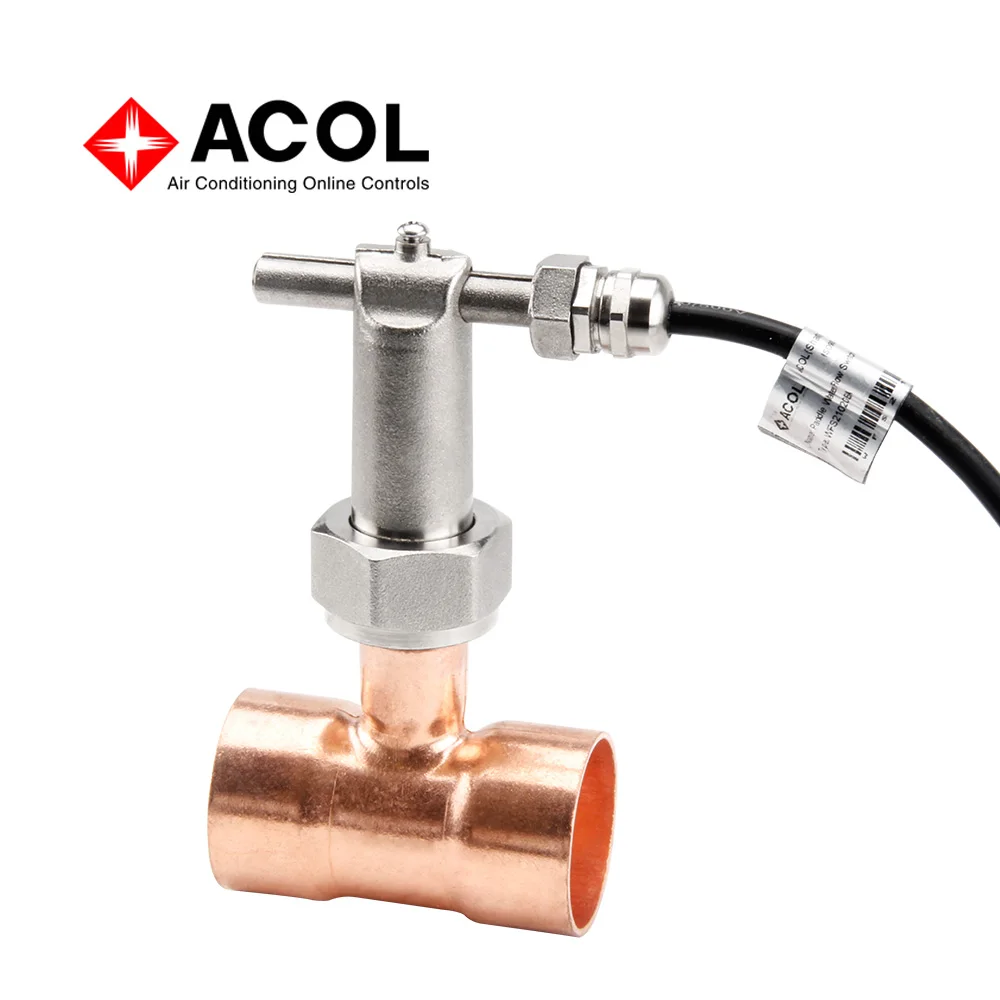

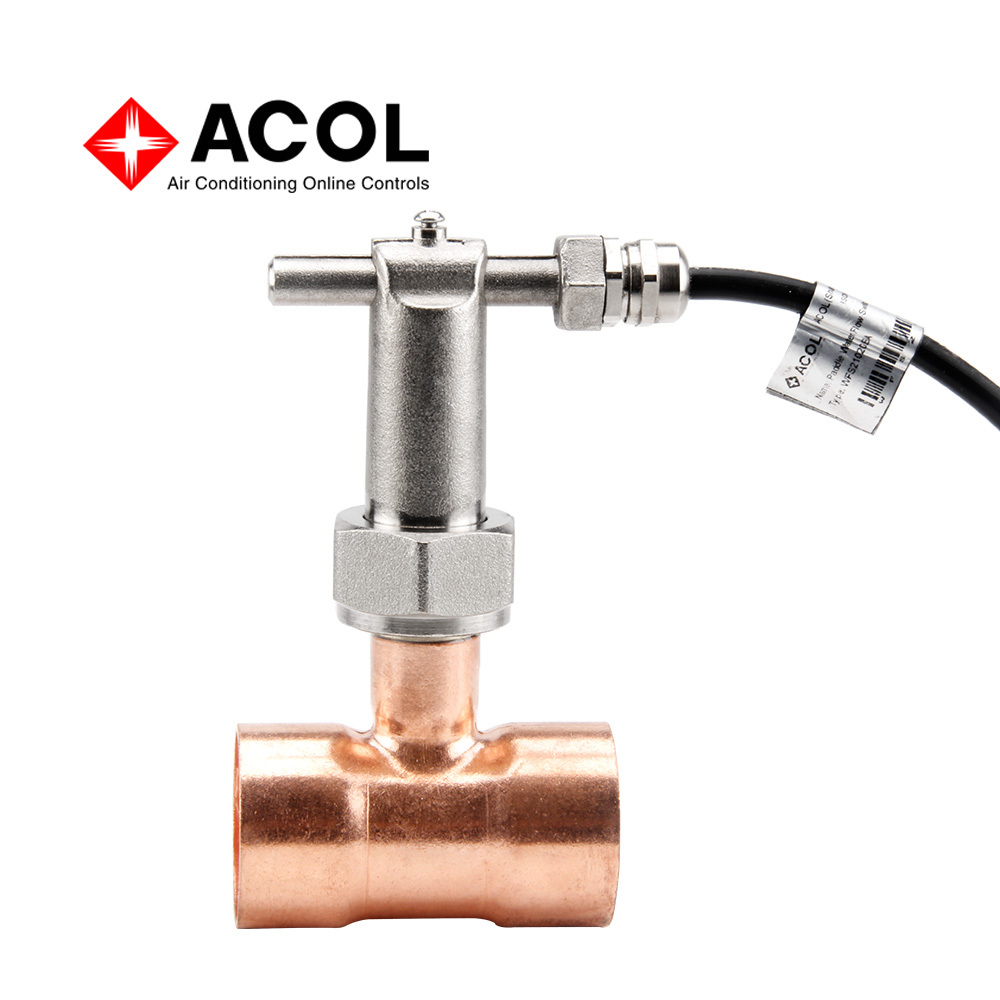

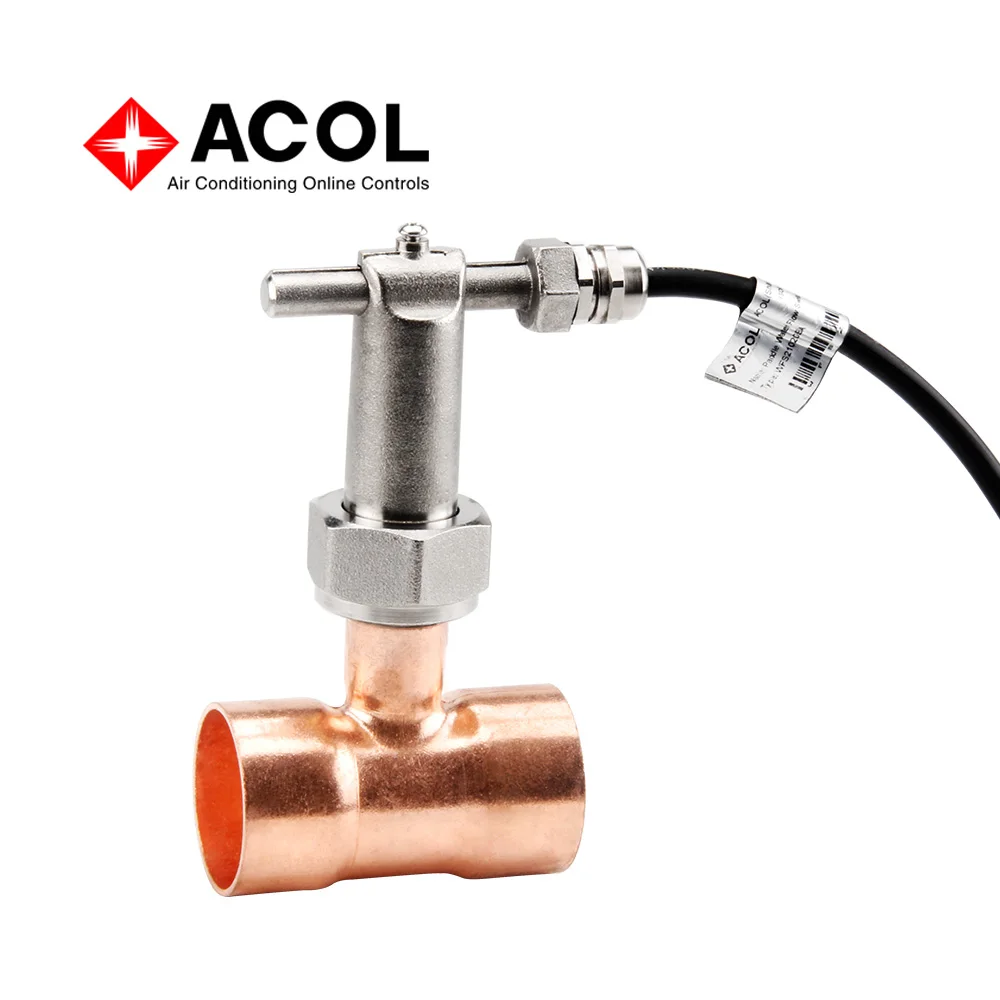

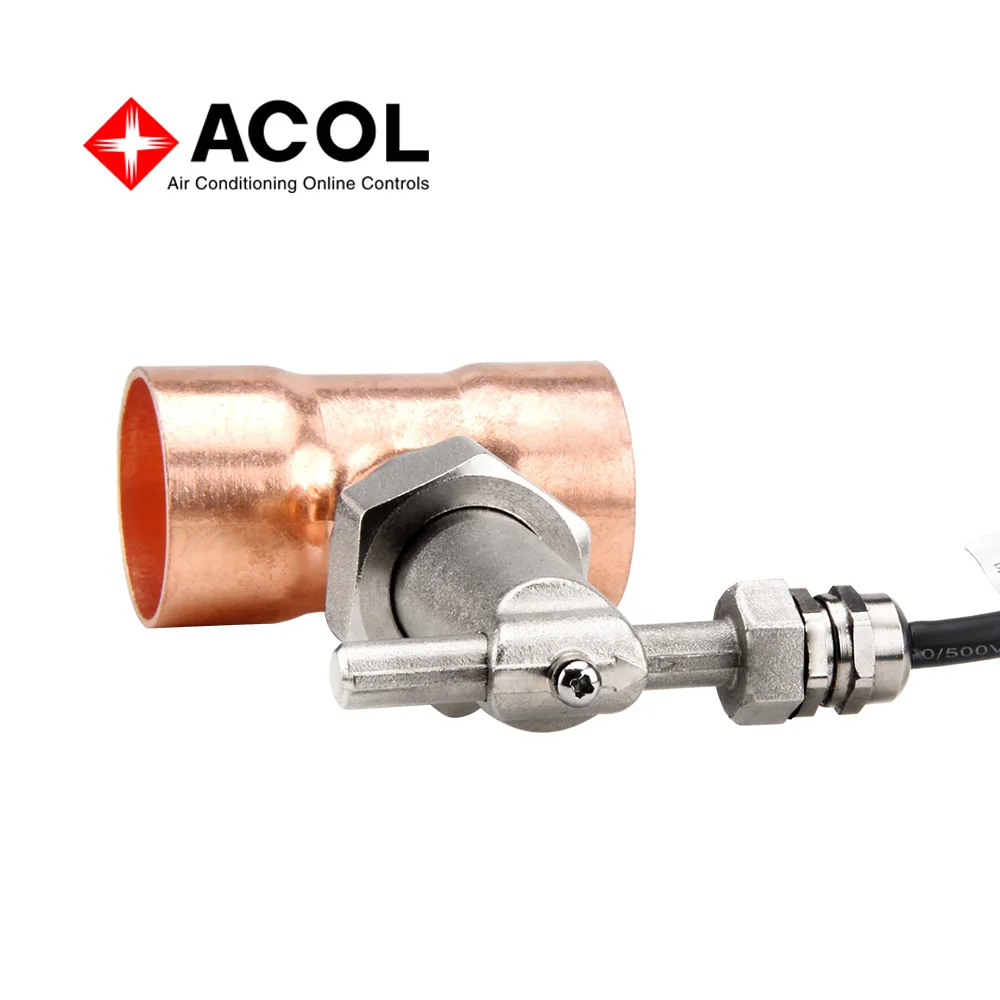

Магнитный переключатель потока для водяного насоса с латунным никелевым покрытием
- Категория товара: Переключатели потоков >>>
- Поставщик (Оптовый магазин): ACOL,(Shanghai),Online,Controls,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
| Parameter | |
| Max.voltage | 250VAC |
| Max.current | 1A(50VA) |
| Mode of connection | Direct connect |
| Output | SPST magnetic switch(factory configure the N/O) |
| Pressure | 25bar,custom-made 40bar |
| Average pressure loss | 0.01bar at Q.max |
| Working temperature | -20℃~90℃ |
| Protection class | IP65 |
| Body material | Nickel plated brass |
| Paddle material | stainless steel |
| Seal material | PTFE |
Brass nickel plated flow switch sensor magnetic for water pump
Application
It is mainly applicable to industrial automation/mechanical equipment/air compressing industry/refrigeration and air-conditioner.The magent not contact with flowing water,so can normally work in sewage discharging system.
| Parameter | ||||||

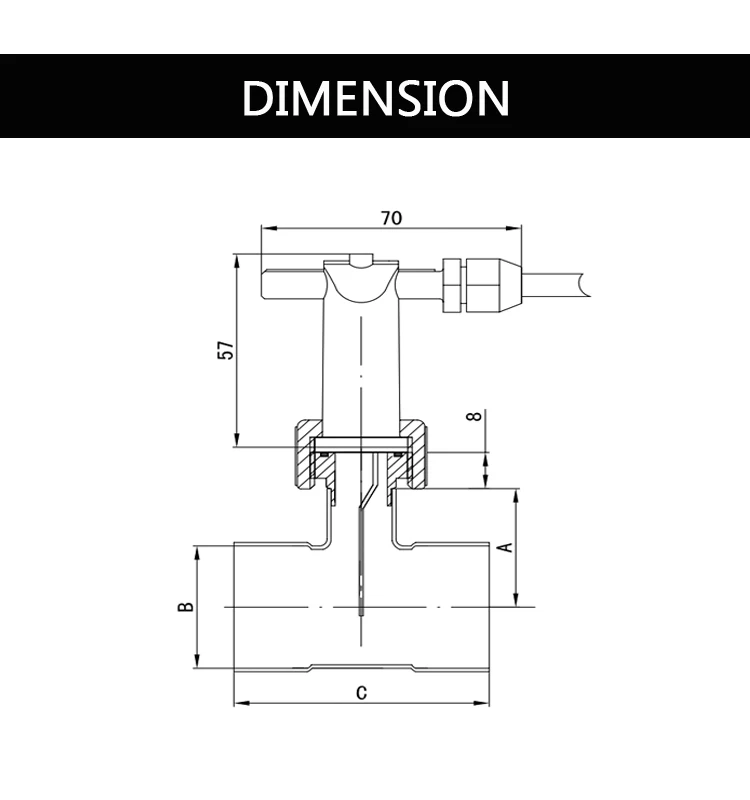

| Pipe diameter | Model | Flow range(L/Min) | Max flow(L/Min) | A(mm) | B(mm) | C(mm) |
| DN16 | WFS21016BG | 5.8(4.9)~7.8(6.6) | 20 | 22 | Φ16.2 | 40 |
| DN20 | WFS21020BG | 9.0(7.7)~12.2(10.4) | 40 | 24 | Φ19.4 | 45 |
| DN22 | WFS21022BG | 10.9(9.3)~14.8(12.6) | 45 | 25 | Φ22.5 | 55 |
| DN25 | WFS21025BG | 14.1(12.0)~19.1(16.2) | 60 | 27.5 | Φ25.7 | 55 |
| DN28 | WFS21028BG | 17.7(15.0)~24.0(20.4) | 68 | 28.5 | Φ28.9 | 57 |
| DN32 | WFS21032BG | 23.1(19.7)~31.3(26.6) | 80 | 32.8 | Φ32.3 | 54 |
| DN35 | WFS21035BG | 27.7(23.5)~37.4(31.8) | 88 | 34.4 | Φ35.3 | 66 |
| DN40 | WFS21040BG | 36.1(30.7)~48.9(41.5) | 100 | 35.4 | Φ40.3 | 81 |
| DN42 | WFS21042BG | 39.8(33.9)~53.9(45.8) | 105 | 35.4 | Φ42.3 | 81 |
In flow range,outside the brackets is the action flow point,inside is the reset flow point.
| Selection table | |||||
| WFS21 | 016 | B | G | /1M | Detailed |
| WFS21 | WFS21 Series | ||||
| 016 | Connection thread:DN16 | ||||
| 020 | Connection thread:DN20 | ||||
| 022 | Connection thread:DN22 | ||||
| 025 | Connection thread:DN25 | ||||
| 028 | Connection thread:DN28 | ||||
| 032 | Connection thread:DN32 | ||||
| 035 | Connection thread:DN35 | ||||
| 040 | Connection thread:DN40 | ||||
| 042 | Connection thread:DN42 | ||||
| B | Body material:Nickel plated brass | ||||
| G | Interface Type:Copper tee | ||||
| /1M | Wiring:1M(According to demand) | ||||
Packaging & Shipping
- Packaging Details:Carton Boxes.
- Port: Shanghai
- Lead Time:
-
Quantity(Piece) 1-100 >100 Est. Time(days) 7 To be negotiated
