Fayon Hot and Cold Laminator Roll to Roll Canvas Laminating Machine



Description

This laminating machine is a user friendly, easy to use roller laminator capable of cold laminating. Affordable-priced yet fully functional, the new FY-1600SE laminating machine is powerful hot and cold laminating machine.



The FY-1600SE provides a cost-effective finishing solution for both inkjet and photographic media. With easy to use controls, simplitied material loading and automated take-up for removing release liners, it also can laminate the linerless film. It is grat for business wanting to expand the applications offered to their customers.





Features

1600mm(63") working width covers majority of the inkjet market

Capable of laminating release liner films and linerless filmes

Foot pedal controll for hands-free operation

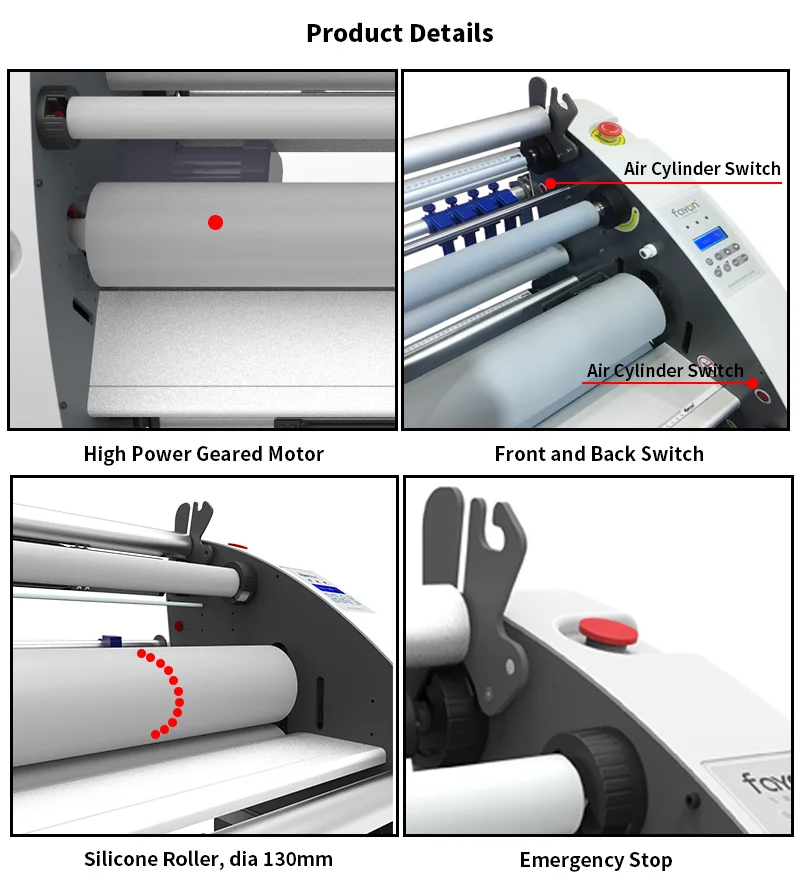

Silicone Lamination rolls with anti-stick surface, easy to clean

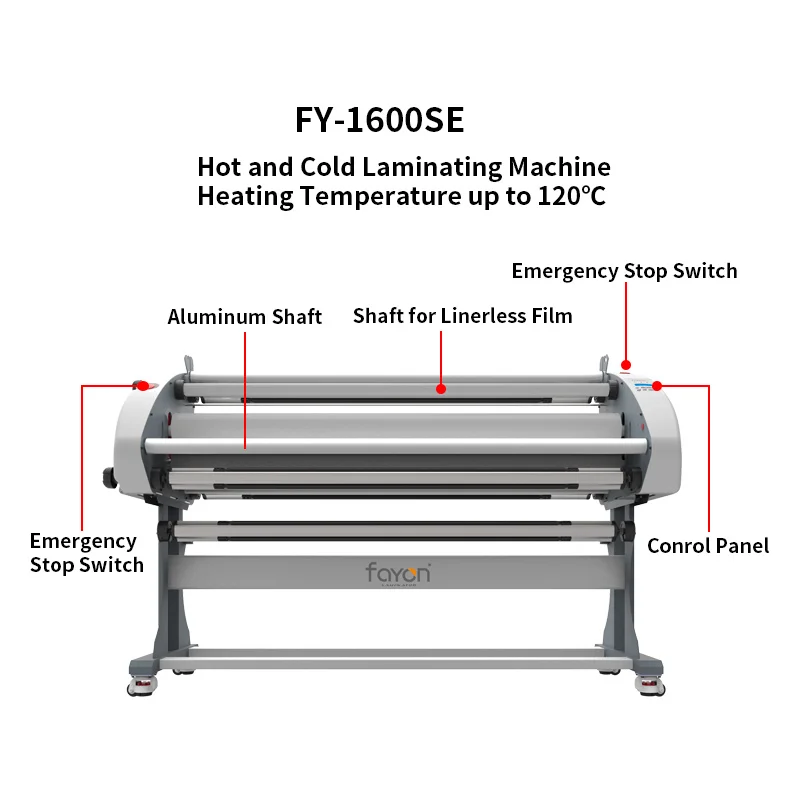

Emergency stop switch and infrared ray finger protection device offering satety guarantee



Ideal for producing a wide variety of applications:

Rigid Indoor Displays

Flexible Indoor Displays

Floor Graphics

Backlit Displays

Pop-Up Displays

Rigid Outdoor Displays

.jpg





Specification
Model NumberFY-1600SE
Maximum  Working Width63"(1600mm)
Maximum Substrate Thickness30mm
Maximum Roller Temperature120 degree centigrade
Roller HeatingSingle(top)
Preheating Time10-15 min
Silicone Roller Diamater130mm
Silicone Thickness6mm
Roller Lift upPneumatic cylinder
Speed RangeAdjustable, 0-10m/min
Rated Input VoltageAC220V,  110V(Custom)
Power Consumption0.8-1.0kw/h
Machine Sizes2020*750*1300mm(D*W*H)
Shipping Dimensions2270*820*820mm(D*W*H)
Net Weight210kg
Shipping Weight250kg
Warranty1 year
