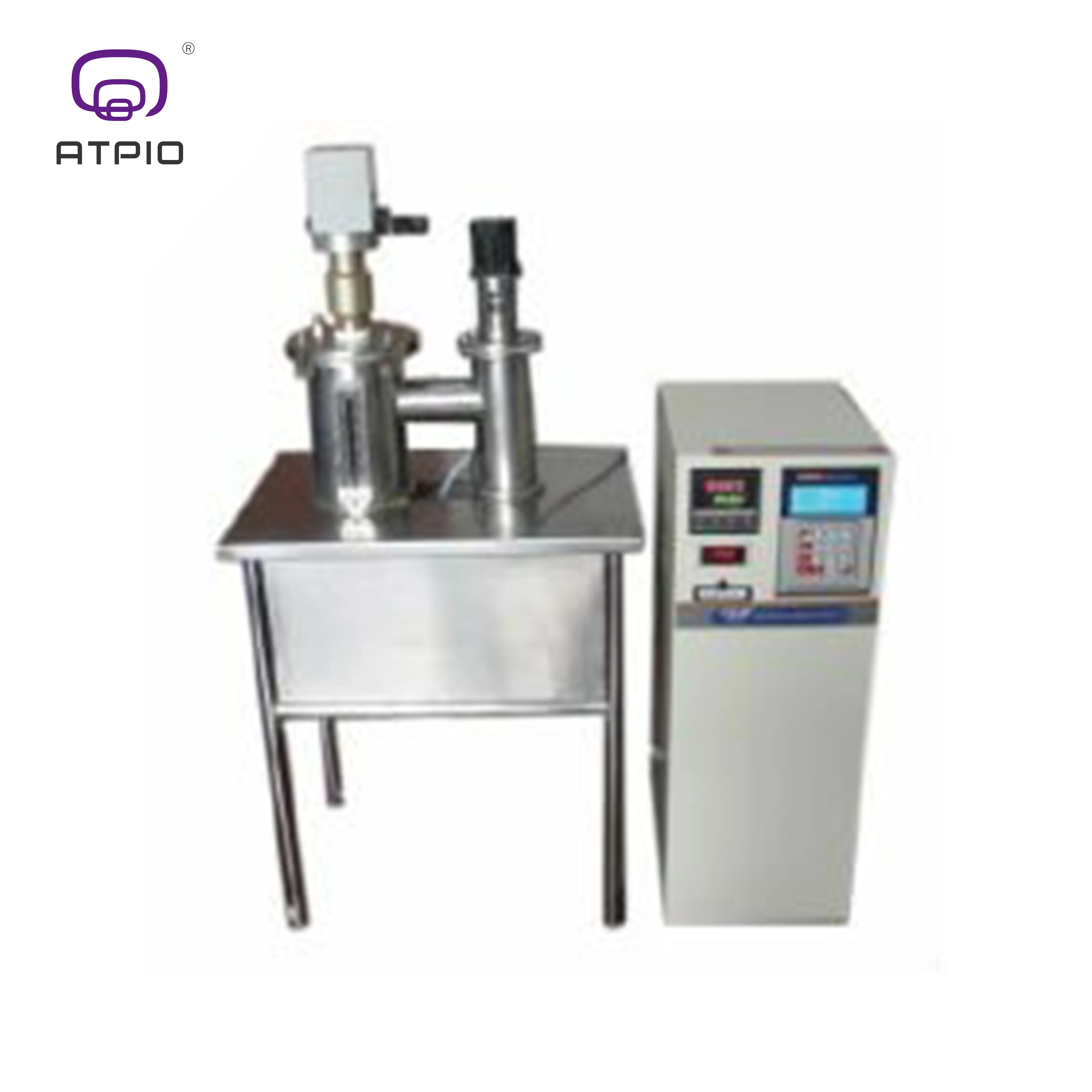

Многофункциональная ультразвуковая экструзионная
- Категория товара: Pharmaceutical Machinery >>>
- Поставщик (Оптовый магазин): Nanjing,Xianou,Instruments,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Name : Low-Temperature Ultrasonic Extractor/High Quality China
Product NO.; XO-50B Ultrasonic Extractor Hot Sale
Product Description

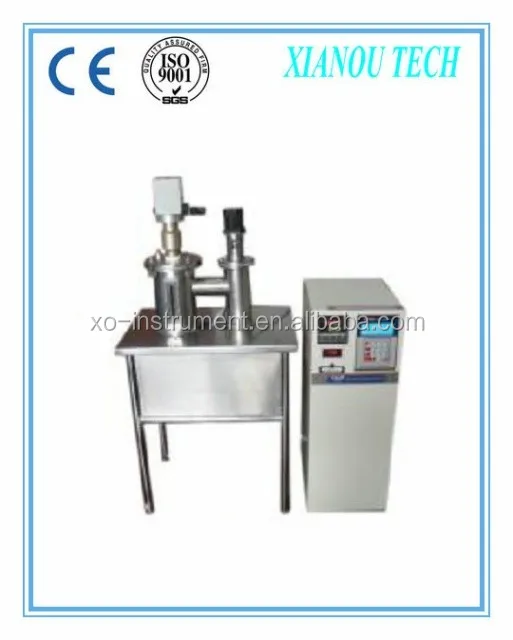

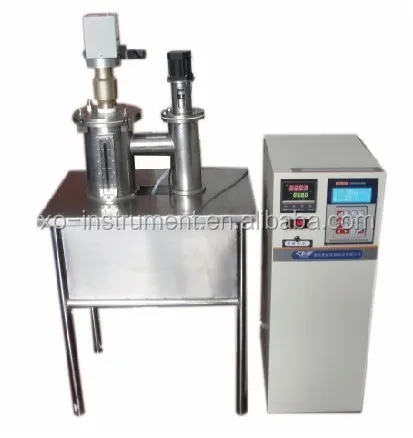

Ultrasonic Extractor Product Description:
XO-B series Circulation Ultrasonic Extractor use super power multistage energy-accumulating ultrasonication, the high power sonic filed works on extraction material directly,with high-usage of sonic energy and extraction effect is remarkable.Such series sonic extractors possess high ultrasonic field and strong cavitation effect,suitable for traditional Chinese medicine,health care products and cosmetic etc., which are containing active ingredient that extracted from various original materials by using volatile solvent or non-volatile solvent.They are especially fit for treating high additional value materials that difficult to crush and extract.Devices are all produced according to the GMP standard, wide serviceability,cost-effective.For small scale test, pilot scale test of biochemical research and new pharmaceutical factory and GMP reform, such devices are excellent choice.
Ultrasonic Extractor Device Characteristic:
1. Circulating Ultrasonic amplification technology,advanced and high efficiency;
2. Using super power energy-accumulating sonication, high intensity sonic field works on materials directly,ultrasonic energy use ratio is near 100%;
3. Strong cavitation effect, high extraction ratio;
4. High automation,compact structure,split-type design easy to move,safe and convenient to use.
Ultrasonic Extractor Main Technical Parameters:
Model No.: | XO-5B | XO-20B | XO-50B | |
Extract Mode: | Ultrasonic dynamic outer circulating extraction | Ultrasonic dynamic outer circulating extraction | Ultrasonic dynamic outer circulating extraction | |
Effective Volume(L): | 5L | 20L | 50L | |
Stirring Motor Power(W): | 80W | 150W | 350W | |
Ultrasonic Frequency: | 20KHZ Narrow automatic tracking | 20KHZ Narrow automatic tracking | 20KHZ Narrow automatic tracking | |
Ultrasonic Power(W): | 0~1000W Fine adjustable | 0~1800W Fine adjustable | 200~2500W Fine adjustable | |
Maximum Heating Power: | 320W | 1000W | 1800W | |
Outer Circulation Stirring Speed(Rpm): | 0-2800 Integrated digital display with stepless speed regulation; | |||
Temperature Controlling:(°C) | Room temp.~300°C (Can be used for high temperature extraction) | |||
Material: | SUS304 Stainless steel+A3Steel(Coating; anti-rust treating) | |||
Suitable Medium: | Volatile or Non-Volatile solvent | Volatile or Non-Volatile solvent | Volatile or Non-Volatile solvent | |
Application: | Small or pilot scale test | Small or pilot scale test | Small or pilot scale test | |
Processing Capacity:(kg/hr) | 0.5~6.0 | 4.5-12.0 | 8.5-22.0 | |
Main body Shape Dimensions:(L*W*H) | 360*240*650mm | 650*500*1600mm | 850*600*1700mm | |
Control Configuration Dimensions:(L*W*H) | 420*420*800mm | 500*500*1150mm | 500*500*1250mm | |
Note: 1. Processing capacity calculated by S/L=1:5; 2. Energy consumption calculated according to room temperature extraction.
| ||||

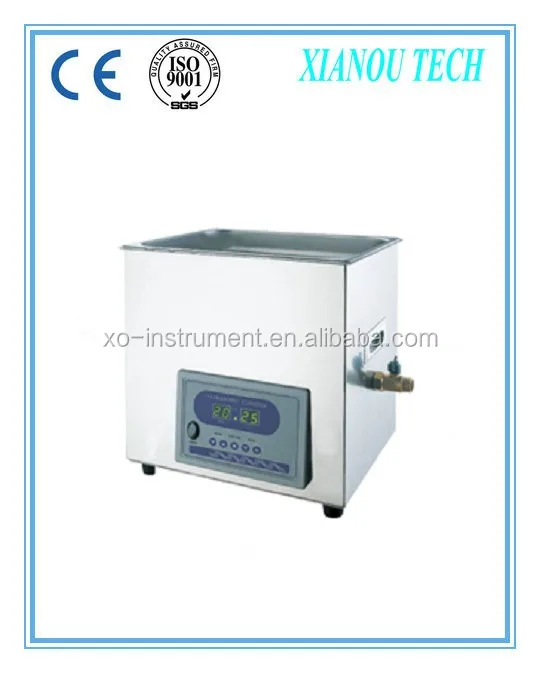

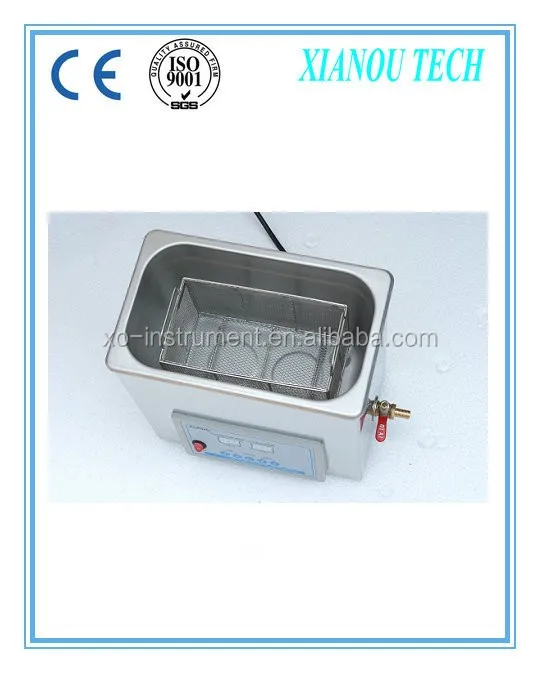

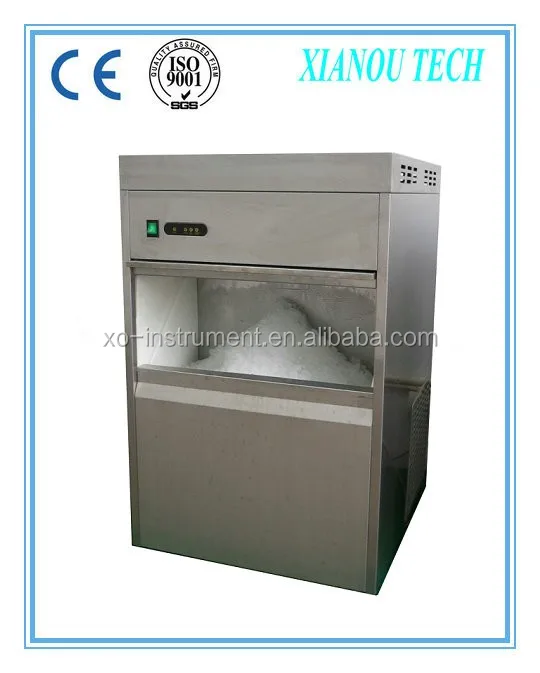

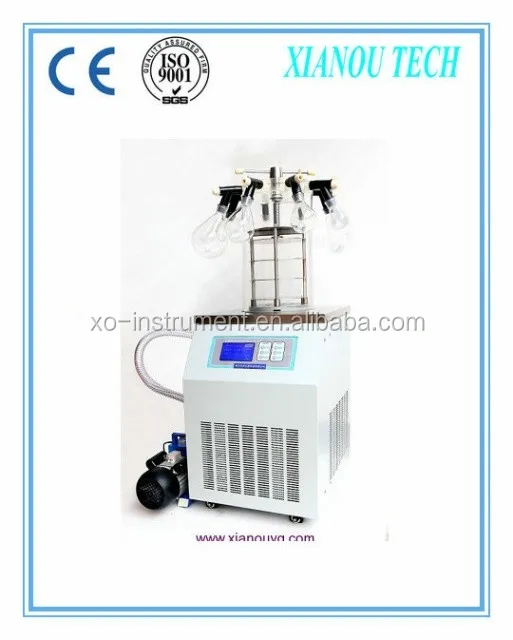

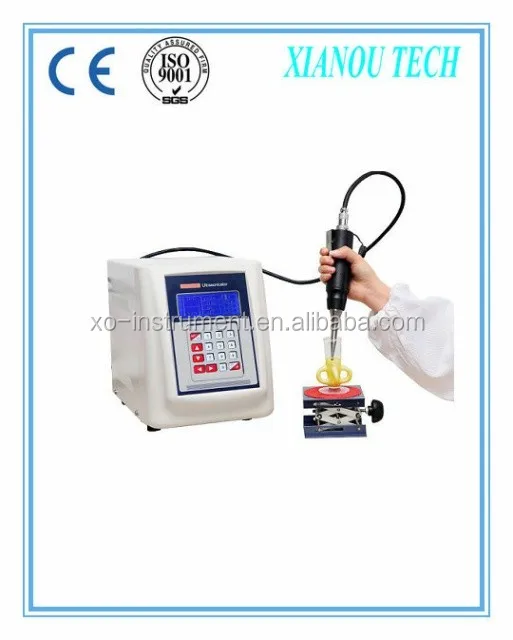

Other Hot selling Products:
Packaging & Shipping
Ultrasonic Extractor Hot Sale
Our Services
Cooperation partners:
Pre-sale service
² 24hours online to ensure quick response to customers' inquiry or online message;
² Guide customers to choose the best suitable machine model;
² Offer detailed specification and competitive prices;
Contract execution
² Machine production will be arranged strictly according to the contract;
² Machine photos will be sent to you for inspection during production;
² Send customs clearance documents by DHL;
² Update latest news after delivery and prepare customs clearance;
After-sale service
² 12 months warranty except for wear parts;
² Broken spare parts (except for wear parts) will be sent for free due to quality problems;
² In time response to customers technical problems;
² New products update for customers' reference
Company Information
Nanjing Xianou Instruments Manufacture Co., Ltd. is a special lab instrument manufacturer which is located in Maixiang Science Park, Xixia Area, Nanjing City, Jiangsu Province. Our company is comprised with high-level intellectuals who are very young and full of innovation ideas. After the foundation, Xianou has been devoted to the production and sale of laboratory instruments, including lab's sample processing equipment and high-low temperature instruments, such as microwave and ultrasonic combined reaction systems, ultrasonic cell crushers, cryogenic thermostat baths, cryogenic cooling liquid circulators, high-temperature oil baths, ice makers, anaerobic workstations, etc
Xianou has abundant technical force and professional technicians. Our R&D Dept. consists of many professors from Microwave Research Institute and Organic Chemistry Research Institute. All of them are committed to developing various kinds of lab instruments, especially the Ultrasonic Microwave Combined Reaction System. For instance, our products have won "independent intellectual property rights" with the patent number: 200712134456.2, such as: XO-SM50, XO-SM100, XO-SM200 and XO-SM300, filling up the market gaps. Xianou's brand microwave chemical instruments can be used in the following fields: Synthetic Organic Chemistry, Pharmaceutical Chemistry, Food Science, Quarantine and Prevention, Military Chemistry, Molecular Biology, Analysis Chemistry, Inorganic Chemistry, Petrochemical Industry, Material Science, Biomedicine, etc. All customers can enjoy excellent, convenient, economic and practical services supplied by Xianou. We welcome domestic and overseas friends to visit us. Xianou can satisfy you with the most humanity designed high-end technology products at the most reasonable price!
"Striving for excellence, creating name-brand" is our operation philosophy.
"Technology precede, people oriented" is our lifelong enterprise spirit.
We are going to do our best to annotate "perfection" with the most advanced products, the best service, the most favorable prices and the sincerest heart
FAQ
1.How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3.How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4.When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5.How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8.What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
