LXD-6L портативный холодный распылитель для маркировки дорог

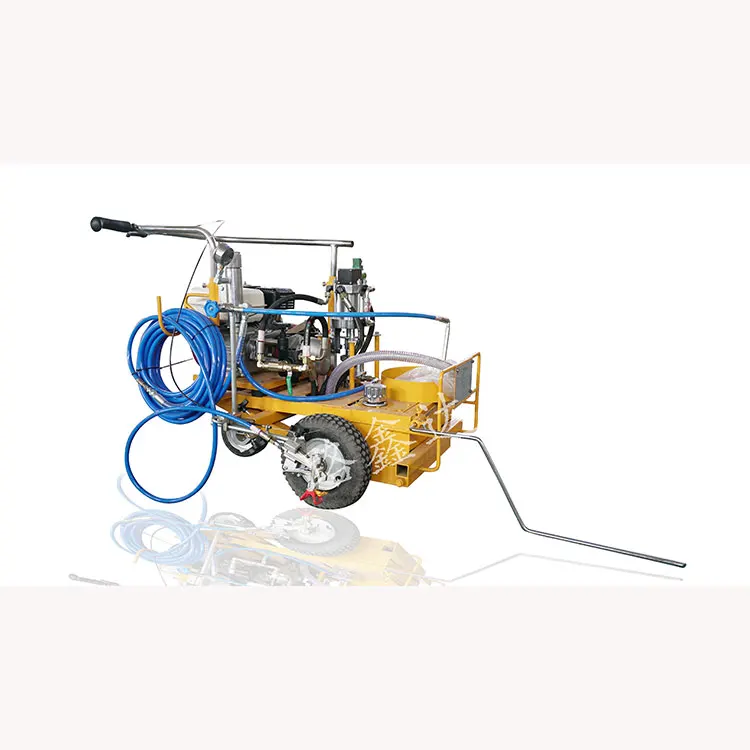

Specification of LXD-6L portable cold spray road marking paint machine

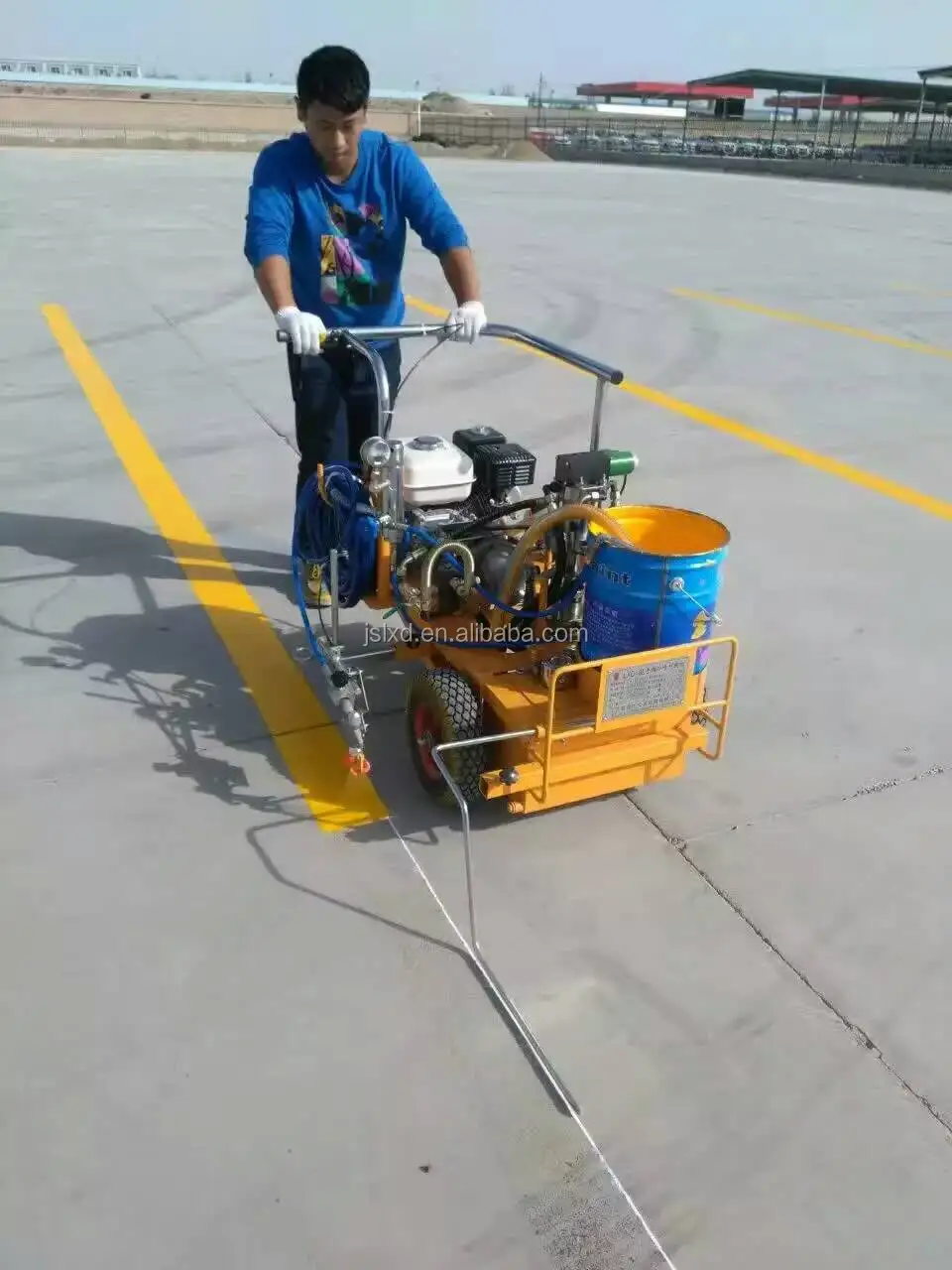

LXD-6L portable cold spray road marking paint machine is special equipment to normal temperature paint construction. It is suitable for roads, highway, parking lot,airport, station. It can mark a straight line, dotted line, curve, zebra crossing, arrows, etc.

It is the spray equipment with high pressure,equal discharge and airless. It use gasoline engine to drive single plunger pump to work,which can generate high pressure inside the machine.The lines are common in thickness and angles are clear. Because of the direction bar in the spraying gun, the line can be adjusted to certain width conveniently.

Engine:

5.5HP gasoline engine

Work pressure:

10-18Mpa

Max Flow:

6L/min

Spraying width:

50-300mm(single gun)

Spraying thickness:

0.2-0.6mm

Size:

1180×860×1000mm

Net weight:

145kg
