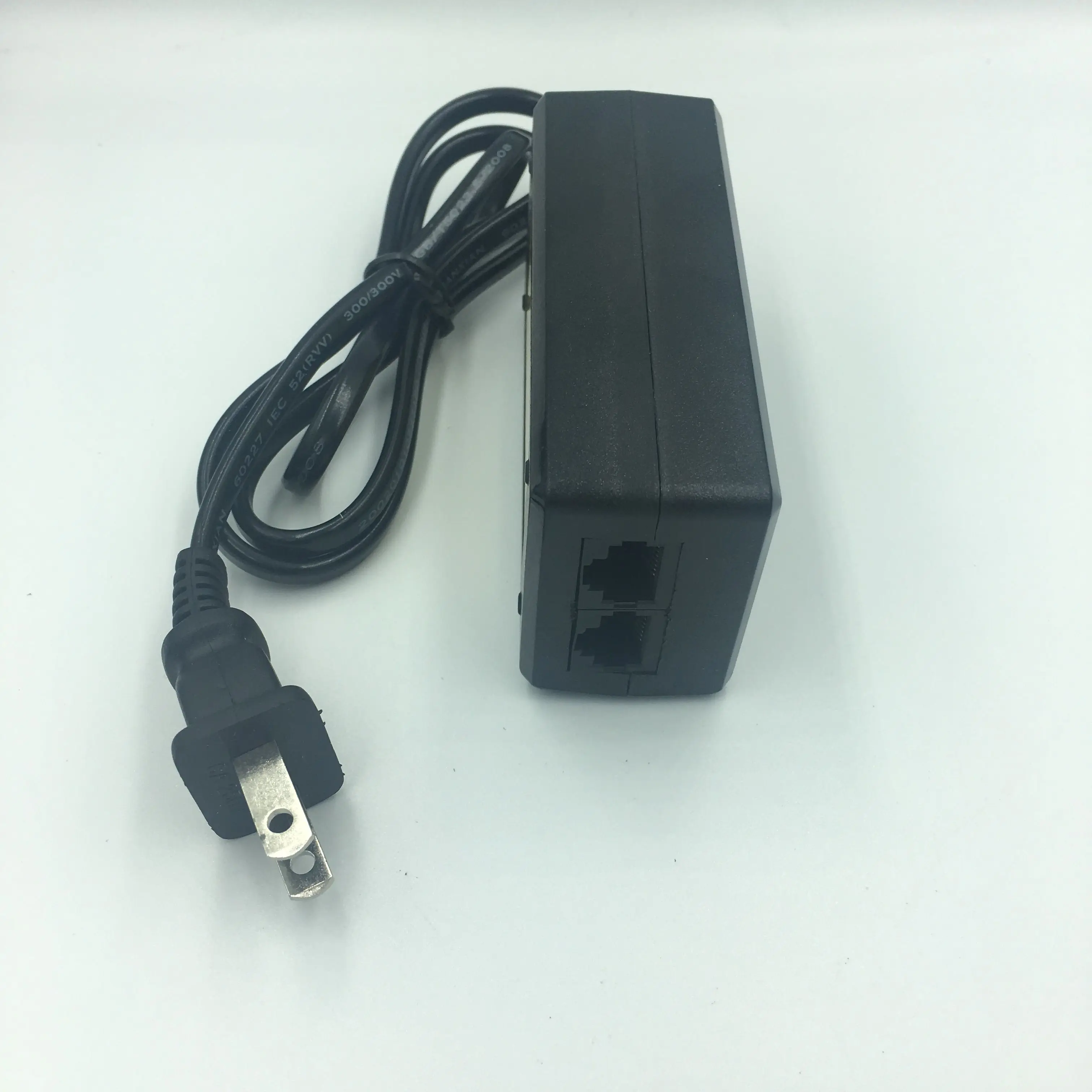

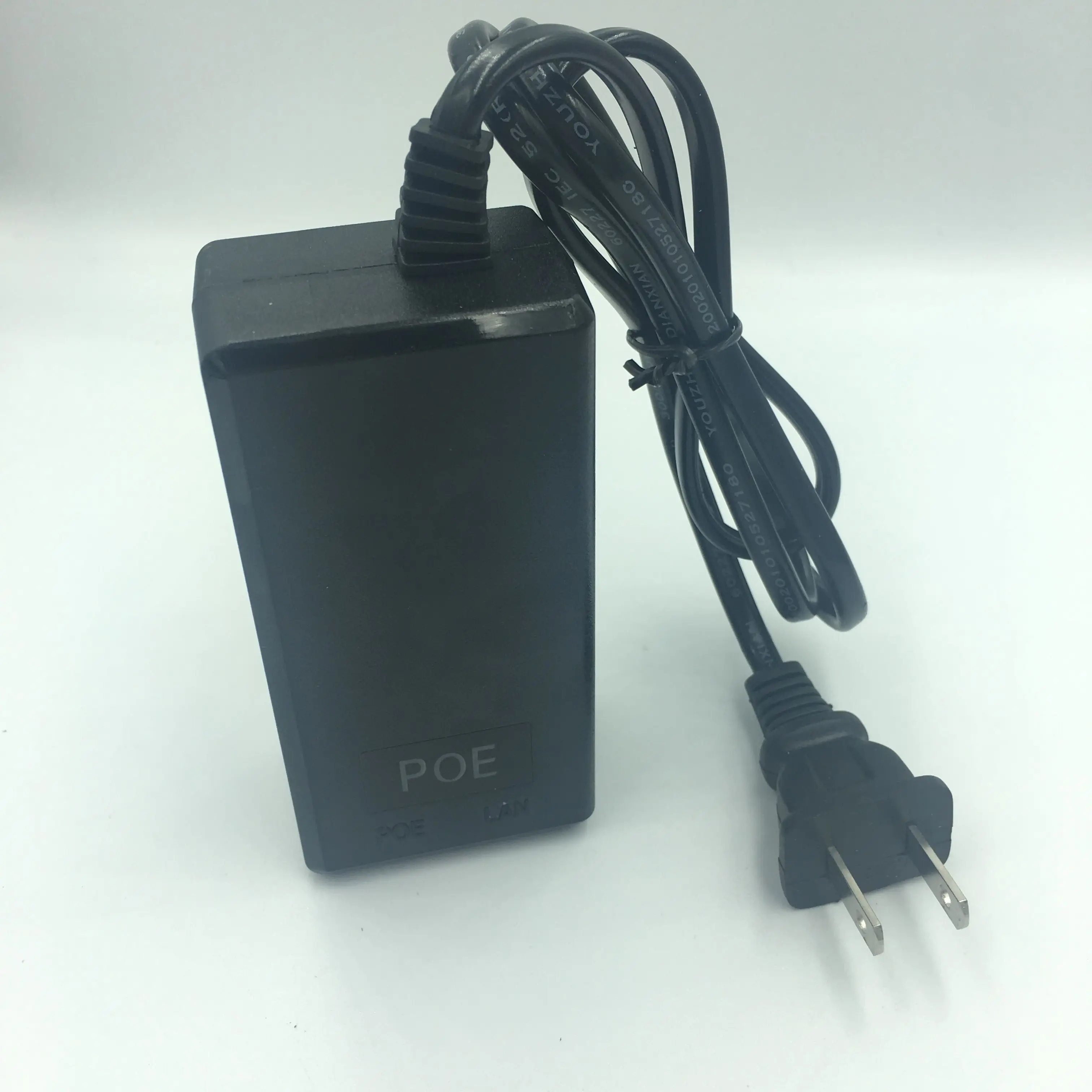

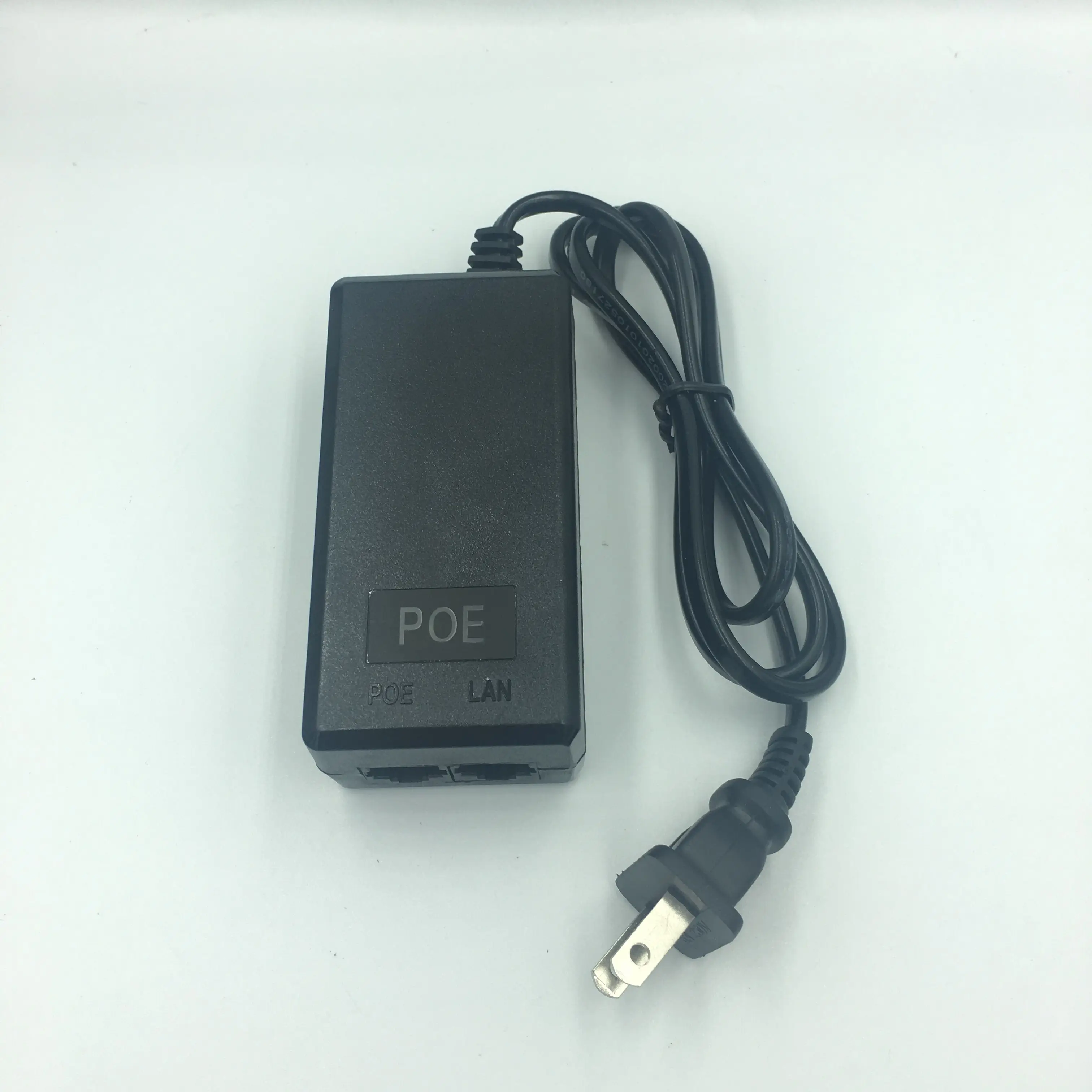

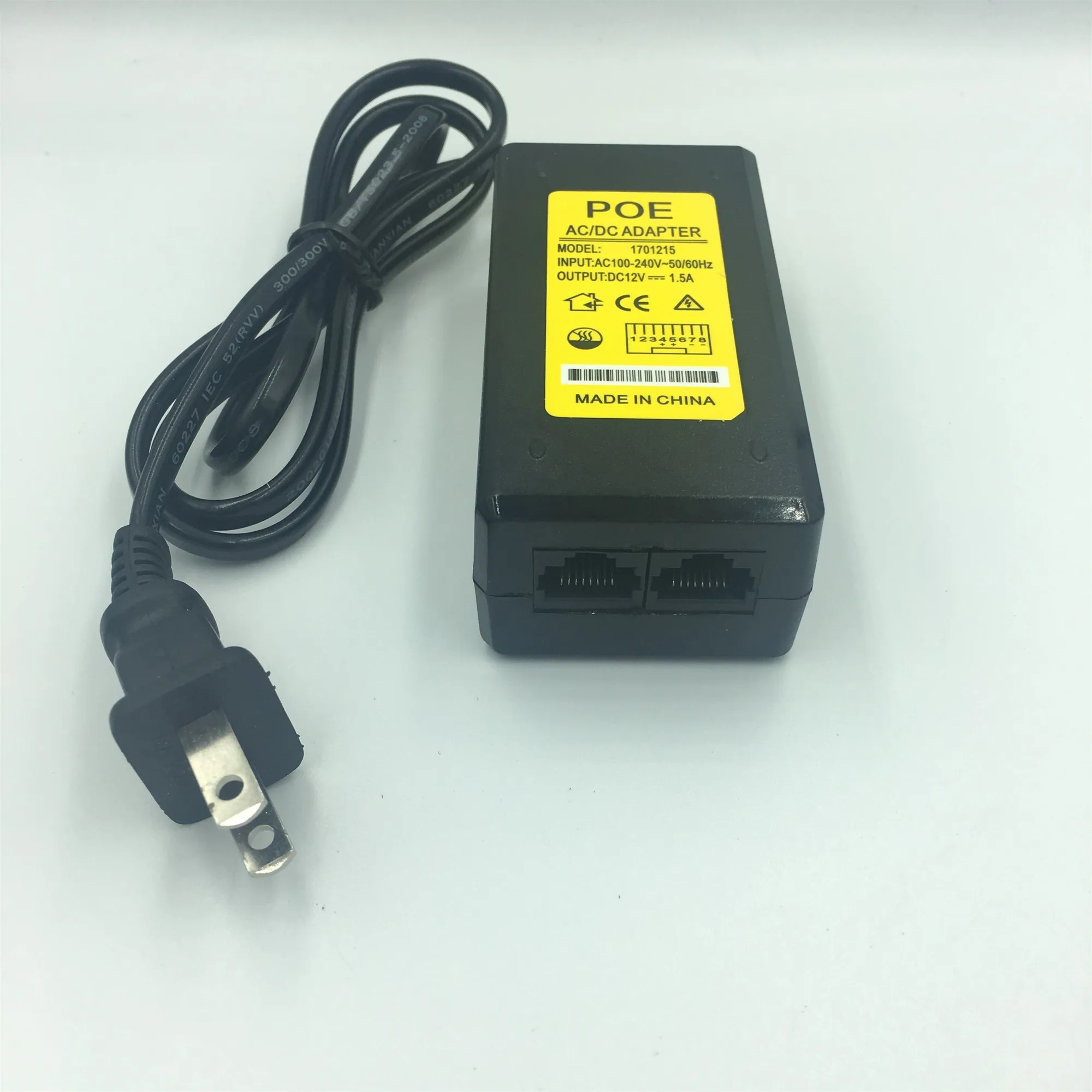

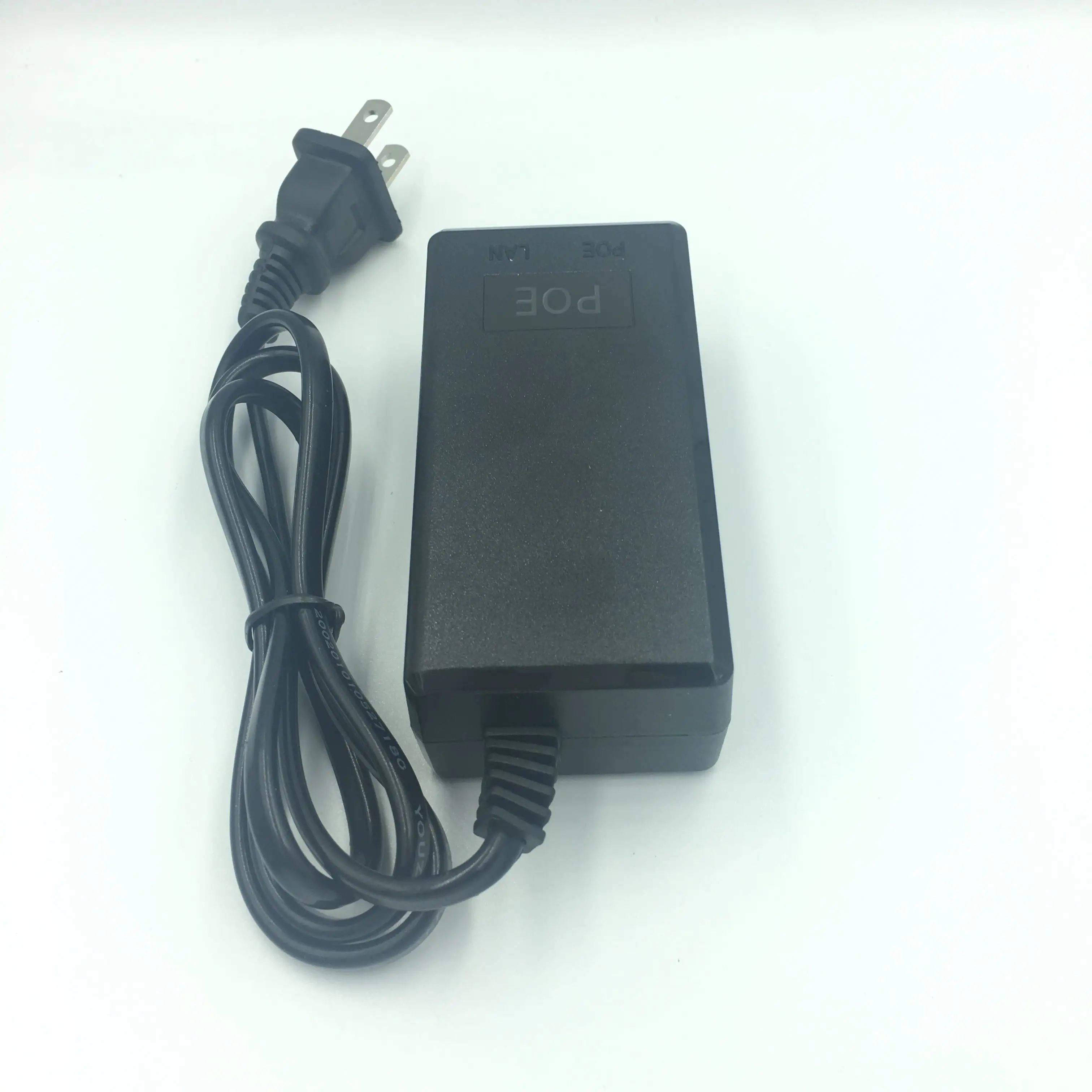

US plug power supply passive poe Injector ac/dc adapter 12V 1.5A
Product Description
Overview
The 1701215 Power over Ethernet (PoE) adapter is designed to supply operational power to surveillance cameras and wireless LAN devices such as access points, bridges and routers. It enables power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating the need for extra power lines and also reducing installation costs and manpower.
Features
- Up to 18W of PoE Power
- Supports 10/100M or 10/100/1000M LAN environment
- Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)
- 1 x 10/100Mbps or 10/100/1000Mbps Auto-MDIX Data In port
- 1 x 10/100Mbps or 10/100/1000Mbps PoE Auto-MDIX Data Out port
- Power port
- Power LED indicator
- Easily install a PoE device where a power outlet is not available
- Plug & Play in remote location
- No configuration required
- Reduced Installation cost
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non–standard Ethernet Terminals
Power Over Ethernet 15V 1.5A 18W adapter
Ethernet power supply (POE)
POE characteristic
IEEE802.3 af 18.0W ; Power(max):18W
IEEE802.3 at 25.5W; Power(max): 25W
one port support POE power supply
Power supply way
Spare Part to 4/5(+) ,7/8(-)
Data Part to 1/2(+) ,3/6(-)
Port and Performance
Port
2 Ethernet front-end ports
Port parameters
Electrical interface : RJ45
Cable type :5 kinds of shielded twisted-pair cable(UTP) or higher level
Transmission rate
10/100mbps adaptive
Protocol standard
IEEE802.3 i 10 BASE-T;
IEEE802.3 u 100 BASE-TX;
IEEE802.3 x Flow Control;
IEEE802.3 af Power over Ethernet;
Interface protection
Meet IEC61000-4-2( ESD) ±15KV(air), ±8KV requirements, and withstand 8/20us 24A(12A) energy.
LED indicator
Every port : rate,link indicator
Environment and Specification
Environment condition
Operating Temperature :0~55℃; Storage Temperature : -20~70℃
Operating Humidity : 90% ,No condensation; Storage Humidity :95%,No condensation
Dimension
92*45*30mm
Weight
0.1kg
Safety standard
CE/LVD
Warranty
2year
Other Characteristic
Power support
AC220 0.5A/DC-48 (built-in)
Power consumption
2W
Electromagnetic compatibility
CE Class B
FCC Part 15 , Class B
VCCI Class B
C-Tick
Certification
CE, FCC ,ROHS
AC plug DC connector
Packaging & Shipping
Our Services
Certifications
Company Information
Founded in 2002, Shenzhen Hagors Tech Co., Limited is located in Shenzhen, China. As a professional manufacturer of security system and equipment, our products are Universal Switching Power,Centralism Electric Power,DC/DC Power Supply,Waterproof Power Supply,Source Holder/Transformer and other Electronics products,After several years of development, we have become a big company. We have our own production facilities, which cover an area of approximately 1,500 square meters, and employ more than 100 skilled staffs. By means of advanced technology, we have established a modern management system. Owing to this system, we have received CE and FCE certification.
Following the principle of Customer first, reputation first, we always place emphasis on quality, price, delivery time and service. In order to develop novel products, and be ahead of other competitors, we have established a Research Department, in which we have professional engineers taking charge of the exploitation and innovation of our products.
Meanwhile, to ensure excellent quality levels, we have implemented a QC system to ensure that all products are strictly monitored and tested at each stage of production process, with defective items are removed and disposed of, to ensure 100% satisfaction to our customers. As a result of fierce competition, we have strict controls on the materials, production and staff. We try our best to lower the cost of our products in order to supply a competitive price for our clients.
If you are interested in any of our items, please don't hesitate to contact us for more information. We are willing to build a business relationship with your firm on the basis of equality, mutual benefit. We are looking forward to hearing from you.
Following the principle of Customer first, reputation first, we always place emphasis on quality, price, delivery time and service. In order to develop novel products, and be ahead of other competitors, we have established a Research Department, in which we have professional engineers taking charge of the exploitation and innovation of our products.
Meanwhile, to ensure excellent quality levels, we have implemented a QC system to ensure that all products are strictly monitored and tested at each stage of production process, with defective items are removed and disposed of, to ensure 100% satisfaction to our customers. As a result of fierce competition, we have strict controls on the materials, production and staff. We try our best to lower the cost of our products in order to supply a competitive price for our clients.
If you are interested in any of our items, please don't hesitate to contact us for more information. We are willing to build a business relationship with your firm on the basis of equality, mutual benefit. We are looking forward to hearing from you.
FAQ
1,How many voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2,How many current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
3,How about the quality?
-- We have the best professional and experienced engineer and strict QA and QC system. Repair rate under 1.1%-0.2%
4,Can we be your distributor?
-- We are looking for distributor and agent all over the world for switching power supply. Should you any interest, please feel free to send your message or inquiry.
5,What’s kind of payment you accept?
-- T/T, L/C, Paypal, Western Union,ect
6,What’s your MOQ?
-- 3000pcs, except for sample order or trial order.
