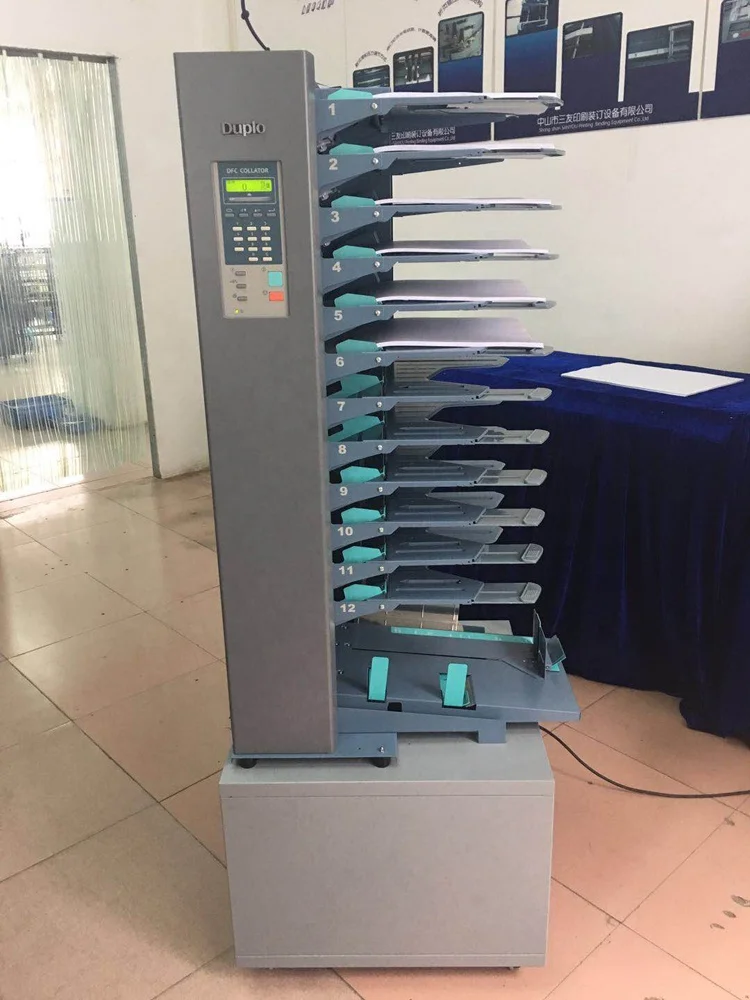

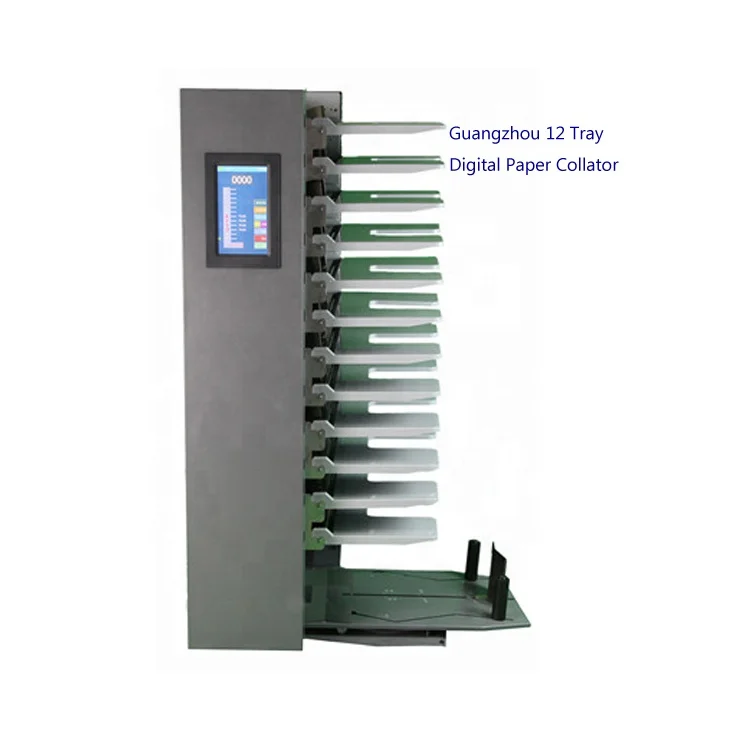

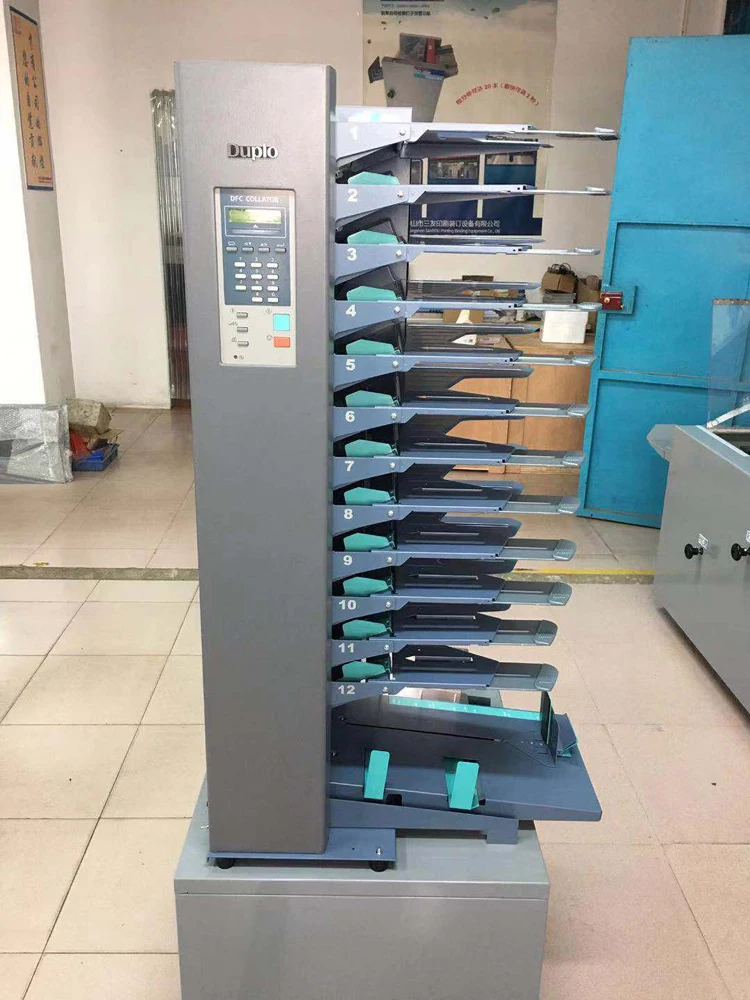

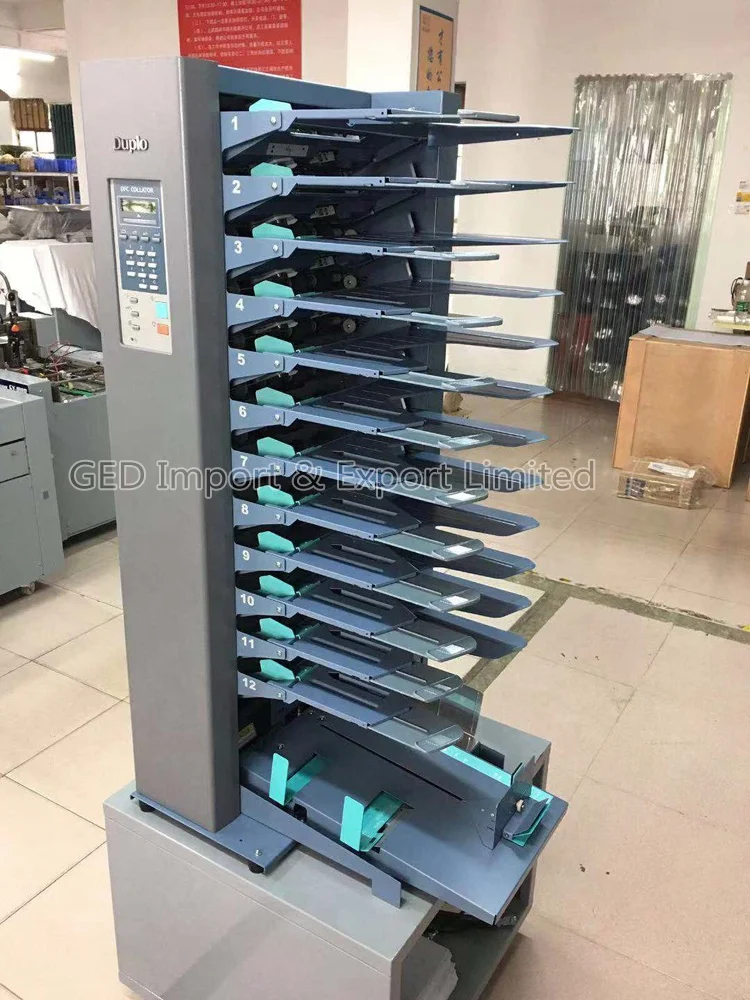

Guangzhou GED 12 Tray Digital Paper Collator Auto A4 Touch Screen Sorting Gathering Machine Booklet Folding Collating Maker

Product Parameters
Model | GED-12 |
Product Name | Guangzhou 12 Trays Duplo Paper Collator Machine For Paper |
Stations | 12 |

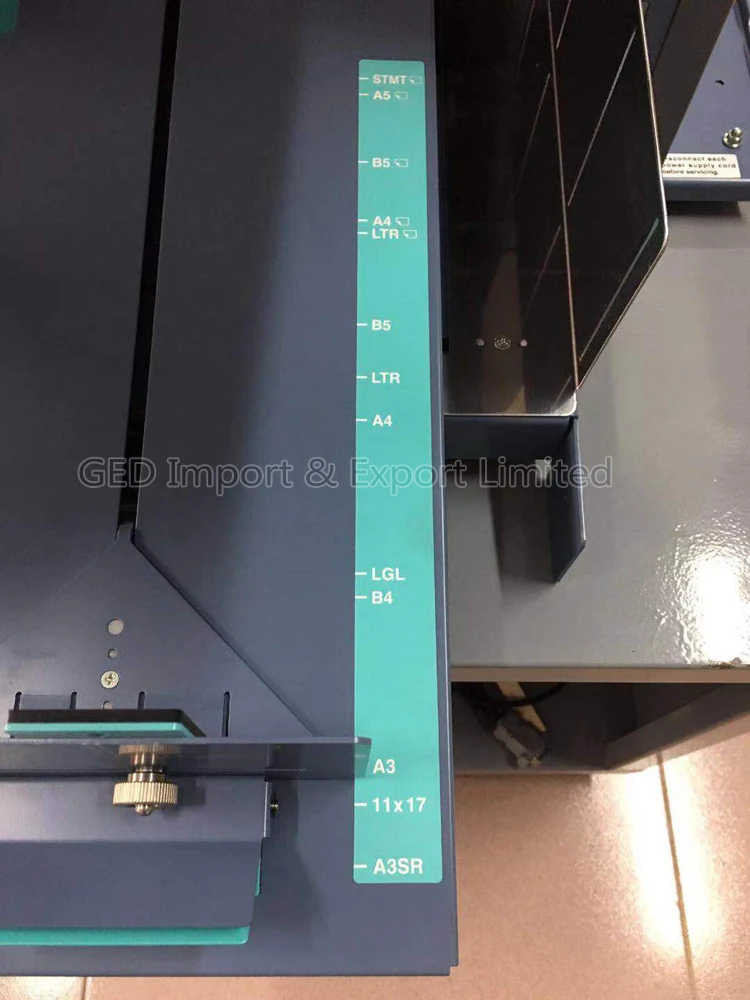

Applicable paper | Max Paper Size: 330*490mm Min Paper Size:100-150mm |
Capacity of each tray | 28mm (300 sheets of 80g/m2) |
Capacity of paper delivery tray | 65mm (600 sheets of 80g/m2) |
Paper thickness | 50-120g/m2 |
Max.Speed | 3500/hour (A4); 3200/hour (A3) |
Voltage | 110V-240V, 50/60HZ |
Counter | Count down, count up |

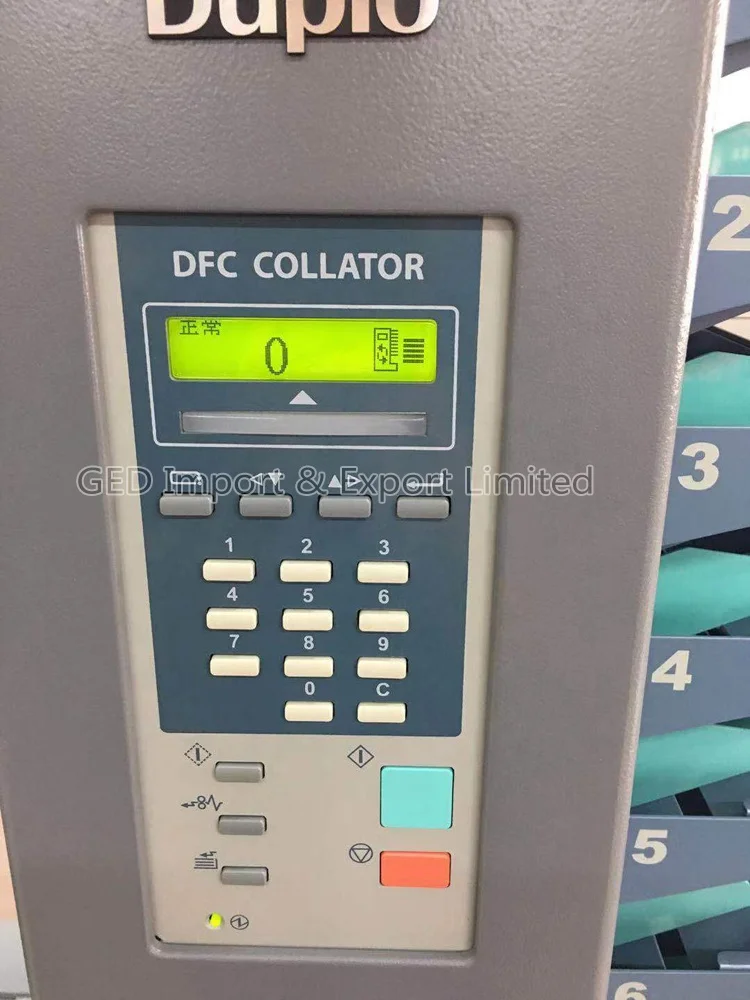

LCD Display | Feed error, Double feed, Jam, No paper, Stacker full |
Stacker | Straight, Crisscross |
Other Functions | Paper eject backwards, Total count |
Weight | 95/110KG |
Dimension | 1450*710*9700mm |
Option | Table |

Feature
1. 8 inch color touch screen, easy to operate
2. The maximum speed of up to 3500books / h
3. In addition to the basic double test, missing page error, paper full detection, but also the following advanced features:
1). Interval adjustment between paper.
2). Machine speed adjustment
3). Programmable page, you can group or no grouping circumstances, any set of pages for the inset;
4). Run status can be saved, the next boot does not have to set.
5). Wireless remote control machine can run and stop.
6). Double sensitivity adjustment, to deal with a variety of such as transparent paper and other critical paper.
7). A variety of ways to feed the wrong tips, LCD display, front digital display, voice prompts.
8). Simple and clear help information, you can quickly read familiar with the operation of the machine.
9). Failure statistics function, to facilitate the mechanical and mechanical aspects of the tune into and aftermarket.







Company Building

Showroom

Package and Shipping

Certification

Our Quality & Service
1. One year warranty
2. We provide technical support at any time.
3. Customized colors and size are acceptable for production.
4. Engineer available to service machinery.
5. We could provide one stop service.
6. Whether you are after one machine or one hundred machines, we are always here to service you if you need.

If you need it , Please contact me anytime
