Chuangrui настраиваемый двигатель постоянного тока 12В OEM перистальтический
- Категория товара: Pumps & Parts >>>
- Поставщик (Оптовый магазин): Baoding,Chuangrui,Precision,Pump,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

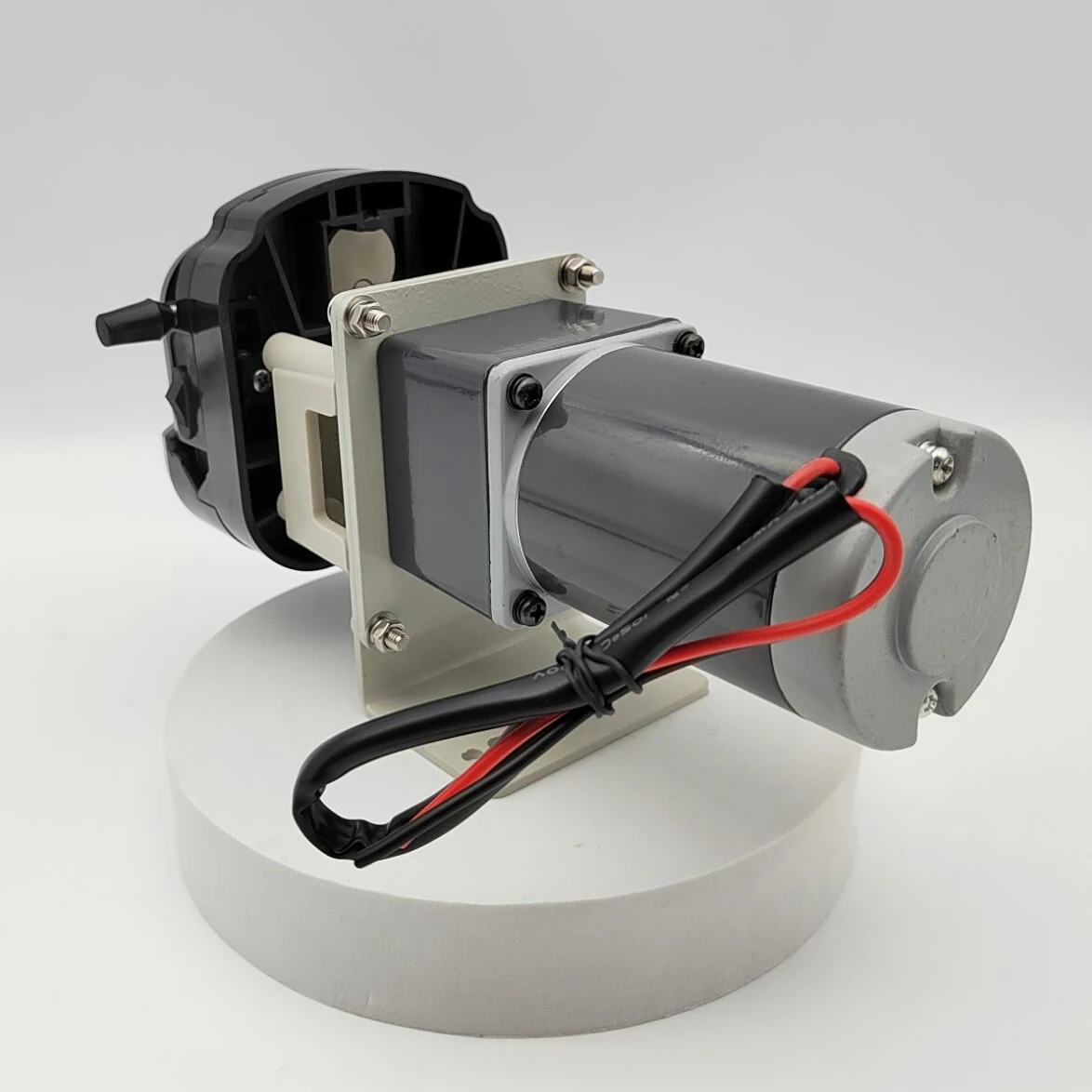

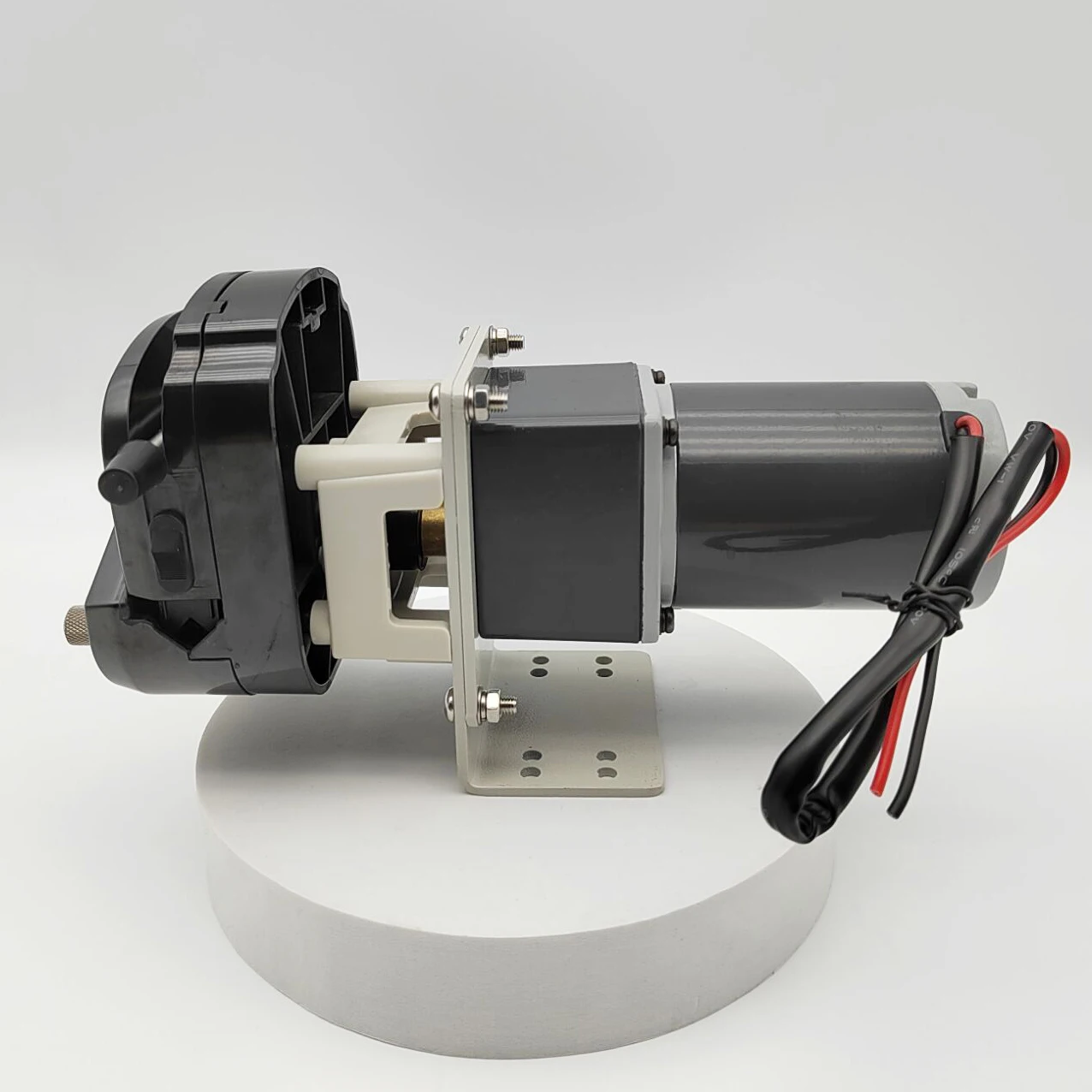

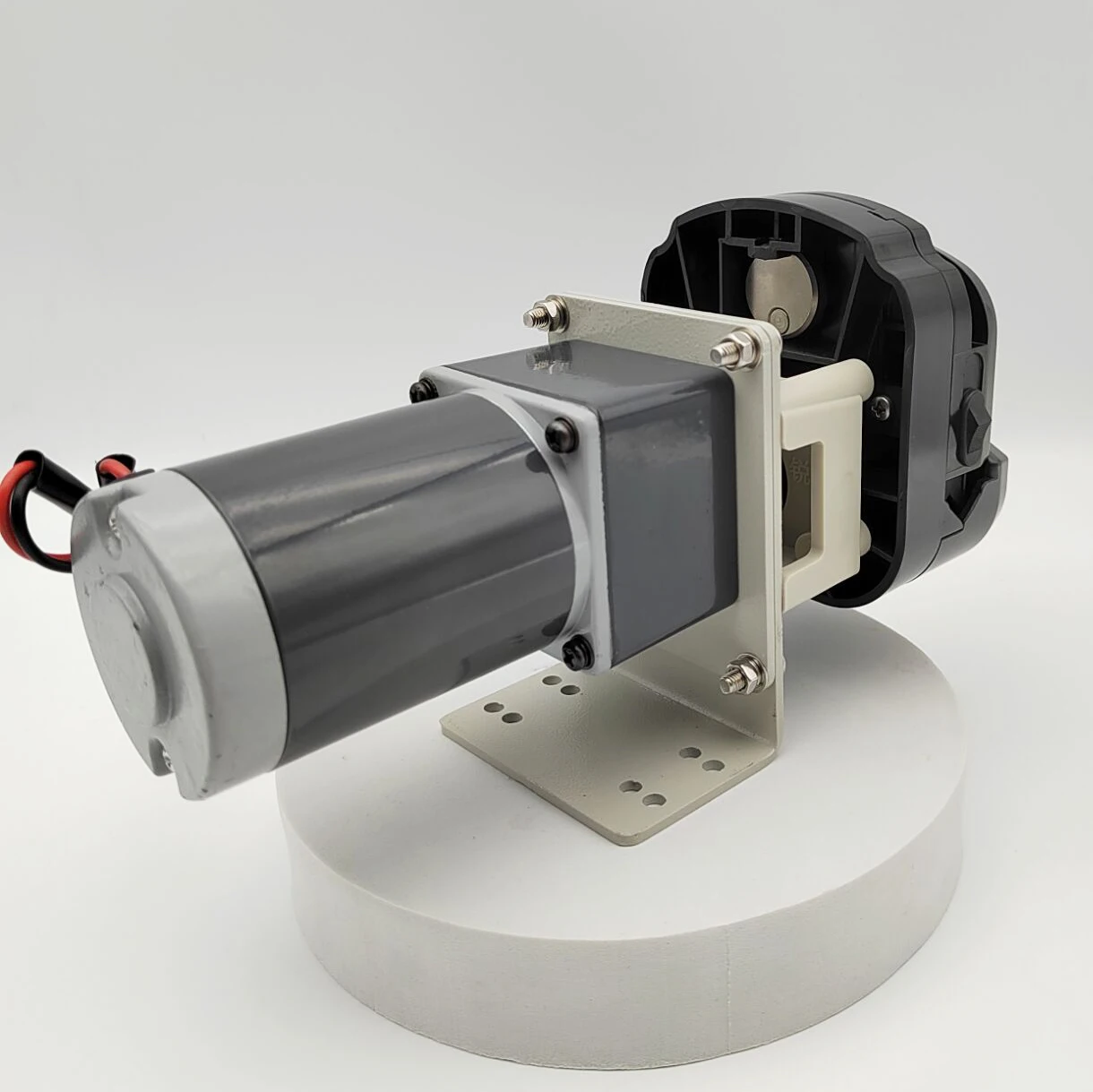

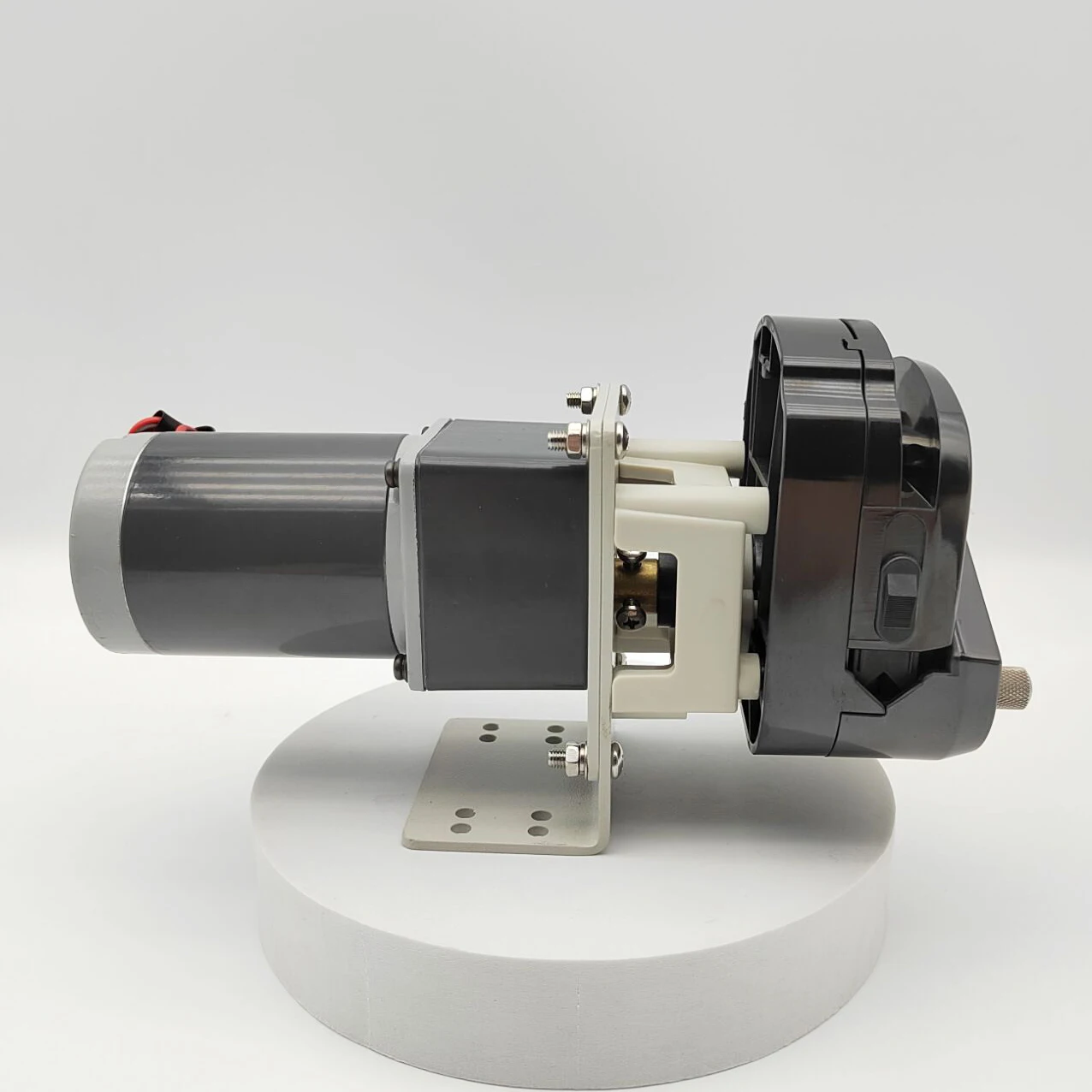

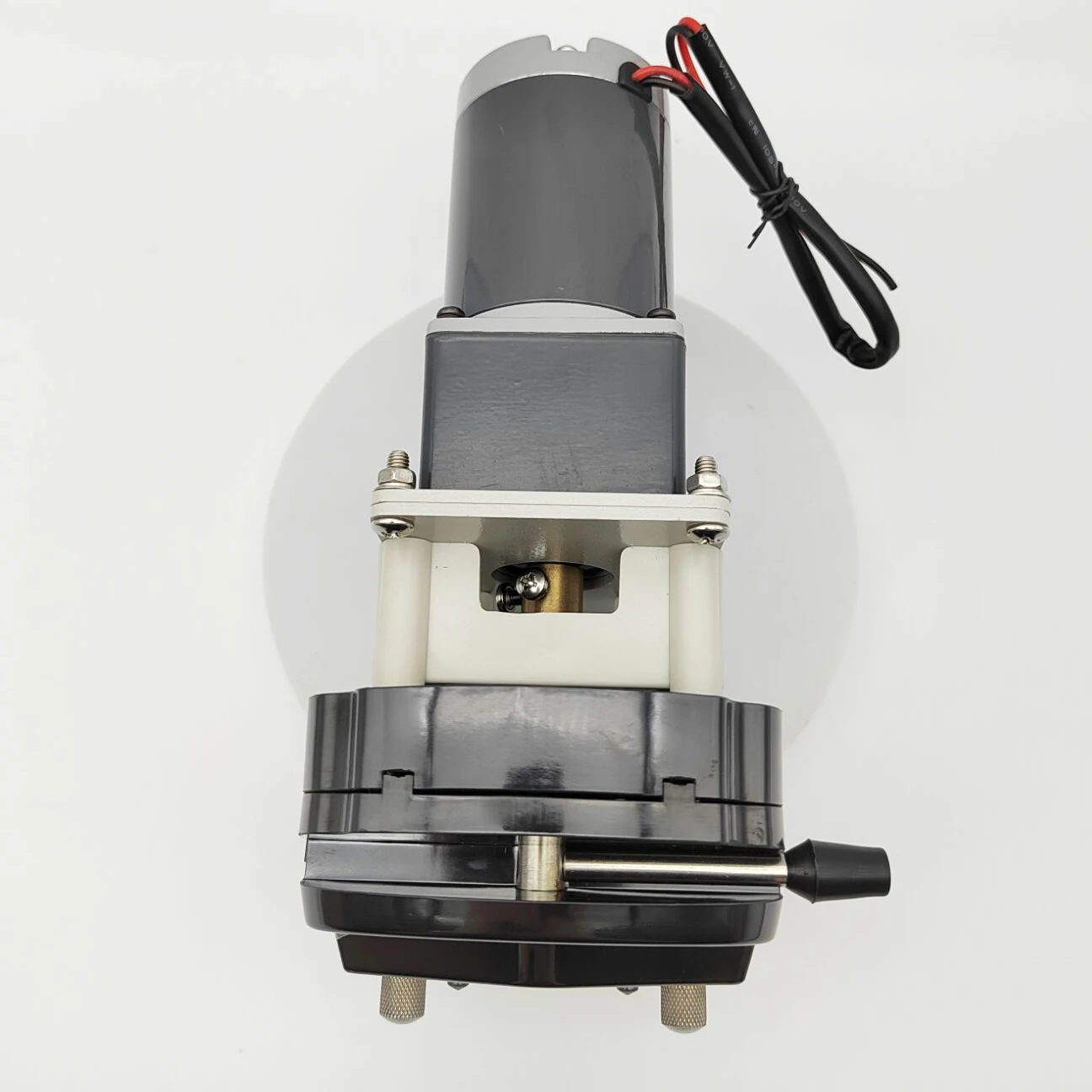

Customized OEM Peristaltic Pump
The OEM 201 small peristaltic pump have superb features built-in and flexible design to meet specific customer needs.Flexible rotor assembly, occlusion can be adjusted automatically, which give this OEM peristaltic pump powerful functions.
The micro peristaltic pump suitable for wall thickness 1.6mm Silicon tube, Pharmed bpt etc. material
tube, flow range up to 2280 ml/min. The shell of pump head is made of PPS material and the roller is made of 304 SSS material. The roller has high strength, better wear resistance, strong chemical corrosion resistance, and it can be disinfected at high temperature .
tube, flow range up to 2280 ml/min. The shell of pump head is made of PPS material and the roller is made of 304 SSS material. The roller has high strength, better wear resistance, strong chemical corrosion resistance, and it can be disinfected at high temperature .
Model | OEM201 |
Channel | 1(default) or customizable |
Speed range | Max 600 rpm |
Max Flow | 2280ml/min |
Motor | DC 12V/24V Optional |
Tube Model | ID (mm) | Wall Thickness (mm) | Max Flow (ml/min) | Speed（rpm） |
13# | 0.8 | 1.6 | 42 | 600 |
14# | 1.6 | 1.6 | 162 | 600 |
19# | 2.4 | 1.6 | 306 | 600 |
16# | 3.1 | 1.6 | 492 | 600 |
25# | 4.8 | 1.6 | 1020 | 600 |
17# | 6.4 | 1.6 | 1740 | 600 |
18# | 7.9 | 1.6 | 2280 | 600 |
Kindly reminder:
All the data in the Above chart is based on the water.
If your liquid is viscous or corrosive, then this selection guide is not suitable for you.
The above data is for reference only. | ||||||||||
Application：Vending machine
Model：OEM210
Flow：Max 3.4L/min
More detail
Flow：Max 3.4L/min
More detail
Application：Laundry machine
Model：OEM206
Flow：Max 1L/min
More details
Flow：Max 1L/min
More details
Application：Automatic mixing machine
Model：OEM204
Flow：Max 1.7L/min
More details
Flow：Max 1.7L/min
More details
