Product Description

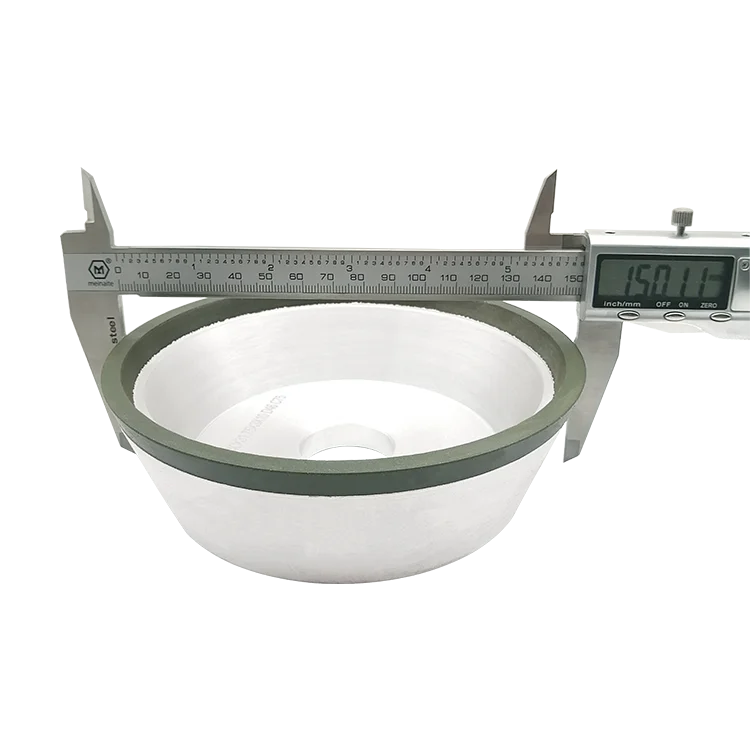

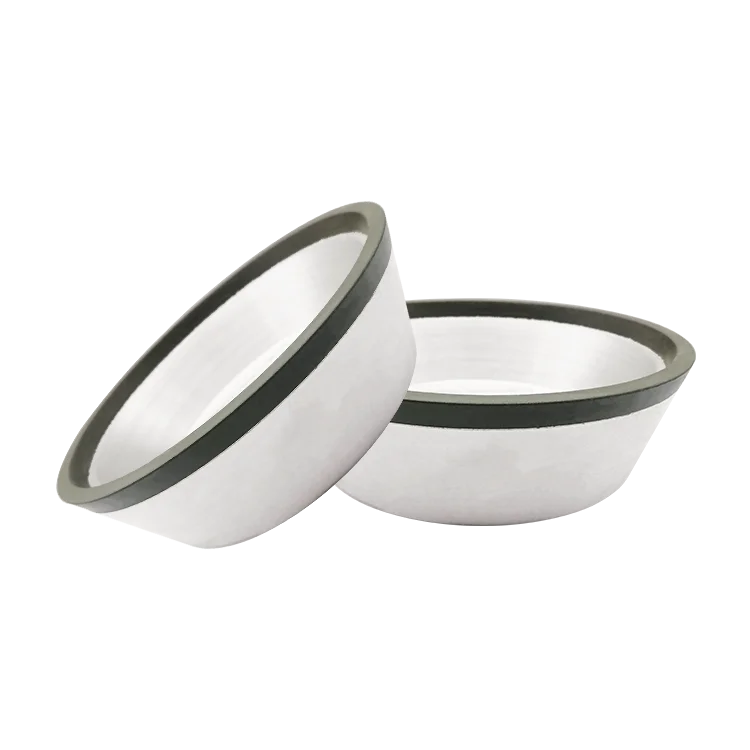

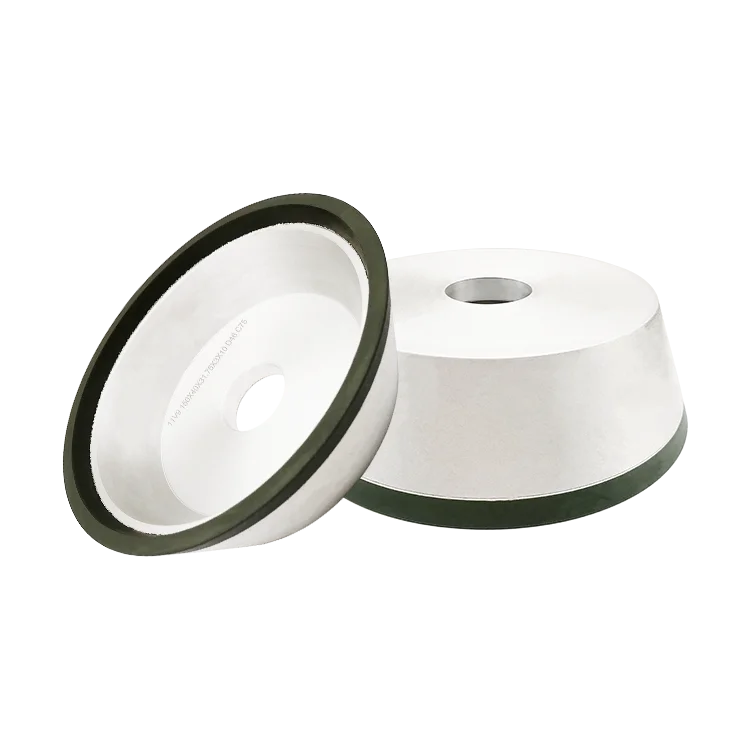

11V9 Resin Bond 45 Degree Chain Saw Sharpening CBN Wheels

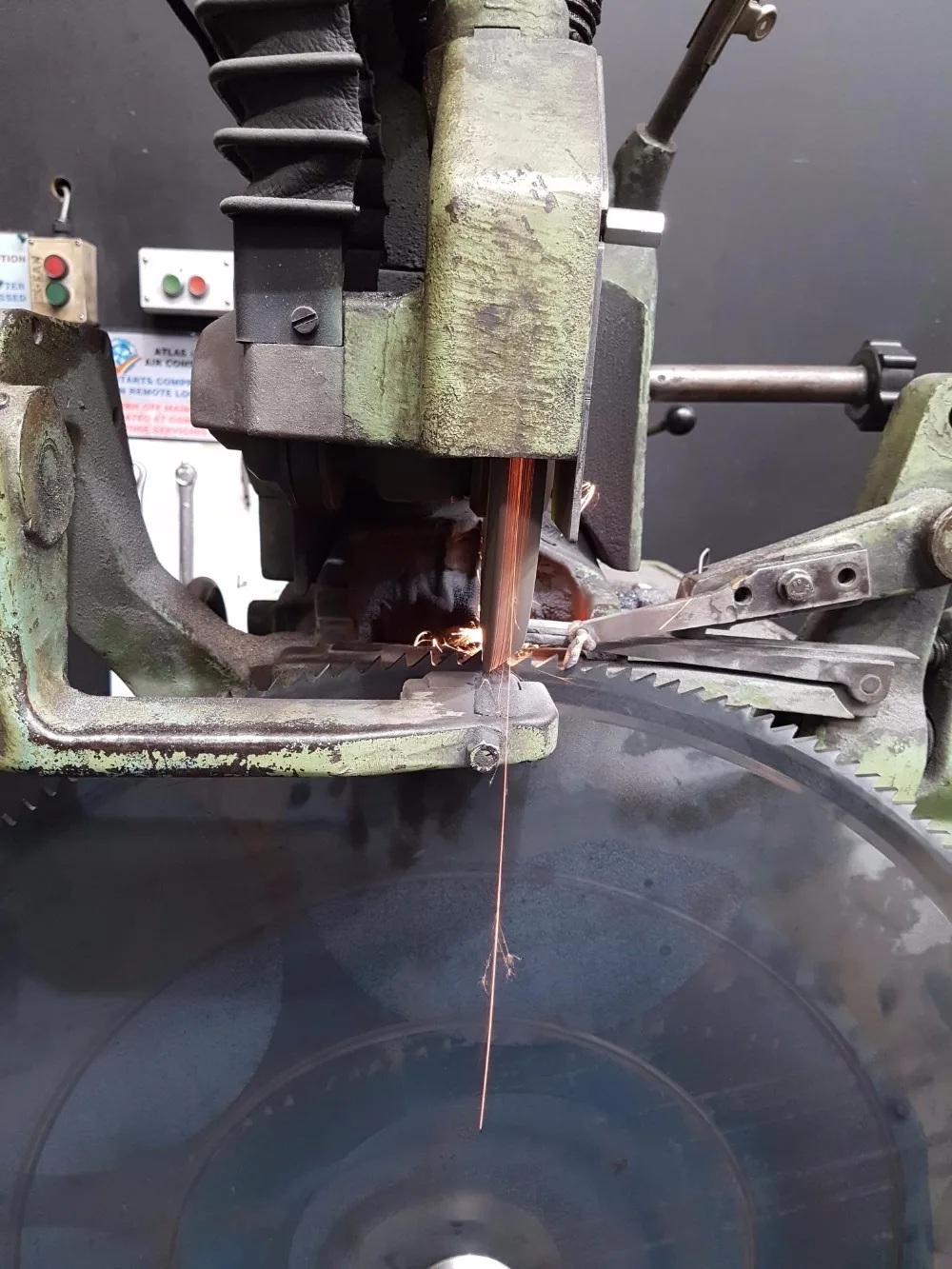

Our company deigned an excellent Resin Bond Diamond Grinding Wheels for grinding and sharpening TCT Circular Saw Blades. It performs well on face grinding, top grinding, Teeth Grinding, carbide tips grinding, carbide inserts grinding and also cylinder grinding. And our diamond wheels can work both for wet grinding and also dry grinding.

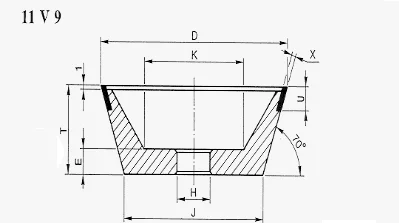

11V9 Resin Bond Diamond Grinding Wheel Popular Specification | ||||||||||
Type | D(mm) | T(mm) | H(mm) | U(mm) | X(mm) | |||||
11V9 | 100 | 40 | 31.75 | 10 | 3 | |||||
125 | 40 | 31.75 | 10 | 3 | ||||||
150 | 40 | 31.75 | 10 | 3 | ||||||
Common Grit: D20 D46 D64 | ||||||||||
Related Products
\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
Metal Bond Grinding Wheel | Metal bond diamond grinding wheel are mainly used for machining quartz crystal,tungsten carbide,ceramics, glass, composite, sapphire, ferrite, refractory, thermal spraying materials and so on. Metal bond CBN grinding wheel are mainly used for machining high speed steel, tool steel, mould steel, titanium alloy and so on. | ||||

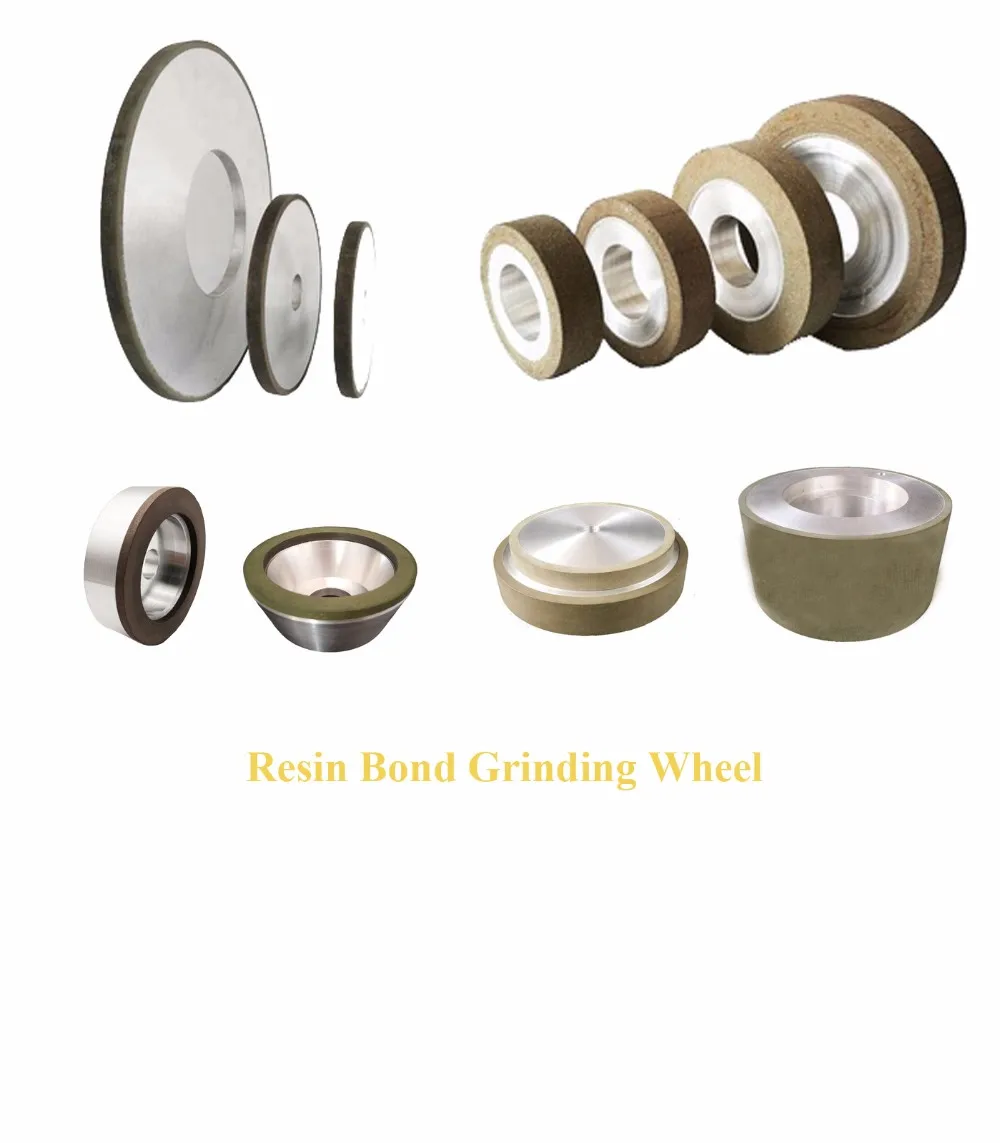

Resin Bond Grinding Wheel | Resin bond diamond grinding wheel are mainly used for machining tungsten carbide, ceramic materials, magnetic materials, silicon materials, thermal spraying alloy materials and so on. Resin bond CBN abrasive grinding wheel are mainly used for machining high speed steel, cast iron and so on. | ||||
Vitrified Bond Grinding Wheel | Vitrified diamond wheels are mainly used for machining tungsten carbide, PCD, PCBN, ceramic, cermet, etc. Vitrified CBN wheels are mainly used for machining cast iron(alloy cast iron, chilled cast iron, nodular cast iron, etc.) steel(45#,55#,20Cr.etc.) | ||||
Electroplated Grinding Wheel | Electroplated diamond grinding wheel are mainly used for machining nonmetallic materials with high rigidity like ceramics, glass, tungsten carbide, ferrite and so on. Electroplated CBN abrasive grinding wheel are mainly used for machining metallic material such as chilled cast iron, founded alloy steel, titanium alloy and so on. | ||||
Our Company
ZHENGZHOU RUIZUAN DIAMOND TOOL CO., LTD.
is committed to providing state-of-the-art diamond and CBN products. Experienced engineers & technical expertise brought their industrial knowledge and technical service to help customer find the best solutions with our diamond and CBN products.Our fully equipped manufacturing facility and advanced detection equipments make our product perform well and consistent. And we never stop persuing new technology and continious improvement. Our goal is to 100% customer satisfaction.
Our Equipments
8 Press machines
3 Lathe machines
2 Blance machines
2 Vollmer QWD760 EDM Cutting
2 Ewag CNC grinding machines
1 Zoller Inspections machines
1 Optical Projector
1 Drilling machines
3 Lathe machines
2 Blance machines
2 Vollmer QWD760 EDM Cutting
2 Ewag CNC grinding machines
1 Zoller Inspections machines
1 Optical Projector
1 Drilling machines

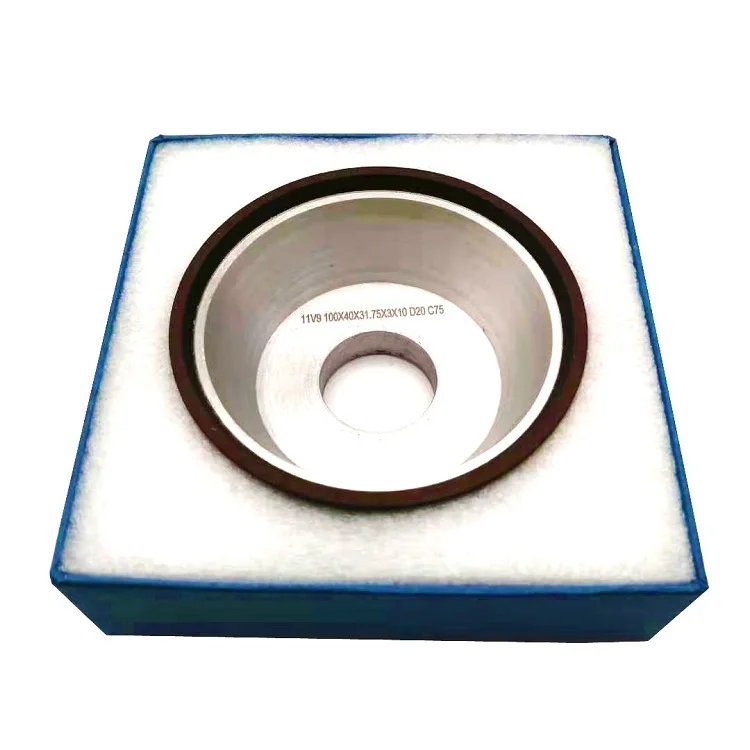

Packing
Packaging | ||
Size | 170mm (L) * 170mm (W) * 40mm (D) | |
Weight | 2.0KG, 2.5KG | |
Packaging Details | The normal packages are below: Box Size: 170*170*40mm(For 150mm wheel) 240x240x50mm (For 200mm wheel) 350x350x70mm (For 250mm and 300mm wheel) | |
Packaging | ||
Size | 370mm (L) * 370mm (W) * 180mm (D) | |
Weight | 35KG | |
Packaging Details | The outter package is Paper Carton. 370x370x180mm(For 150mm wheel) 500x300x160mm (For 200mm wheel) 380x380x220mm (For 250mm and 300mm wheel). Belt pacakged and Plastic film wrapped. | |
