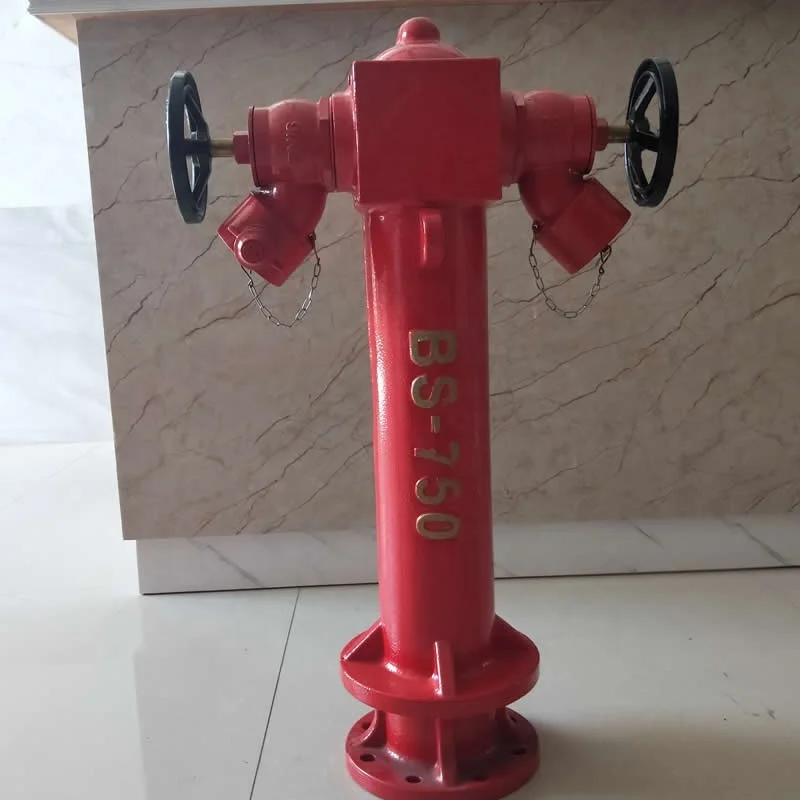

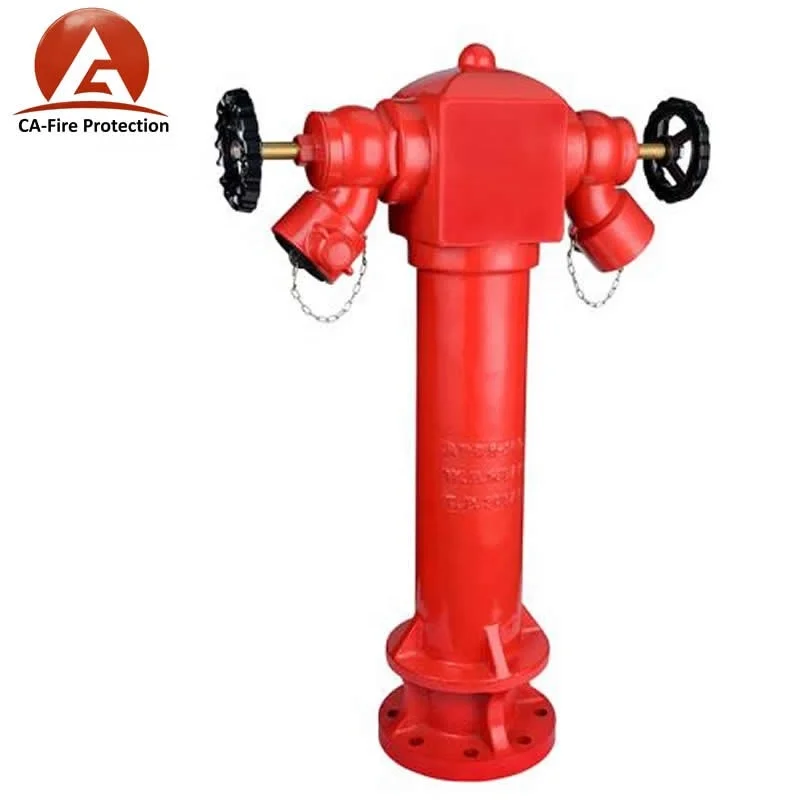

Пожарное оборудование CA клапан подачи воды BS750 пожарный

Поделиться:


Цена:4,00 $ - 5,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики


Overview

Quick Details
Place of Origin:Fujian
Brand Name:CA
Product name:indoor fire hydrant
Material:brass/ ductile iron
Color:Red. Yellow. Black
Working Pressure:1.6Mpa
Size:DN65
Finishing:Powder Coated Red
Application:Fire Water System
Certificate:ISO CCC

Supply Ability

Supply Ability:10000 Unit/Units per Month
Packaging & Delivery
Packaging Details:Wooden packing
Port   Xiamen
Lead Time :
Quantity(Units)1 - 200>200
Est. Time(days)5To be negotiated
Product Description

Application

Fire hydrant is a connecting piece with valve installed on the fire control piping network in the buildings to supply water to fire scene. It is a kind of indoor fixed fire control unit equipped in the plants, warehouses, high-rise buildings and public buildings, as well as vessels, etc. , to fight fire in the buildings. It is normally installed inside the fire hydrant case to be used with fire control water band and water gun.

Used Fire hyrants Techical Parameters

Model
Inner Diamter
Norminla W.P.
Strength Test Press
Inlet Pressure
Outlet
Pressure
Flow Rate
Dimentsion
(Inch)
(Mpa)
(MPa)
(MPa)
(MPa)
(L/S)
(mm)
SN50
2




1.6




2.4


0.4~1.0


0.2~0.5




>5
158*100*190
SN65




2.5
175*114*190
SNJ65
175*114*205
SNZJ65
175*114*205
SNW65-I


0.4~0.8

0.25~0.35
175*114*188
SNZW65-I
175*114*205
SNSS65
175*114*205

 Structural mode and specification of Used fire hydrants:

1. Single valve with single hydrant for indoor (SN50, SN65)

2. Double valves with double hydrants for indoor (SNSS6I)

3. Rotary indoor fire hydrant (SNZ65)

4. Pressure reducing and stabilizing fire hydrant (SNW65-I)

5. Rotary pressure reducing and stabilizing fire hydrant (SNZW65-I)

All the fire hydrants meet the GB3445-2005 international standard for indoor fire hydrant

Apply material: clean water, foam admixture liquids

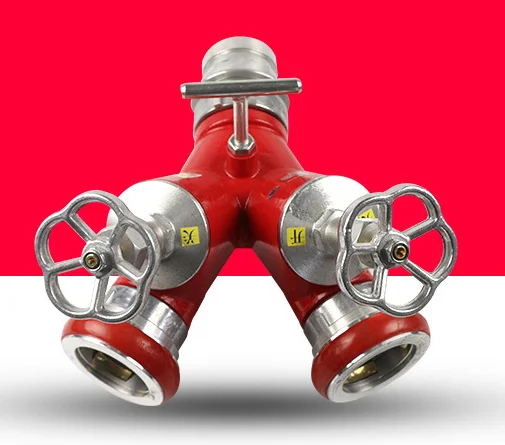

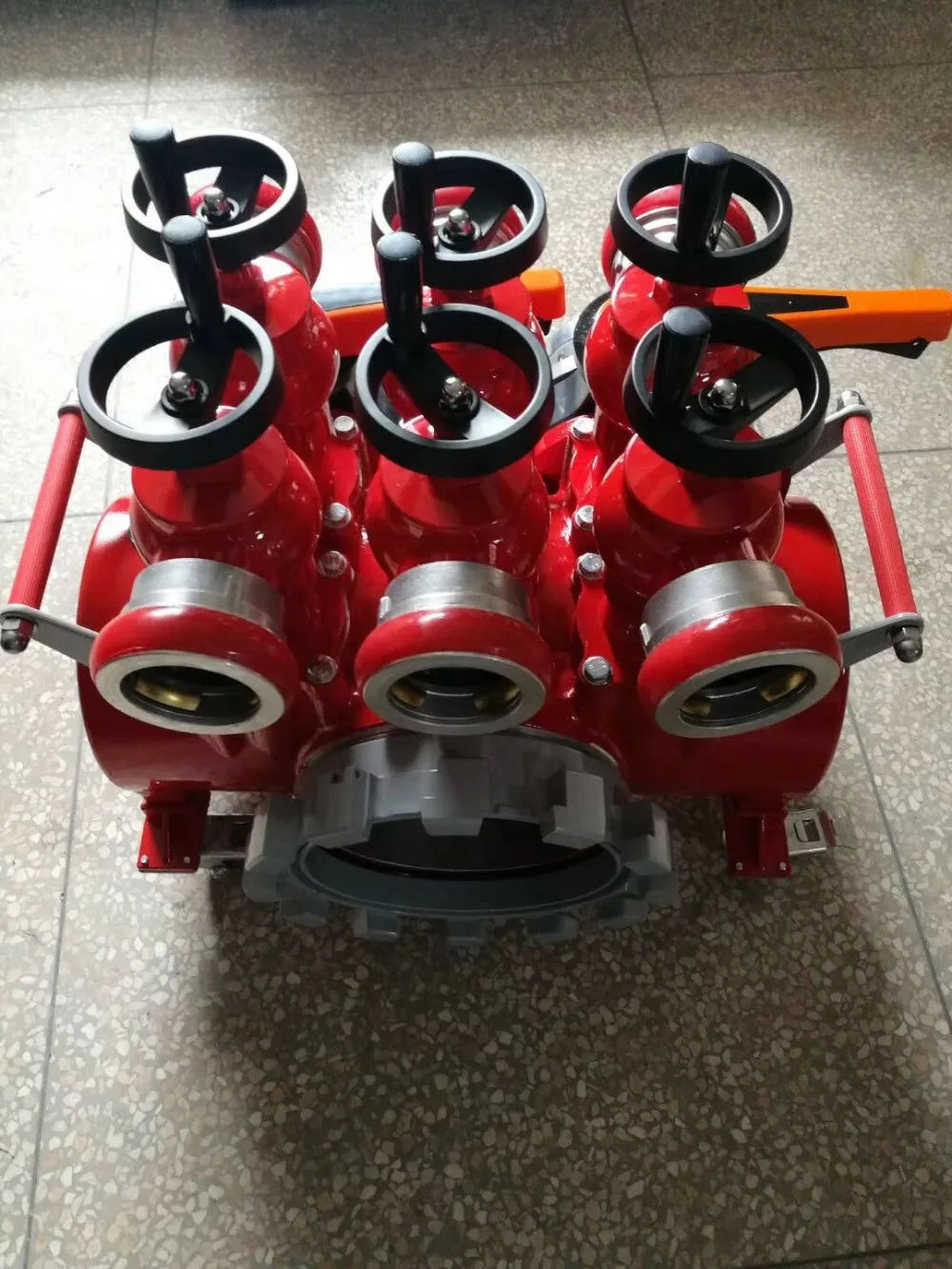

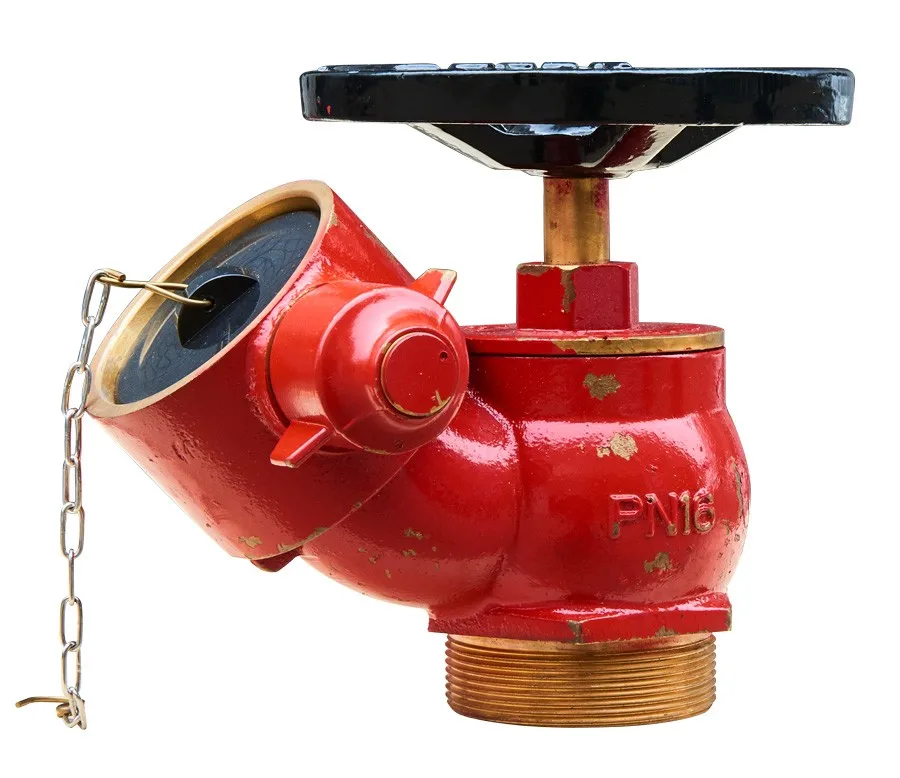

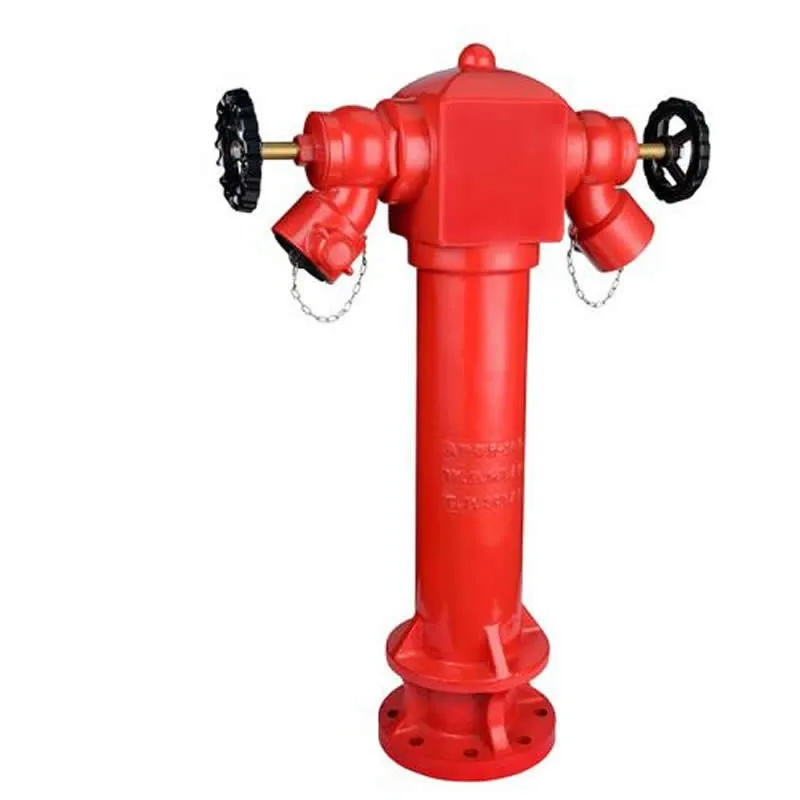

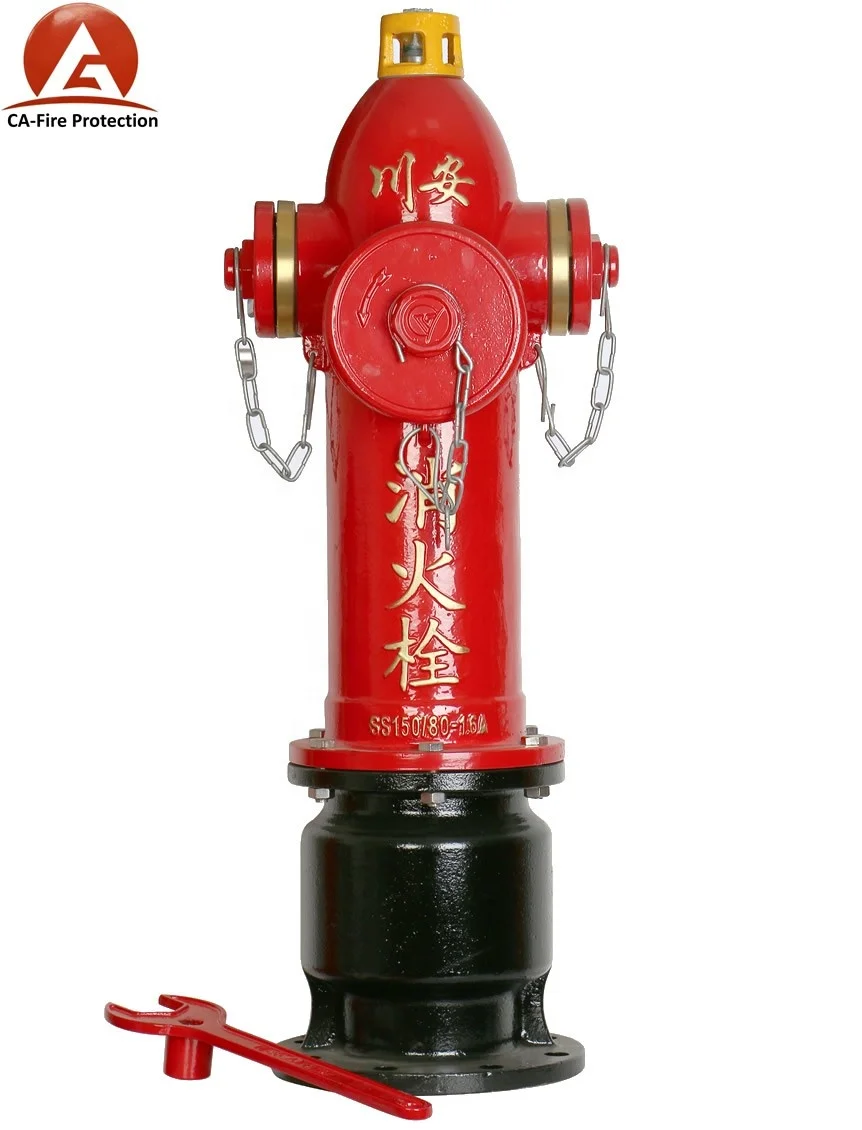

_20190524113645fire department connection 2 water distributor 2+DSC_6891brass fire hydrant 1fire hydrant facefire outdoor hydrant oversea market bs750CA-Fire protection Ourdoor Fire hyrant
