Products information :

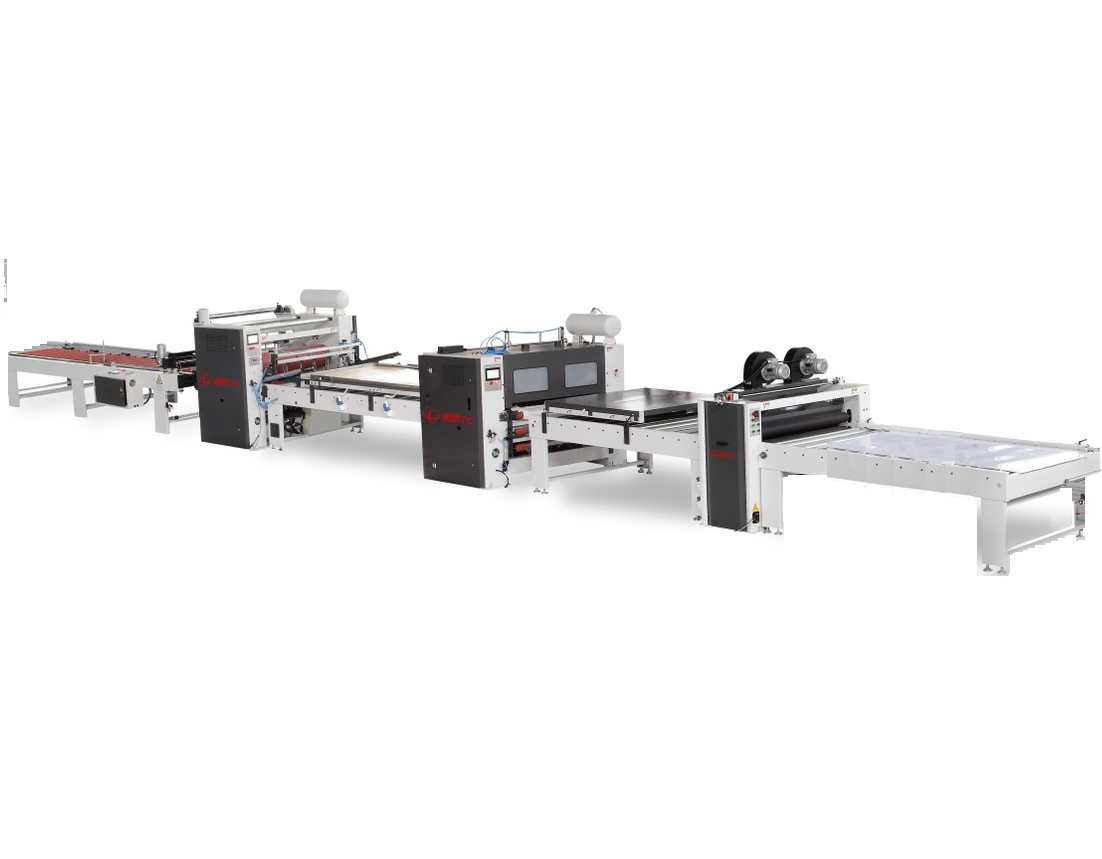

TC-PUR 1350 Acrylic PMMA SHEETS PUR hot melt laminating machine For sliding door kitech cabinets

• TC-PUR 1350  Acrylic PMMA SHEETS PUR Hot melt Laminating machine is suitable for professional furniture like sliding door ,kitech cabinets , wardrobe and cupboard and acoustic manufacturer with Rolling material ( Matt PVC ,high glossy PVC foil ), & sheet materials (acrylic on aluminum foil, HPL ,CPL on different board (MDF ,PLYWOOD ,FOAM BOARD) ..

1. Functions : PUR Hot melt  Laminating machine is suitable for professional furniture and acoustic manufacturer with Rolling material ( Matt PVC ,high glossy PVC foil ,Melamine paper ...), & sheet materials (acrylic , PETG ,aluminum foil, HPL ,CPL on different board (MDF ,PLYWOOD ,Partical board FOAM BOARD...) ..

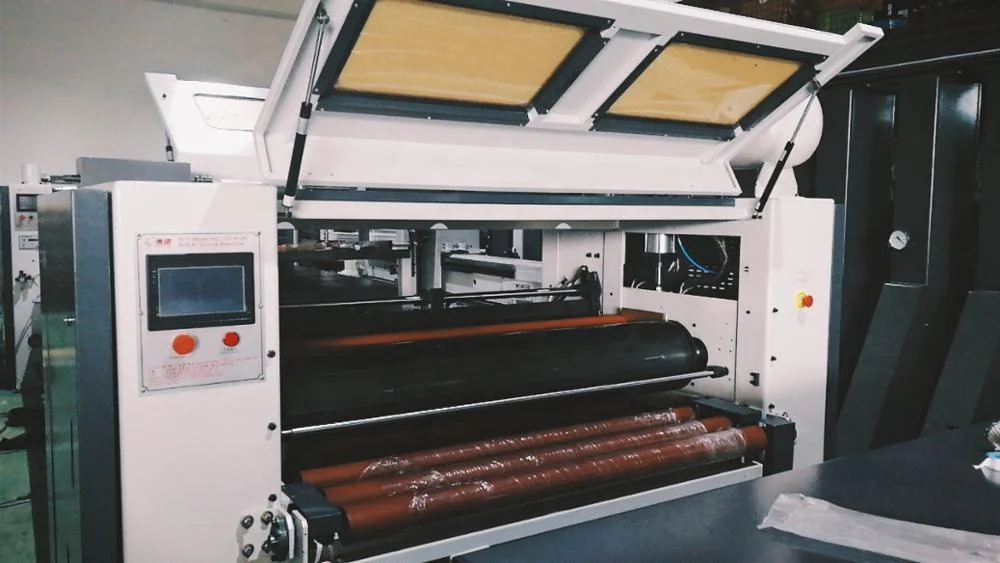

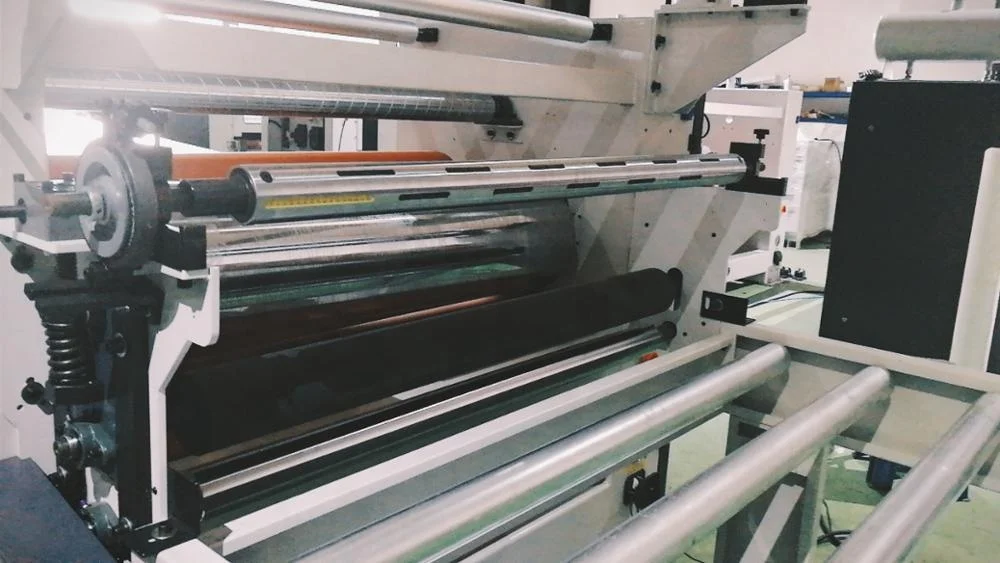

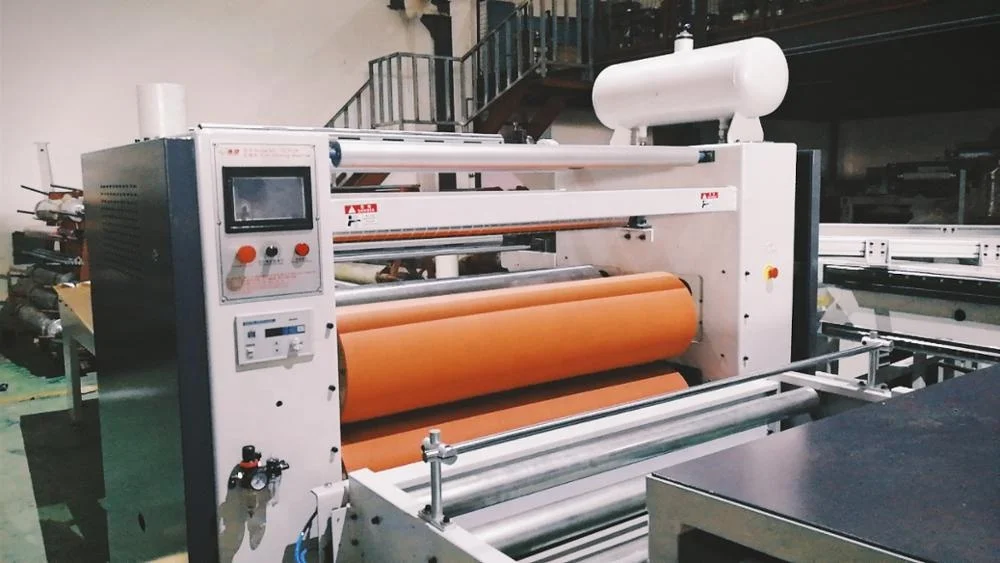

2. Structures: Automatic load feeder , front and back conveying, Double sides dedust system with two fans motor ,preheating channels ,advanced glue spreading structure(5 rollers or 3 rollers ), Heating channel with bracket of sheet materials, fixed location bracket(roller materials) and hot pressing structure, automatic cutter , automatic unload feeder

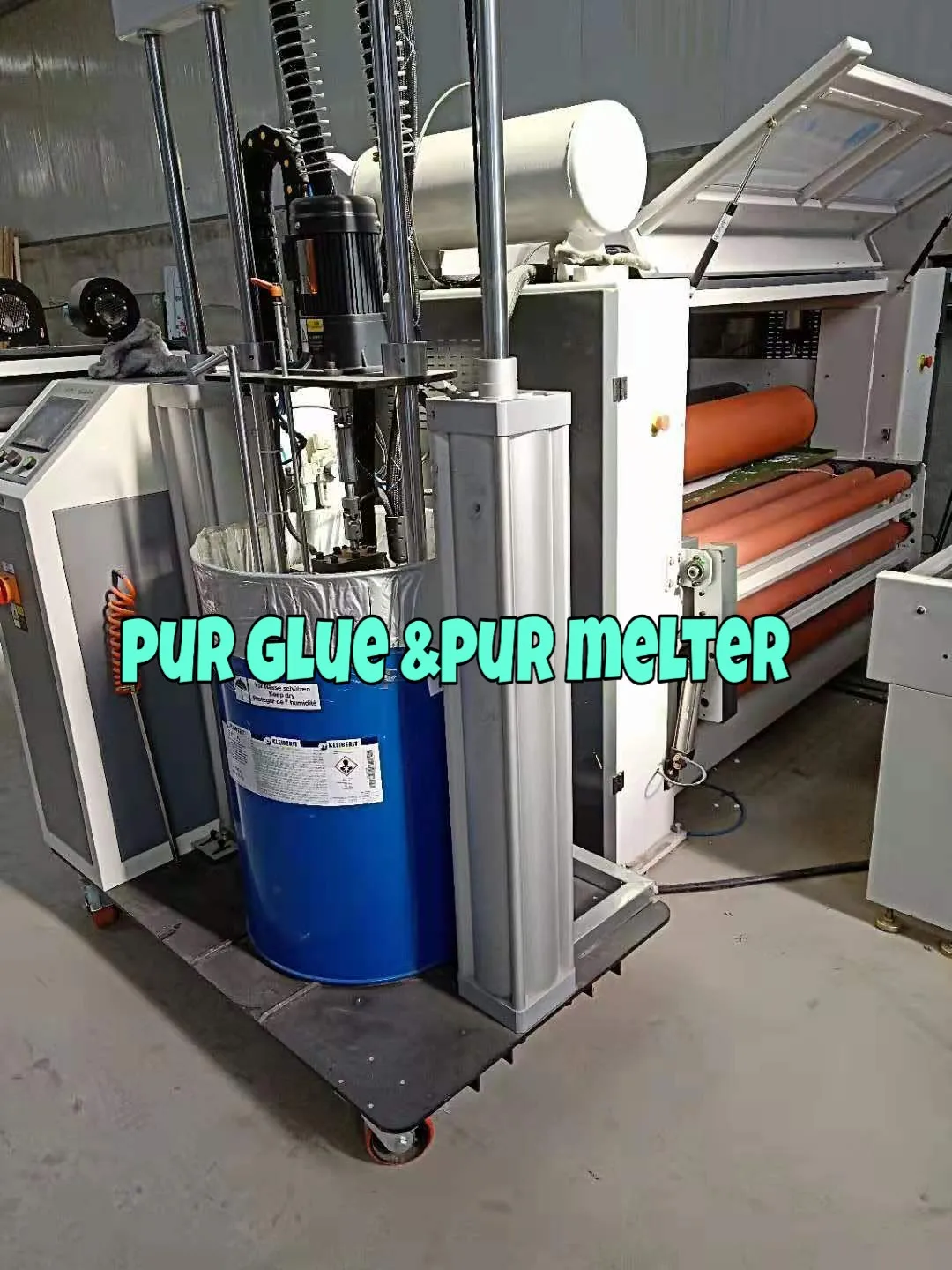

3. Glue type : PUR GLUE (JOWAT &KELEIBIRIT )


4. Strengths :It has the advantage of no crushing, no bubbly and good quality feature, as well as advanced technical, high precision, reasonable composition, new structure, easy operation.

 Products parameters

Machine parameter (TC-PUR 1350 Acrylic PMMA SHEET PUR hot melt laminating machine For sliding door kitech cabinets )

Mode 240x1350mm

Min processing length 600mm

Max processing width  1220mm

Processing thickness 1.5-30mm

Feeding speed 2-18m/min

Driven power 10kw

Heating power 20kw

Spreading glue system  5rollers

Machine weight 8000kg

Max wrapping Paper width 1280mm

Dimension 21500x1900x1700mm

Shaft diameter 240mm

Max process height900+-20mm

Passing height3-100mm

Operating side right hand ,one request left hand

Feed of boards fix on the edge on the right

Up and down thickness wayelectrical

Industrial voltage 380v 3 phases

The loading weight of hoist 1.5ton

 Product certifcates (TC-PUR 1350 Acrylic PMMA SHEET PUR hot melt laminating machine For sliding door kitech cabinets )

Company information

Foshan Tongchi Machinery & Electronic Co., Ltd, established since 2006, who is the professional manufacturer of woodworking machines and with the occupying area of over 10,000 square meters.

Currently, the products ranges include as following :

PUR/EVA hot melt  Laminating Machines,

TC-PUR 1350 Acrylic PMMA SHEET PUR hot melt laminating machine For sliding door kitech cabinets /wardrobe/cupboards )

Woodworking PUR profile Wrapping Machines,

Woodworking Laminating Machines with cold glue and PUR hot melt glue , Slitting & Rewinding Machines,

Glue Spreader Machines,

Vacuum Press Machines, Woodworking Machine Accessories and etc.,

The main exported markets are Southeast Asia, South Africa, North Africa , Middle East, South America, domestic market  and some other Europe countries.

Production process :
