Стиральная машина для бутылок большой емкости с цепочкой
US $1640-$1750

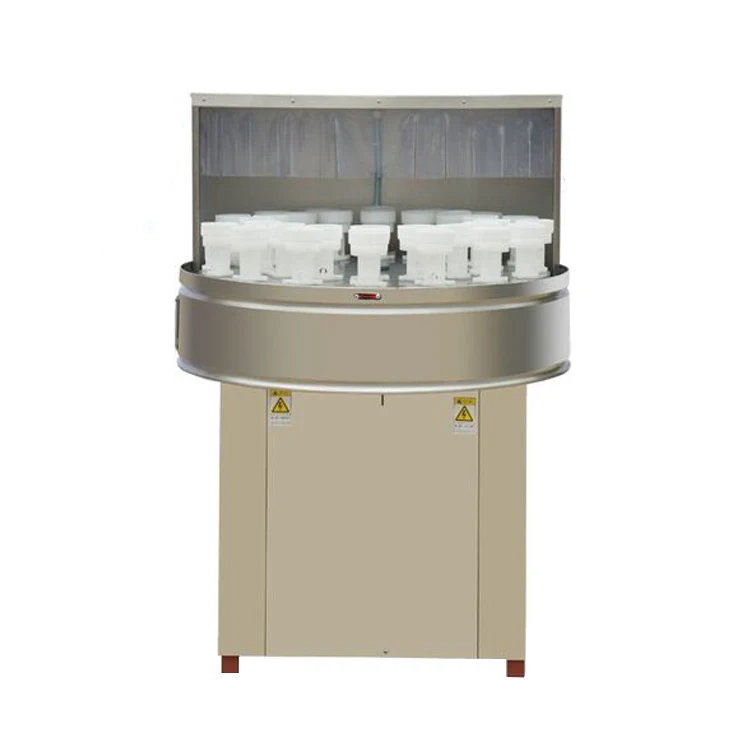

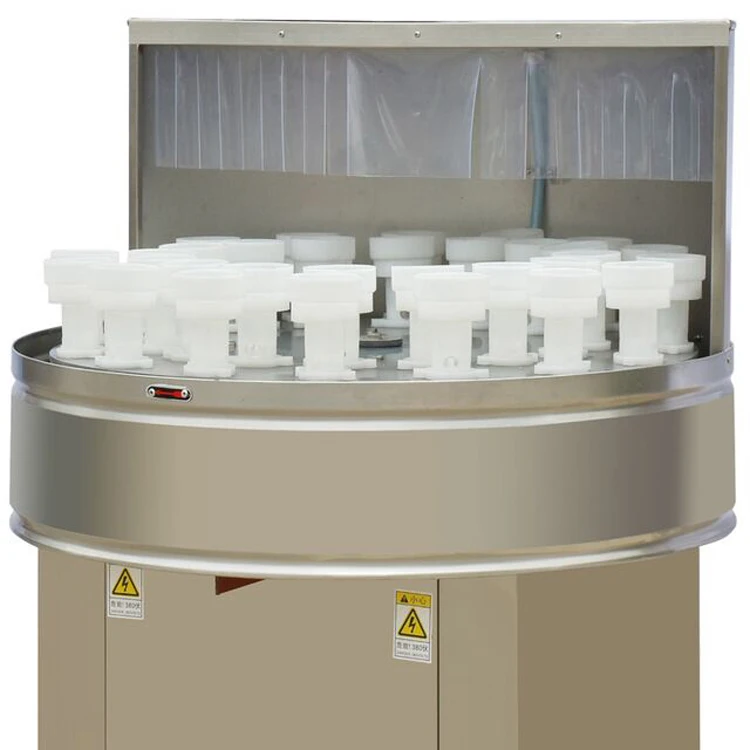

The QD-32 bottle-punching machine produced by our factory is a newly designed one which combines the structural principle of domestic and foreign bottle-punching machines and according to the actual requirements of users. This machine is a necessary equipment before liquid filling. The water dividing valve is made of non-polluting material, which meets the requirements of food equipment.
This machine features:
<1>.the outer wall of the bottle is sprayed, the inner wall is washed, and the flushing bottle is clean and sanitary.
<2>.Use low-pressure pump boosting cycle to flush bottles with low water consumption.
<3>.The structure is simple and the maintenance is convenient.

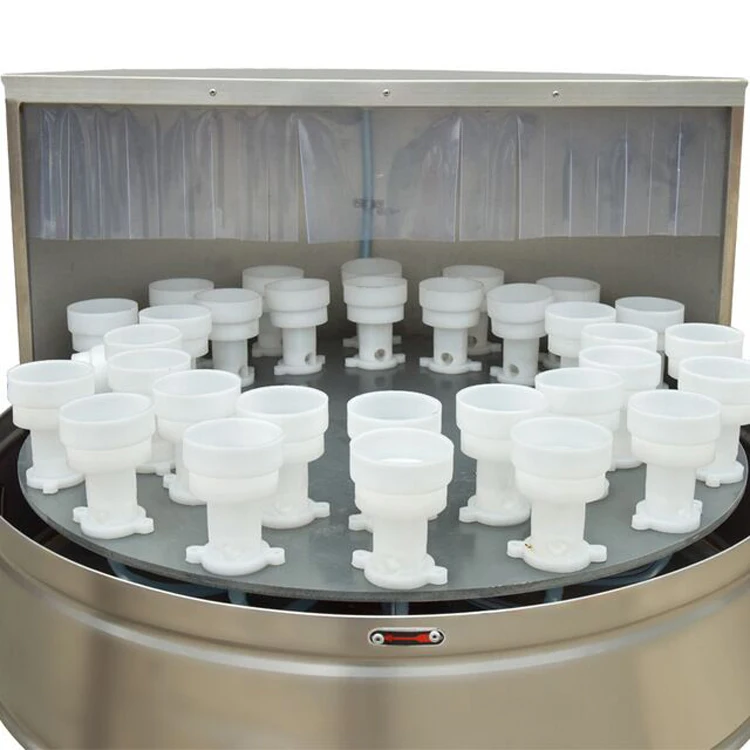

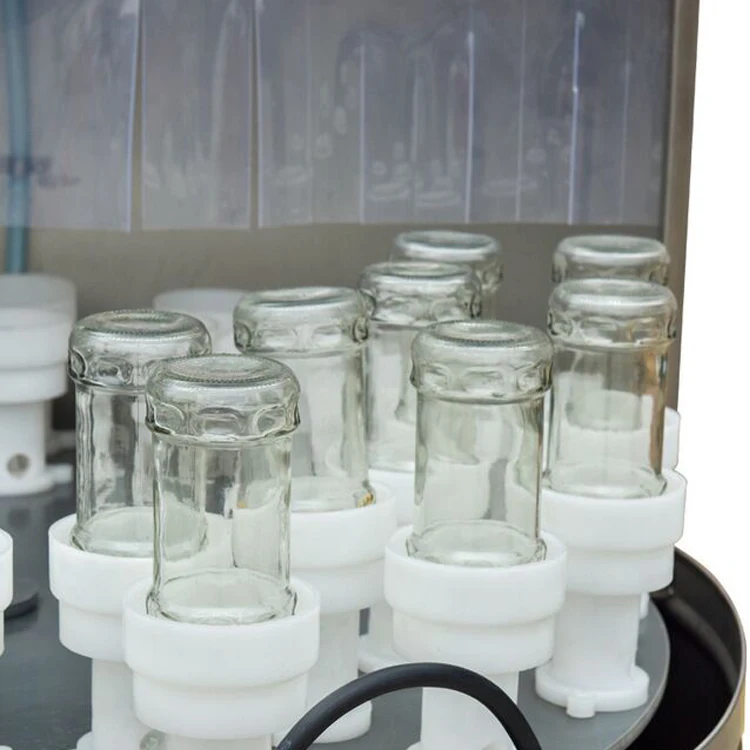

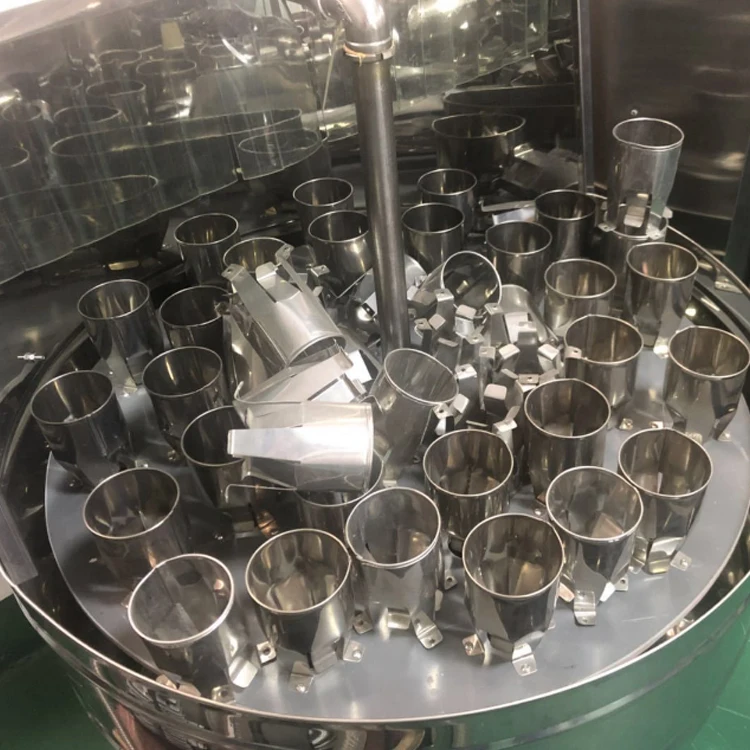

<4>.Labor-saving, high production efficiency and wide application of bottle type (replacement of different bottle holders can be used for wide-mouth bottles and fine-mouth bottles).
Principle of bottle-punching.
1. The outer wall of the bottle is sprayed by a sprinkler, and the spray pressure can be adjusted by a spray switch. (The external water pressure of this machine should be higher than 0.1 Mpa. If it is lower than this pressure, it should have its own pressure pump. )
2. When the inner wall is flushed, the lower valve body is stationary and fixed on the bracket, and the upper valve body rotates simultaneously through the nozzle and the upper plate of the flushing bottle. When the water intake hole of the lower valve body is connected, the water is pressurized by the nozzle to flush the inside of the bottle.
