Hot sale industrial food universal crusher machine universal milling machine
Main Usage
This machine is widely applied as supporting equipment,before fine crushing process in such trade as pharmaceutical,chemical and foodstuff ect.
Working Principle

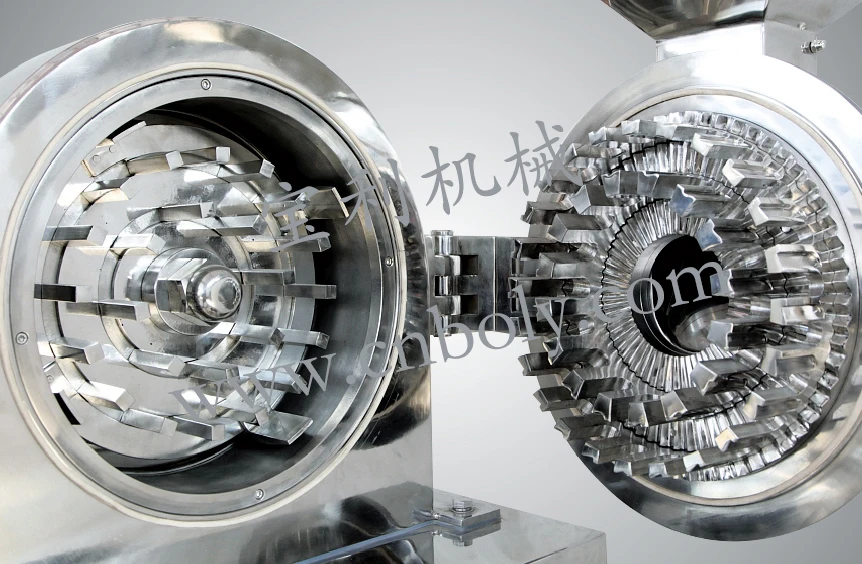

By means of relative motion between movable and fixed fluted discs, the material is crushed by the impact and friction of the teeth and the impact among material. The crushed material enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utitization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
Technical Parameters
| Model | Main Structural Dimensions(mm) | Capacity | Input Particle Size | Output Particle Size | Machine weight | Speed | Total power | ||
| L | W | H | Kg/H | mm | mesh | Kg | Rpm/min | KW | |
| JB-20 | 650 | 820 | 1500 | 20-150 | <6 | 12-120 | 230 | 4650 | 4 |
| JB-30 | 700 | 900 | 1650 | 30-350 | <10 | 12-120 | 330 | 3800 | 7.5 |
| JB-40 | 750 | 1000 | 1750 | 50-450 | <12 | 12-120 | 430 | 3400 | 11 |
| JB-50 | 850 | 1150 | 1900 | 80-550 | <15 | 12-120 | 700 | 2900 | 18.5 |
| JB-60 | 950 | 1250 | 2150 | 100-800 | <15 | 12-120 | 900 | 2300 | 22 |
| JB-80 | 1100 | 1400 | 2250 | 120-1000 | <20 | 12-120 | 1200 | 1800 | 30 |
| JB-100 | 1300 | 1500 | 2400 | 150-1500 | <20 | 12-120 | 1800 | 1400 | 45 |

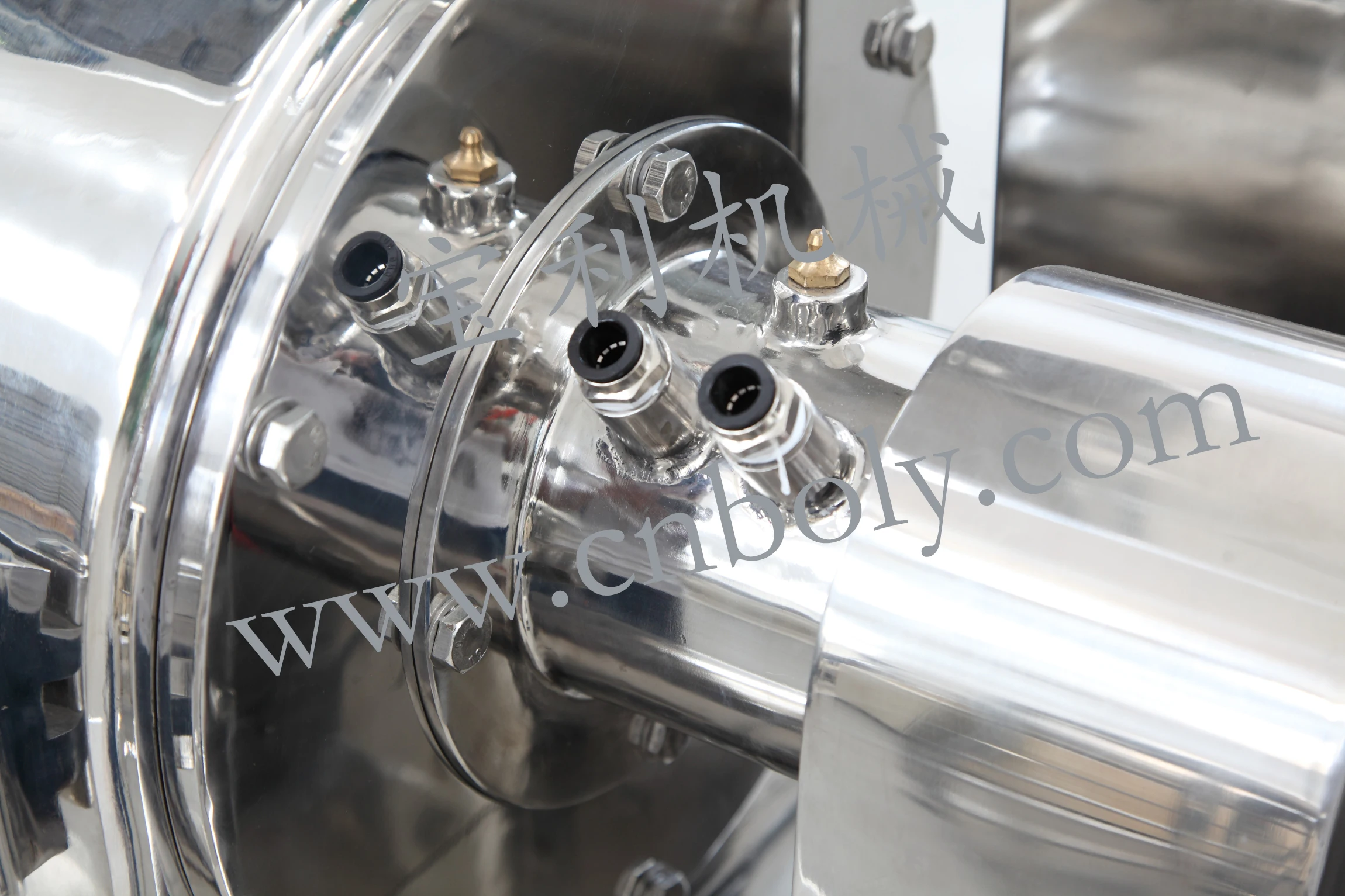

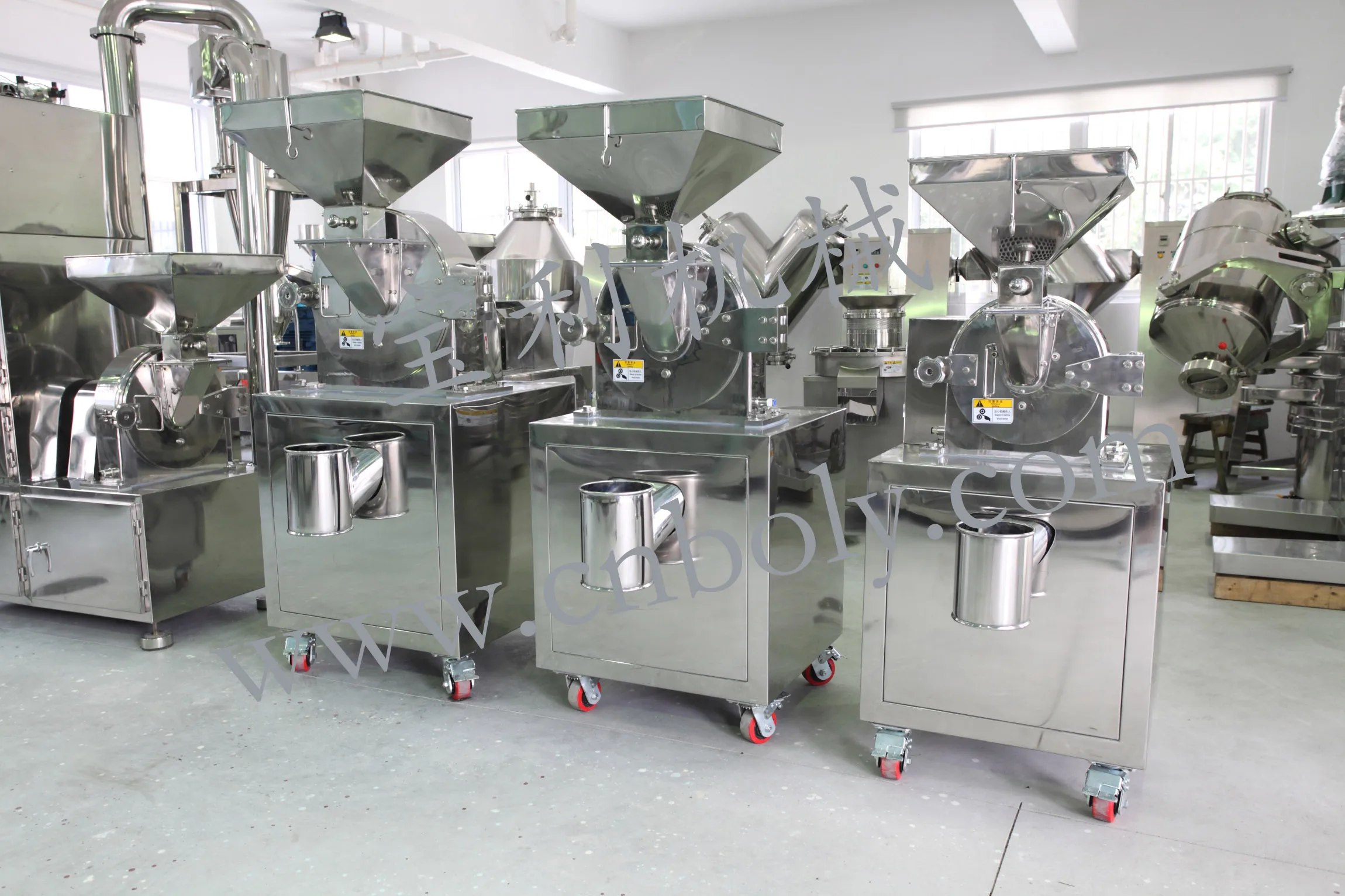

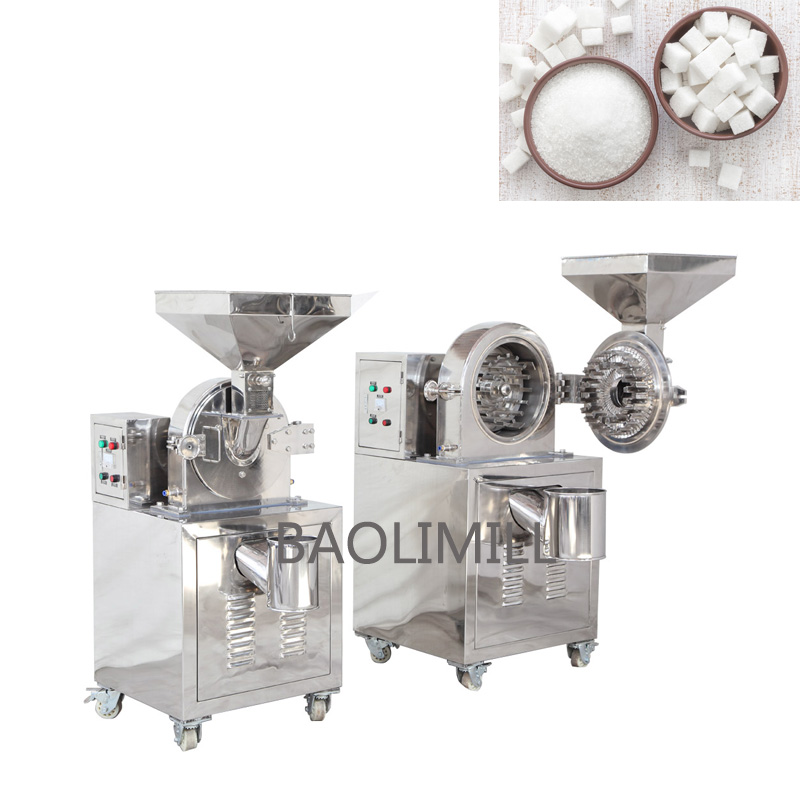

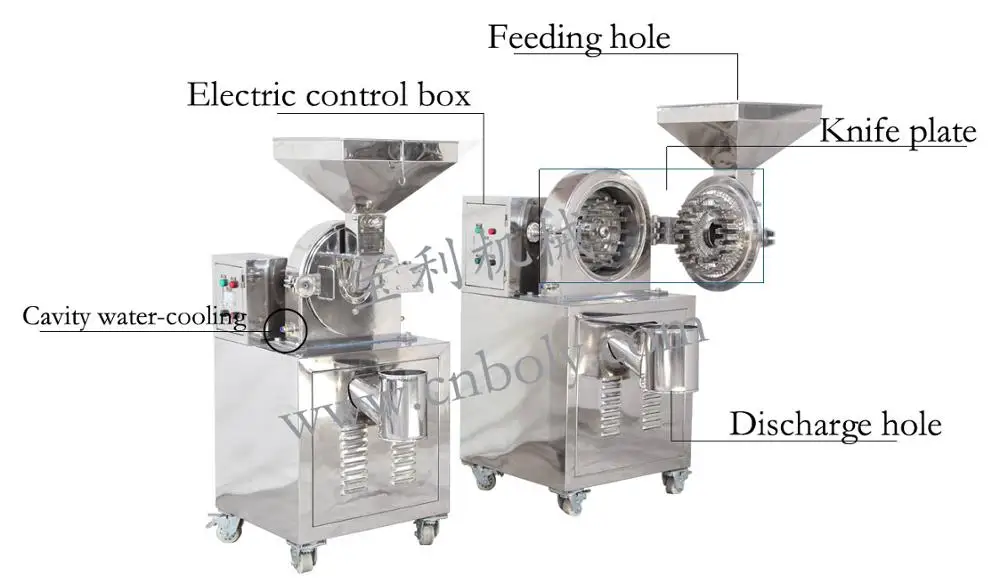

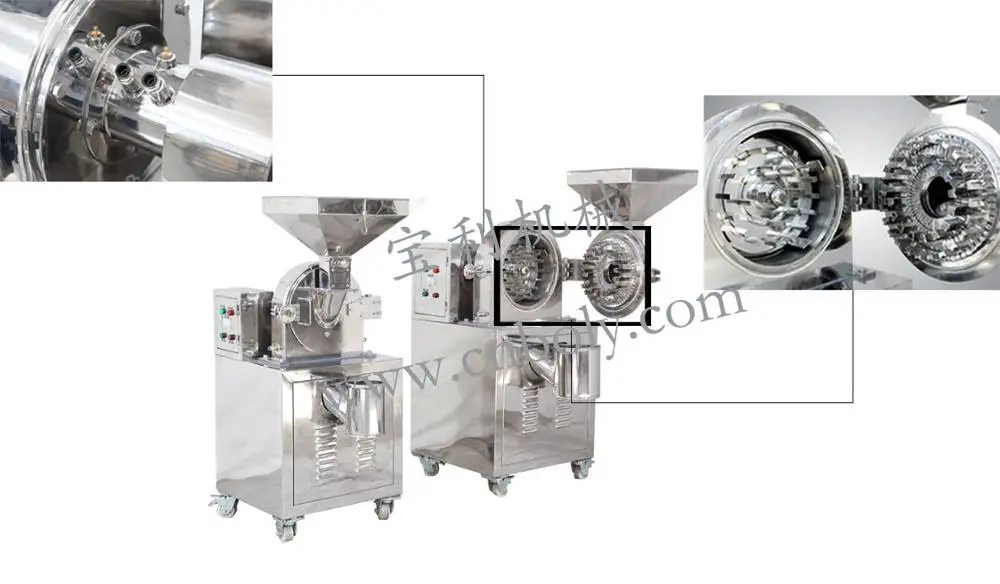

Detail Pictures of JB Series industrial food universal crusher machine universal milling machine
Our service
Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.
1) We are golden supplier on alibaba with a history of more than 10 years.
And our factory’s history is more than 15 years.
2) We have CE certificate, ISO,BV...etc.
3) Each year,we takes part in a lot of Expos ,for example: FIC, CPHI, API...etc
FAQ:
If you want to send inquriy to me about Stainless steel universal crusher machine from China, could you please tell me?
1) What material you want to grind, is it dry? what is the size of feed material ?
2) What capacity you expect by grinding machine? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
