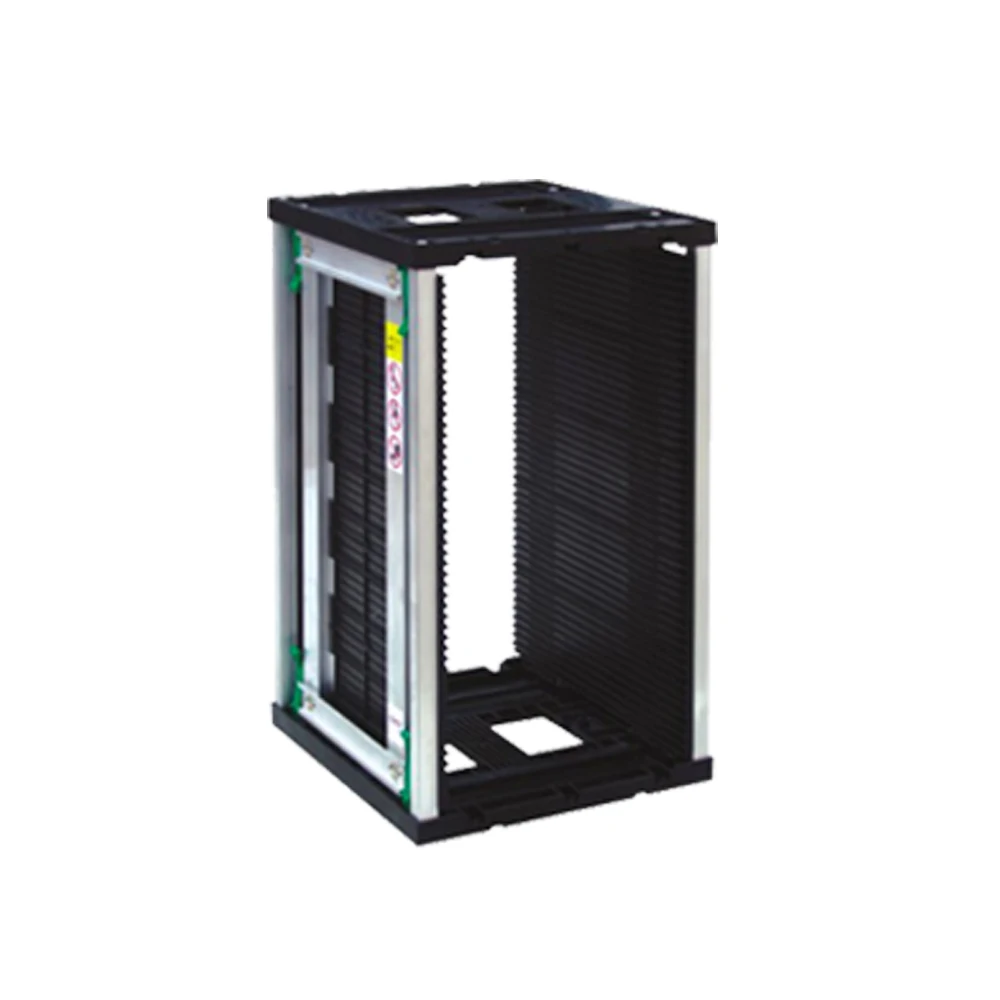

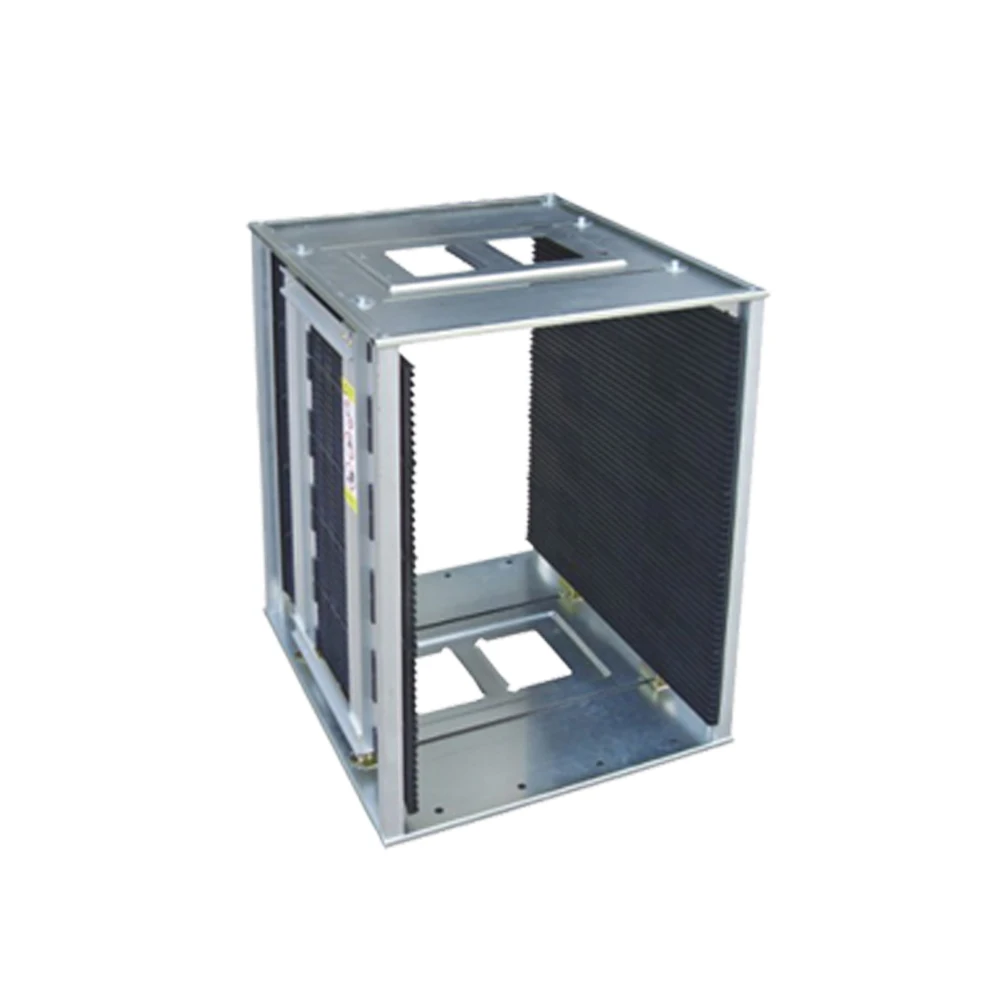

SMT Suitable Antistatic PCB Storage Rack ESD Magazine Rack
Product Overviews
| Name | ESD PCB Circulation Rack |
| Model | GS-A07106 |
| Surface resistance | 10e4~10e6Ω |
| Heat-resistance | 80℃(For 120℃, 200℃, pls contact us get the offer) |
| Overall Size | 460x400x563mm |
| Max. qty to store PCB | 50pcs |
| Suitable PCB Size | 460*(100-330)mm |
| Side guid slot | depth 3.5mm, width 5mm, pitch 10mm |
| Adjustable method | Gear track |
| Side Panel | Puzzle side panel |

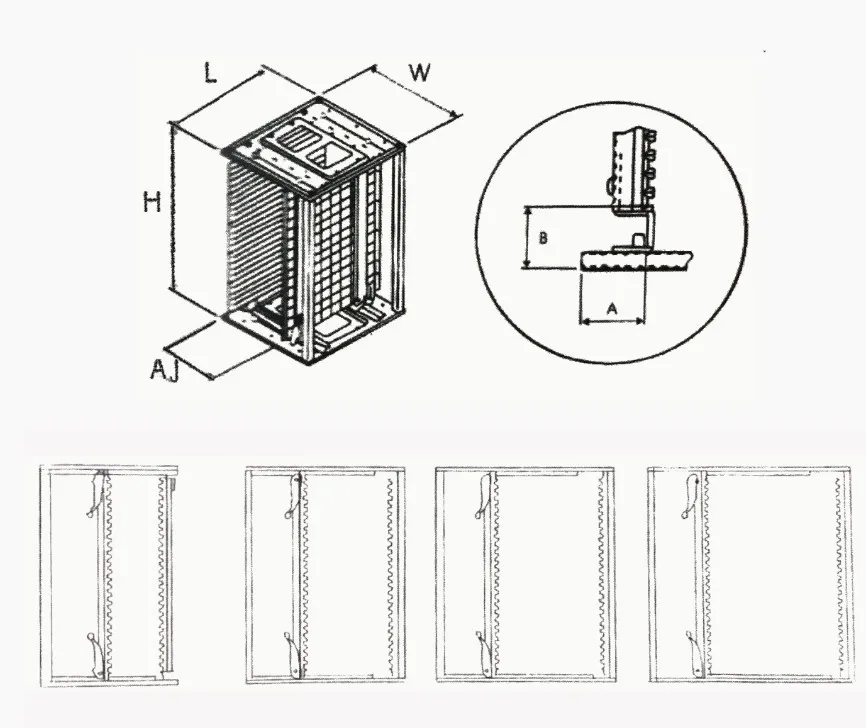

| Outline Drawing |
 |
Pls click here to contact us for more details.
Applications

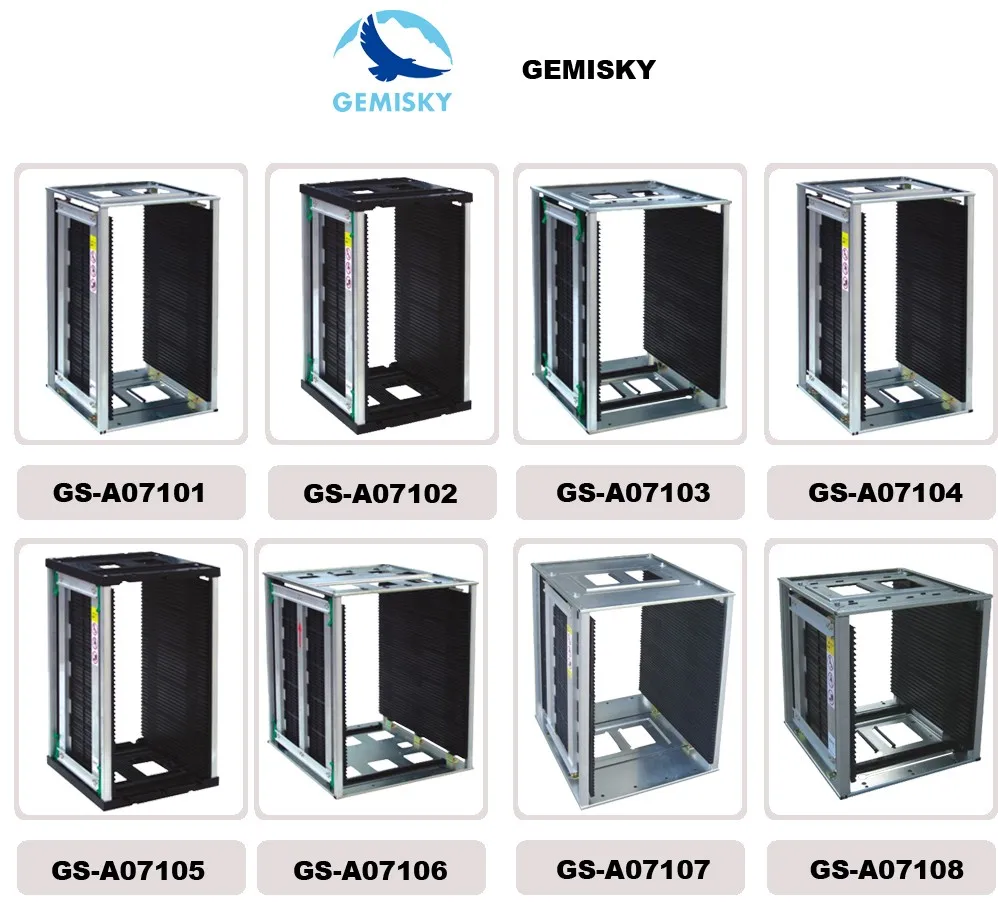

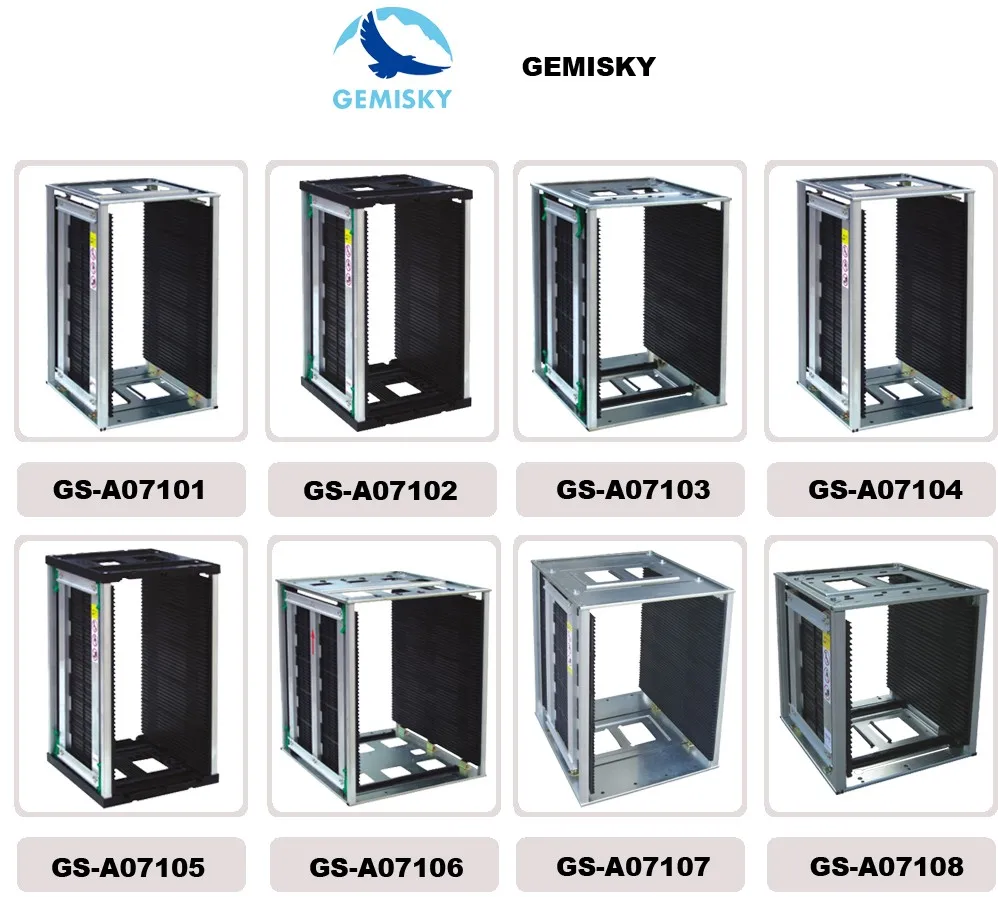

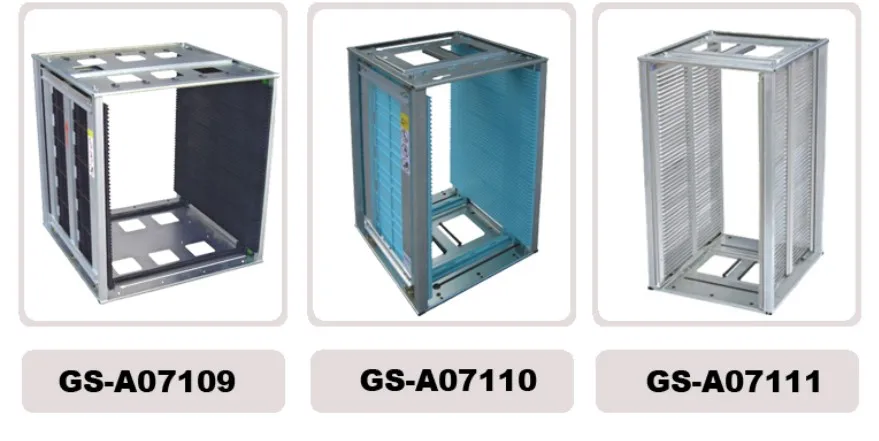

More ESD Rack
GS-A07104, GS-A07107, GS-A07111 (Allowed to be put in ageing room/burn-in room)
| Surface resistance | 104~106Ω |
| Adjustment Method | Gear track and Screws |
| Side panel | Whole side panel, Puzzle side panel |
Pls click here to contact us for more details.
| P/N | Overall size (MM) | Size of PCBs to be accommodated(MM) | Side guide slot(MM) | Heat-resistantemp(℃) | The material of top and bottom boards | Adjustment Method | Weight(kg) | ||
| Depth | Width | Pitch | |||||||
| GS-A07101 | A:355*320*363mm | 350*(50-250)mm | 3.5 | 5 | 10 | 80-120 | Metal | Gear track | 3.50 |
| B:355*320*263mm | 350*(50-250)mm | ||||||||
| GS-A07102 | 355*315*580mm | 350*(80-250)mm | 3.5 | 8 | 10 | 80 | Plastic | Screws | 5.10 |
| GS-A07103 | 355*320*563mm | 350*(50-250)mm | 3.5 | 5 | 10 | 80-120-200 | Metal | Gear track | 5.60 |
| GS-A07103Z | 355*320*563mm | 350*(50-250)mm | 3.5 | 5 | 10 | 80-120 | Metal | Gear track(Jointed board) | 5.70 |
| GS-A07103A | 400*320*563mm | 400*(50-250)mm | 3.5 | 5 | 10 | 80-120-200 | Metal | Gear track | 6.00 |
| GS-A07104 | 355*320*563mm | 350*(50-250)mm | 3.5 | 5 | 10 | 80-120-200 | Metal | Screws | 5.70 |
| GS-A07104z | 355*320*563mm | 350*(50-250)mm | 3.5 | 5 | 10 | 80-120 | Metal | Screws(Jointed board) | 5.90 |
| GS-A07105 | 355*320*563mm | 350*(50-250)mm | 3.5 | 5 | 10 | 80-120 | Plastic | Gear track | 4.10 |
| GS-A07105z | 355*320*563mm | 350*(50-250)mm | 3.5 | 5 | 10 | 80-120 | Plastic | Gear track(Jointed board) | 4.40 |
| GS-A07106 | 460*400*563mm | 460*(100-330)mm | 3.5 | 5 | 10 | 80-120-200 | Metal | Gear track | 7.90 |
| GS-A07107 | 460*400*563mm | 460*(50-330)mm | 3.5 | 5 | 10 | 80-120-200 | Metal | Screws | 8.00 |
| GS-A07108 | 535*460*570mm | 535*(50-390)mm | 3.5 | 5 | 10 | 80-120-200 | Metal | Gear track | 11.00 |
| GS-A07109 | 535*530*570mm | 535*(50-460)mm | 3.5 | 5 | 10 | 80-120-200 | Metal | Gear track | 13.00 |
| GS-A07110 | 355*320*563mm | 350*(50-250)mm | 3.5 | 5 | 10 | 100 | Metal | Gear track | 5.60 |
| GS-A07111 | 355*320*563mm | 350*(50-250)mm | 3.5 | 5 | 10 | 220 | Stainless steel | Screws | 6.70 |
