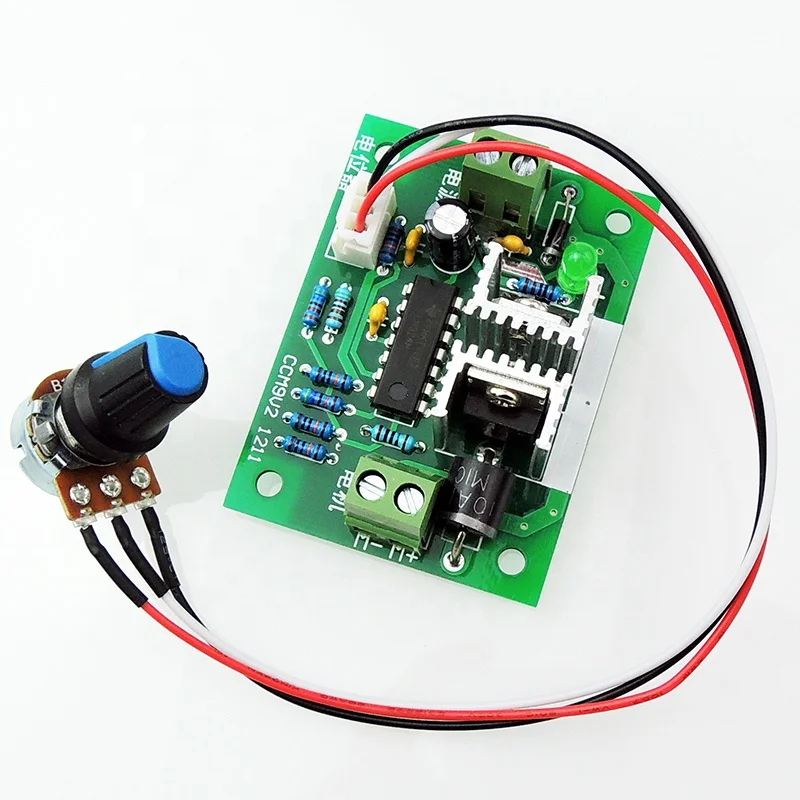

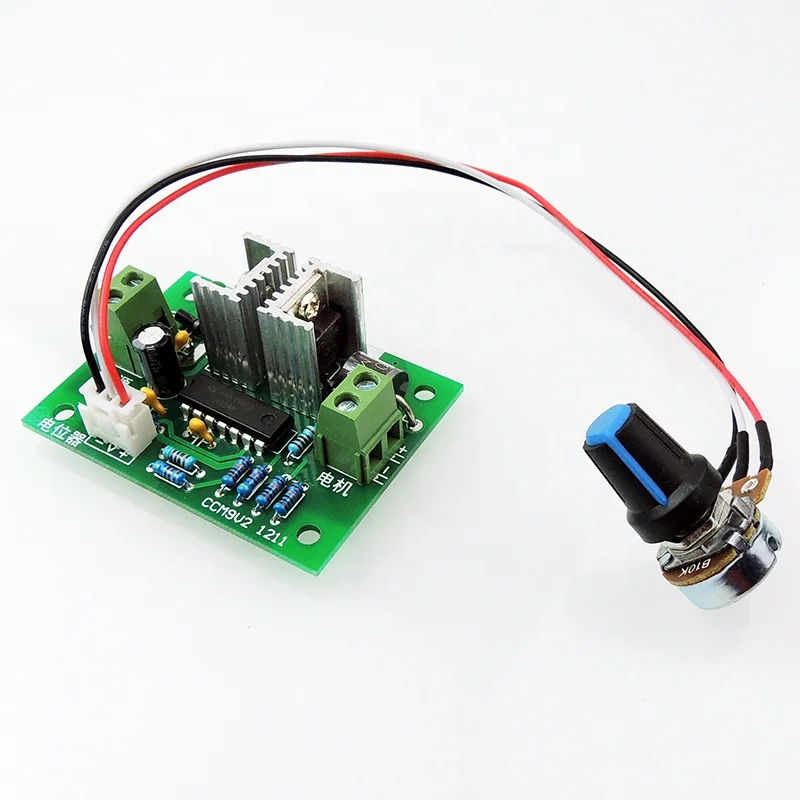

Taidacent 12 вольт DC контроллер скорости двигателя PCB B100K потенциометр DC 12 V 24V 3A 6A PWM контроллер двигателя
- Категория товара: Motor Controllers >>>
- Поставщик (Оптовый магазин): Shenzhen,Taida,Century,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Taidacent 12 Volt DC Motor Speed Control PCB B100K Potentiometer DC 12V 24V 3A 6A PWM Motor Controller
The board uses military grade plates!
All chips are imported, non-domestic IC, disassembled, and refurbished.
Import 50V1000uF large capacitor. Compared with other types of governor 100-220uF, the capacitance value is obvious.
The power tube uses the IRF3205, which is a big cow, and it doesn't take your motor. (Parameter drain current Id max: 82A; voltage Vds max: 75V; on-state resistance, Rds(on): 0.013 ohm) .
The terminal uses 8500 high current terminal, label 300V20A
All chips are imported, non-domestic IC, disassembled, and refurbished.
Import 50V1000uF large capacitor. Compared with other types of governor 100-220uF, the capacitance value is obvious.
The power tube uses the IRF3205, which is a big cow, and it doesn't take your motor. (Parameter drain current Id max: 82A; voltage Vds max: 75V; on-state resistance, Rds(on): 0.013 ohm) .
The terminal uses 8500 high current terminal, label 300V20A
Parameter
Working voltage: DC12V-24V
Potentiometer: resistance value B10K, line length 20cm, opening 8mm
The output voltage is about 0-100% of the input voltage
Control power: 12V*3A=36W, 24V*3A=72W
Rated current: 3A
Maximum current: 6A
Speed range: 5%-95%

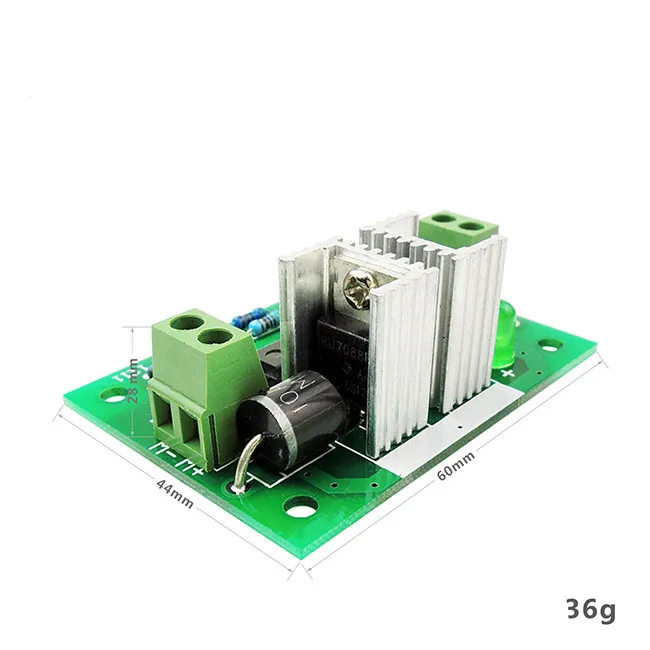

Size: 60*40*28mm
PWM frequency: 500Hz
Weight: 36g
Potentiometer: resistance value B10K, line length 20cm, opening 8mm
The output voltage is about 0-100% of the input voltage
Control power: 12V*3A=36W, 24V*3A=72W
Rated current: 3A
Maximum current: 6A
Speed range: 5%-95%
Size: 60*40*28mm
PWM frequency: 500Hz
Weight: 36g
Remark

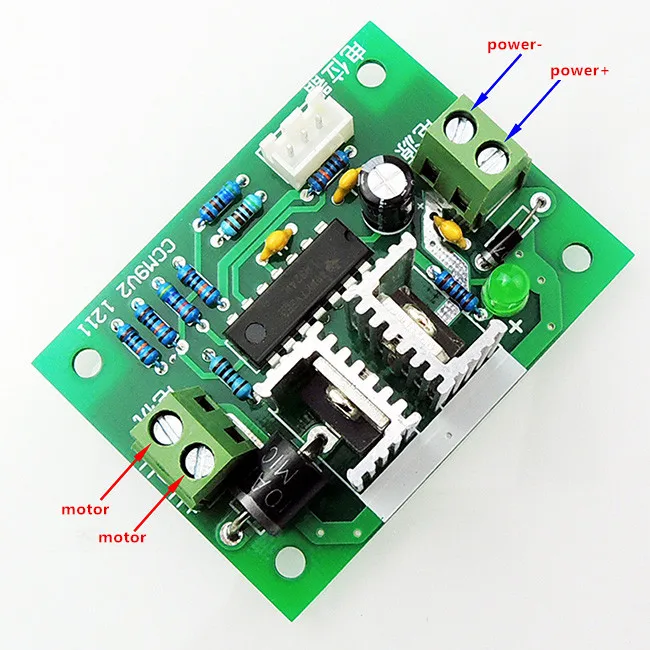

1. DC motor governor input is DC, not directly connected to AC (such as: household 220V AC) or it will burn out
2. The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged. 3. The motor can be positive or negative, when the running direction is inconsistent with the expectation. The direction can be changed by the line adjustment sequence.
4. The potentiometer knob can change the governor output duty cycle to change the motor speed.
2. The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged. 3. The motor can be positive or negative, when the running direction is inconsistent with the expectation. The direction can be changed by the line adjustment sequence.
4. The potentiometer knob can change the governor output duty cycle to change the motor speed.
Product Description
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | Taidacent |
Model Number | TDJLCCM9 |
Max current | 6A |
