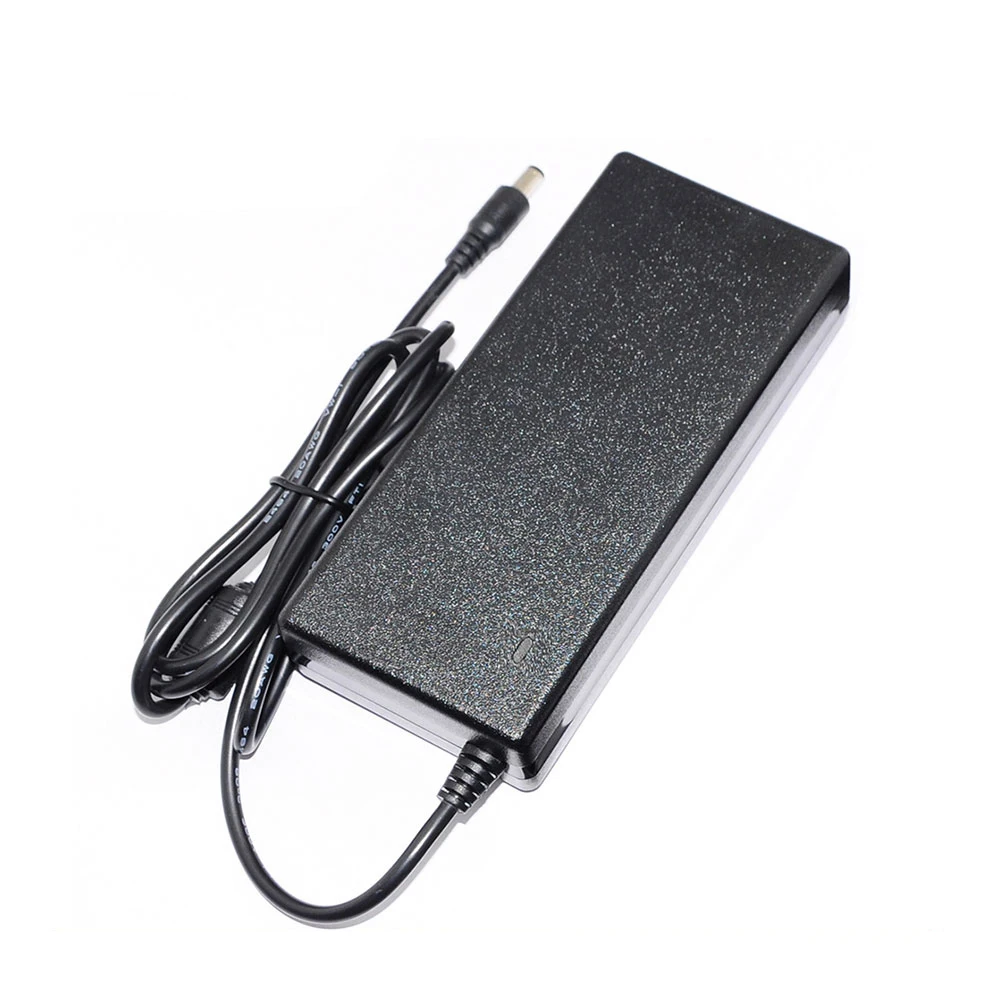

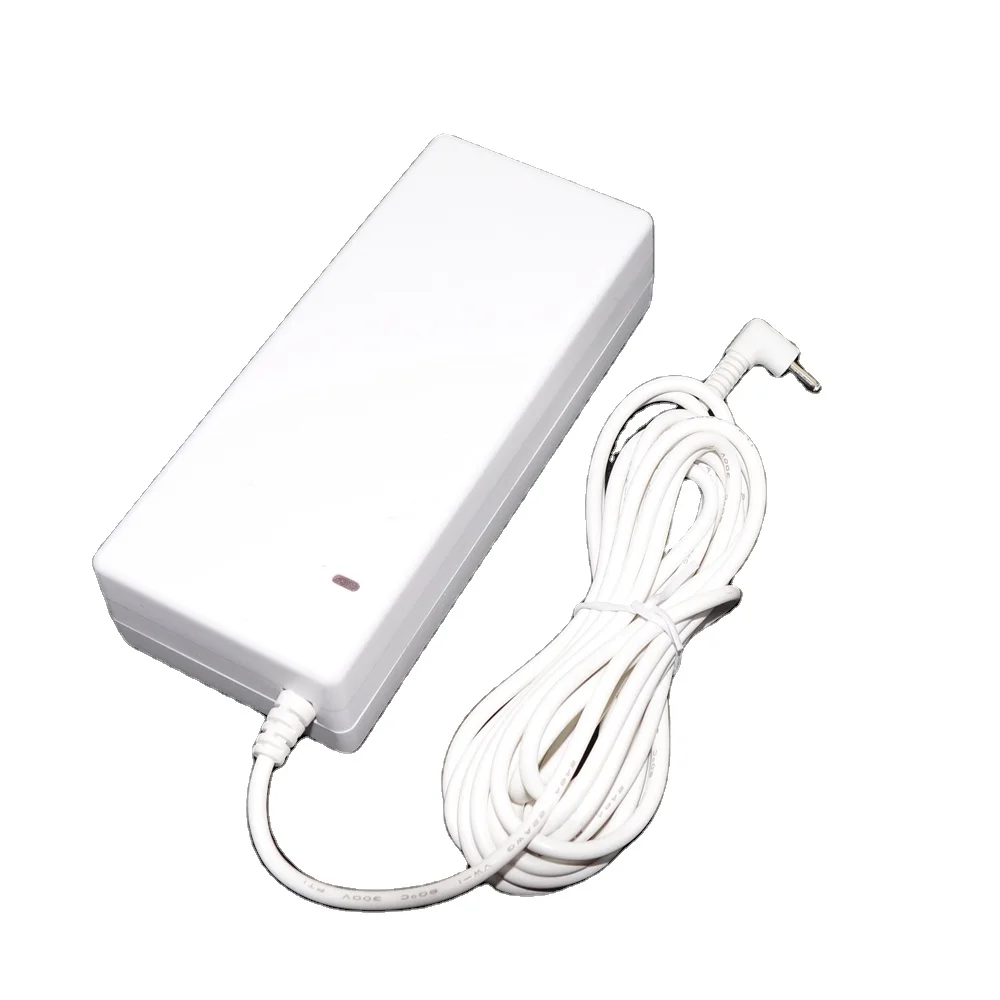

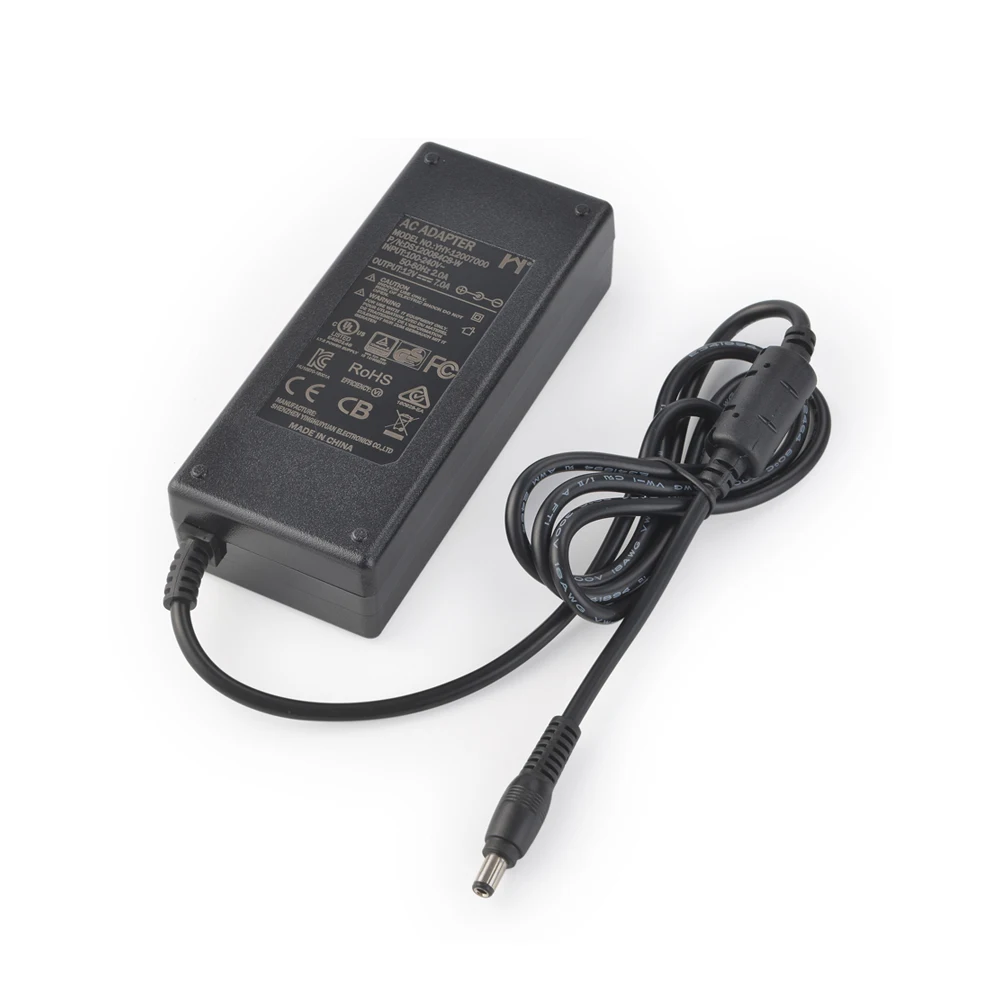

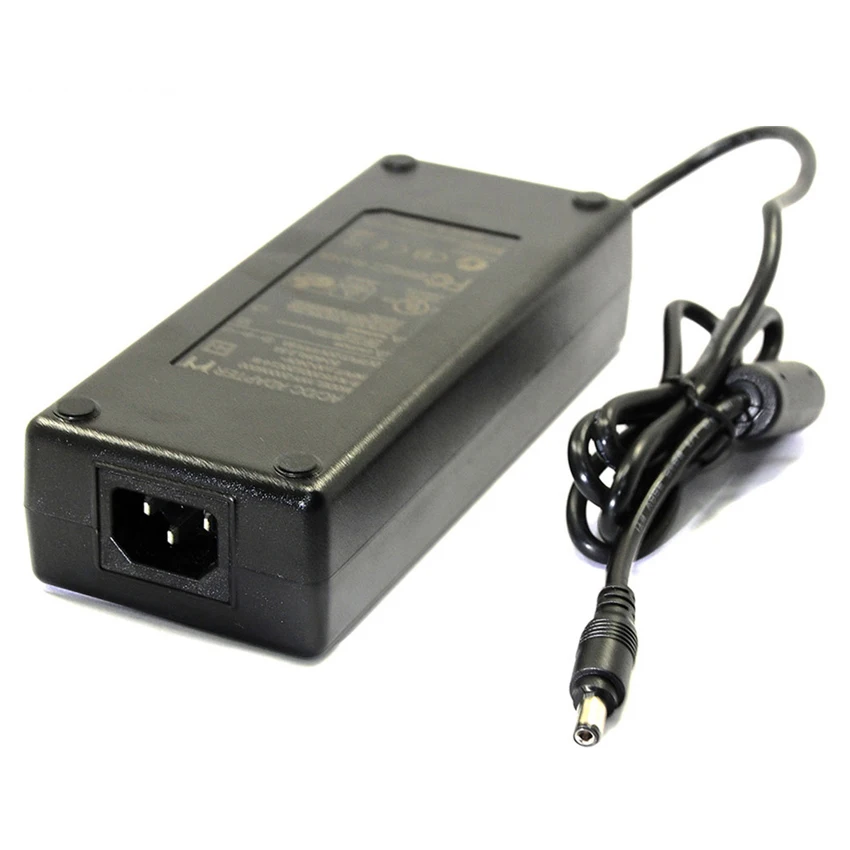

Сетевой адаптер переменного тока ETL PSE KC CE 60-200 Вт, 4 контакта, Din, 9 В, 12 В, 15 в, 19 В, 24 В, 7a, 8 А
- Категория товара: Power Adapters >>>
- Поставщик (Оптовый магазин): Shenzhen,Yinghui,Yuan,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Features
Meet ROHS
> Universal Input 100-240 VAC
> Modified and Custom Design Available
> Output with Low Ripple Noise
> 3Year Warranty
Electrical
> Isolation
> Burn-In Test
> Leakage Current
> Efficiency
> MTBF
3000VAC 2PIN/ 1500VAC 3PIN
100% full load
0.21mA
DOE VI
30000Hrs
> Voltage Range: 90-264 VAC
> Input Frequency: 47-63Hz
> Input Current: 200mA max
> Inrush Current: 30A max
> Efficiency: 88% min
DC Output
> Voltage Range: 9-24V+/-5%
> Current Range: 0-8.0A
> Inrush Current: +1% Voltage Max
> Power: 200W Max.
Mechanical
> Case Dimension (L*W*H mm)
Desk-top
170x72x49mm
UL cUL ETL CE FCC PSE SAA C-tick CCC TUV-GS
Application
Desktop Switching Power Supply
* Meet relative safety request, energy label programs.
* Universal Input : 100 – 240V
* You can select desk top types C6/C8/C14 per your need.
* Varied DC plug provided for customer to meet customer request.
* Usage : cell phone, small DC consumer electronics, pet relative appliances, required DC voltage / current- driven appliances, external hard drive, related computer peripheral equipment and other required information built-in power supply of related equipment.
Recommend Products
More Models
Desktop
Company Profile
Shenzhen Yinghui Yuan Electronics Co.,Ltd is a leading manufacturer of power supplies in China
-Since 2007
-Real Service From Real People
-Global certifications,ISO 9001 Quality management
-More Than 2000 clients from all over the world
Our products are widely used by led lighting,3D Printer,Laptop,loudspeaker box,digital products,house-hold appliances,security products,etc
