Двойная солнечная панель Bluesun двухфазные модули PV солнечные бифациальные моно-солнечные элементы
- Категория товара: >>>
- Поставщик (Оптовый магазин): Bluesun,Solar,Co.,Ltd.Bluesun,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

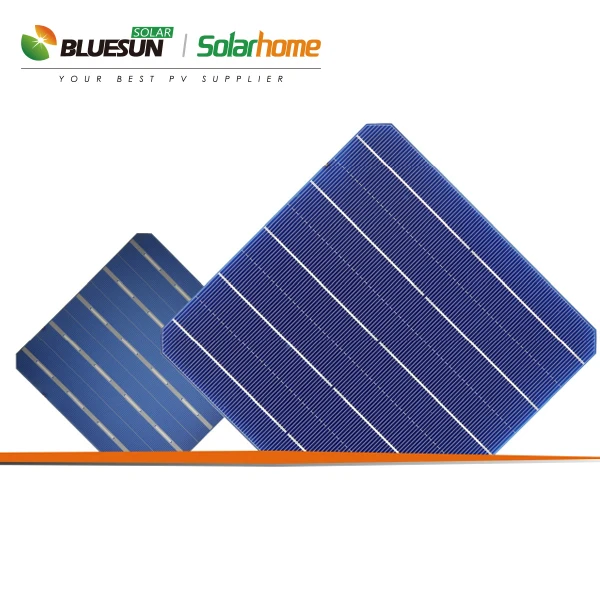

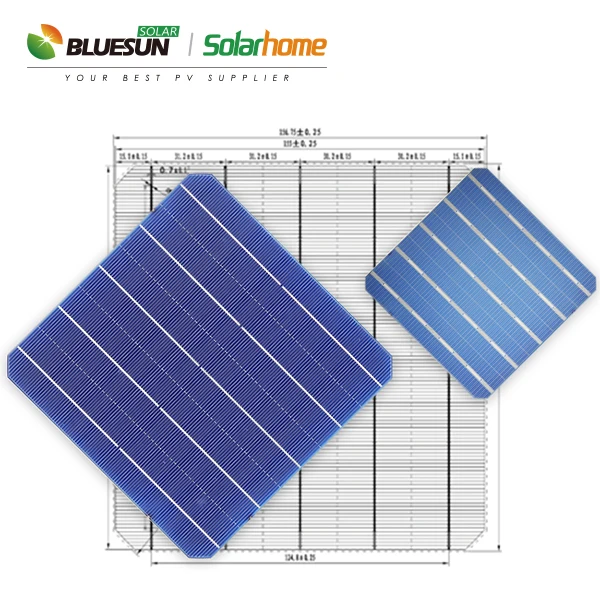

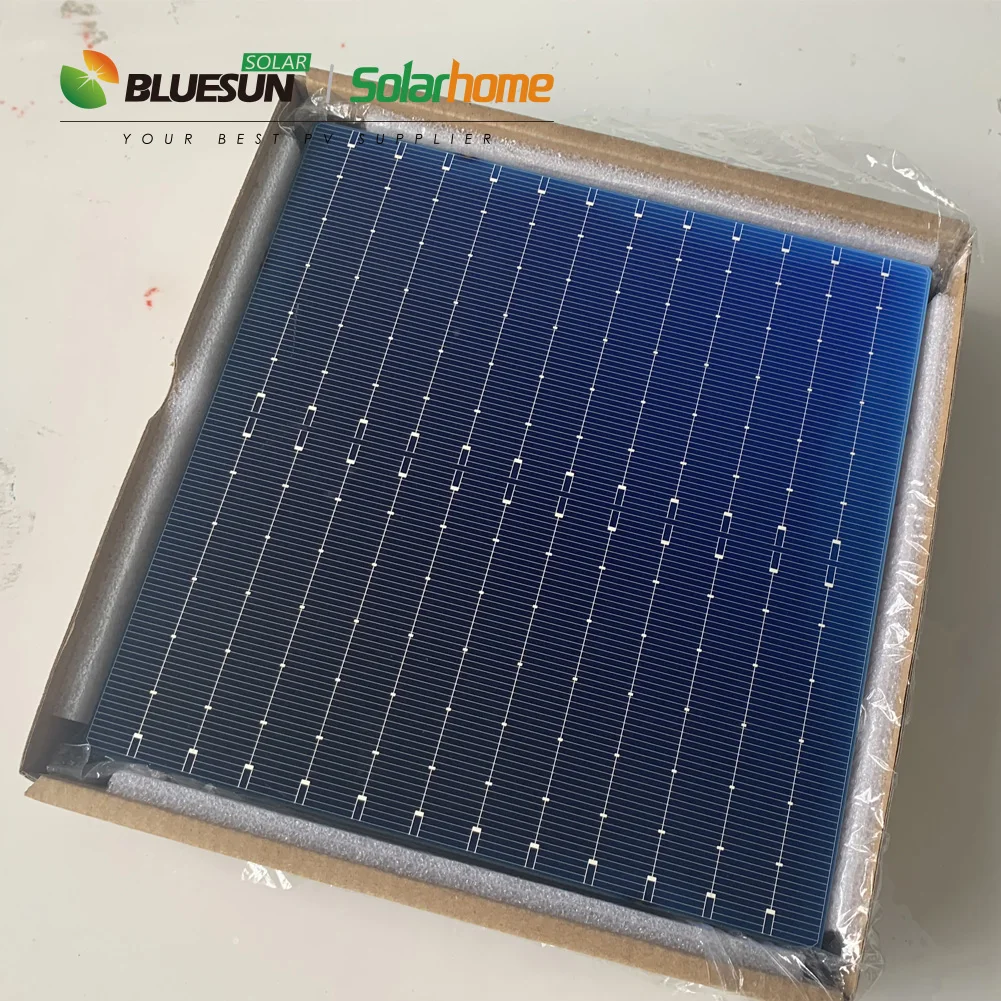

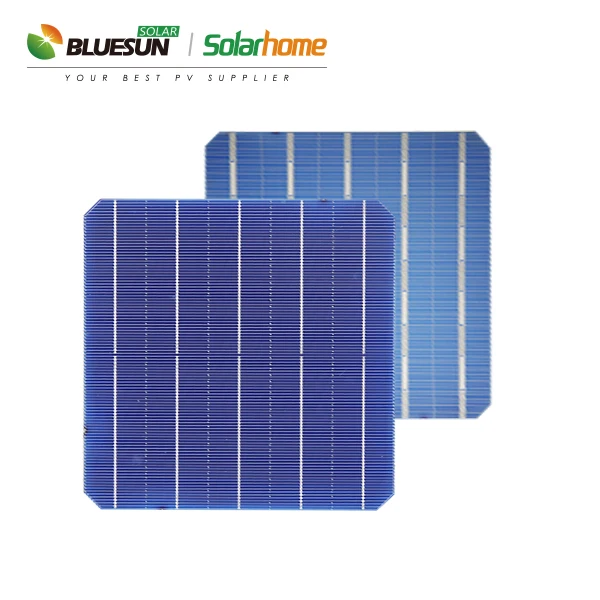

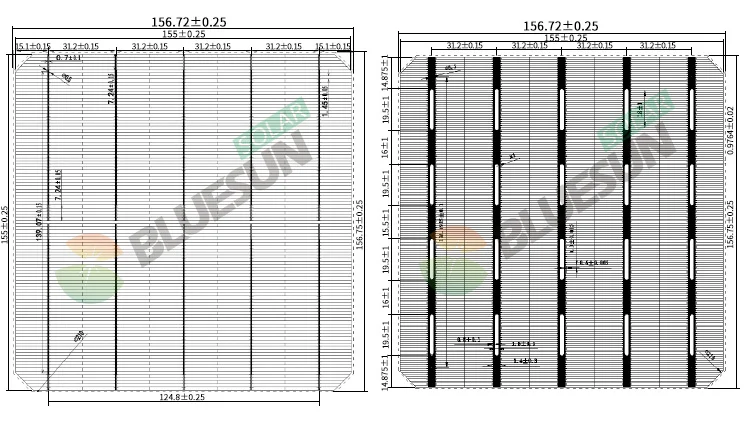

Bifacial Perc Solar Cell
The surface of the cell is uniform in color,the blue silicon nitride film locks the sunlight efficiently,the five-grid design has excellent adhesion and solderability, and the conductivity is strong,the extremely low fragmentation rate ensures extremely low component power loss.
ELECTRICAL PERFORMANCE | ||||||||||||
Efficiency Code | Efficiency(%) | Pmpp(W) | Umpp(V) | Impp (A) | Uoc(V) | Isc(A) | ||||||
BSM-156.75M-220 | 22 | 5.38 | 0.578 | 9.342 | 0.679 | 9.847 | ||||||
BSM-156.75M-219 | 21.9 | 5.35 | 0.577 | 9.329 | 0.678 | 9.832 | ||||||
BSM-156.75M-218 | 21.8 | 5.33 | 0.576 | 9.316 | 0.677 | 9.818 | ||||||
BSM-156.75M-217 | 21.7 | 5.3 | 0.575 | 9.303 | 0.676 | 9.803 | ||||||
BSM-156.75M-216 | 21.6 | 5.28 | 0.574 | 9.291 | 0.675 | 9.788 | ||||||
BSM-156.75M-215 | 21.5 | 5.25 | 0.573 | 9.279 | 0.674 | 9.774 | ||||||
BSM-156.75M-214 | 21.4 | 5.23 | 0.571 | 9.269 | 0.673 | 9.759 | ||||||
BSM-156.75M-213 | 21.3 | 5.2 | 0.569 | 9.255 | 0.672 | 9.744 | ||||||
BSM-156.75M-212 | 21.2 | 5.18 | 0.567 | 9.244 | 0.671 | 9.73 | ||||||
BSM-156.75M-211 | 21.1 | 5.16 | 0.566 | 9.205 | 0.67 | 9.724 | ||||||
BSM-156.75M-210 | 21 | 5.13 | 0.565 | 9.18 | 0.669 | 9.709 | ||||||
BSM-156.75M-209 | 20.9 | 5.11 | 0.564 | 9.162 | 0.668 | 9.703 | ||||||
BSM-156.75M-208 | 20.8 | 5.08 | 0.562 | 9.14 | 0.667 | 9.681 | ||||||
BSM-156.75M-207 | 20.7 | 5.06 | 0.56 | 9.113 | 0.666 | 9.667 | ||||||
BSM-156.75M-206 | 20.6 | 5.03 | 0.558 | 9.089 | 0.665 | 9.652 | ||||||
Back Efficiency Distribution | ||||||||||||
Efficiency Code | Efficiency(%) | Pmpp(W) | Umpp(V) | Impp (A) | Uoc(V) | Isc(A) | ||||||
BSM-156.75M-151 | ＞16.00% | 3.93 | 0.565 | 6.959 | 0.665 | 7.353 | ||||||
BSM-156.75M-150 | 15.50%-16.00% | 3.86 | 0.564 | 6.833 | 0.664 | 7.219 | ||||||
BSM-156.75M-149 | 15.00%-15.50% | 3.76 | 0.563 | 6.678 | 0.663 | 7.052 | ||||||
BSM-156.75M-148 | ＜15.00% | 3.61 | 0.56 | 6.42 | 0.66 | 6.757 | ||||||
STC (Standard Testing Conditions):1000W/m2, AM1.5, 25℃ | ||||||||||||
Specifications subjects to technical changes and tests Bluesun Solar reserves the right of final interpretation. | ||||||||||||

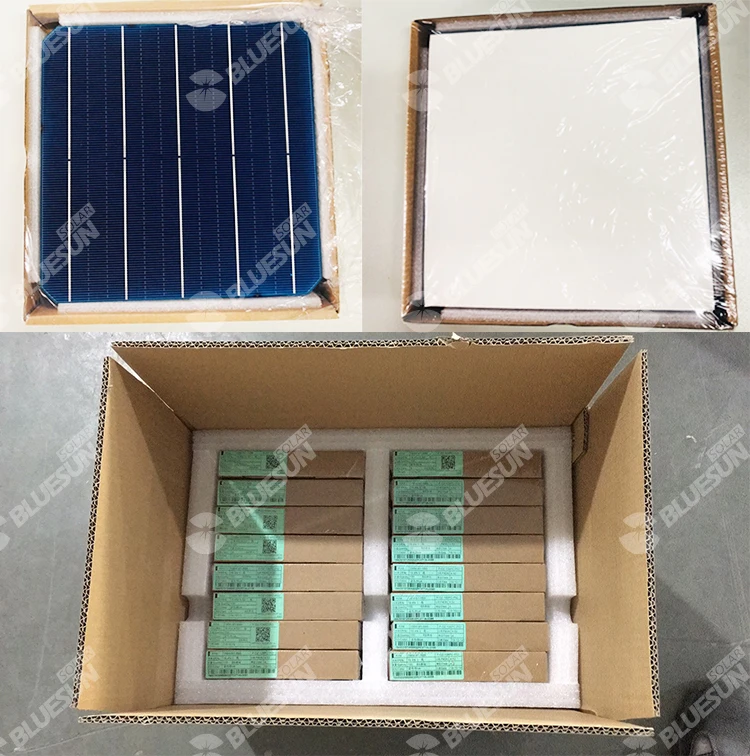

Product packaging
Packing Infomation
100PCS Solar Cells In One Paper Box
16 Boxes In One Carton
24CTNS In One Pallet
16 Boxes In One Carton
24CTNS In One Pallet
One Paper Box(100PCS)
Weight: 1.5KG/Box
Dimension:180*180*30mm
Dimension:180*180*30mm
