304 строительные манифоли из нержавеющей стали для подогрева пола с 4 петлями
- Категория товара: Системы напольного отопления и запчасти >>>
- Поставщик (Оптовый магазин): Taizhou,Eric,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

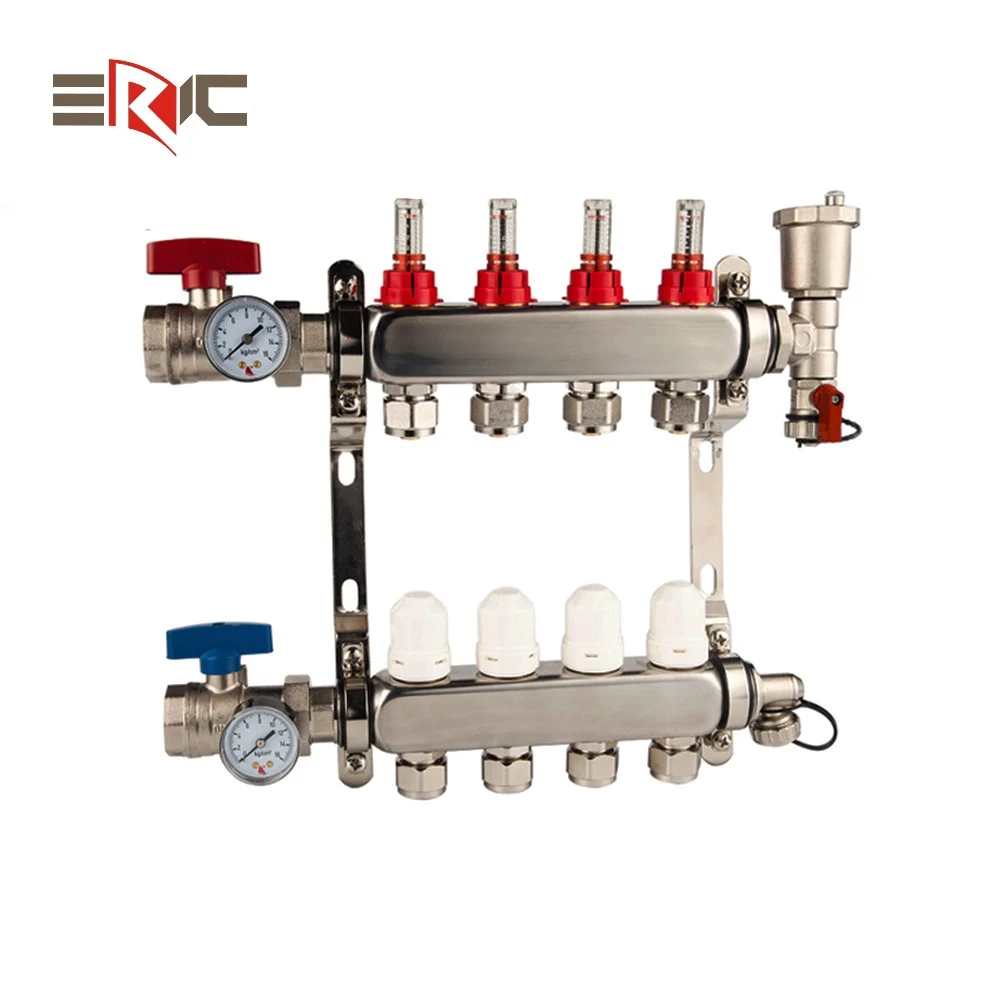

Stainless Steel 304 2-12 Loops Floor Heating Manifold With Flow Meter
Features | ||
Material : Stainless Steel 304 | ||
Surface : Polishing | ||
Main Pipe Diameter:DN25mm & DN32mm | ||
Branch Pipe Diameter:1216/1620 mm | ||
Threaded Connection Comply With ISO228 | ||
Working Temperature:-10~98 Degree | ||
Manifold With 2-13 Loops | ||
Branch Pipe Space:50 mm | ||
Working Pressure: PN≤1.2Mpa | ||
Testing Pressure:Mpa 0.8-1.0 | ||
Fields Of Application:Water | ||
Structure: Water Inlet Is Spiral Softness EPDM Sealing, Water Retrun Is Thermostatic Valve Core,With Bracket, Hexagonal Nuts, Water Outlet Mouth(diameter 1216-1620) | ||
Production Introduction

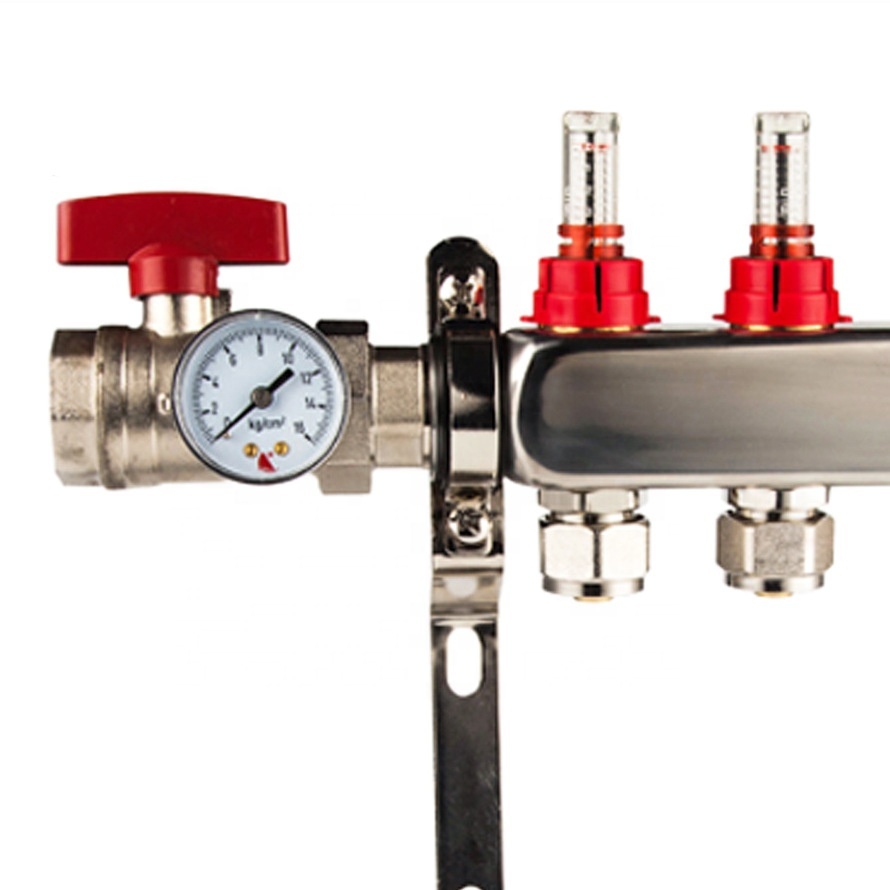

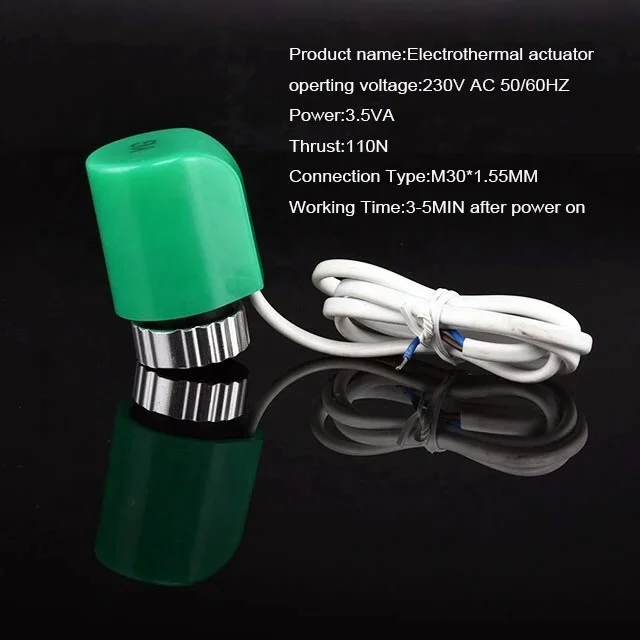

The Stainless-Steel Manifold Assembly With Flow Meter comes fully assembly and ready for installation.Use the included flow meters located on the supply manifold to balance the loops across the manifold .The return manifold comes equipped with isolation valves for easy loop isolation.For multiple zoning on the manifold ,the black caps are removed and replaced with Uponor Thermal Actuators. The manifold body ends have R32 union connections and the loop outlets have R20 male threads.The included manifold supply and return ball valves come wiht an R32 x 1"NPT connection .
Related Products
Packing&Shipping
♦ Packaging Detail:
♦ International standard Export Packaging:
Plastic bag→Inner box→Carton.
♦ 30-35 days after receipt the deposit.
♦ According to Customers' Specific Requirments.
♦ International standard Export Packaging:
Plastic bag→Inner box→Carton.
♦ 30-35 days after receipt the deposit.
♦ According to Customers' Specific Requirments.
Company Introduction
FAQ
Q1: Can I have a sample before placing the order?
A: Yes, we would like to provide you samples for testing and checking before quantity purchasing
Q2: What is your MOQ order?
A: Usually 3000 for ordinary products, and 5000pcs for product needs new mold.
Q3.How to proceed an order for your products?
A: Firstly, pls let us know your requirments and application
Seconly, we provide quotation accordingly or suggestion
Thirdly, samples confirmation
Forth, place order and deposit and production arrangement.
A: Usually 3000 for ordinary products, and 5000pcs for product needs new mold.
Q3.How to proceed an order for your products?
A: Firstly, pls let us know your requirments and application
Seconly, we provide quotation accordingly or suggestion
Thirdly, samples confirmation
Forth, place order and deposit and production arrangement.
SERVICE :
If any of the items meets your interest,please let us have your special enquiry,Thank you for the opportunity to be your business partner.
