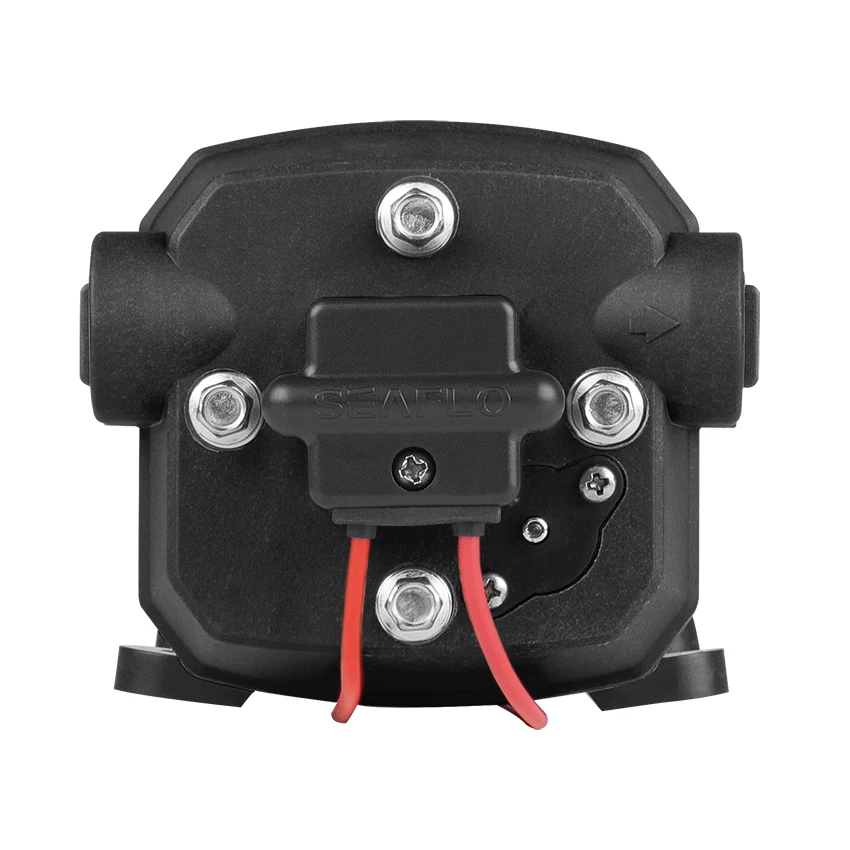

SEAFLO, работающего на постоянном токе 12 В в 17LPM 40PSI Электрический водяной насос FL-40 для сельскохозяйственного орошения
- Категория товара: Pumps & Parts >>>
- Поставщик (Оптовый магазин): Fujian,Aidi,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
SEAFLO Profile
Product Description
| Features & Benefits |
| 1.Flow rate up to 4.5 GPM [17.0 LPM] 3.Automatically turn on and off 5.Quiet operation 7.On demand & by pass use | 2.Can run dry without damage 4.Self priming & built-in check valve 6.Chemically resistant materials 8.Designed for spraying and fluid transfer |

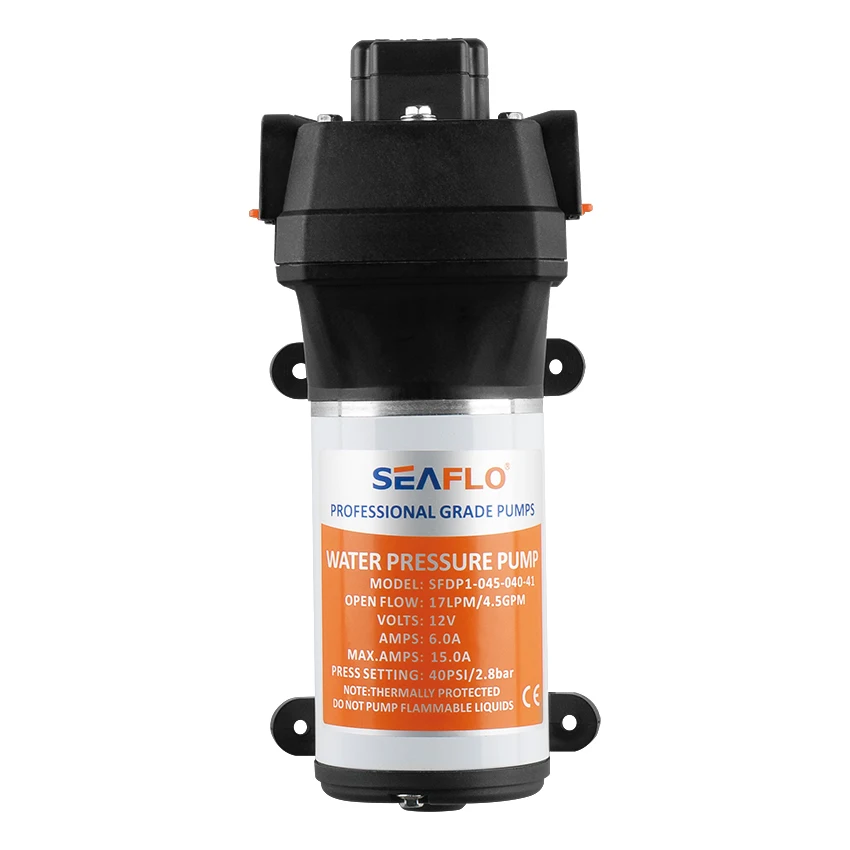

| Product Name | SEAFLO 12V DC 17LPM 40PSI Electrical Water Pump FL-40 For Agricultural Irrigation |
| Pump Type | 4 Chambers Positive Displacement Diaphragm Pump |
| Max Flow Rate | 4.5 GPM [17.0 LPM] |
| Max Pressure | 40 PSI [2.8 Bar] |
| Voltage | 12 VDC, and 24V, 115V, 230V are available |
| Max Amp | 15.0 A |
| Fuse | 22.5 A |
| Switch Type | On Demand [Cut-off Switch] & By Pass, and none switch is available |
| Diaphragm Material | Santoprene |
| Valve Material | Viton, and EPDM is available |
| Duty Cycle | Intermittent |
| Self Priming | 6' [1.8 m] suction |
| Max Fluid Temp | 140 °F [60 °C] |
| Inlet & Outlet Port | 3/4" [19 mm] Quick Connect, and contact us for more ports |
| Lead | 11" [28 cm] 16 AWG lead |
The 41 Series pump provides high volume water flow with reduced pump cycling, thanks to the quad chamber diaphragm and internal bypass. The Four-chamber high volume design, driven by a heavy-duty motor, produces flow rates of 3.3 to 4.5GPM , With on-demand switching. The 41-Series pumps are self-priming, and can run dry without damage, performance reliable and low current. Seaflo also offers a variety of Easy Connect fittings and filters

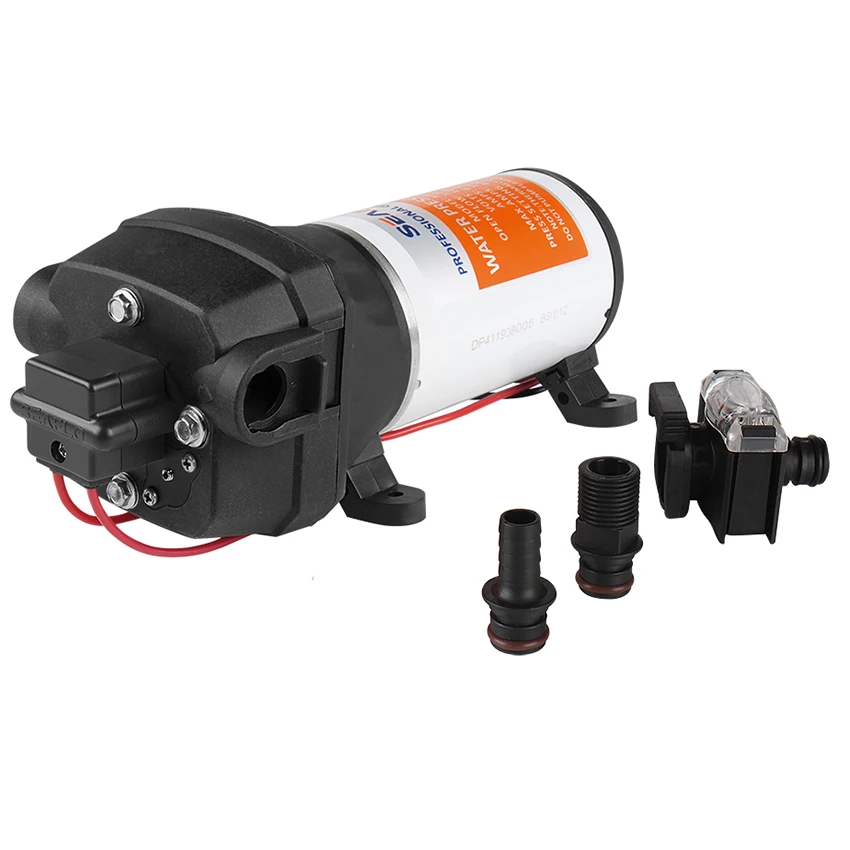

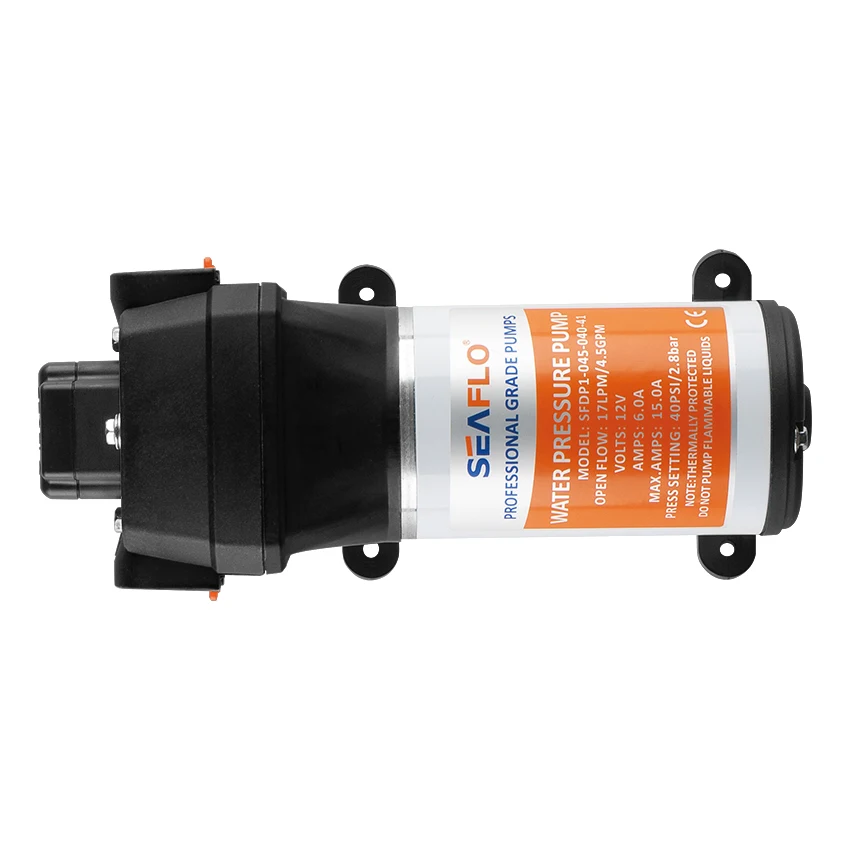

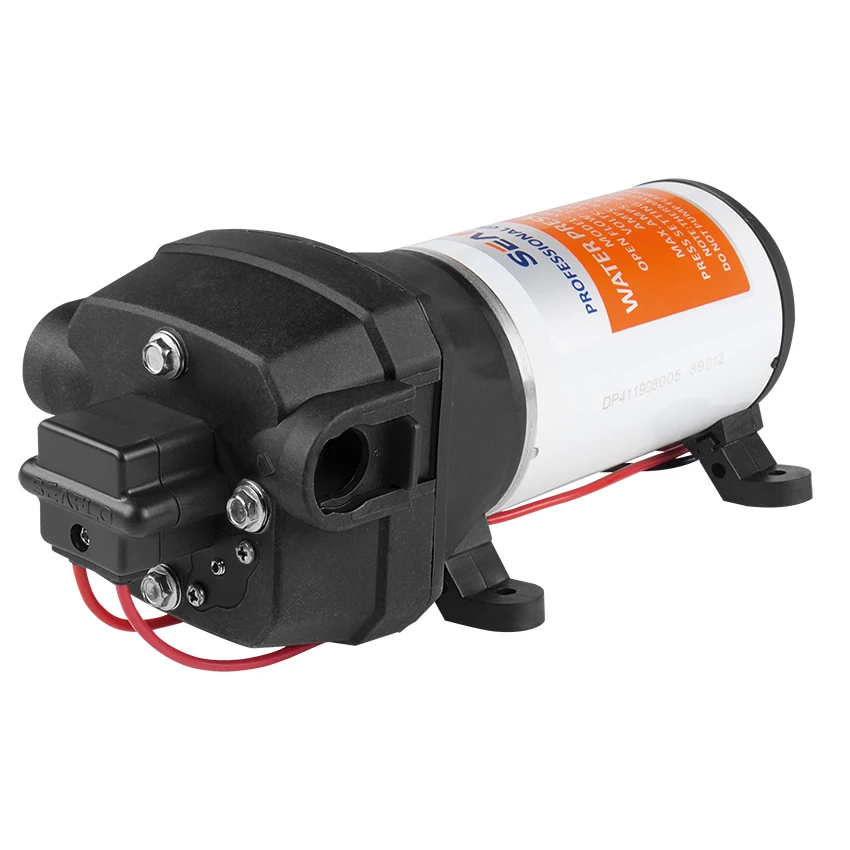

| Product Show |

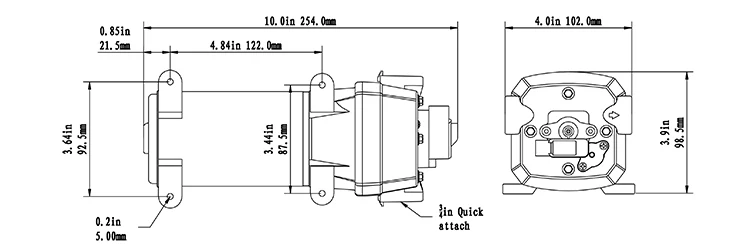

| Dimensions |

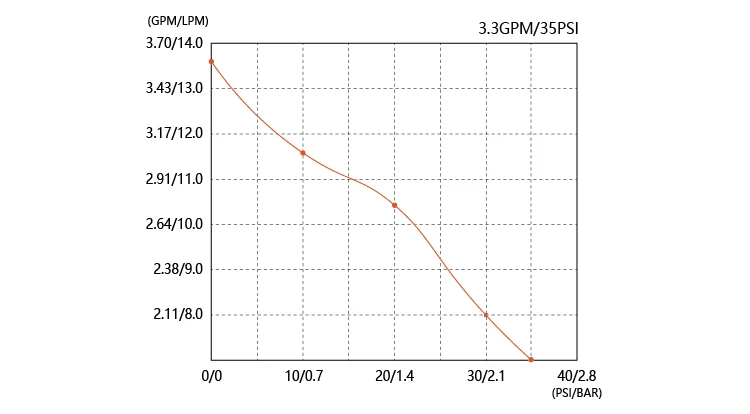

| Performance |

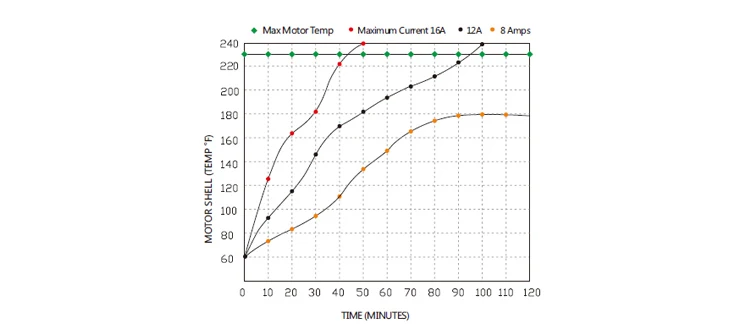

| Motor Heat Rise |

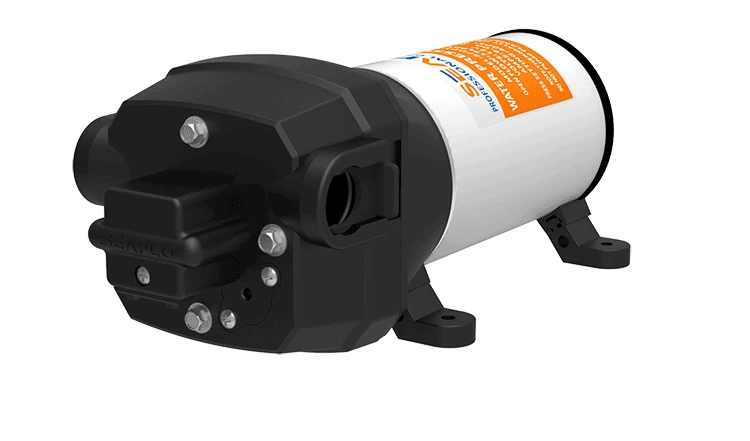

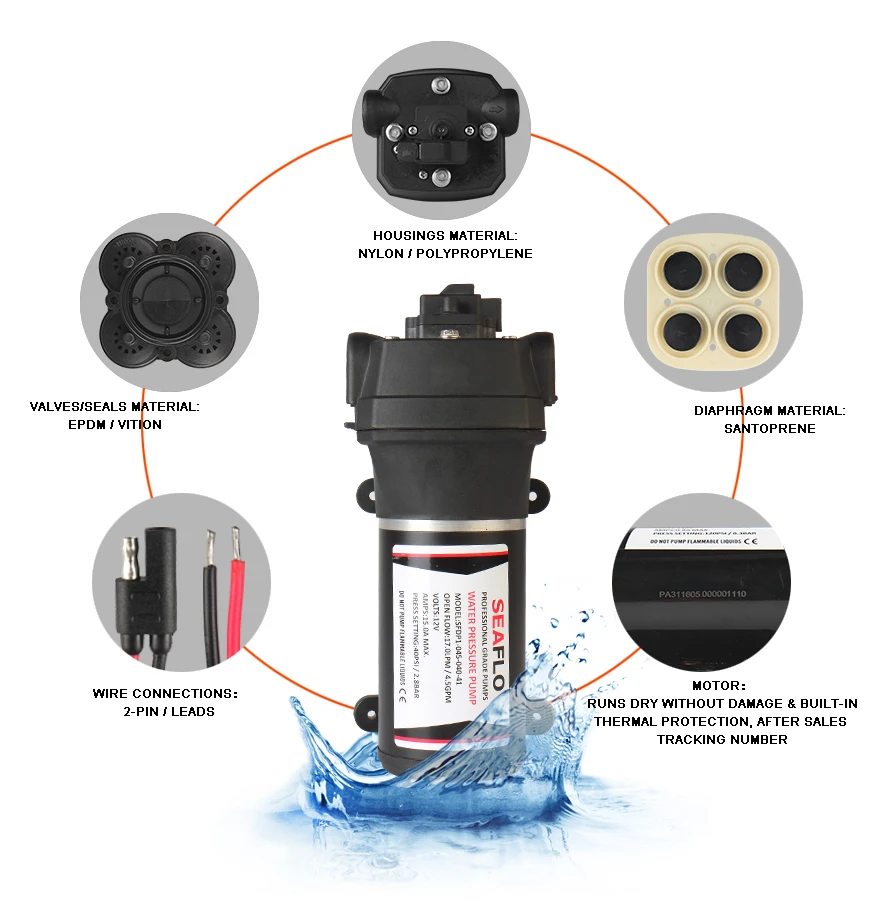

| Product Details |
Standard Pump Configurations
| Model | Voltage | Open Flow GPM [LPM] | Cut off Pressure PSI [BAR] | Max Draw | Diaphragm | Valve |
| SFDP1-033-035-41 | 12 V | 3.3 [12.5] | 35 [2.4] | 8.0 A | Santoprene | Viton |
| SFDP2-033-035-41 | 24 V | 3.3 [12.5] | 35 [2.4] | 4.0 A | Santoprene | Viton |
| SFDP1-040-060-41 | 12 V | 4.0 [15.0] | 60 [4.1] | 14.0 A | Santoprene | Viton |
| SFDP2-040-060-41 | 24 V | 4.0 [15.0] | 60 [4.1] | 7.0 A | Santoprene | Viton |
| SFDP1-045-060-41 | 12 V | 4.5 [17.0] | 60 [4.1] | 16.0 A | Santoprene | Viton |
| SFDP2-045-060-41 | 24 V | 4.5 [17.0] | 60 [4.1] | 8.0 A | Santoprene | Viton |
OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 60 PSI [4.1 Bar]; Open flow can be adjusted from 0.8 GPM [3.0 LPM] to 4.8 GPM [17.0 LPM]. Material can be adjusted according to your requirement.
Application
Packaging & Shipping
Package Infomation
 | Unit Pump Weight | 3.91 lbs [1.77 kg] |
| Selling Unit Size (L x W x H) | 11.81" x 5.12" x 4.33" [30.0 x 13.0 x 11.0 cm] | |
| Selling Unit Weight | 4.54 lbs [2.10 kg] | |
| Master Carton Qty | 10 pcs / carton | |
| Master Carton Size (L x W x H) | 18.11" x 12.99" x 10.04" [46.0 x 33.0 x 25.5 cm] | |
| Master Carton Weight | 46.94 lbs [21.29 kg] |
