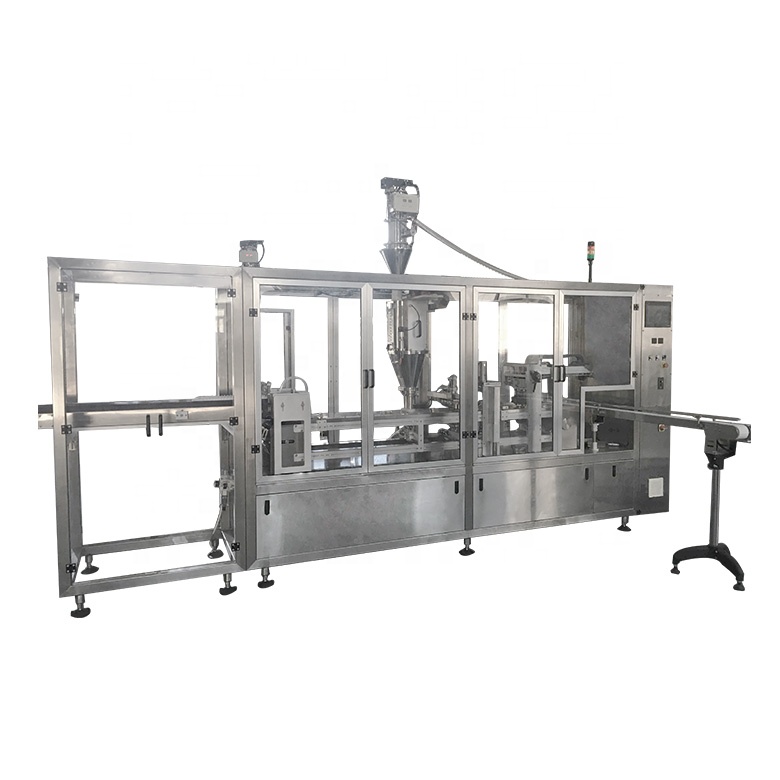

2020 г., китайский завод Sunyi, высокоскоростной аппарат для запечатывания кофейных капсул, шесть полос, совместимый с Nespresso
- Категория товара: Pharmaceutical Filling Machine >>>
- Поставщик (Оптовый магазин): Jiangsu,Sunyi,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

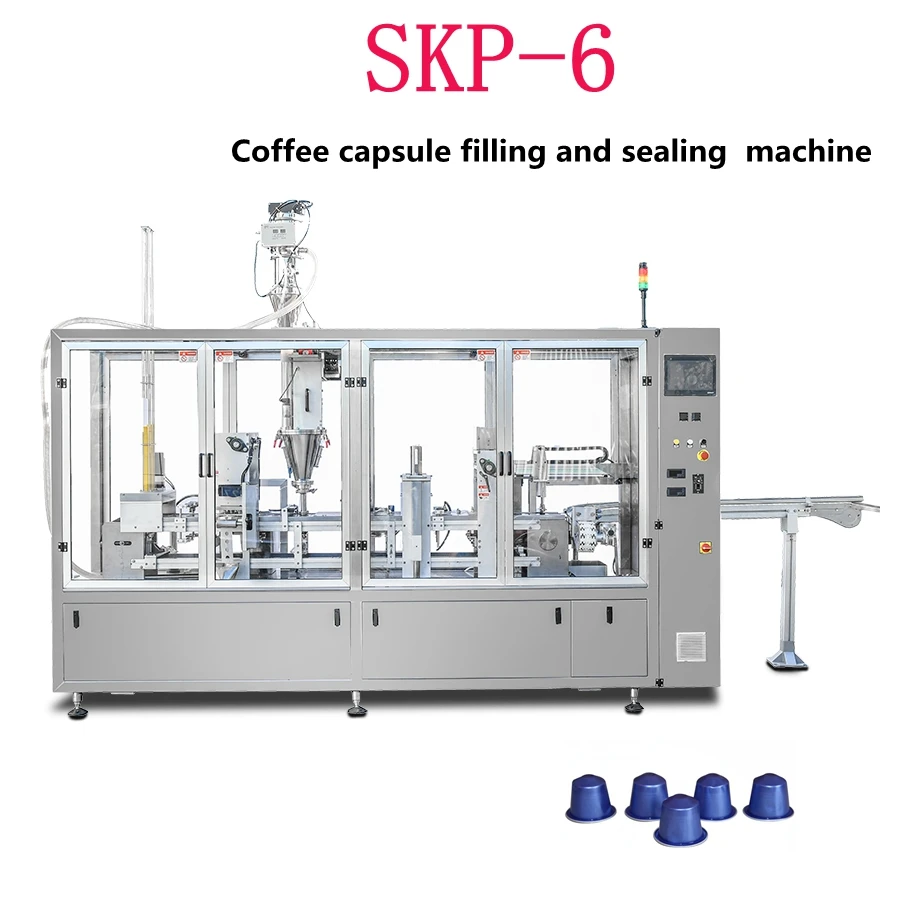

Product Description
Powder Filling Six Lanes Nespresso Coffee Capsule Filling Machine is high-speed and multi-function machine,which belongs to series SKP-6.There are SKP-1,SKP-1N,SKP-2,SKP-4,SKP-6 and so on.Compared to ordinary coffee capsule machine,six lanes coffee capsule filling Machine is higher-speed and lower-noise with big discount,which can reach 240 capsules per minute.The type machine is operated through a user-friendly touch screen( HMI ,human-machine interface) where all the machine parameters are accessible during machine operation for maximum ease of adjustment.On the screen is also available a wide range of information on the machine efficiency as well as on the production statistics.The machine movements are protected with covers carrying safety locks,active when the machine is in operation.The machine is used to make nespresso coffee capsule,it can fill coffee powder,milk powder,tea,instant powd er and other food materials.We support you to order more than one set at a time with direct factory price.We welcome you to our company for seeing real products.
Technical Parameter | ||
Filling weight range: | 0-20g | |
Filling accuracy: | 0.1-0.3g | |
Max speed: | 240-300 Cup per minute | |
Hopper capacity: | 2.5L | |
Control system: | OMRON SCHNEIDER ROCKWELL | |
Displayer: | 10 Inch touchscreen | |
Power supply: | 220V/380V | |
Dimension: | 5470mm*1200mm*2150mm | |
*Main function：
1）Automatic sorting cup and output cup.
2）Big capacity screw convey materials.
3）Servo control auger filling powder.
4）Filling falvor liquid system.
5）Full nitrogen protection line，residual oxygen less than 2%.
6）Cups output to conveyor belt.
7）Automatic sorting cup output device，reduce cost.
*Contrast Form of Other Production in Our Company
Since the establishment of company,we pour ourselves more into research and development of coffee packaging machine.We have produced SKP-1,SKP-2,SKP-4,SKP-6,SKP-8(Compatible nespresso,Dolce gusto,Lavazza Blue,Point,K-CUP,Kshot,One Cup)automatic Coffee capsule filling and sealing machine.With good appearance,high filling accuracy,stable performance,which has won the favor of customers at home and abroad.The product has obtained many technical invention patents,through CE,UL certification,ISO9001 quality management system certification and got a number of Zhejiang science and technology.
Model | SKP-1 | SKP-1N | SKP-2 | SKP-4 | SKP-6 | ||||
filling weight range | 0-20*n | 0-20*n | 0-20*n | 0-20*n | 0-20*n | ||||
filling accuracy | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ||||
Max speed | 40-50 cups/minute | 40-50 cups/minute | 80-100 cups/minute | 160-200 cups/minute | 240-300 cups/minute | ||||
Hopper capacity | 1.0(2.5L) Option | 1.0(2.5L) Option | 10-24L Option | 10-24L Option | 2.5L Option | ||||
control system | PLC(OMRON,SCHNEIDER,ROCKWELL) | ||||||||
power | AC 220V/380V 50Hz/60Hz | ||||||||

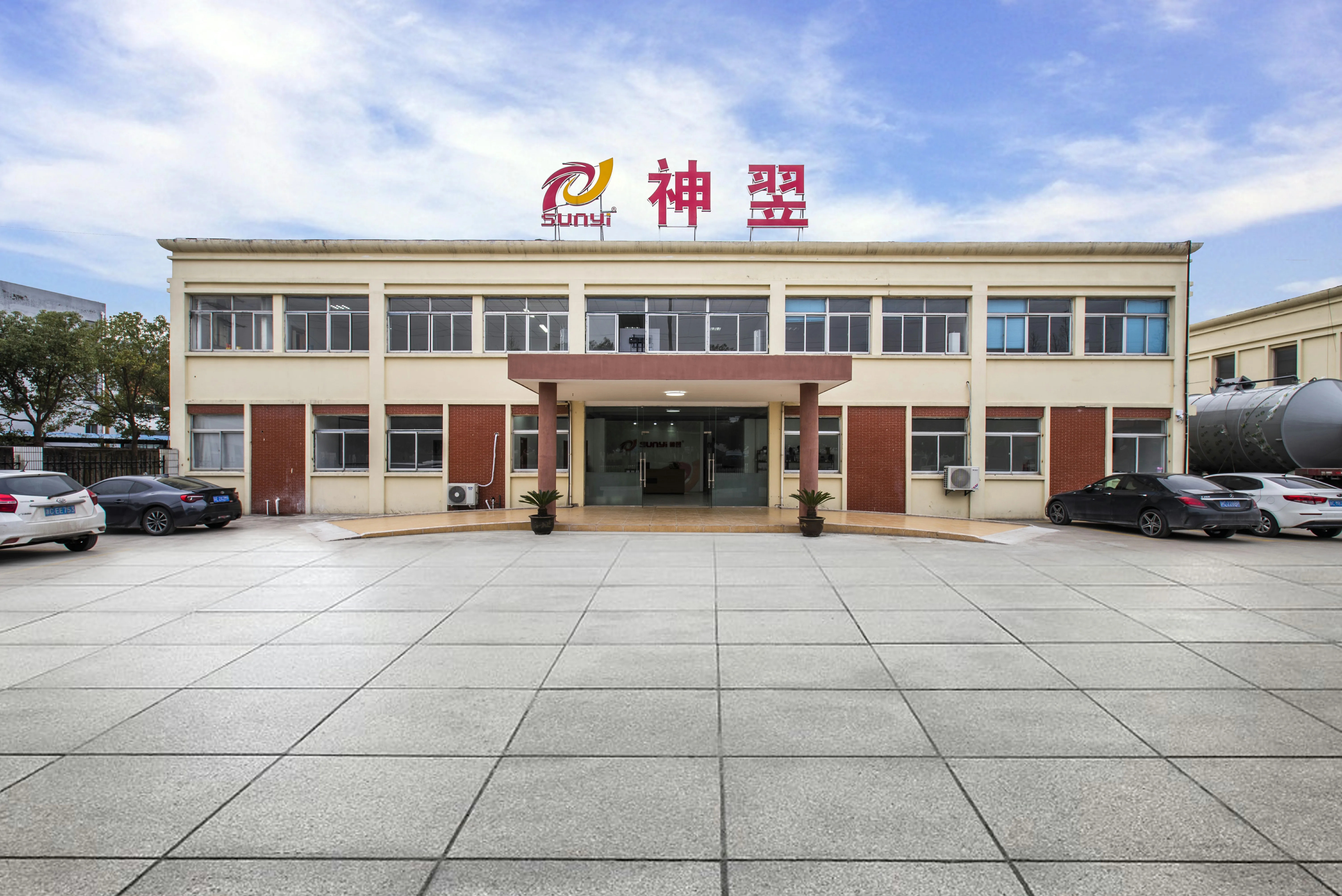

Jiangsu sunyi machinery co.,LTD.,found in 2011,is headquartered in kunshan city,Jiangsu province,the top of the country‘s top 100 countries.It has a subsidiary company,Zhejiang Sunyi machinery Sunyi machinery Co.,Itd.It is the national science and technology innovatice enterprises.Is a professional r&d,manufacturing,sales of intelligent food packaging machinery and equipment,packaging systems and a variety of automation control equipment technology innovative enterprises.
*Learn More about Our Capsule and What Can Be Filled in the Capsule.
The machine is suitable for various granule,powder and liquid materials.Such as coffee,milk powder,tea,instant powder,yogurt and other food materials.Applicable capsule:Compatible Nespresso,Dolce gusto,Lavazza blue or point,Pod,K-CUP,K-Shot,OneCup.
Certifications
Product Details

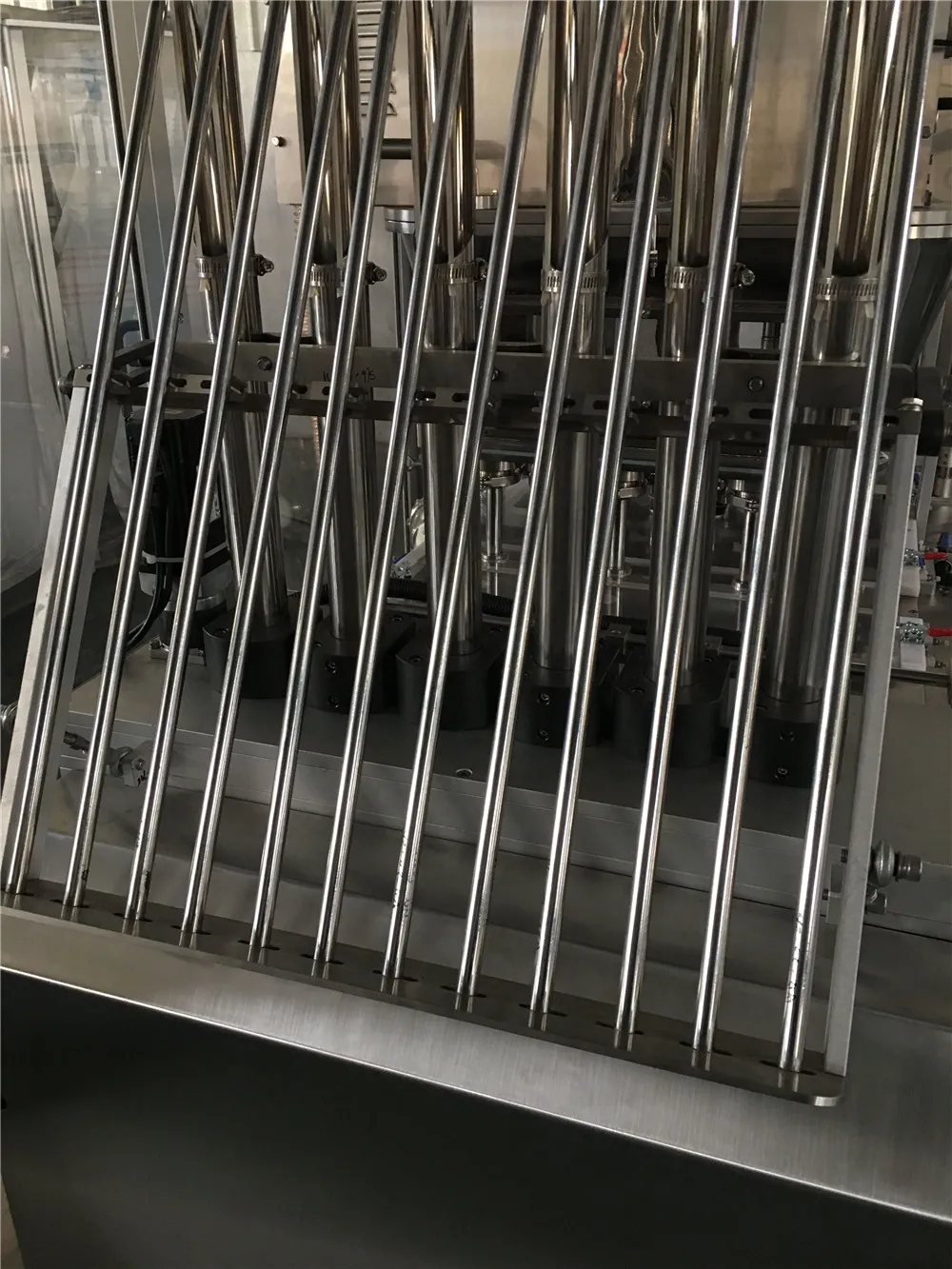

Empty Capsule Loading
Vertical type capsule feeding station:
Manual placing the stackable capsules onto the inclined capsule holding rack, and pushing them into the capsule chamber;
Servo driving capsule denester device to separate the capsules and drop them into the mold automatically
Capsule Sensor
When the cups are transfered under the capsul -e sensor.The capsules sensor will judge whet -her the cups exist or nor.If yes,the
cups will transfer to the next part.
cups will transfer to the next part.

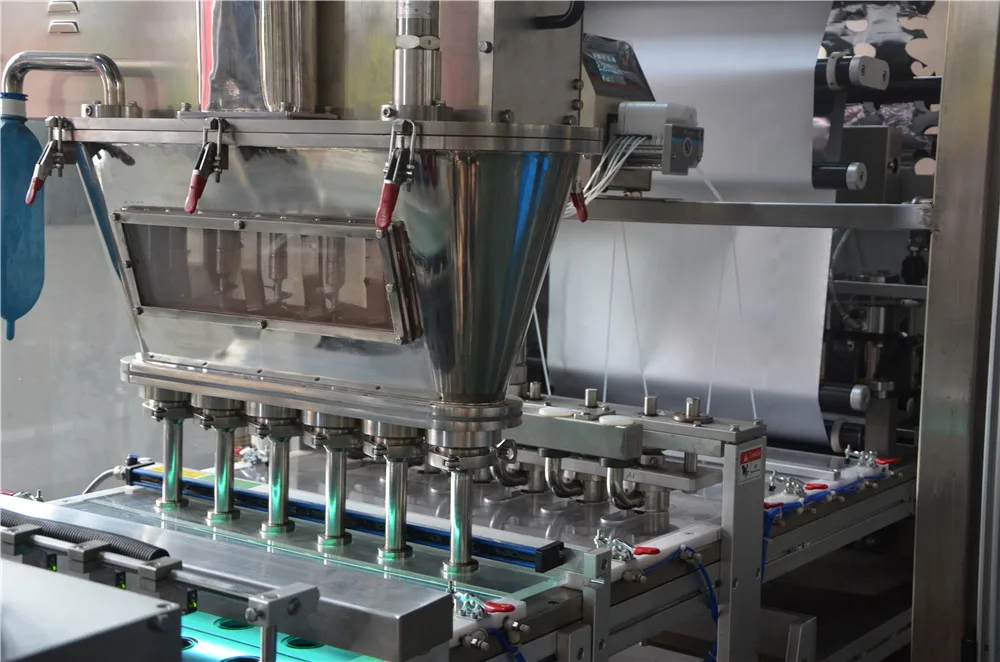

Servo Auger Filling Station
* With approx. 25L visual hopper, with application of easy disassemble for hopper clean work.* With world famous Schneider brand
servo driving system for better filling accuracy
* With mixing system for better filling accuracy
* With tunning fork type level sensor to control the the stuffs feeding system automatically
* With Nitrogen flushing in the hopper
servo driving system for better filling accuracy
* With mixing system for better filling accuracy
* With tunning fork type level sensor to control the the stuffs feeding system automatically
* With Nitrogen flushing in the hopper

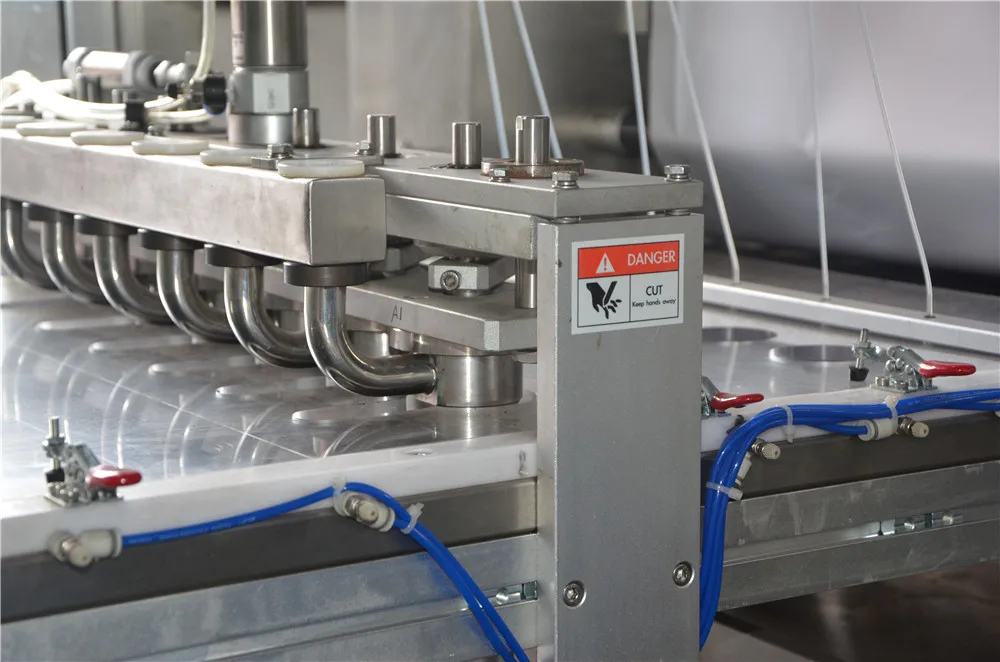

Tamping Station & Nitrogen Flushing
* With tamping station for press the powdery stuff and clean the capsules top rim for better heat sealing effect
* With optional UV sterilization, anti-static device, Nitrogen flushing function, flavor adding functions.
* Nitrogen content >98%

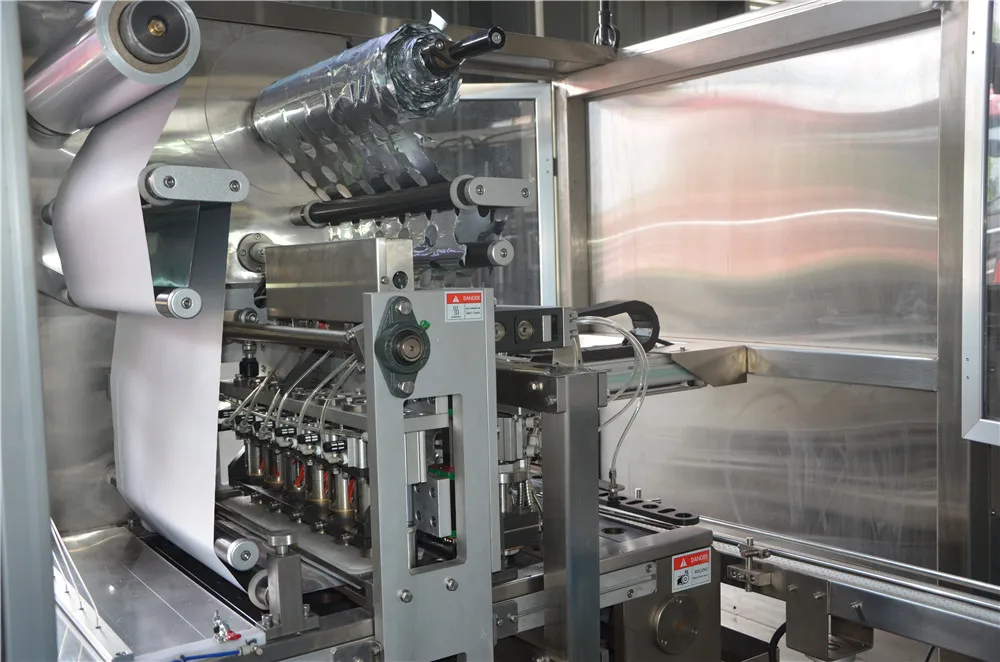

Rolled Foil Lids Cutting Sealing Station
Automatically punching and cutting rolled film,
forming circle lids, and at the same time, sealing lids on the capsule’s top. Positioning lids accurately. In the long run, save
package materials.
* With Schneider brand servo motor and servo driver to unwind the film and scroll the waste film accurately, which can make sure
the good sealing effect.
* With Omron brand temperature control module, the temperature can be adjusted on the Schneider/Siemens HMI.
* With Premium good quality cutting knife and brass heat sealing heads, sealing tight and beautiful.
forming circle lids, and at the same time, sealing lids on the capsule’s top. Positioning lids accurately. In the long run, save
package materials.
* With Schneider brand servo motor and servo driver to unwind the film and scroll the waste film accurately, which can make sure
the good sealing effect.
* With Omron brand temperature control module, the temperature can be adjusted on the Schneider/Siemens HMI.
* With Premium good quality cutting knife and brass heat sealing heads, sealing tight and beautiful.
Twice Sealing
* With premium good brass heat sealing head for well-distributed temperature.* With world famous Omron brand temperature control
module for better accurate temperature control.
module for better accurate temperature control.

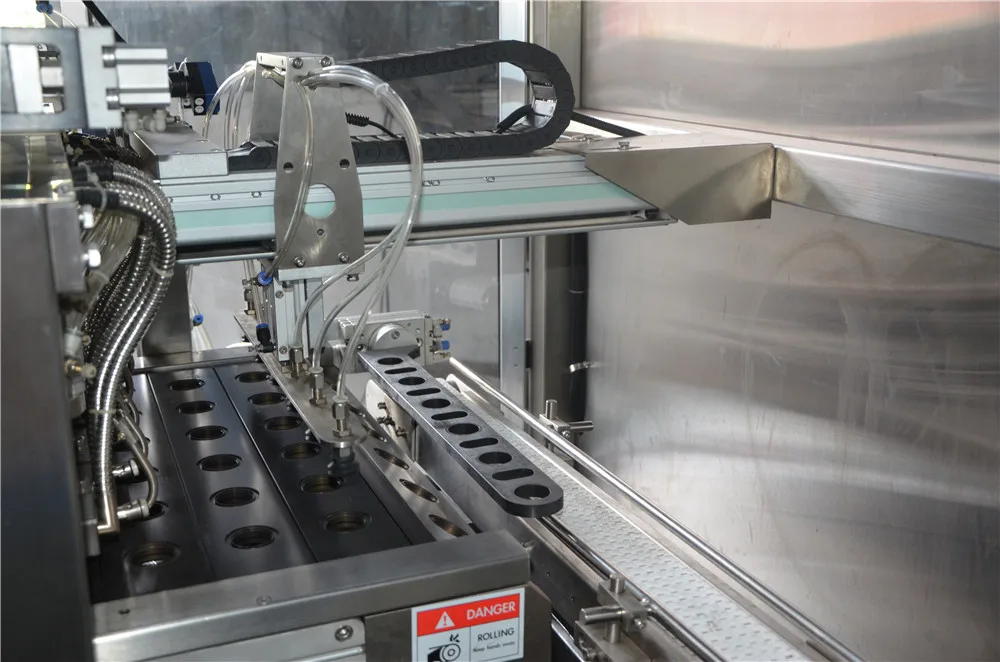

Servo Output
Servo Motor driving the manipulator arm moving horizontally to output the finished capsules
10-inch touchscreen
When the machine is started,all the machine parameters are accessible.The accurate para -meters is convenient for operator to make
ma -x adjustments,so that the machine can run normally.
ma -x adjustments,so that the machine can run normally.
Our Service
Our Services during COVID-19
* We supply the buyer each machine operation manual, operation video, simple assembling
video because our machine is whole set machine, just need to combine the main machine together.
* In the COVID-19 pandamic environment, After receiving the machine, we can supply PPT installation display and visual-audio installation guidance and free trainning service on live.
* The machine with the remote control device, if there’s any programe system problem, we can monitor and revise the programe remotely as long as your machine can reach the internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc. No worry about the services.
video because our machine is whole set machine, just need to combine the main machine together.
* In the COVID-19 pandamic environment, After receiving the machine, we can supply PPT installation display and visual-audio installation guidance and free trainning service on live.
* The machine with the remote control device, if there’s any programe system problem, we can monitor and revise the programe remotely as long as your machine can reach the internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc. No worry about the services.
Packing & Delivery
Wooden Case Related
* Before packed in the wooden case, the machinery will be wrapped with bubble film and plastic film around and around. After fixed onto the pallet, another plastic bag will be entangled on the machine, then packed into the strong export wooden case.
* Strong Wooden Case is important part for transporting the machine during the shipment journey. A solid wooden case will protect the machine from damaging, which make sure the customers accept flawless and perfect production. It's our duty to reassure you.
* Strong Wooden Case is important part for transporting the machine during the shipment journey. A solid wooden case will protect the machine from damaging, which make sure the customers accept flawless and perfect production. It's our duty to reassure you.
FAQ
1. What advantages you have?
* Over 10 Years professional working experience in the coffee capsules filling packing machine only.
* With abundant of technology reserve and lots of innovative patents
* With very strict standard on each machine that sold to all over the world.
* With world famous components application.
* One-stop packaging solutions
* Sunyi machine has been exported to over 40 countries all over the world.
* Professional after-service system
* With distributors in USA, Mexico, Thailand, Russia, Italy, etc...
*Prompt response to the after sales service.
2. How can you guarantee that we can receive a good quality machine?
* Sunyi Machinery is the direct factory-based company, we can supply visual-audio factory inspection service.
* From the machine processing parts to the electric-pneumatic parts, from the machine assembling to the electric- pneumatic adjustment, from the package to the shipment, we have a set of strict QC standard.
* After the machine is ready, we will send each customer their machine photos and machine testing videos.
After confirmation by the customers, then we are permitted to arrange the delivery.
* After receiving the machine, we can set out technicians to customer factory for machine installation as agreed if need.
* Within the 12 months warranty, any broken parts will be delivered to customers by express for free of charge.
After the warranty, the broken parts will be discharged only at the lowest cost price.
3. Do you provide and help about the product operation?
* We have English version operation manual and videos for all products, and all the icons will be displayed by English or
nominated language.
* After receiving the machine, we can supply the remote guidance on Internet for machine installation and operation.
4. During the COVID-19, How can I visit the factory?
* During the COVID-19, we can supply 360 degree VISUAL-AUDIO factory inspection services.
* If any questions, we can show you the details on the Internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc.
* Over 10 Years professional working experience in the coffee capsules filling packing machine only.
* With abundant of technology reserve and lots of innovative patents
* With very strict standard on each machine that sold to all over the world.
* With world famous components application.
* One-stop packaging solutions
* Sunyi machine has been exported to over 40 countries all over the world.
* Professional after-service system
* With distributors in USA, Mexico, Thailand, Russia, Italy, etc...
*Prompt response to the after sales service.
2. How can you guarantee that we can receive a good quality machine?
* Sunyi Machinery is the direct factory-based company, we can supply visual-audio factory inspection service.
* From the machine processing parts to the electric-pneumatic parts, from the machine assembling to the electric- pneumatic adjustment, from the package to the shipment, we have a set of strict QC standard.
* After the machine is ready, we will send each customer their machine photos and machine testing videos.
After confirmation by the customers, then we are permitted to arrange the delivery.
* After receiving the machine, we can set out technicians to customer factory for machine installation as agreed if need.
* Within the 12 months warranty, any broken parts will be delivered to customers by express for free of charge.
After the warranty, the broken parts will be discharged only at the lowest cost price.
3. Do you provide and help about the product operation?
* We have English version operation manual and videos for all products, and all the icons will be displayed by English or
nominated language.
* After receiving the machine, we can supply the remote guidance on Internet for machine installation and operation.
4. During the COVID-19, How can I visit the factory?
* During the COVID-19, we can supply 360 degree VISUAL-AUDIO factory inspection services.
* If any questions, we can show you the details on the Internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc.
