 Powder Vaccum pump PP-05

It is a kind of powder conveying equipment specially designed for powder conveying.

Features: fast conveying speed, large powder volume, maximum 5KG/MIN

Easy to clean, with a dedicated cleaning system, one-click completion

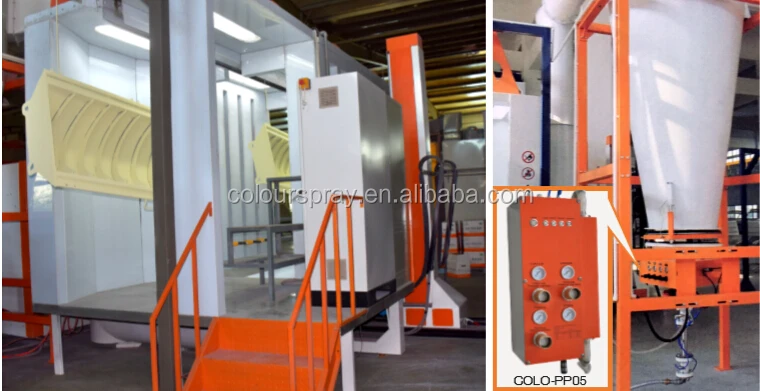

The external control circuit can be integrated with the powder supply center and the large cyclone recovery system.

Simple operation, user-friendly interface



Specification

2.1 Powder pump output reference value

Powder pump	Maximum amount of powder
Conveying powder tube less than 8 meters long	4.5-5 KG/MIN
Conveying powder tube length 8-16 meters	3-4.5 KG/MIN
Conveying powder tube length 16-25 meters	1-3 KG/MIN

2.2 Powder pump electrical parameters

Voltage	180-240VAC
Frequency	50/60HZ
Operating power	30VA
Maximum input power	100VA
Use Temperature	0℃-40℃

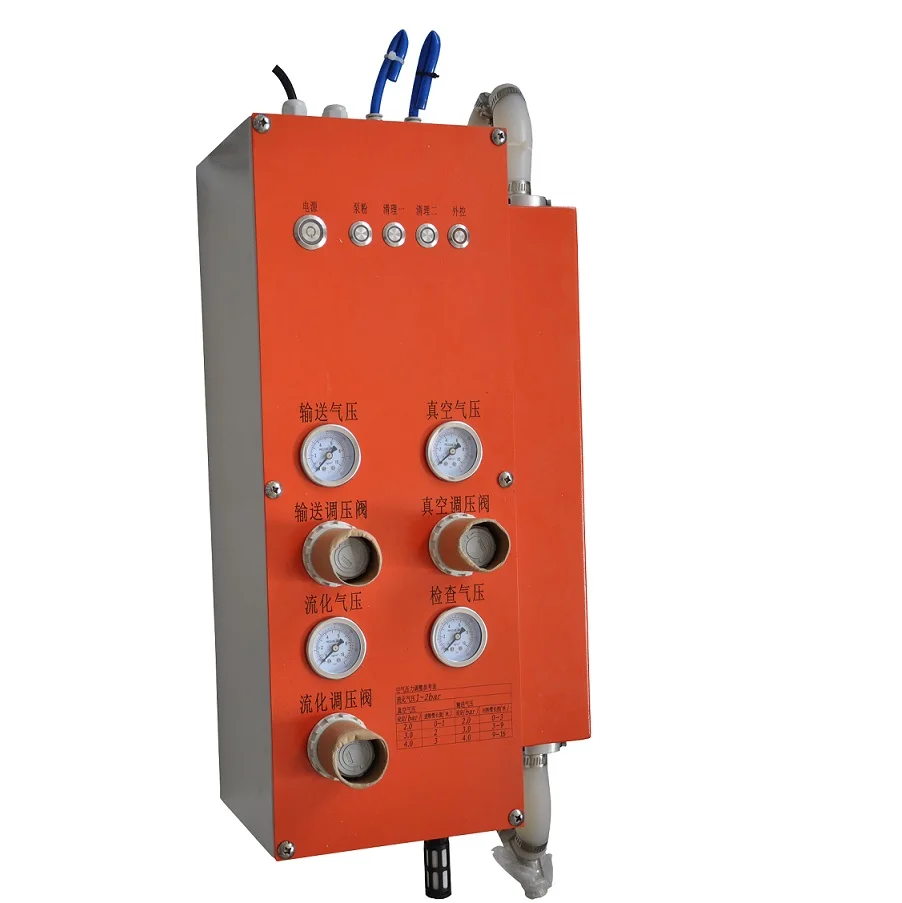

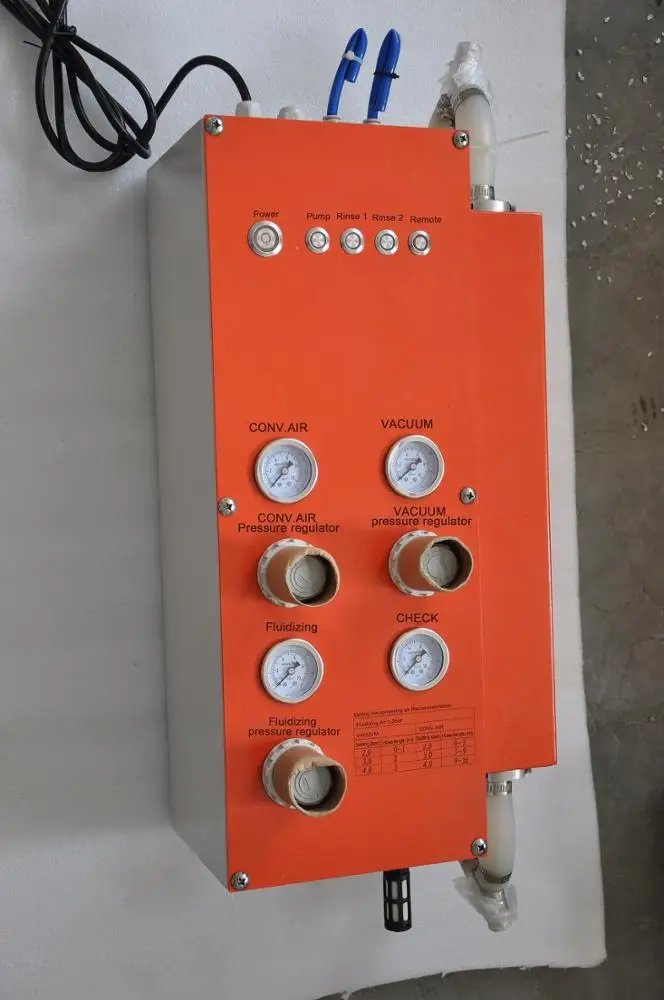

1: Inlet tube connection port



2: pinch valve body



3: Powder pump body



4: powder outlet connector



5: Electrical operation button



6: Delivery pressure regulating valve and pressure display



7: True air pressure valve and pressure display



8: Fluidized pressure regulating valve and pressure display



9: Check the air pressure (monitor the pumping process pressure)



10: Air pressure adjustment reference table



 2.3 Air source data

Air tube	8MM
Max air pressure	8Bar
Min air pressure	6bar
Max water content	0 .1mg/M3
Maximum air usage	12NM3/H





2.4 Pump size

Length	270MM
Width	180MM
Height	660MM  need space height 800mm
Weight	26kgs





  2.5 Powder type

Plastic powder	OK
Metal powder	OK



Operation:

Power: Press the light to indicate that the power is on;

Pump powder: press the light powder pump to start the work;

Clean up one; press the light to turn on the powder pump to clean up a job and start working;

The first step is to clean the powder pump. Generally, it can be cleaned in about 30 seconds.

Clean up two; press the light to turn on the powder pump to clean the second job and start working;

The second step is to clean the powder pipe. It is necessary to apply air pressure through the powder pipe to clean it.

External control: press the light to start the external control of the powder pump;

External control also pumps powder, cleans one, cleans up these three functions.



3.3 Air pressure adjustment reference table

Fluidized pressure1-2Bar
Vacuum pressure		Delivery pressure
Setting(Bar)	Powder feeding tube length(m)	Setting(Bar)	Out Powder tube length(m)
2.0	0-1	2.0	0-3
3.0	2	3.0	3-9
4.0	3	4.0	9-16
