Product Description

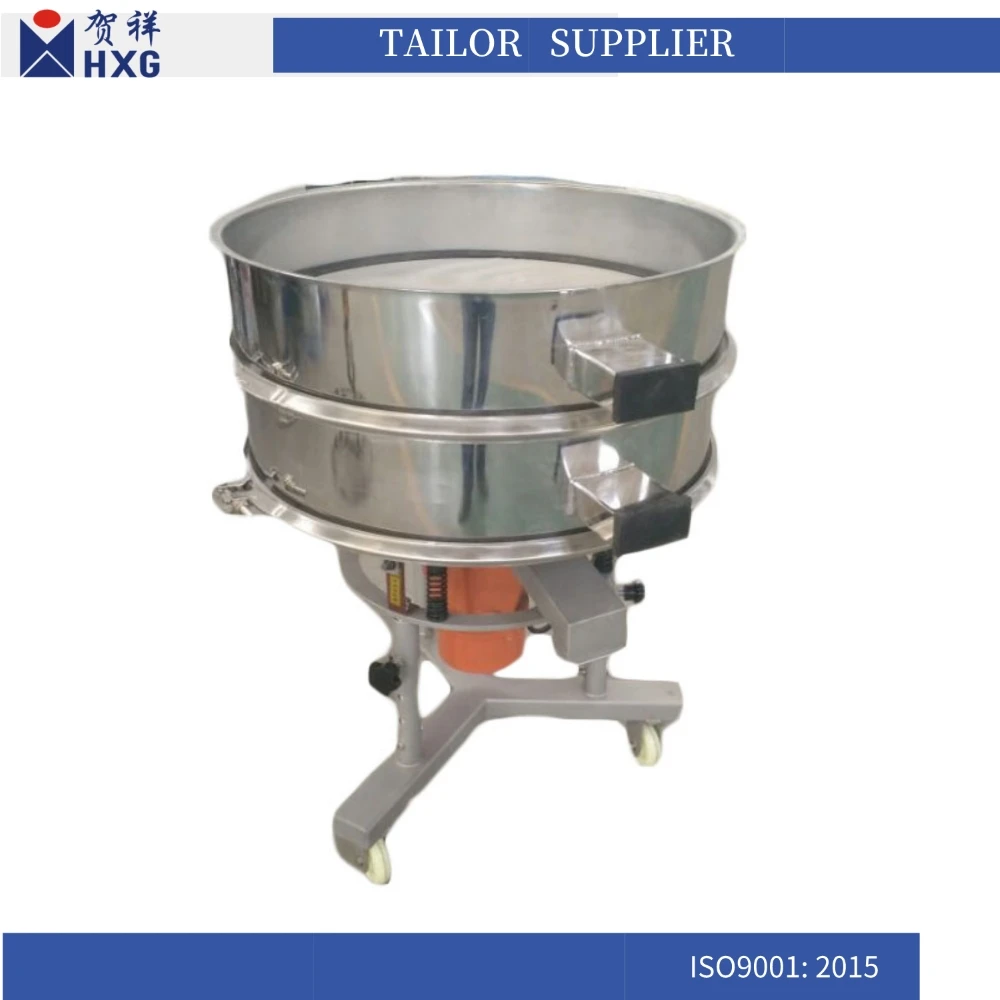

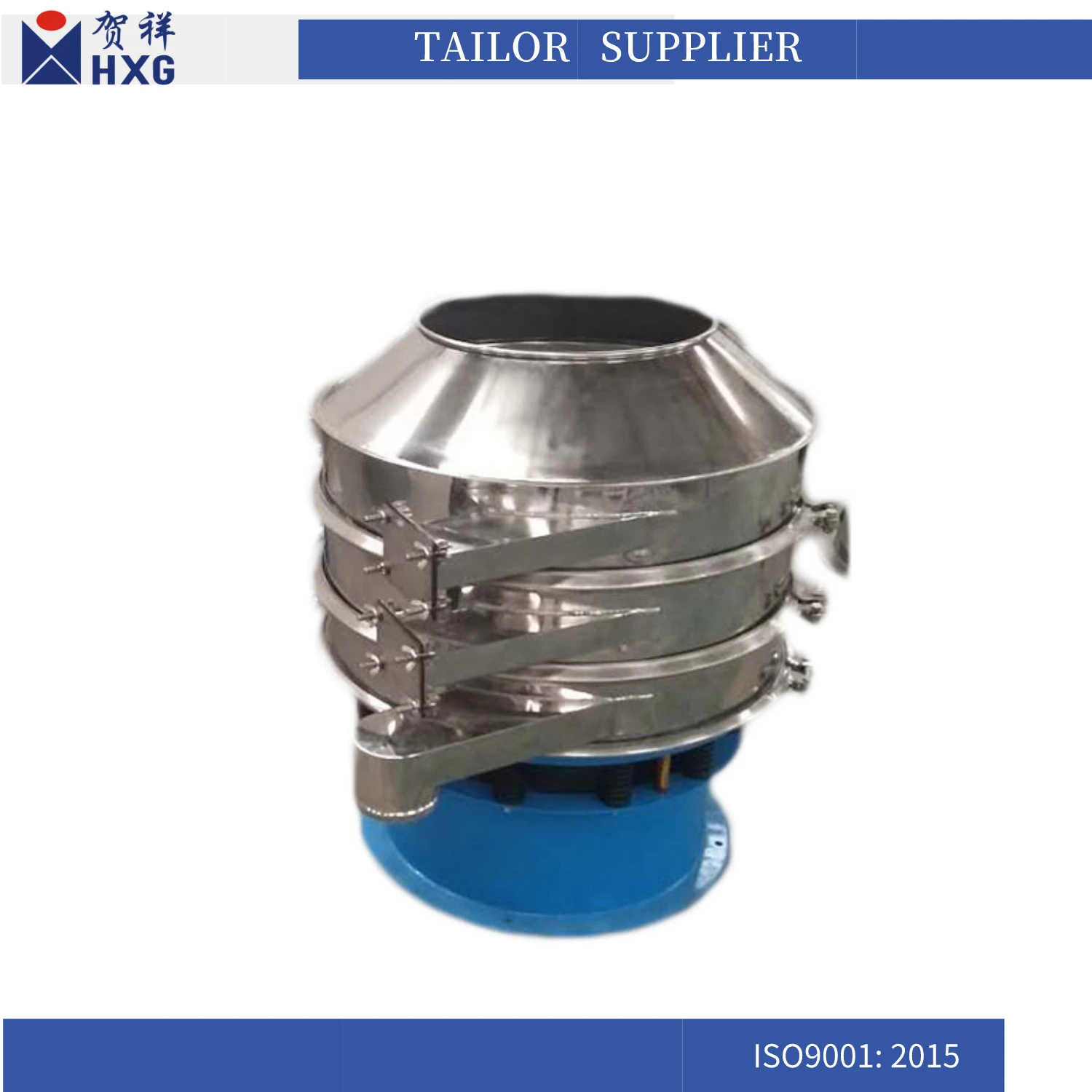

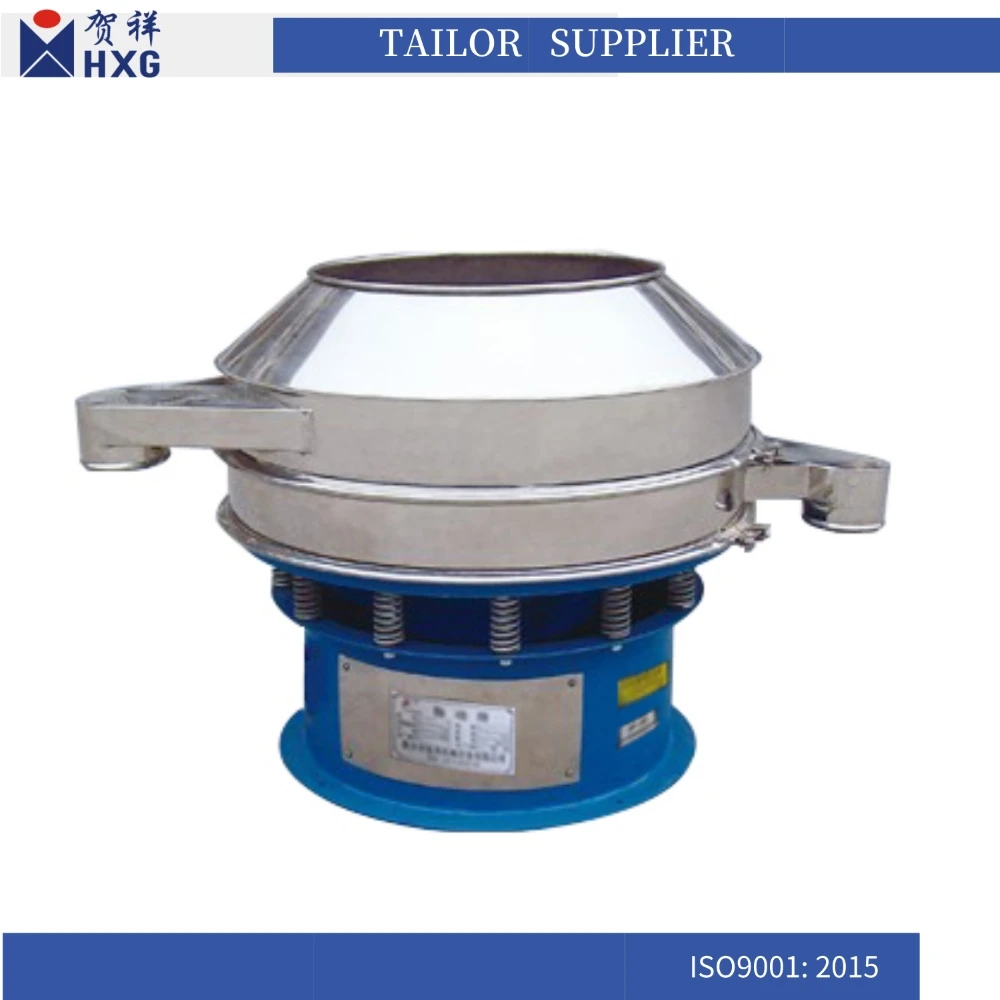

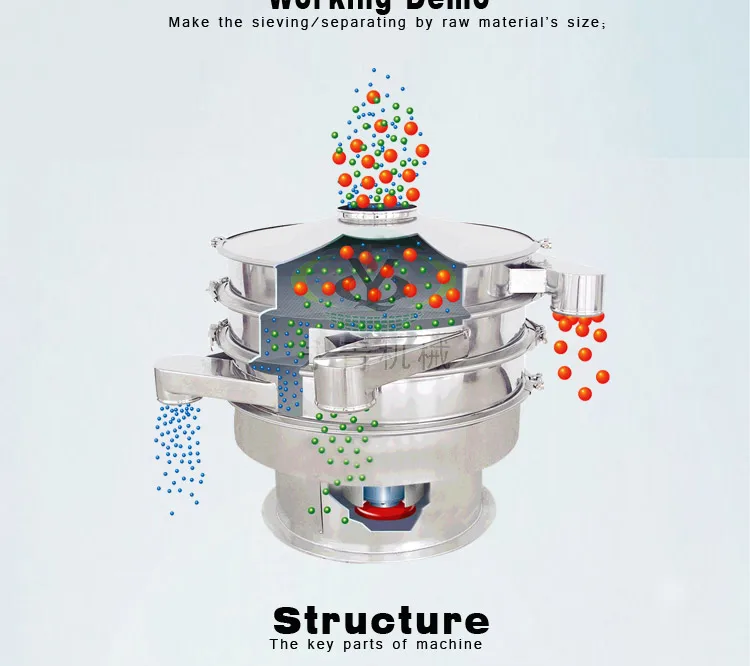

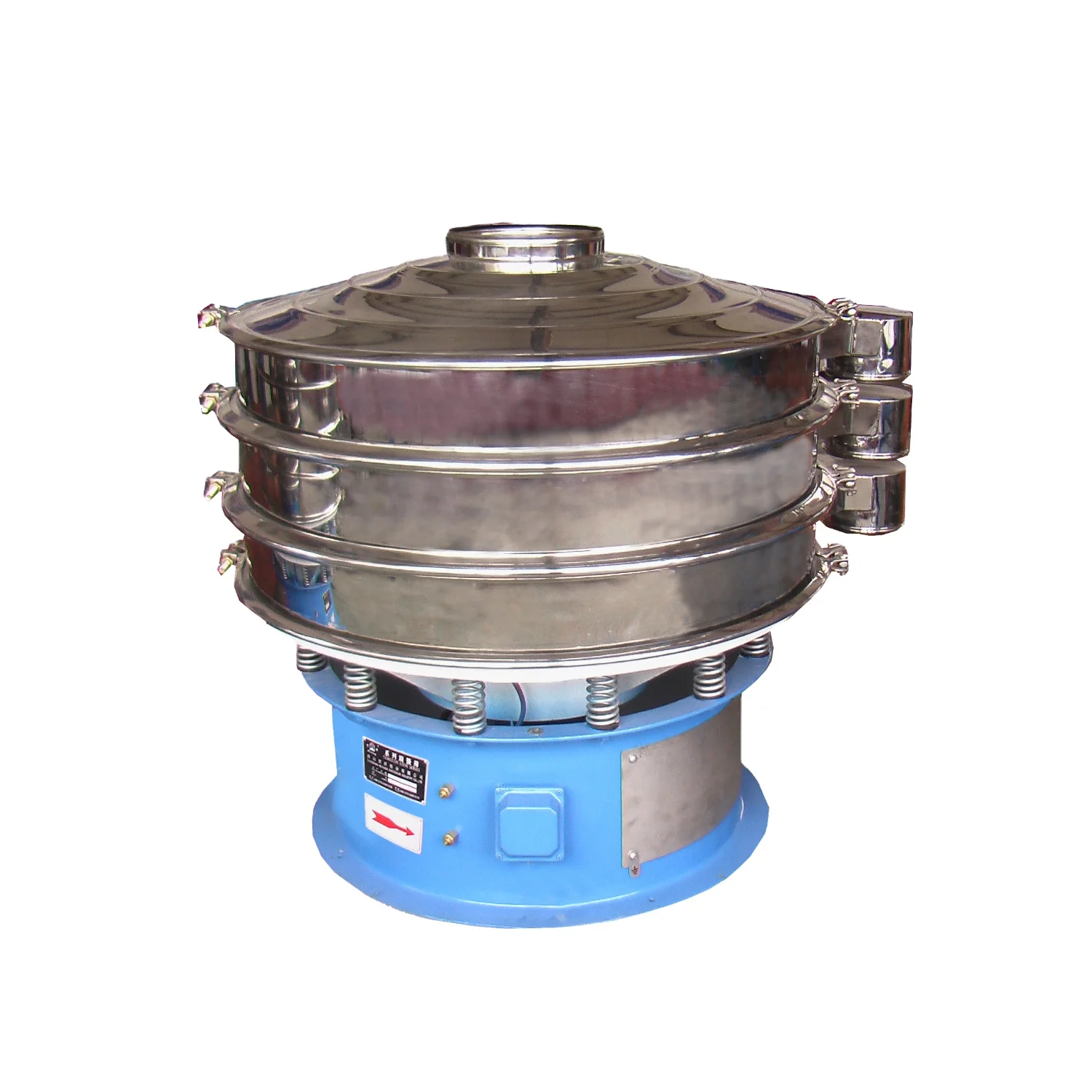

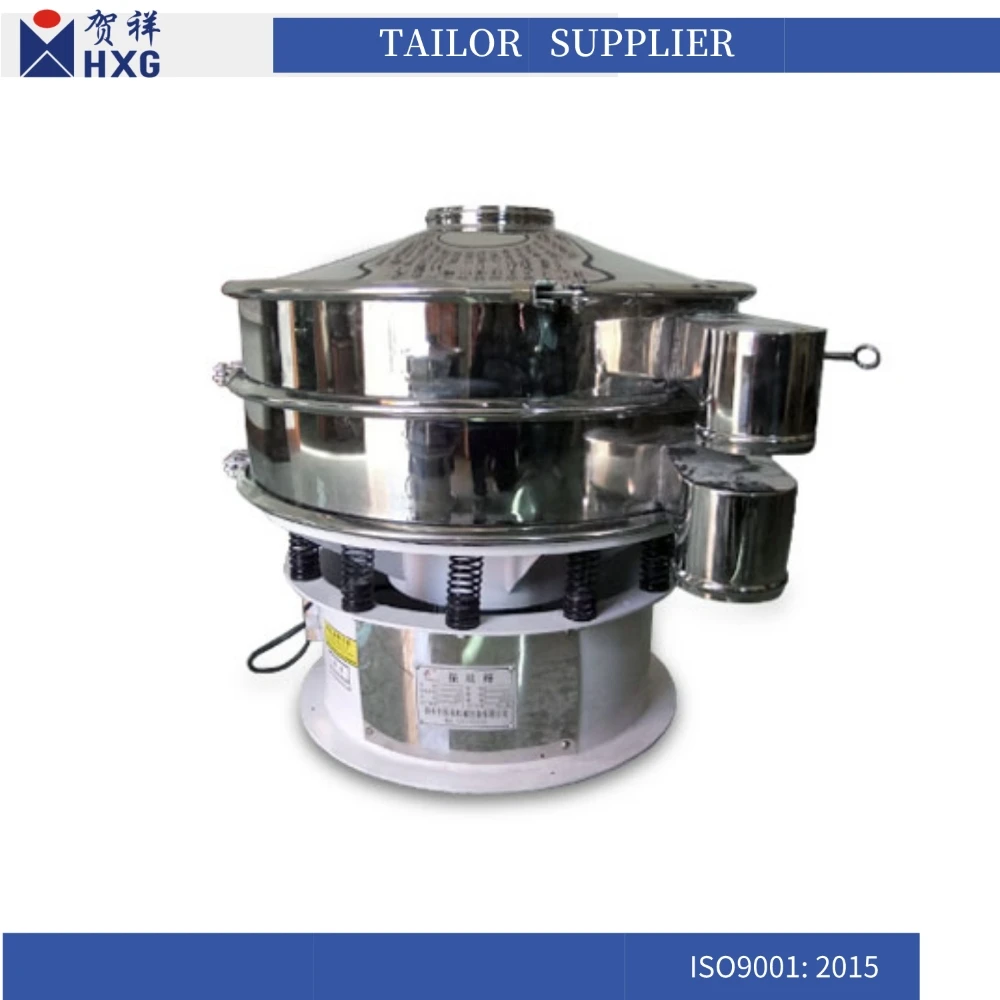

 High efficiency circular vibrating screen price is a high precision fine powder sieving machine. The fundamental principle of High capacity circular vibrating screen price is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.

Specifitions

High capacity circular vibrating screen price can be up to 5 layers, and the mesh size can reach 500 mesh. We will choose a suitable model according to your specific materials and application.



Model

Power

(kw)

Diameter of Screen Surface

(mm)

Layer

Mesh Size

(mesh)

Frequency

(rpm)

HX012A 0.15 340 1-3 0-500 1500
HX012B 0.37 540
HX012C 0.55 730
HX012D 0.75 950
HX012E 1.5 1150
HX012F 2.0 1450
HX012G 2.2 1730
HX012H 2.5 1930
