Equipment

Item

Requirements and manufacturers

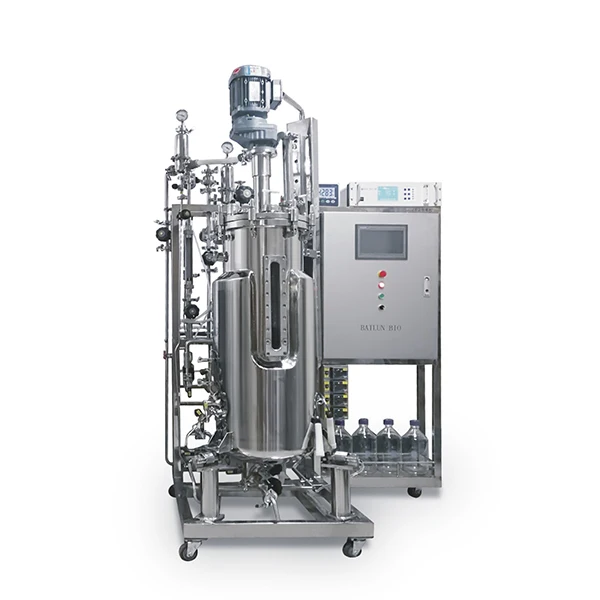

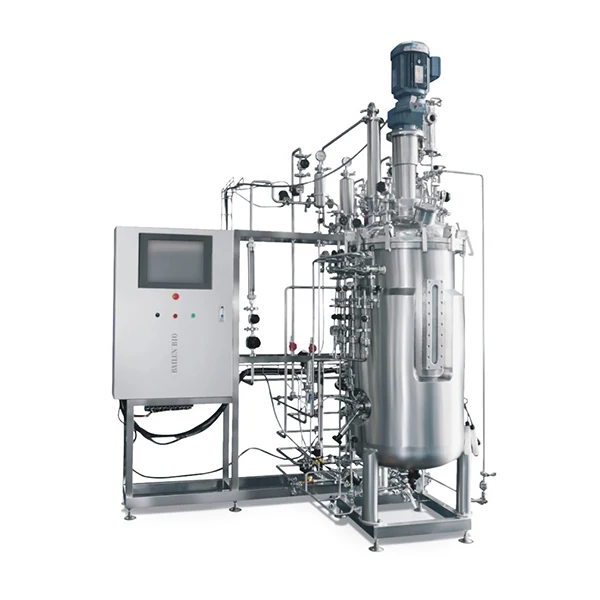

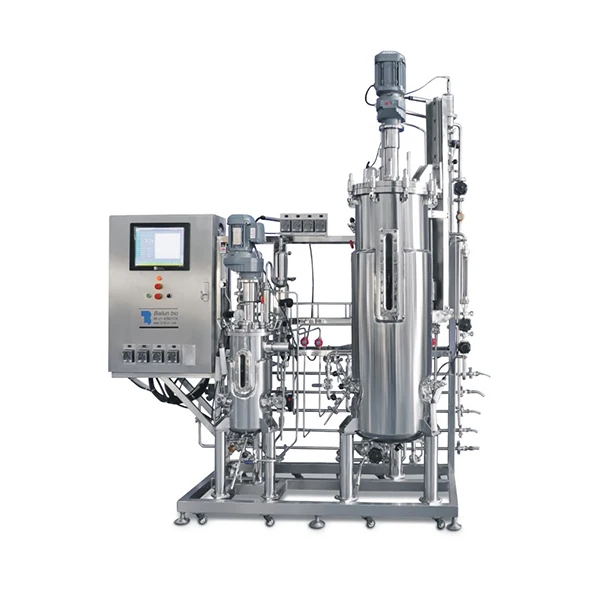

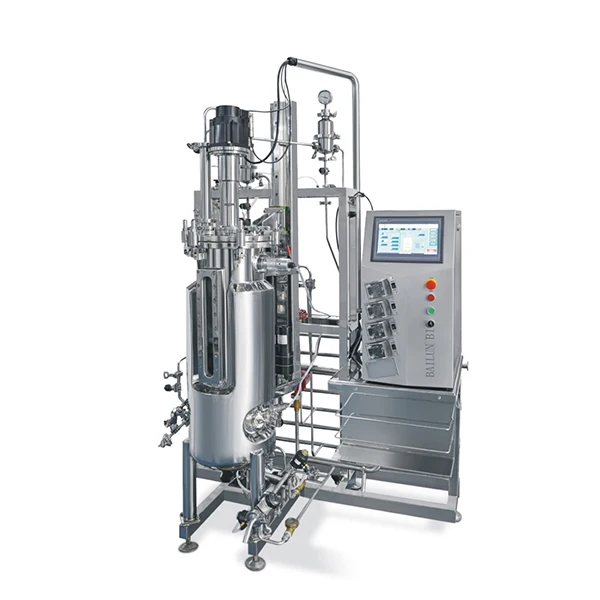

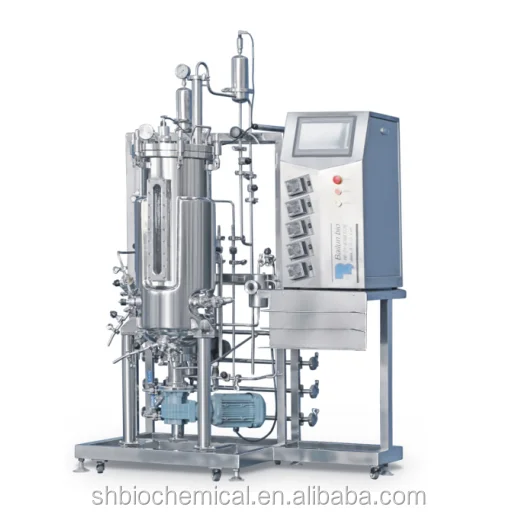

500/1000 liter fermenter

Fermenter body

Jacketed vessel, made by 316L stainless steel inside and 304 for jacket.

The design pressure: P(inside)= 0.3Mpa, P(Jacket)= 0.35Mpa;

The polishing precision:  Ra0.4~0.6;

The ratio between diameter and height: 1:2.2;

Total volume 2-30000 liters, working volume 70% total volume

Sterilization

Auto sterilization in place (SIP)

Cleaning

Cleaning in place (CIP)

Stirring system

Single mechanical sealing system at the top of the fermenter; High-powered stirring oar, anti foam oar; AC electrical machine(SEW) infinite speed variation.

The height of the stirring oar can be adjusted.

Temperature control

Heat by thermostatic water tank and circulate by circulating pump, auto control (cooling water+5℃)~70℃±0.1℃,temperature probe(imported)

pH detection and control

2.00-12.00±0.05pH, auto control by adding acid and base, pH sensor (Mettler/Hamilton, Switzerland) and shielding lead (Mettler/Hamilton, Switzerland). Controlled by peristalitc pump/pneumatic diaphragm valve

DO detection and control

0-150±3% displaying precision 0.1%, sensor (Mettler/Hamilton Switzerland) and shielding lead

Feed control

Uses peristaltic pump/pneumatic diaphragm valve to add materials

Anti-foam control

Tested by foam sensor and add anti-foamer, peristaltic pump (Longer)/pneumatic diaphragm valve.

Aeration detection and control

Manual control ventilation capacity, the precision of inhaler : 0.01μ, displayed by rota-meter. The range of flow adjusting: 1.5 times volume L/min

Pressure detection and control

Auto control exhaust by diaphragm cell valve and displayed by pressure gauge, pressure transmitter from BD Germany.

Exhaust

Control by proportional regulating valve

Pipeline and valve

The pipelines and valves which are in contact with the fluid are made by 316L stainless steel, the valves are diaphragm cell valves

Control system

BLBIO S Control System: on-site controller, the next crew for the Siemens S7-200 series PLC control system, it is a mature, stable, universal type of PLC, to suit a variety of automation applications, especially in manufacturing process control Application. Its modular, easy to implement distributed configuration and easy to master and so on, Siemens PLC control center has become a biological reaction process control implementation is economical and advanced control system, the system uses the touch screen display, on-site direct operations (menu type), all English menu and interface; also with the host computer for data transmission, data sampling and display tank, the system view of data analysis, reading settings.

10-inch LCD touch-sensitive screen as the display screen to display complete content-rich, user-friendly screen is simple, easy to operate. And disturbing each other. The control system can adapt to different range of sensors and actuators the output of the input signal with the signal anti-jamming system.

1. Control
Manual control: You can set the percentage of open valve or a valve opening.

Automatic control mode: You can select continuous or PID PID control the switch.

Sequence control: the control of all parameters can be pre-set at least 10 control section.

For automatic segmentation remotely control: PC control.

Acceptable correlation control: the dissolved oxygen can select speed, air flow rate, tank pressure, control of feeding, etc.; pH can choose to control with acid and alkali.

2. Measurement function: can feeding, bubble enemy, such as measurement of pH
3. XY-axis to chart real progress can be any expansion and contraction of graphics display, to help the operator determine the parameters of the interaction between the effects of the fermentation process to quickly modify and adjust

4. Data Processing
1) to show that all the parameters of the trend curve analysis
2) to store, display, analyze all the historical curve parameters
3) can display all the parameters of the batch report
4) copy the data directly with the USB

5) data storage format is compatible with EXCEL, EXCEL platform can be to deal with
5. Controller self-protection function: to set the password, others can not modify the fermentation parameters; and the controller is not lost due to power settings for each parameter
6. Can the process control parameters, each parameter can have 10 block can be set
7. Time display of each parameter recording interval can be adjusted
8. Two parameters can be carried out with the screen settings and calibration

9. Show the controller is really running against, the panel instructed the state process system, process hardware, and motion status indicator for understanding the various devices (such as peristaltic pumps, circulating pumps, heating, mixing, etc.) work status, Fault identification can be used as display
10. Each parameter of the transmission are independent modules, without disturbing each other, for easy maintenance
11.PH, DO and other parameters of control and associated controls can be adjusted

PC software

BLBIO-Ver8.0 is a data recording and processing as one of the fermentation of special packages, with the English operation interface, data storage and backup, curve analysis, report generation analysis, anomaly analysis, for the fermentation and production process control and data processing bring a lot of convenience.
Main features:
1. Can record the fermentation time, temperature, pH, dissolved oxygen, rotational speed, air flow, pressure, fill quantity, the amount of foam enemy, acid dosage
2. Can be sent under the controlled variable settings and control parameters, remote operation
3. Can be set sequence control
4. Can type off-line parameters, and records show
5. Trend curve, historical curve shows
      can display 1-10 (any setting) curve;
-    You can select a different start time and the time period (8,24,48,72,96 and 144 hours);
-    You can set the upper and lower curves show, in order to improve display resolution;
-    You can choose any of several different batches (1-10) curve also shows that for comparative analysis;
-    and Y-axis parallel to the secant by the mouse to drag the reading, followed by curve data is activated, the fermentation time (X axis) and the same time the data curve with the secant movement changes;

 6. Report Printing
- can show significant 1-12 (any set) data, and print output;
- You can select a different start time and the time and can choose different time intervals (1,5,15,30,60 minutes);
- You can choose any of several different batches (any set) data, and print output,
- To comparative analysis;

 7. curve printing
- You can show the curve was printed by color printer;
EXCEL platform can also be carried out in data processing and printing, is very convenient.

No.

Key component

Material and brand

1

Vessel system

The cylinder designed by our company uses stainless steel  ,The framework is advanced.

2

Speed Motor

Germany SEW

3

Speed regulator

Fuji, Japan

4

Solenoid valve

Unid, Taiwan, China

5

Aeration filter

0.2μm, Dominica United Kingdom

6

Breathing filter

0.2μm, Satorius, Germany

7

pH electrode

Mettler-Toledo/Hamilton, Switzerland

8

DO electrode

Mettler-Toledo/Hamilton, Switzerland

9

Peristaltic pump

Longer , United States

10

PLC

Siemens, Germany

11

LCD touch screen

GCMS

12

Mechanical seal

John Crane, United Kingdom

13

Diaphragm valve

Gemu/Burket, Germany

14

Pressure transmitter

BD, Germany
