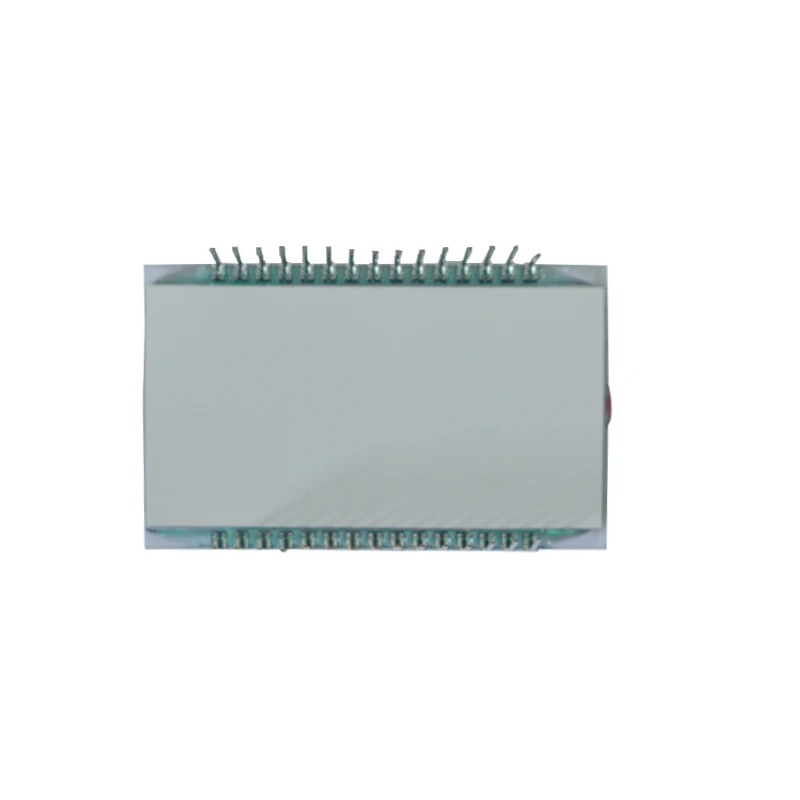

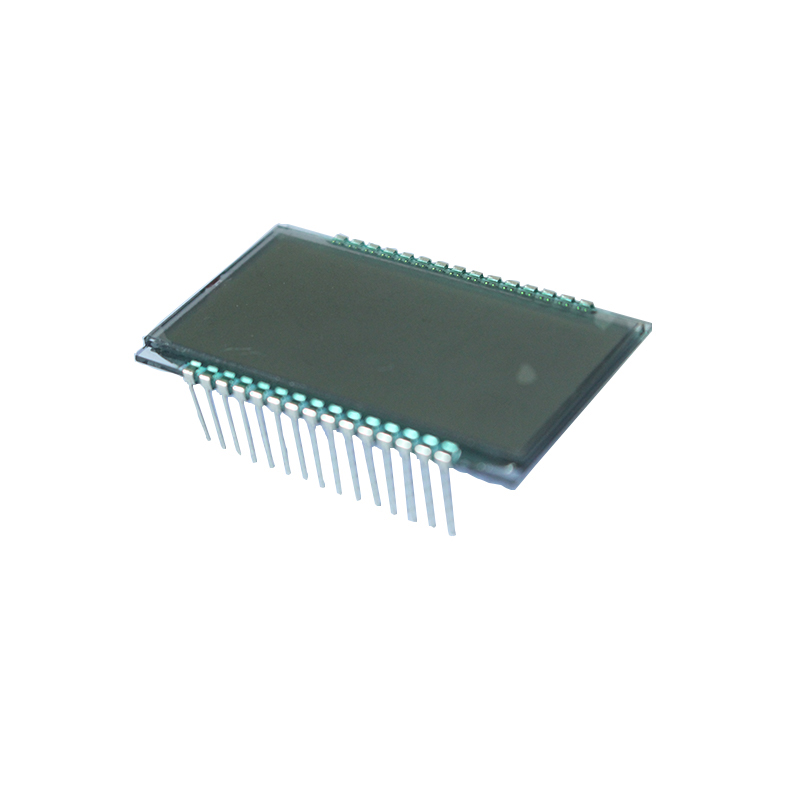

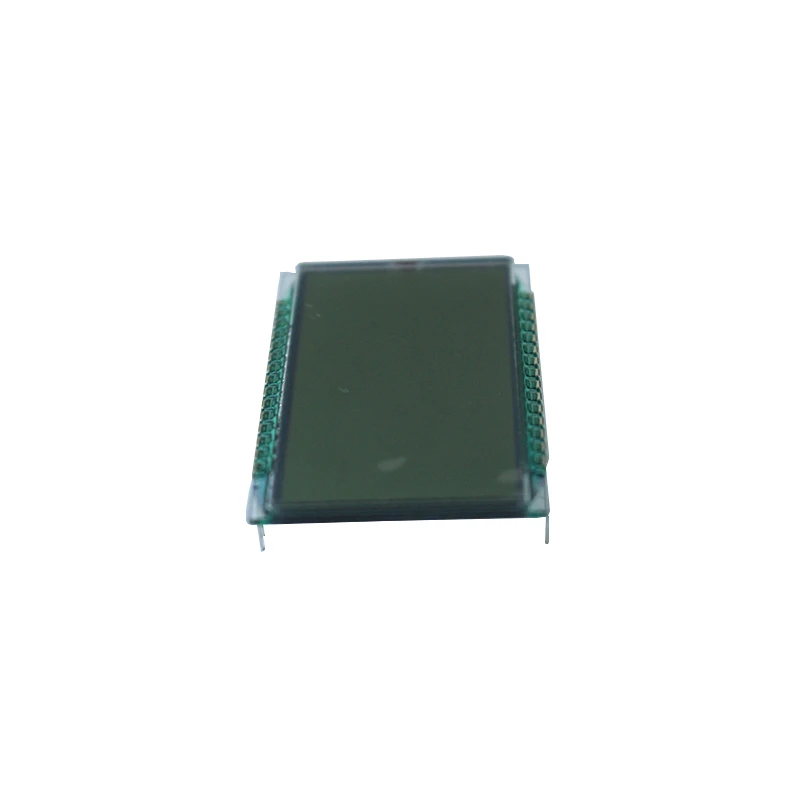

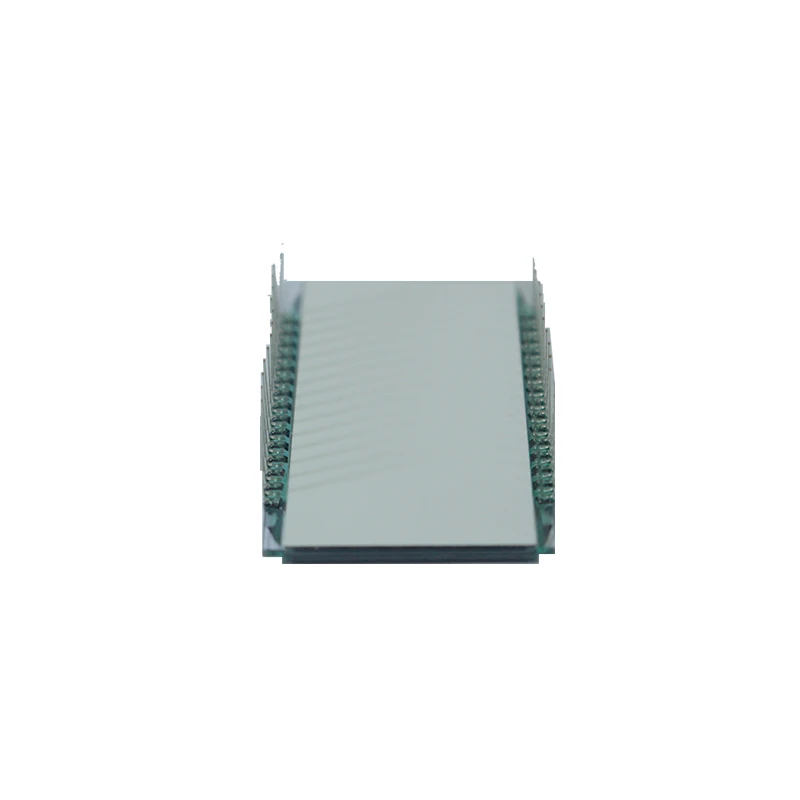

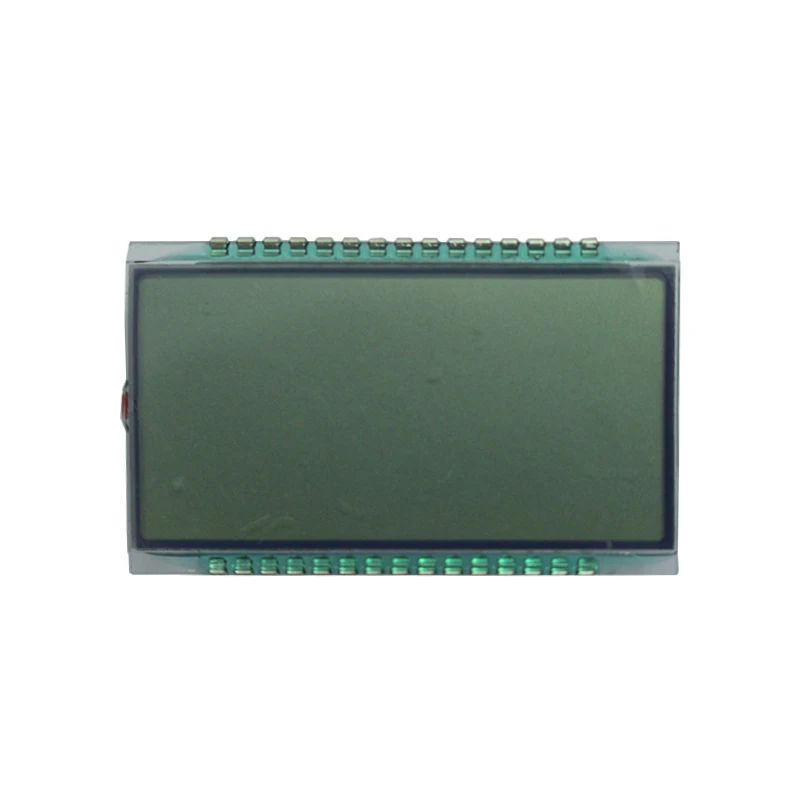

Сегментный 30Pin запасной дисплей, небольшие жидкокристаллические модули, COB символьный ЖК-модуль

Поделиться:


Цена:293,82 ₽
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики

Segment 30Pin Spare Display Small FATN LCD Modules COB Character LCD Module

Touch function needs to be added separately

Product Description



Dots Part No.   Controller Outline Dimension  View  Area Remark
Segment MTD101R PIN  19.2×13.0 17.2×8.0 1.5pitch,14PIN
MTD102T HEAT SEAL +FFC 14×15 9×9 1.0pitch,13PIN
MTD103T HEAT SEAL +FFC 14×15 9×9   1.0pitch,13PIN
MTD104T FPC 14×15 9×9   0.5pitch,32PIN
MTD105T FPC 14×15 9×9   0.5pitch,32PIN
MTD106T HEAT SEAL 26.50x19.00 22.50x16.60    0.7pitch,25pin
MTD107T PIN  14X8 1X4.5 1.0pitch,12pin
MTD108R  PIN  19X27

17X23

0.6pitch,30pin
MTD109R  PIN  11.4X8.6 9.06X6.6 0.6pitch,6pin
MTD110T PIN  18X14 15X7 2.0pitch,6pin
MTD111TA FPC 18.6X28 15.6X22 0.7pitch,31pin
MTD201 HEAT SEAL 24.15×16.7 22.0×12.05 1.0pitch,14PIN
MTD202 PIN  20.5×16.5 17.5×11.0 1.5pitch,12PIN
MTD203 PIN  20.5×16.5 17.5×11.0 2.0pitch,7PIN
MTD204 PIN  26.8×18.3 24.0×14.0 1.0pitchl,13PIN
MTD205 PIN  24.5×16.5 22.0×11.0 2.0pitch,9PIN
MTD206 PIN  26.8×18.3 24.0×14.0 1.0pitchl,13PIN
MTD207 PIN  26.8×19.3 23.8×13.8 1.0pitchl,6PIN
MTD208 ZEBRA 25.0x20.0 22.6x14.6 1.3pitch,34PIN
MTD209 PIN  20.0x12.0 18.0x8.0 1.0pitchl,14PIN
MTD210 HEAT SEAL 24.4x14.0 22.0*10.0  1.4pitch,14pin
MTD211 FPC 23.5*7.0    0.5pitch,11pin
MTD212T PIN  24.5.x16.5 22.0X11.0 1.5pitchl,10PIN
MTD213T ZEBRA 25.0X12.10 20.0X10.10 0.8pitch,24PIN
MTD214T PIN  22.5x20.5 14.5x18.0 1.5pitch,18pin
MTD215 PIN  25X17 21.71X12 1.0pitch,20pin
MTD216 PIN  21x23 18x16 2.54pitch,12pin
MTD217T HEAT SEAL 17.16X7.1 15.36X3.7898 0.5pitch,21pin
MTD218R ZEBRA 23X10.5 21X6.5 1.5pitch,7pin
MTD219T PIN  24X22.5 20.8X15.0 1.5pitch,32pin
MTD220 ZEBRA 23.50X33.00 20.50X27.70 0.7pitch,31pin
MTD221T PIN  23X14 21X10 1.5pitch,14pin
MTD222T PIN  20.50X16.50 17.50X11.00 1.5pitch,12pin
MTD223 ZEBRA 21.0X24.0 19.0X20.0 0.8pitch,24pin
MTD224T PIN  23X13 20X8 13PIN
MTD225 FPC 29.00X25.50 27.00X21.00 0.8pitch,29pin
MTD226 PIN  23X14 21X10 1.5pitch,14PIN
MTD227 HEAT SEAL 29X25.5 26.60X20.60 0.8pitch,31pin
MTD228 HEAT SEAL 21X29 18X24 0.7pitch,28pin
MTD229T FPC 24.10X24.10 22.10X19.80 0.7pitch,28pin
MTD230T PIN  31.00X28.10 24.70X21.60 1.27pitch,23pin

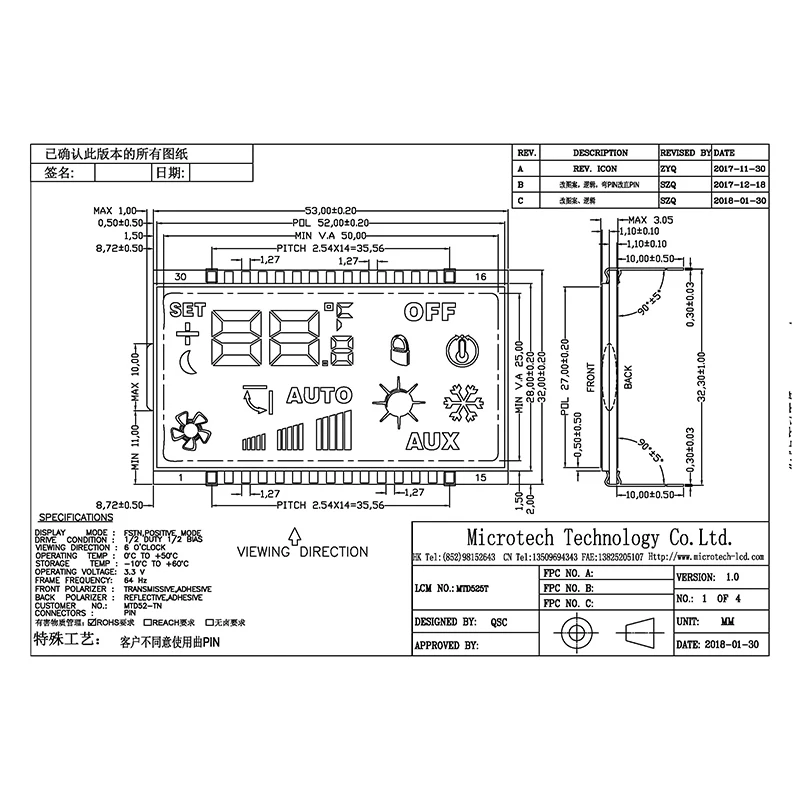

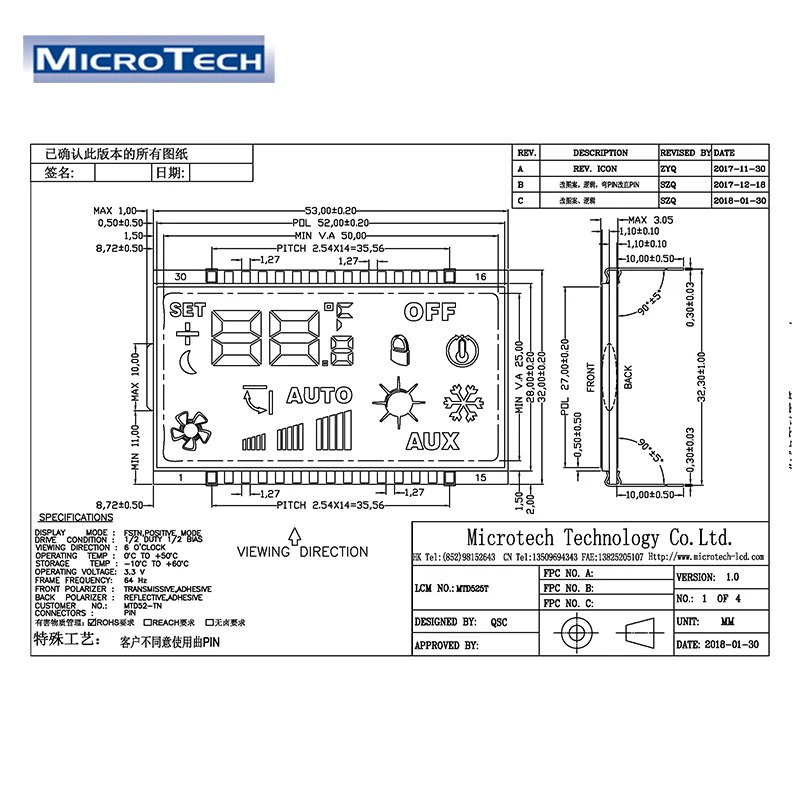

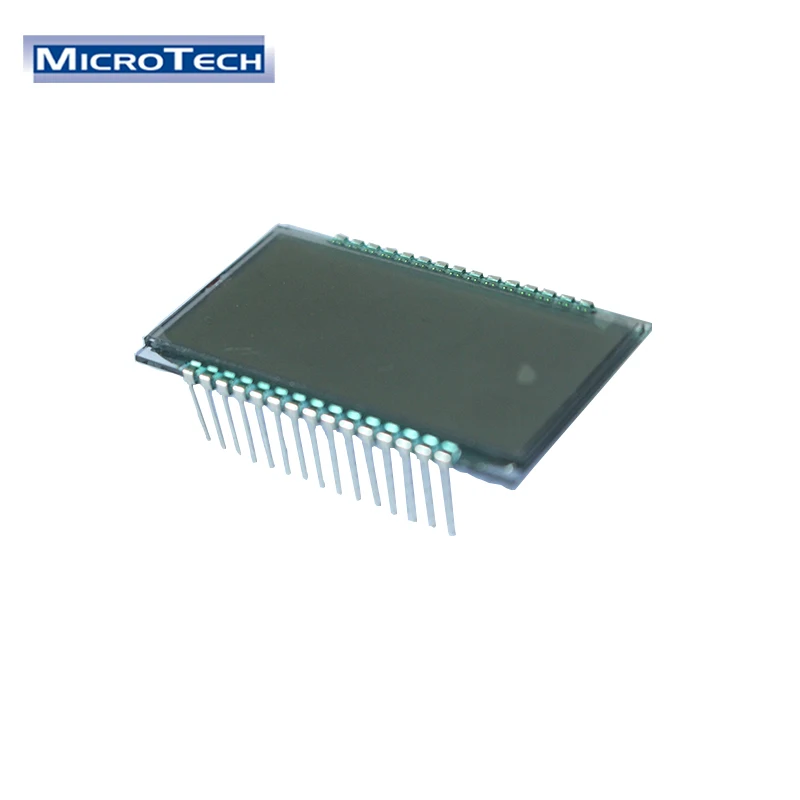

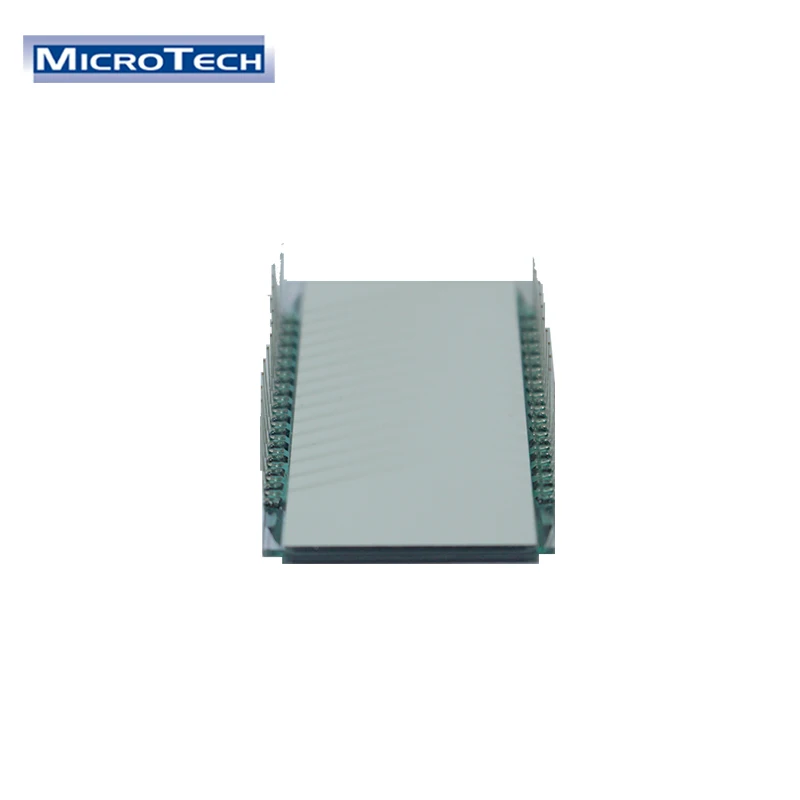

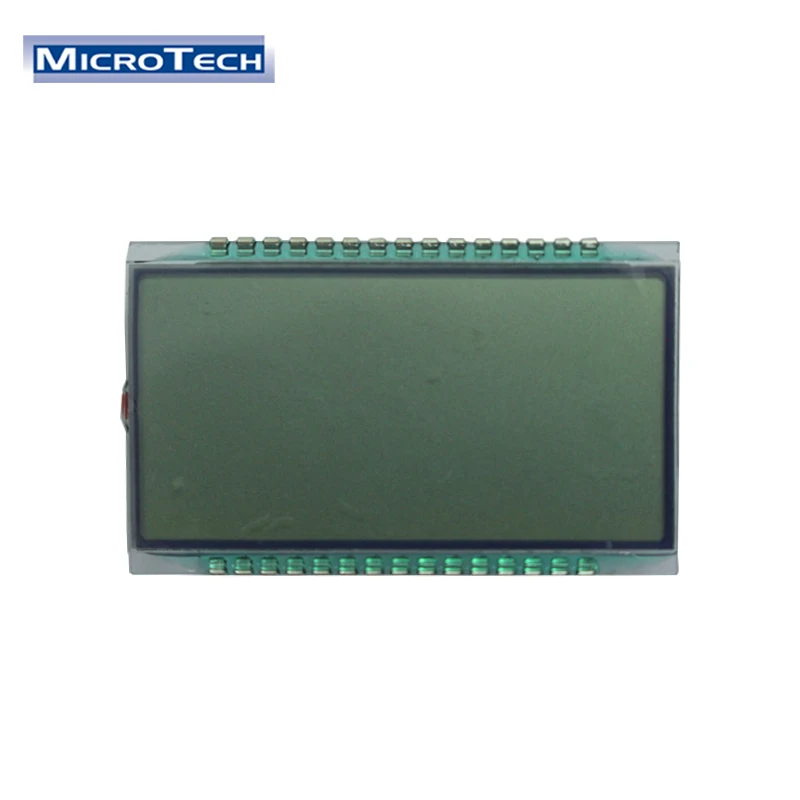

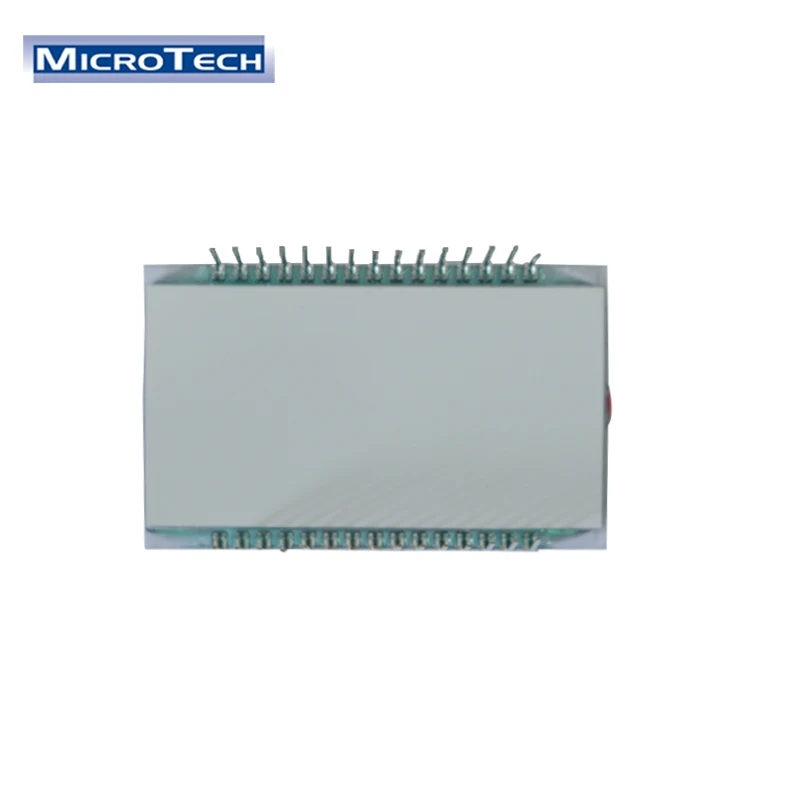

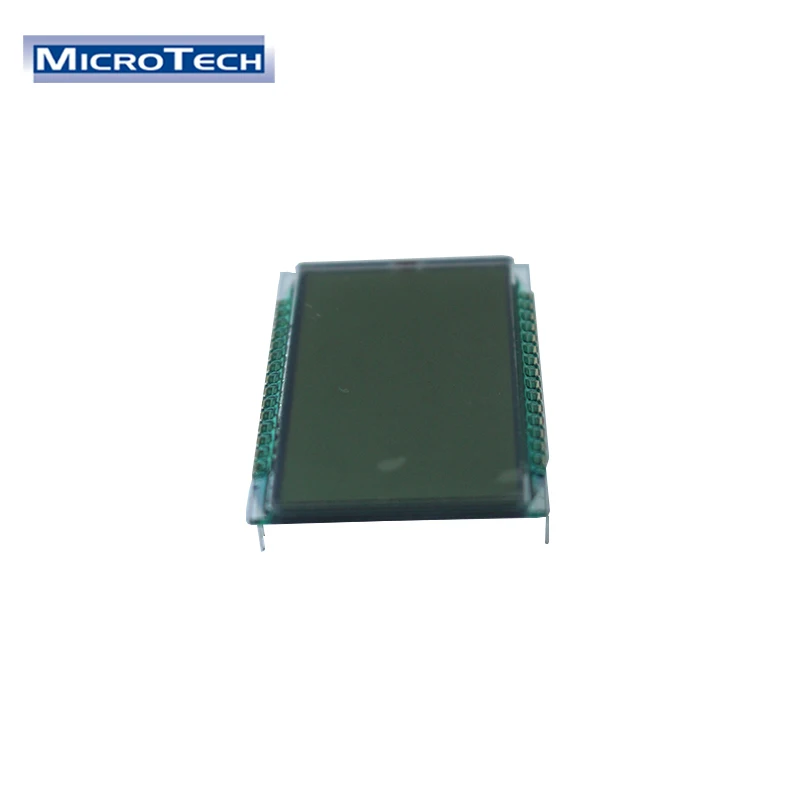

 MTD525(alibaba-6)MTD525(alibaba-1).jpgMTD525(alibaba-2).jpgMTD525(alibaba-3).jpgMTD525(alibaba-4).jpgMTD525(alibaba-5).jpg

Main Products

Company Information

Microtech Technology Company Limited established in 2001,offers professional design and manufacturing services for hundreds types of Liquid Crytal Display modules and Touch Panels-TN,FSTN,TFT,RTP,CTP.With the advantages of high contrast,fast response time,wide viewable angle and low power consumption,Microtech's products are widely used in Industrial Equipment,Medical devices,Home Intelligent Devices,Digital cameras,Video Game Devices,Instruments etc.Since its establishment,the management has been following human-oriented strategy and  developing reliance among customers.To comply with these beliefs and ISO 9001:2015 standards,Microtech keeps on recruiting capable professionals,adopting advanced technology,developing new products,improving process and  enhancing quality.Based on its strong R&D capacity, outstanding product quality and professional service,Microtech has won the high reputation from both mainland and oversea customers,and established long-term strategic partner relationship with them.Company InformationFoctory

Certificates

Our products are not only satisfy the display individuation requirement of all the mobile phone manufacturing factories in the mainland,but also meet the highly uniformity and reliability requirement to the display effect of module for many famous brands in Europe,American and Asia pacific.In addition,our products which have reached the extent of excellent quality and reliability could be applied in Automotive,Medical,Power station,Transportation,Industrial & Equipment and Office equipment for many famous enterprises in American,France,Italy,Australia,Korea and so on.

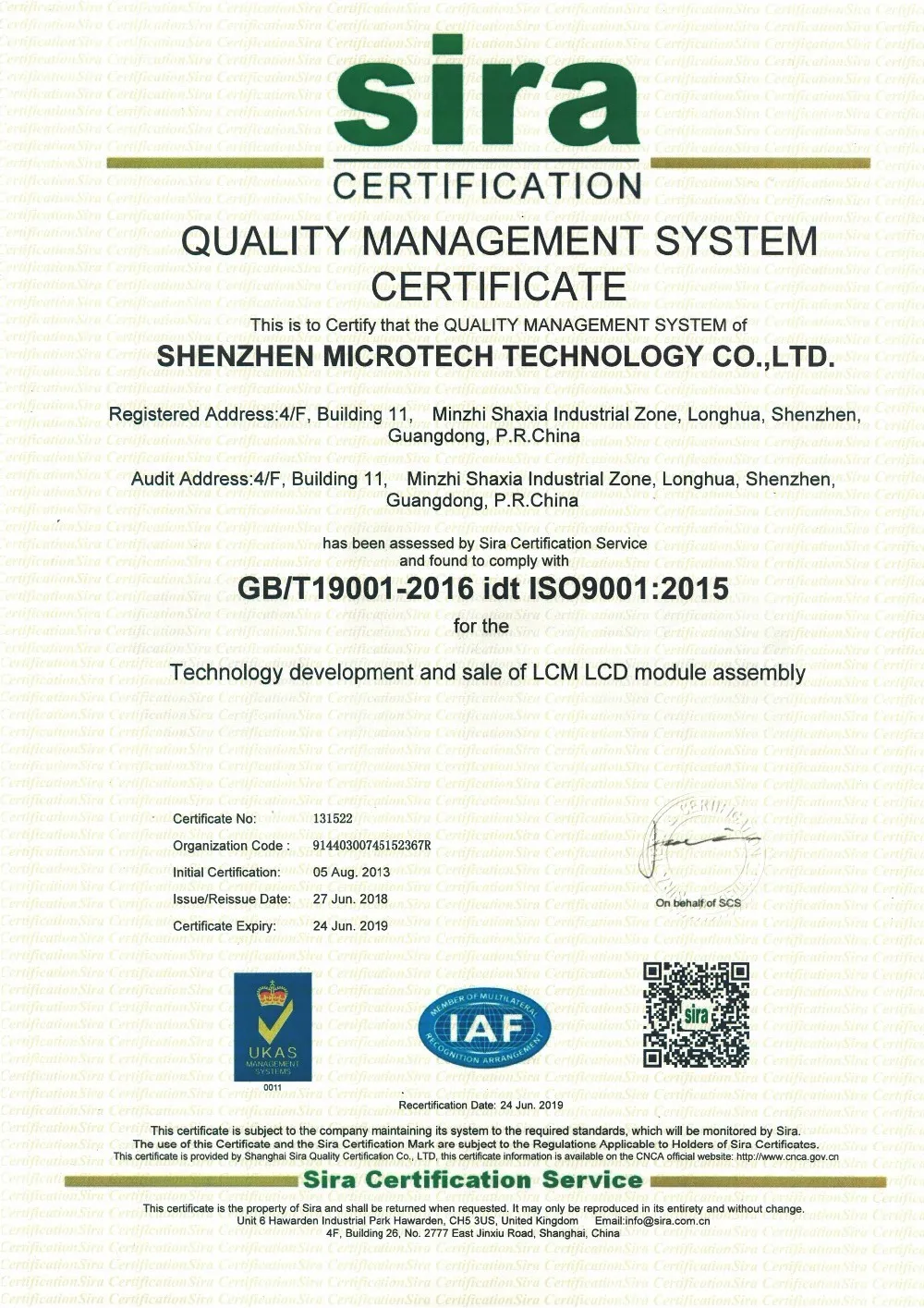

Our company have passed the ISO 9001 quality system certification and SGS, RoHS, CE certification, to ensure all of our products and services are in  international standard.

ISO9001() ISO9001()

Customer

In order to obtain an excellent quality management team and offer our customers professional & efficient service and satisfied products,We comprehensively carry out Zero Defect quality management,implement ISO9001:2008 standards training and organize the examination /enrollment of quality management personnel national professional qualification.Our Mission "Efficient and timely service is the key to our success.Our success is tied with our client's success. We are dedicated to provide excellent service to our customer at the most competitive prices." To provide customer a value added LCD product by stringent quality control,comprehensive technical support,and utilization of latest technology.

Exhibition

With our motto "Quality and Services are vital to enterpriess",Microtech aims to produce high quality LCD module to meet the customers' specific needs in all-round way.Meanwhile we seek for continuous service improvement,increase our market share,strengthen our competitiveness,and ultimately,expand our market worldwide!
