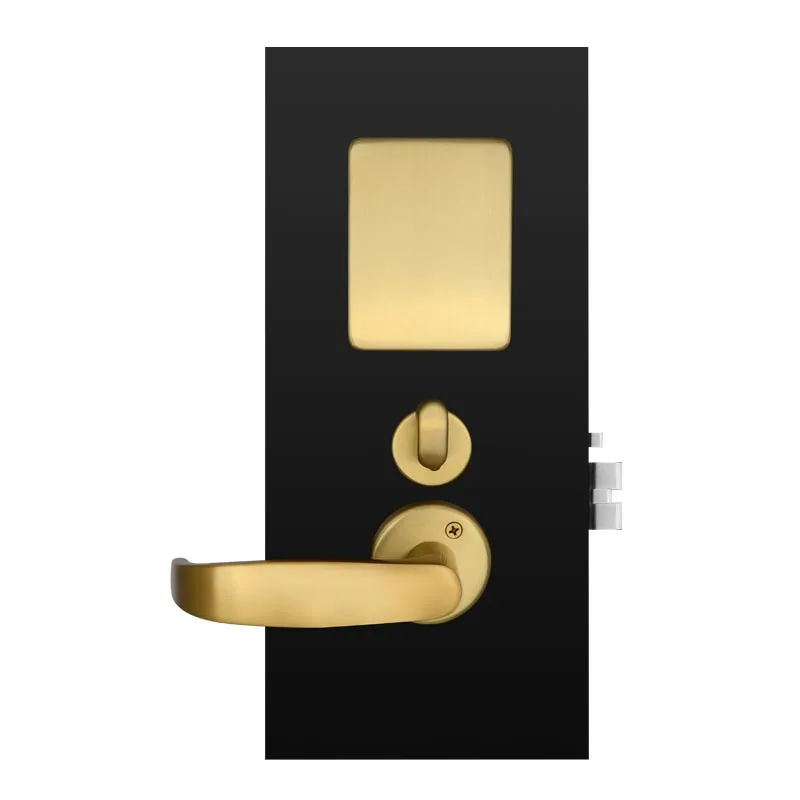

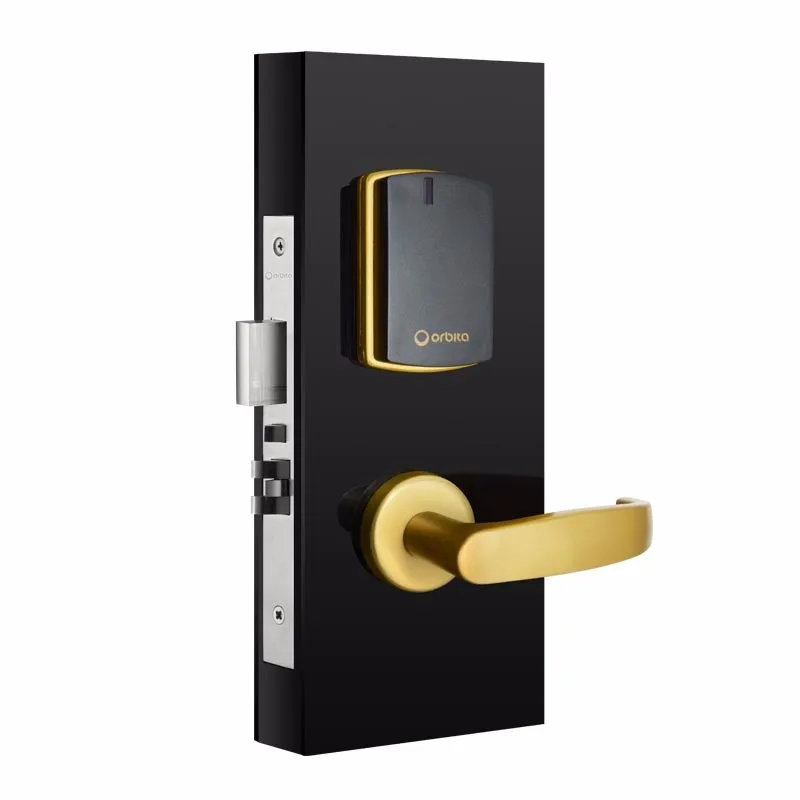

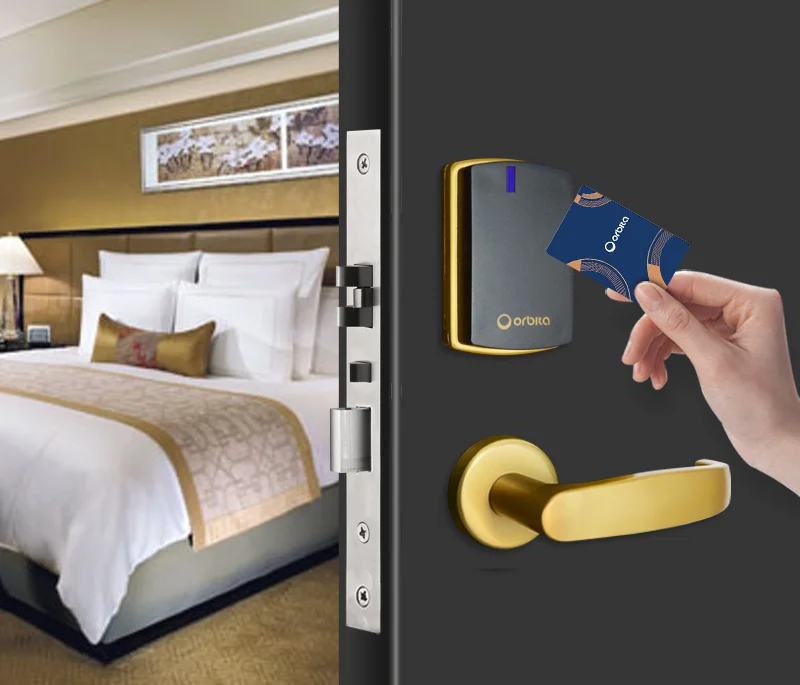

Электронный цифровой дверной замок с карточным ключом для отеля электронный

Name: Электронный цифровой дверной замок с карточным ключом для отеля электронный
Brand: Orbita,Technology,Co.,Ltd.
Availability: InStock

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

Hotel Card Key Electronic Digital Door Lock

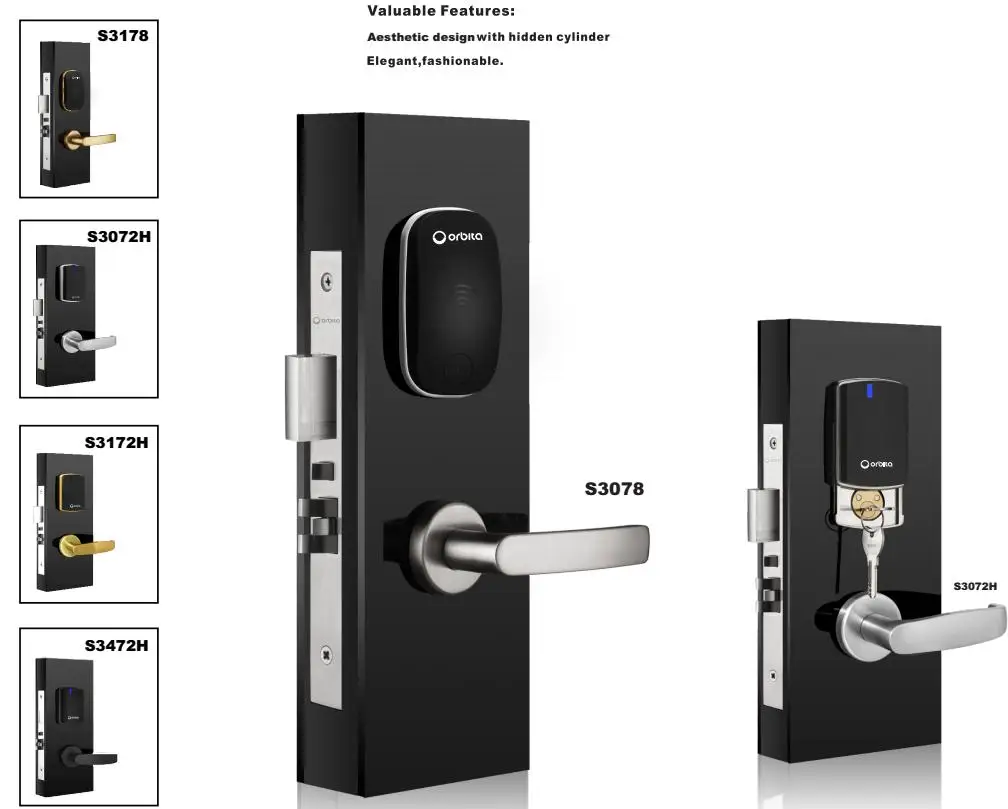

3072 split lock S3072H-%e8%af%a6%e6%83%85_05

1.Waterproof Features for RF card hotel lock

1.304 stainless steel panel and handles

2.10 years color warrantee

3.Sealed electronics inside

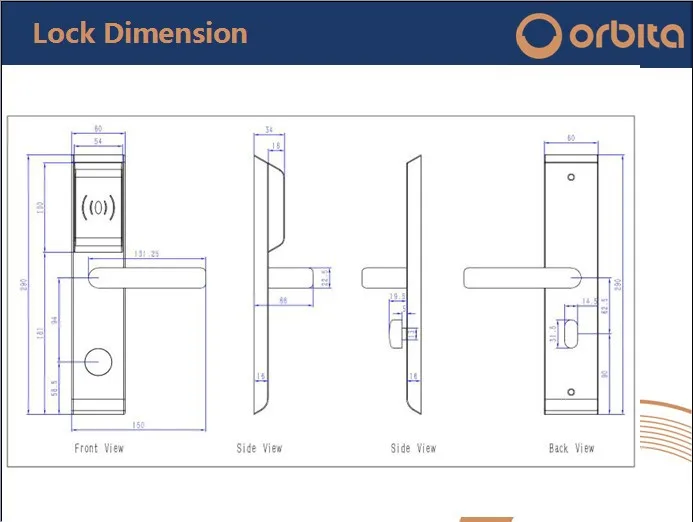

2.lock dimension

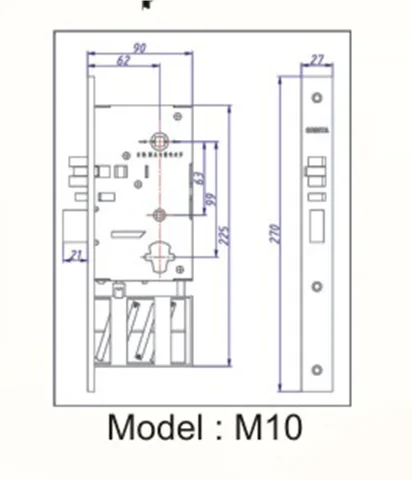

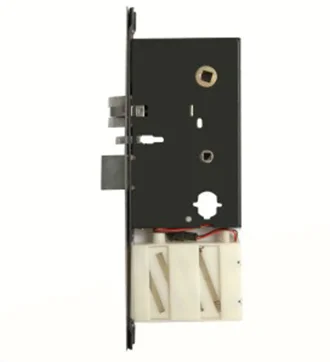

3.Mortise

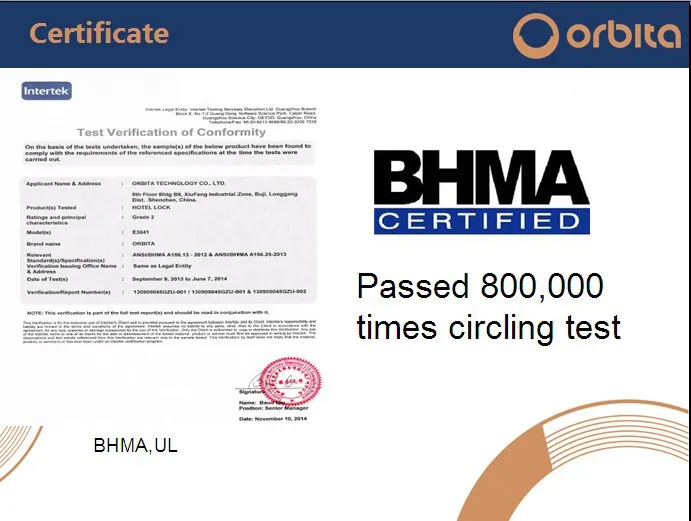

4.Certifications

5.Main Features:

Product Description

*Data sheet:Hotel Card Key Electronic Digital Door Lock*
1. Weight	3.5kgs
2., Size	245mm78mm17mm
3. Static Load	<15Ua
4. Working Load	200Ma-400Ma
5. Humidity	20%-90%
6. Working tempreture	-50~80 degrees
7. material	Stainless steel 304, moisture proof, fire retardant
8. color	Brushed ss color with PVD coating more than10 years
9. mortise	ANSI Standard mortise/Euro standard mortise
10. Inside Dead Bolt	Inside handle retracts latches and deadbolt
11. card type	S50/S70,compatible with Energy Saver
12. Override Computer Key	individual/master cylinder for Emergency use
13. Lock operation records	240 PCS or more
14. Power	4PCS#5AA Alkaline batteries.18 months' duration
15.LowBattery Voltage warning	Lower than 3.5 V
16. PMS interface	Fidelio regestered
17. Certificate	CE&FCC

6.Software

•Step by step user friendly software

•Software operation records.

•Classified operating authorization.

•Download the lock opening records.

•Support Winxp,win7, win8, vista.

•Support 32/64 digit system.

•Interface with major PMS.

•Suspend lost card, blacklist certain users.

LCD Error indication

LCD Error indication:

1	When showing a card to the lock, the LCD has no display; it means the lock hasn’t been authorized. Or the card has no information inside.
2	When showing a card to the lock, the LCD shows “wrong room”, it means the card is belong to other doors or haven’t been initialized in this lock.
3	When showing a card to the lock, the LCD shows “Card Expired”, it means the card time is expired.
4	When showing a card to the lock, the LCD shows “check-out”, it means the card has been suspended.
5	When showing a card (except guest card and master card) to the lock, the LCD shows “ Don’t disturb”, it means it was deadbolt working.
6	When showing a card to the lock, the LCD shows " room disabled", it means the room has been blocked.

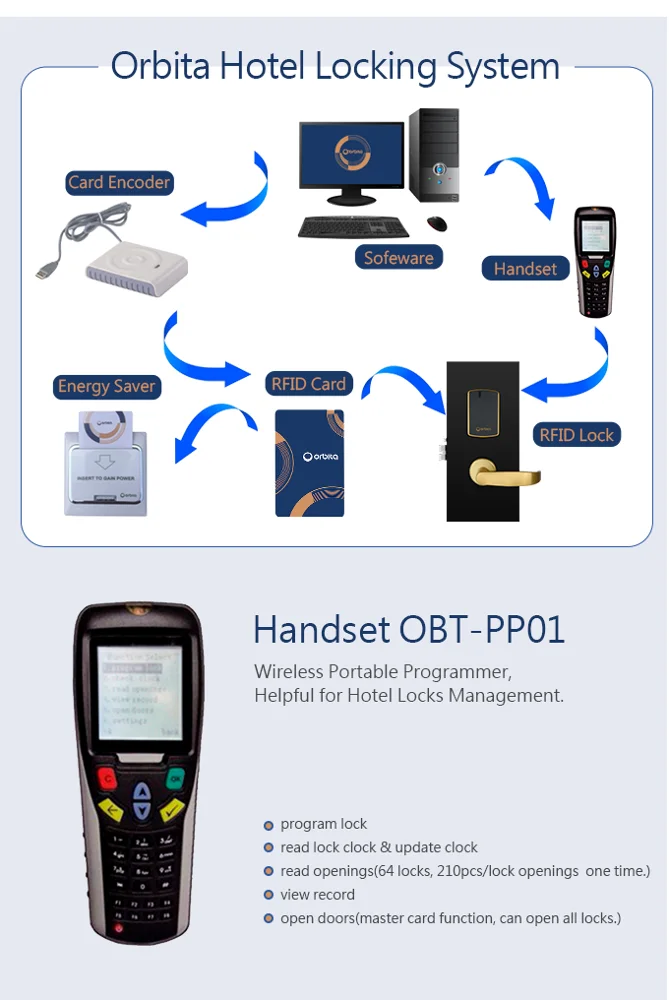

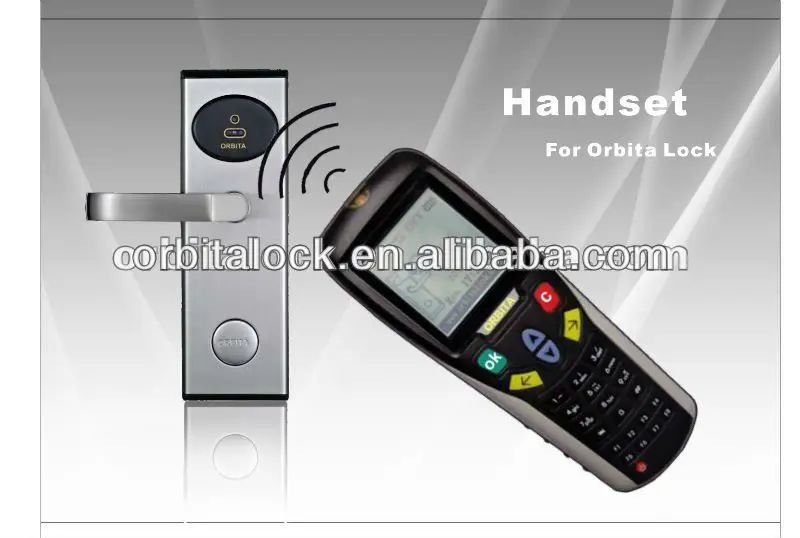

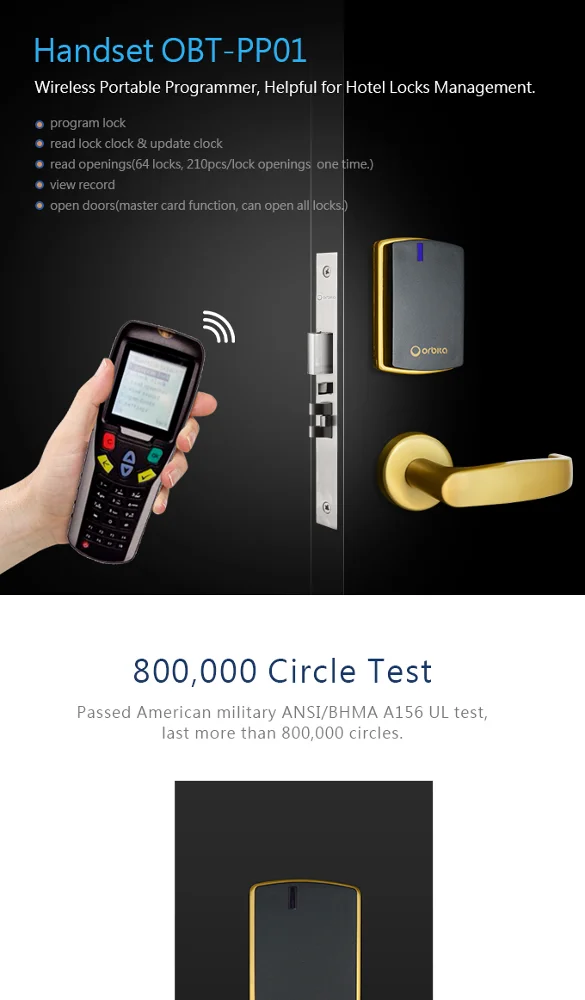

handunit

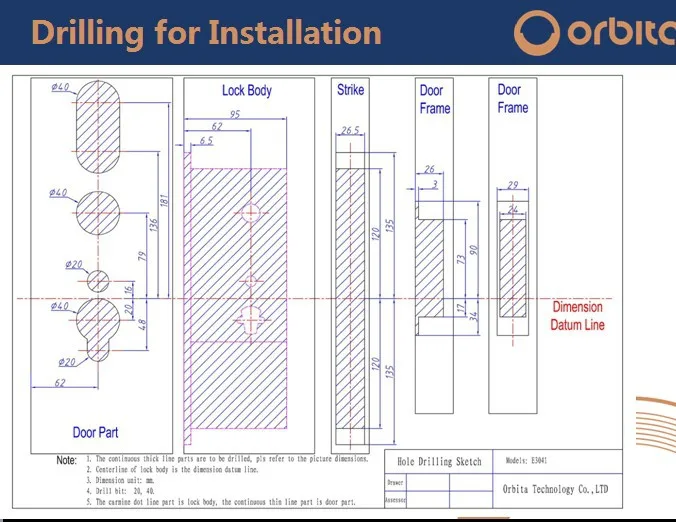

8.Driling for installation

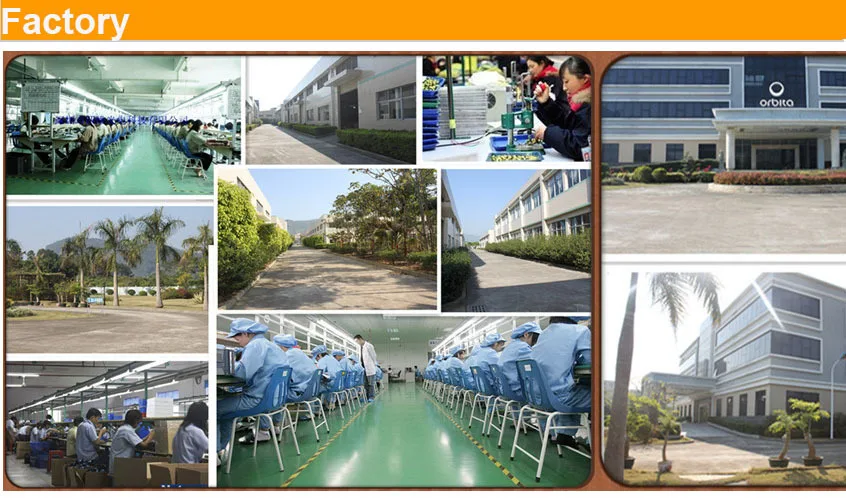

9.Factory and office pictures
