Автоматическая вращающаяся промышленная стиральная машина для пива, стеклянная бутылка, винная мойка и сушилка

Machine description:

This washing machine is most commonly used and high efficient washing machine for cleaning recycled beverage glass bottles at present in China , it is simple operation, easy maintenance, economical and practical. Adopt high temperature hot alkaline soaking and clean with a strong high-pressure brush associated and then through backwash and drain technology, effectively solve recycled dirty reusable bottles cleaning problems. The equipment needs to be done by a combination of three machines according to the technological process , the entire process is automatic. The specific washing process is : recycling bottles need to be cleaned entered into transportation system by the vertically arranged via dial wheel coming into soaking machine, dial wheel interval pushed 10 bottles into the machine to soak, soaking machine interval movement dialing bottle inlet, the bottles accept soaking through spraying and high temperature hot alkaline water by soaking machine,soaking time is about 10 minutes, the bottles is soaked changes in the different temperature , this process can remove bottle label paper and precipitation dirt in the bottle ,the bottles is repeatedly soaked in the soaking machine coming into the outer brushing machine automatically  and accept outside bottle brushing machine washing and brushing the bottles, the bottles can directly enter into the rinsing and draining machine, where the inside of the bottle is injected into the warm water then accept the bottle brushing and cleaning for the second time, then through high pressure backwashing, then overturned and drained vertically into conveyor system and filling machine.

Machine show:

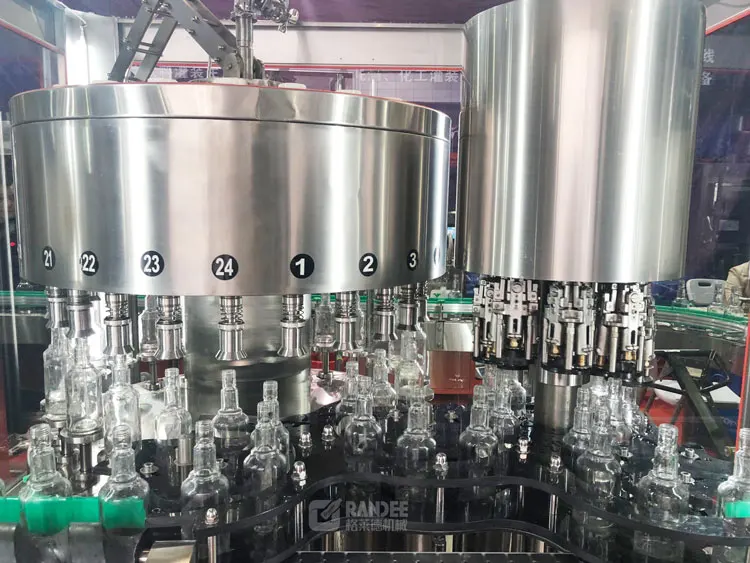

Suitable for glass bottle Wine Filling and Capping Machine

	Automatic bottle conveyor star wheel, holding interval

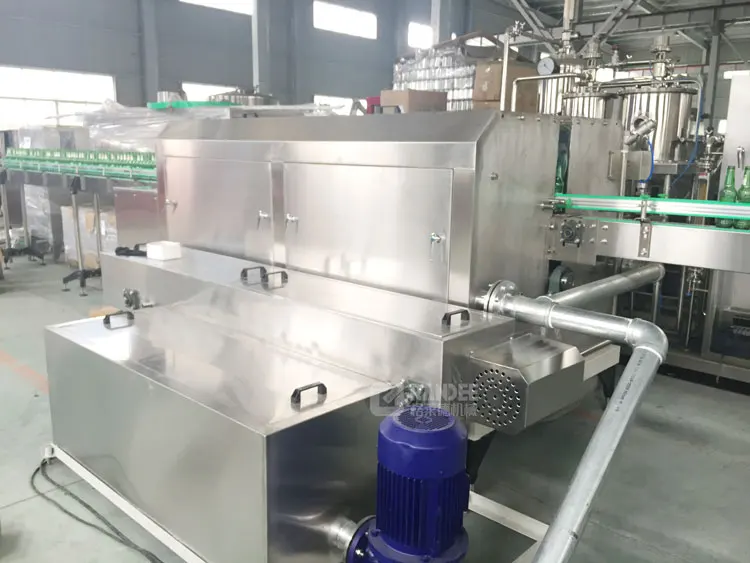

Hot alkaline water de-label tank, use chain plate rolling to remove labels
	Internal brush system, used to remove stubborn stains in the bottle, high-speed rotation completely remove

Main technical parameter:

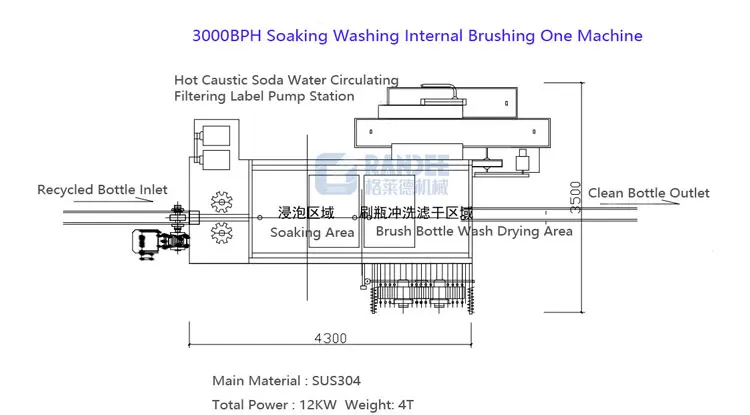

Layout of glass bottle washing machine:

Recycle glass bottle washing machine for environmental protection

Q1: How to find suitable glass bottle washing machine?
A1: Looking for different types of glass bottle washing machine

Q2: What's capacity of recycled glass bottle washing machine?

A2: We have different capacity with 2000-3000BPH, 5000-6000BPH or 9000-10000BPH for 150ml-1000ml glass bottle.

Q3: What is the cleaning solvent for used glass bottle ?

A3: Use solid state CAUSTIC SODA FLAKES

Q4: Is there additional equipment for this bottle washing machine ?

A4: Oil fired steam boiler matched.

Q5: Are you a trading company or a manufactory?
A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .

Q6: Do you have technical support after we purchased your machines?
A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q7: If you buy our machines, can you offer us wear-out spare pats?
A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

If you are intersted in this glass bottle washing machines, please send your inquiry.
