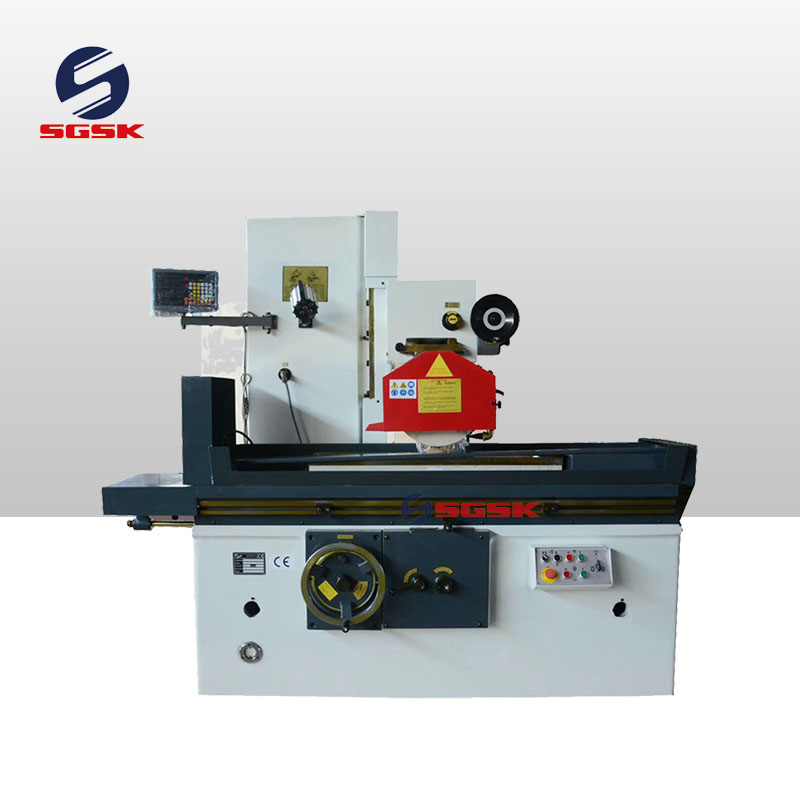

Горизонтальный шлифовальный станок M7140 ручной шлифовальный станок прайс-лист
- Категория товара: Surface Grinding Machines >>>
- Поставщик (Оптовый магазин): Shandong,Gsk,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Horizontal grinding machine M7140 manual grinding machine price list
Products Description
Details Display
The main performance characteristics:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.

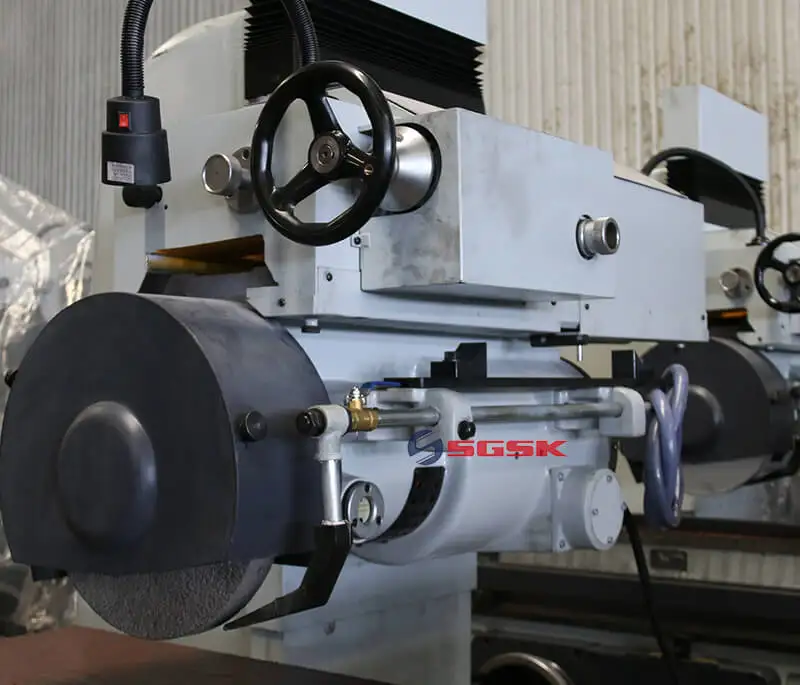

Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product main technical parameters:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.
Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product main technical parameters:
Description | Units | M7140x1000 | M7140x1600 | M7140x2000 | ||
Size of work table(L x W x H) | mm | 1000x400 | 1600x400 | 2000x400 | ||
Max. Longitudinal movement of worktable | mm | 1100 | 1700 | 2100 | ||
Max. Distance from the spindle center line to the worktable surface | mm | 570 | 570 | 570 | ||
Max. Cross movement of grinding herd | mm | 450 | 450 | 450 | ||
Max. Vertical movement of grinding head | mm | 400 | 400 | 400 | ||

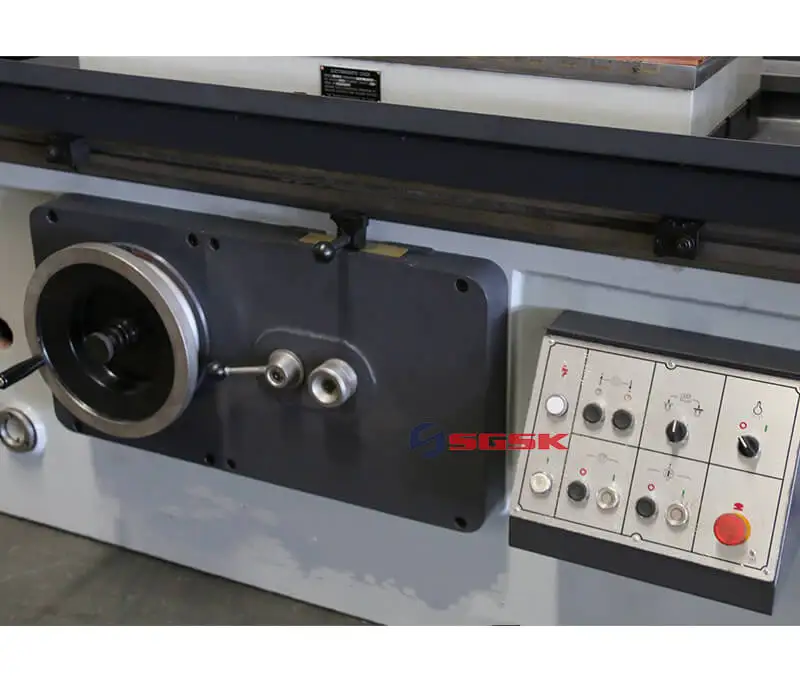

Vertical movement of the grinding head by hand wheel | Every lattice | mm | 0.01 | 0.01 | 0.01 | |
Each turn | mm | 1.00 | 1.00 | 1.00 | ||
Rapid lifting motor | Power | KW | 0.37 | 0.37 | 0.37 | |
Speed | R/min | 1440 | 1440 | 1440 | ||
Abrasive wheel dim (L x D x W) | mm | 350x127x40 | 350x127x40 | 350x127x40 | ||
Speed of grinding wheel | r/min | 1440 | 1440 | 1440 | ||
Total power of motor | KW | 9 | 10 | 12 | ||
Power of spindle motor | KW | 5.5 | 5.5 | 5.5 | ||
Power of oil pump motor | KW | 3 | 4 | 5.5 | ||
Processing accuracy | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 | ||
Surface roughness | um | Ra:0.63 | Ra:0.63 | Ra:0.63 | ||
Package(L x W x H) | mm | 2800x1750x2350 | 4500x2000x2350 | 5500x2000x2350 | ||
Net weight | Kg | 4000 | 4100 | 4200 | ||
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
