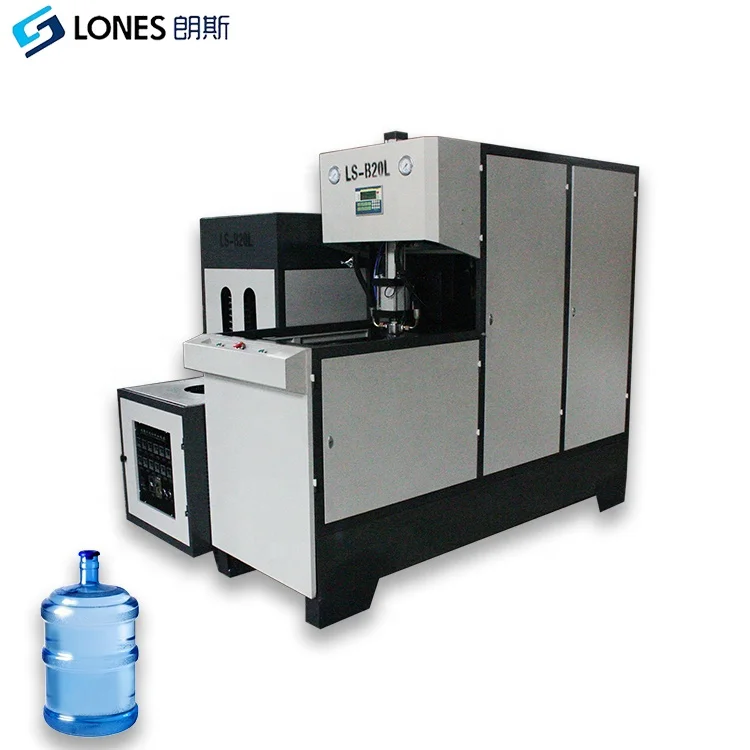

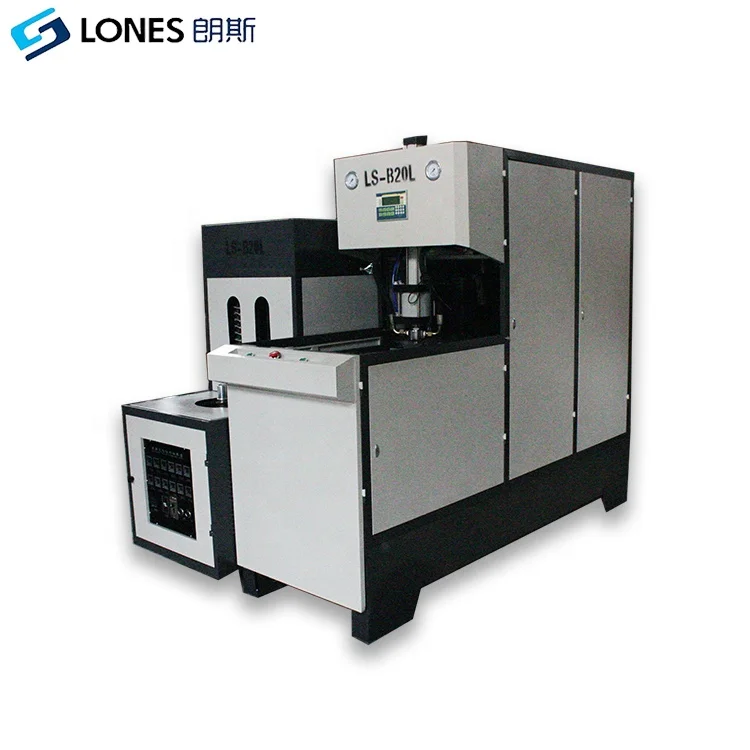

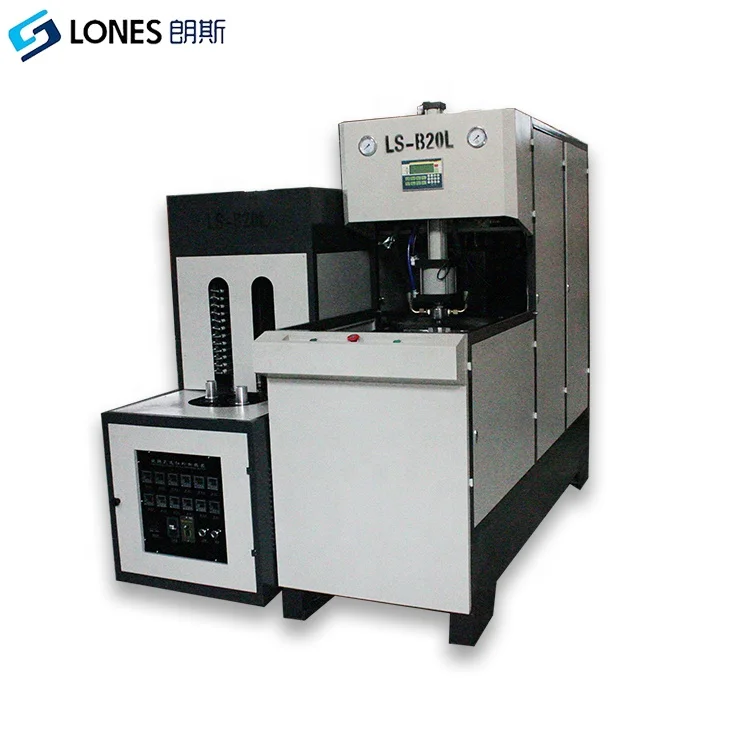

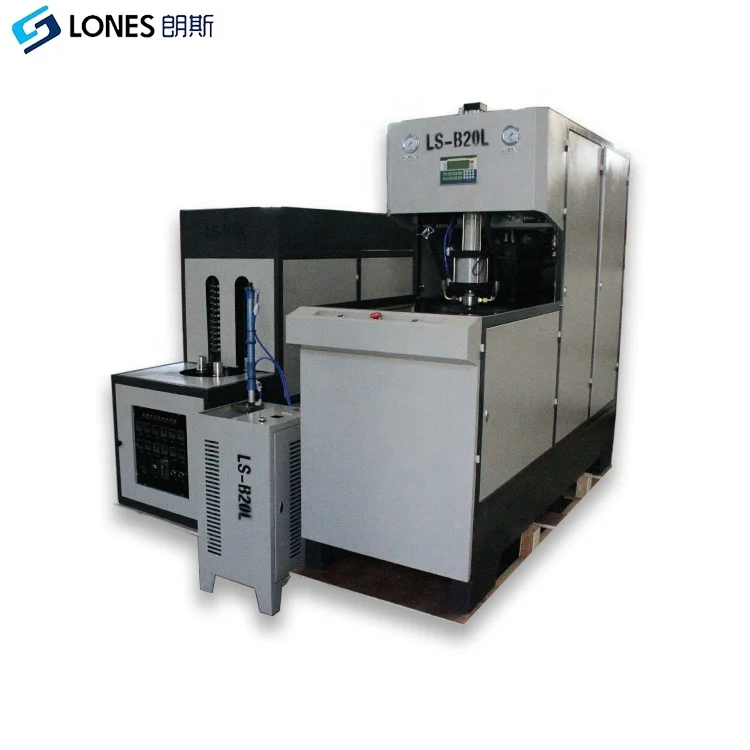

Ручной LS-B20L 5-галлонная бутылка с 10L 30L в 20-литровые бутыли бутылка выдувного формования машины 100BPH PLC контроллер 1 год гарантии
- Категория товара: Plastic & Rubber Processing Machinery >>>
- Поставщик (Оптовый магазин): Taizhou,Huangyan,Lones,Plastic,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
LONES MACHINERY has been engaged in plastic bottle blowing machine research,development and production more than 10 years.My factory concentrating on plastic container packaging the whole line of solutions,to provide from PET preforms to bottle design,semi automatic/full automatic blow moulding machine as well as bottle mould ,cap mould ,preform mould and handle series of plastic mould solutions.

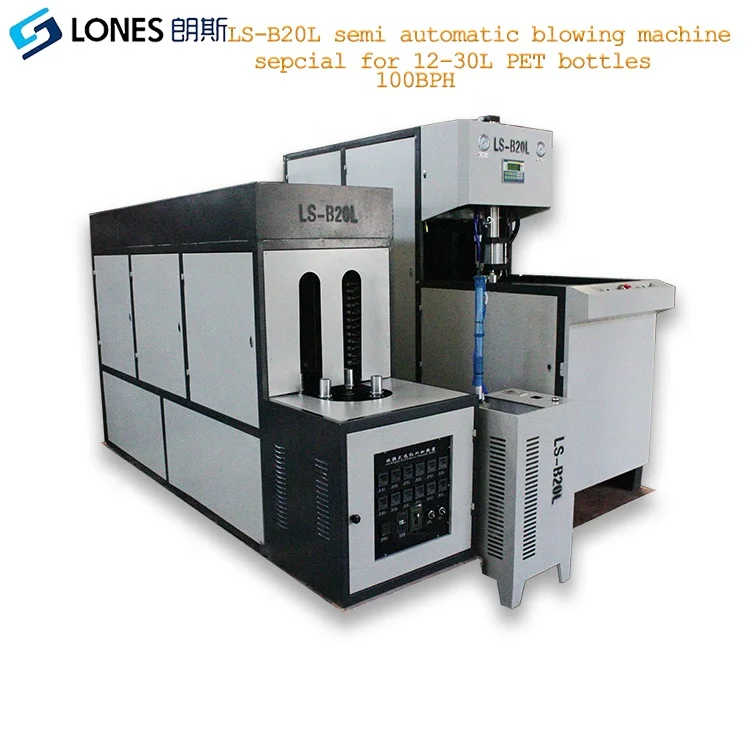

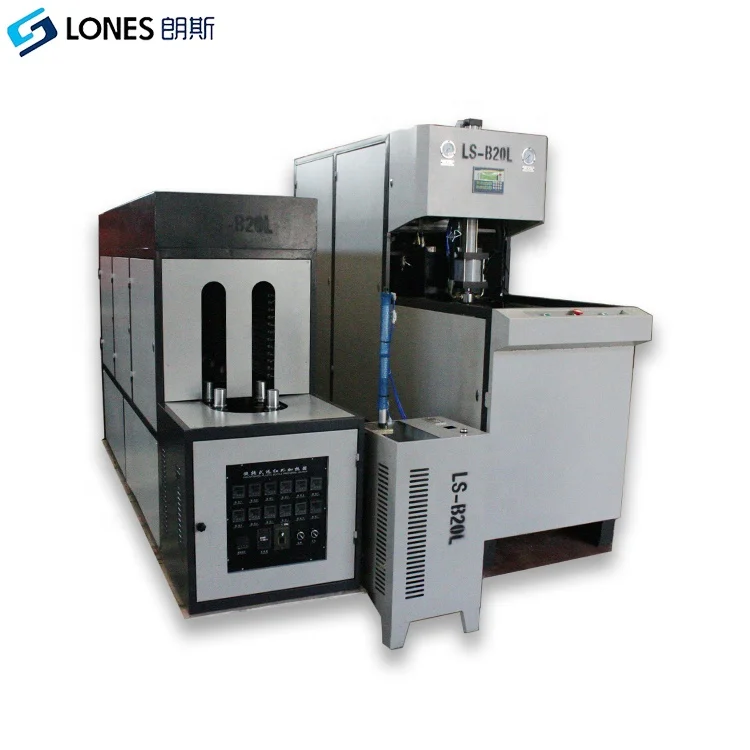

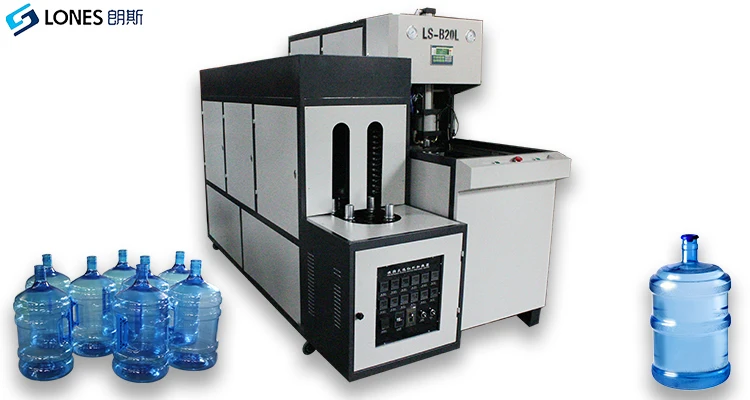

LS-B20L SEMI AUTOMATIC BLOWING MACHINE AND AUXILIARY MACHINE PARAMETER | ||||||
THEORETICAL OUTPUT | 120BPH | |||||
HEATING CAPACITY | 15KW | |||||
MAX BOTTLE VOLUME | 30L 1-CAVITY | |||||
BLOWING PRESSURE | ≦3.5MPA | |||||
MOTION PRESSURE | ≦1.0MPA | |||||
MAX D*H | Φ280*H450 | |||||
MOULD THINKNESS | 300-450MM | |||||
AIR COMPRESSOR | 1.6M³/3.0Mpa / 2.0M³/3.0Mpa | |||||
AIR COOLING DRYER WITH FILTER | 3.0M³/3.0Mpa | |||||
WATER CHILLER | 3HP | |||||
AIR TANK | 0.3M³/3.0Mpa / 0.6M³/3.0Mpa | |||||
Main Features
1) Especially used to make PET bottle volume more than 6 gallons.
2) Suitable for the production of 25 liter bottle neck diameter 5500 mm wide mouth bottle.
3) The infrared lamp and special reheating device ensure heating the thick-wall preform well.
4) Specially designed cooling system in the oven ensure the quality of the preform neck.
5) Advanced PLC control system, with counting function,control time accurately.
6)Easy to install and start,just need 1 person to operate.
Detailed Images
Machine Parts

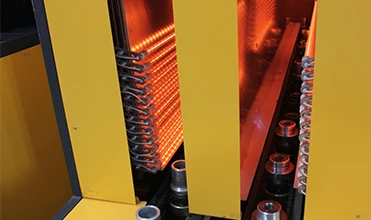

Name: OVEN
Brand:LONES
Original: CHINA
48/64PCS INFRARED LAMP TUBE,`23HOLDER
EACH LAMP TUBE IS CONTROLLED INDEPENDENTLY AND THE DIRECTION OF LAMP TUBE CAN BE ADJUSTED,
ENSURE EACH PREFORM IS HEATED WELL.
Machine Parts

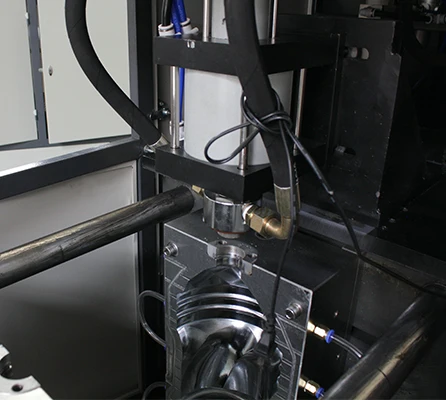

Name: CYLINDER
Brand: YONGCHENG/AirTAC/FESTO
Original: CHINA/GERMANY
.
Machine Parts

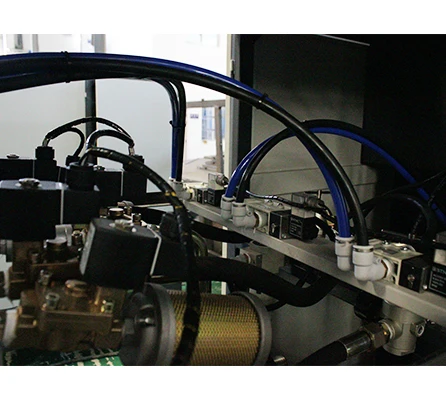

Name: SOLENOID VALVE
Brand: STNC
Original: CHINA
Our Service
Manufacturing Technique
Packing & Delivery

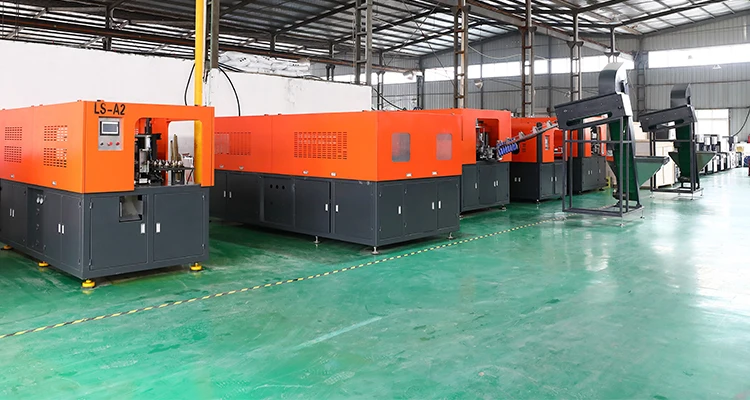

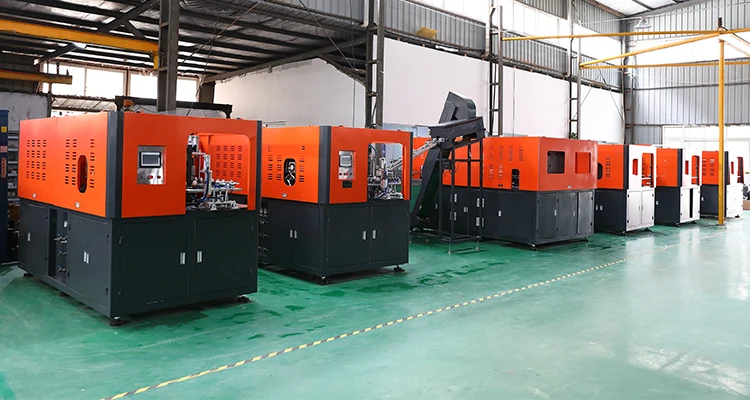

My factory
